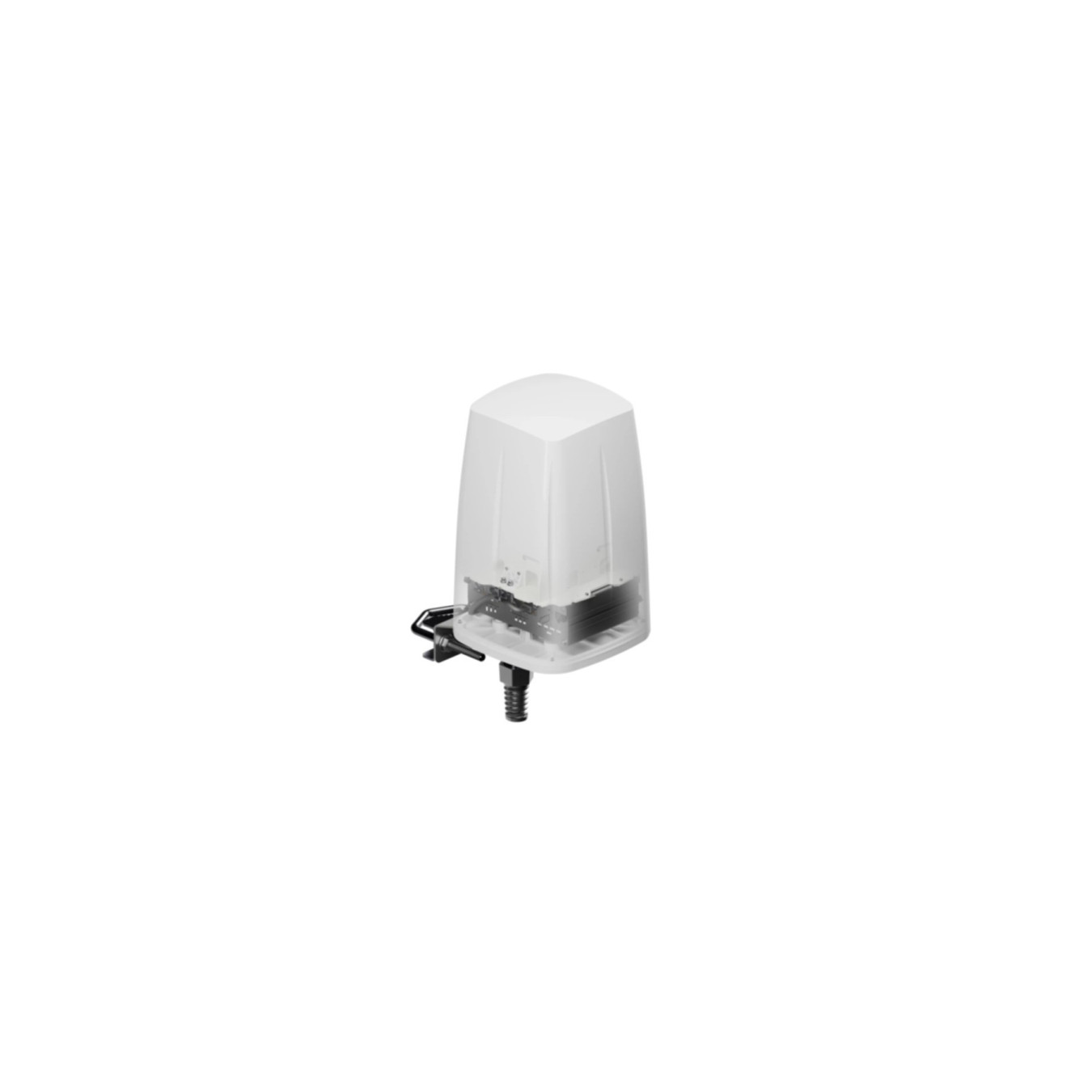

Teltonika Antenna TPR1ICA70 - LTE/5G, Wi-Fi (2.4–6 GHz), GPS, SMA Male, Omni-directional, IP67
Multi-band omni antenna for LTE/5G, Wi‑Fi and GPS. 0.617–4.2 GHz (Wi‑Fi 2.4–6 GHz), up to 28 dBi, SMA male, IP67, ceiling/wall mount, -40–75°C.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Other PC Accessories - Type | Other |
|---|---|
| Other PC Accessories - Material | Plastic |
| Other PC Accessories - Lighting | None |
PR1ICA70
OUTDOOR LTE & 5G/WI-FI/GPS ANTENNA FOR RUTX50 AND RUTM50 ROUTERS
| Frequency band | 0.617 - 4.2 GHz |
| Impedance | 50 Ω |
| Bandwidth note | 617 ~ 960, 1700 ~ 2200, 2300 ~ 2700, 3300 ~ 3800 MHz |
| Antenna gain level (max) | 28 dBi |
| Wi-fi frequency range | 2.4 - 6 GHz |
| Antenna type | Omni-directional antenna |
| Antenna connector type | SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | <2.50 |
| International Protection (IP) code | IP67 |
| Mounting | Ceiling/wall |
| Compliance certificates | RoHS |
| Operating temperature (T-T) | -40 - 75 °C |
| Width | 160 mm |
| Depth | 189 mm |
| Height | 347 mm |
| Weight | 1.5 kg |
