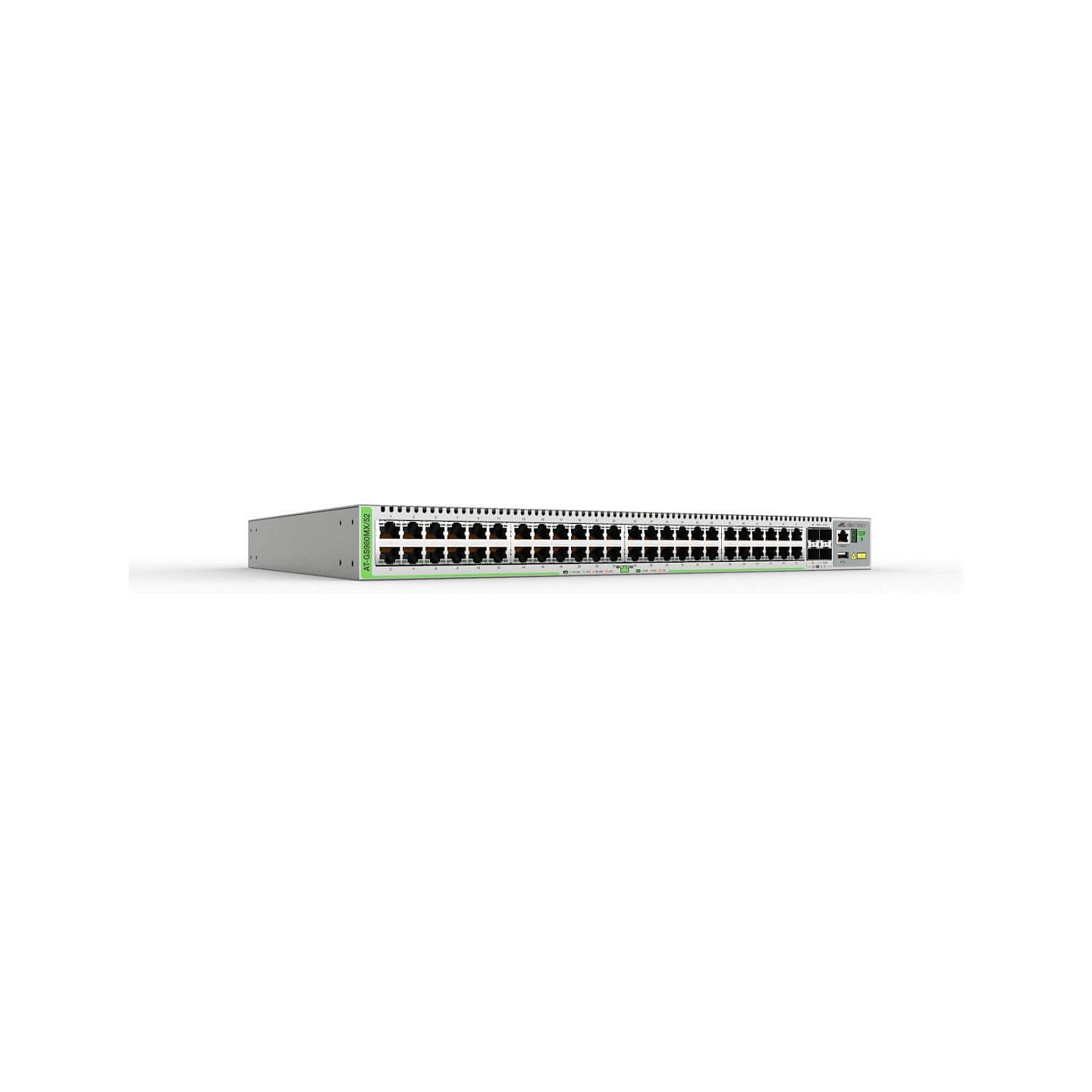

ALLIED L3 Stackable Switch 48x 10 100 1000-T 4x SFP+ Ports single fixed power supply EU Power Cord
Allied Telesis GS980MX. Managed. L3. Gigabit Ethernet (10/100/1000). Vollduplex. Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Allied Telesis GS980MX. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48. Anzahl installierte SFP Module: 4. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 176 Gbit/s. Netzstandard: IEEE 802.1x. IEEE 802.2. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3u. IEEE 802.3x. IEEE.... Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Netzteil enthalten |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl installierte SFP Module | 4 |
| Netzstandard | IEEE 802.1x. IEEE 802.2. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Virtuelle LAN-Funktionen | Port-based VLAN. Private VLAN. Voice VLAN |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 176 Gbit/s |
| Transferrate | 130.9 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Wartezeit (10-100 Mbps) | 8.29 µs |
| Wartezeit (1 Gbps) | 7.63 µs |
| Wartezeit (10 Gbps) | 1.63 µs |
| DHCP-Funktionen | DHCP client. DHCP snooping |
| Authentifizierung | MAC-basierte Authentifizierung |
| Management-Protokolle | SNMP |
| Formfaktor | 1U |
| Produktfarbe | Grau |
| Speichertyp | DDR3-SDRAM |
| Speicherkapazität | 16384 MB |
| Flash-Speicher | 256 MB |
| Geräuschpegel | 42 dB |
| Energiequelle | AC |
| Stromverbrauch (max.) | 60 W |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -25 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Höhe bei Betrieb | 0 - 3000 m |
| Höhe bei Lagerung | 0 - 4000 m |
| Wärmeableitung | 205 BTU/h |
| Breite | 441 mm |
| Tiefe | 323 mm |
| Höhe | 44 mm |
| Gewicht | 4.8 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsbreite | 563 mm |
| Verpackungstiefe | 534 mm |
| Verpackungshöhe | 128 mm |
| Paketgewicht | 6.8 kg |
