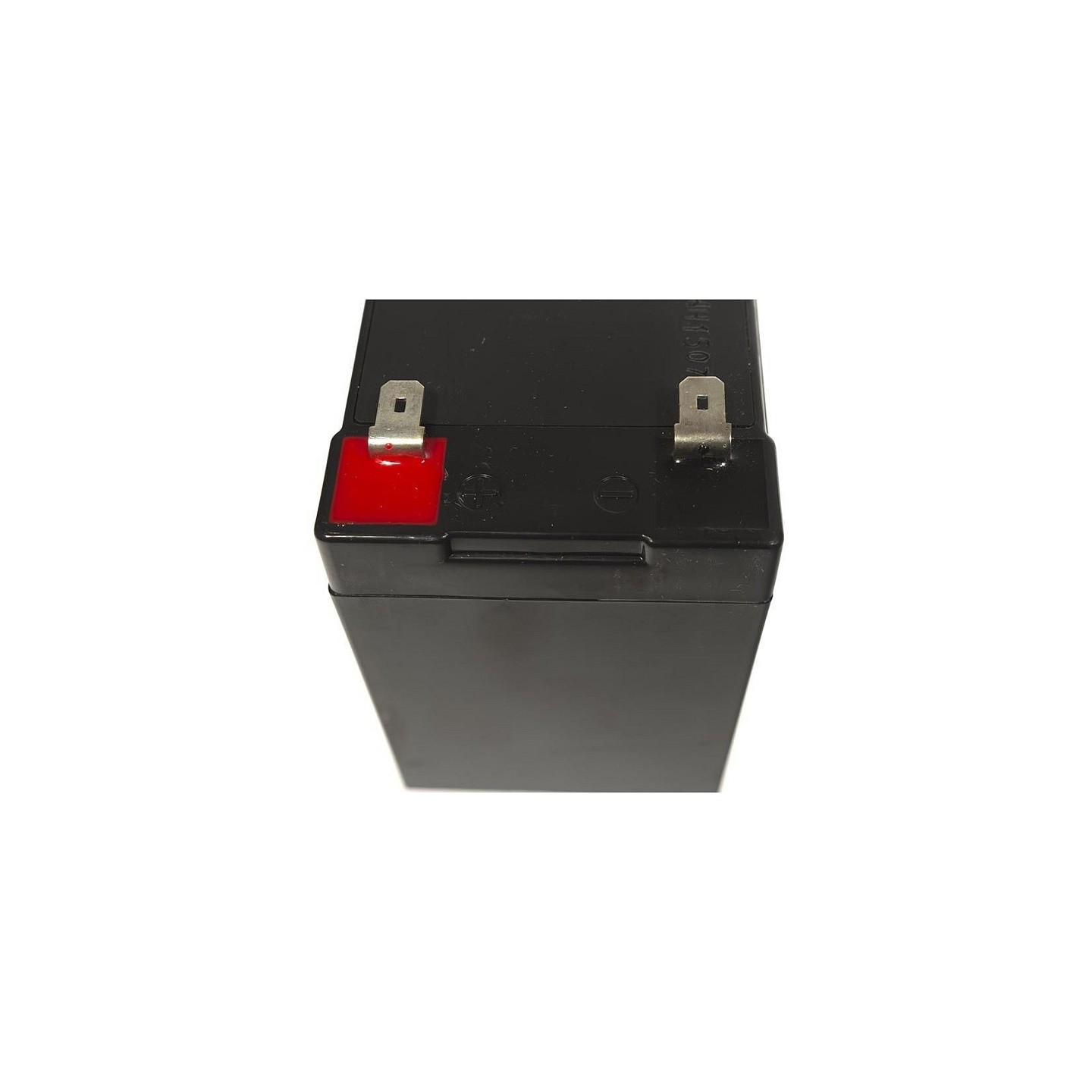

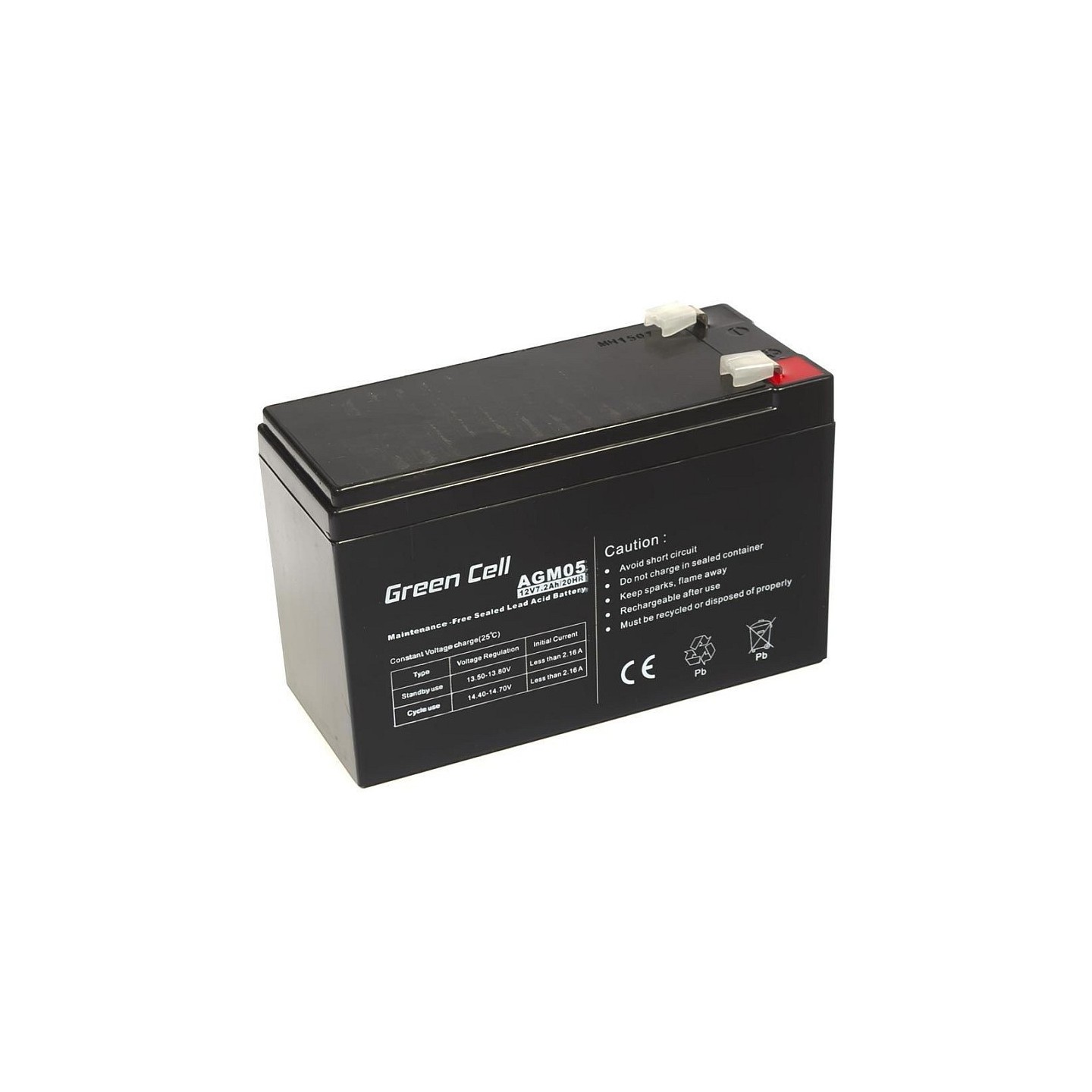

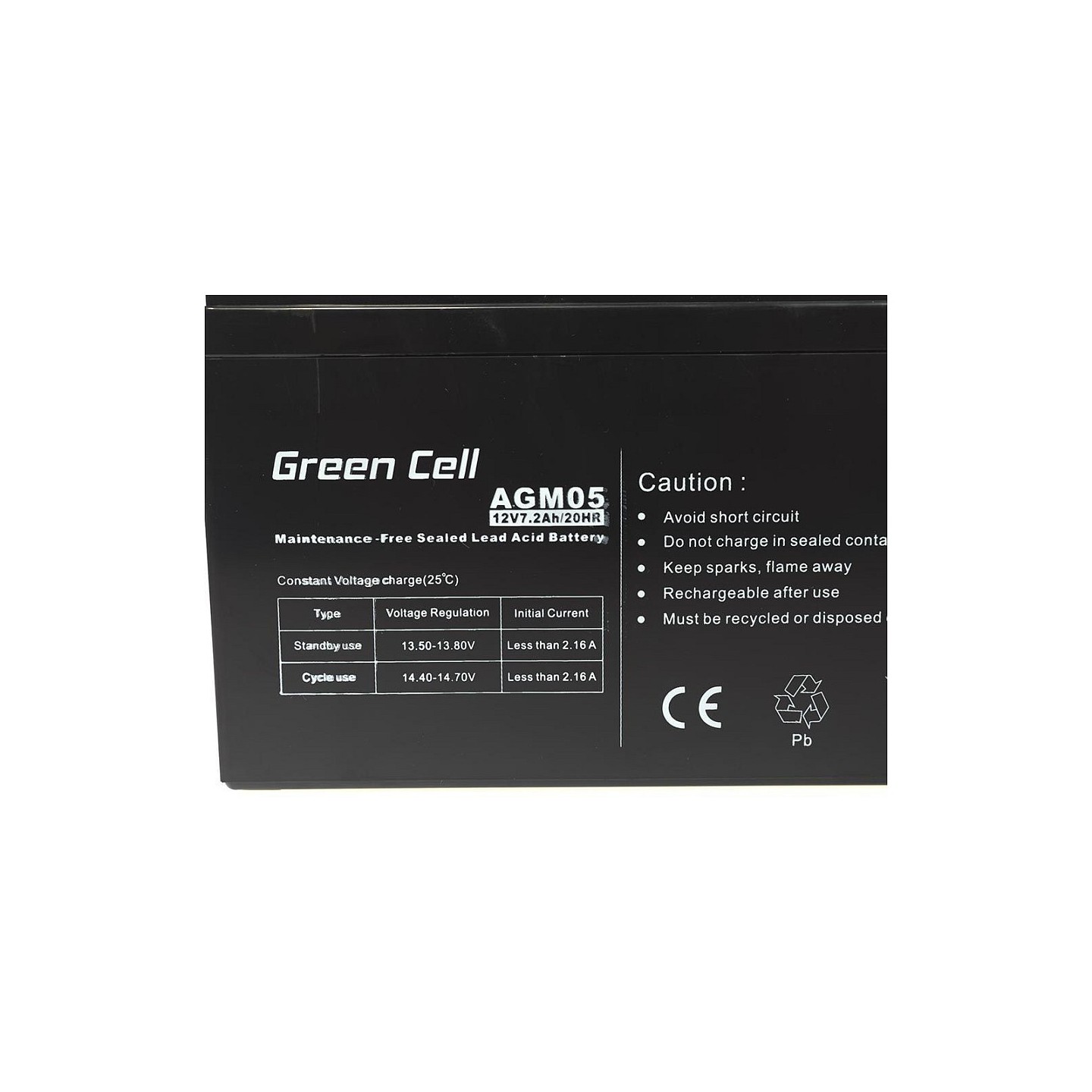

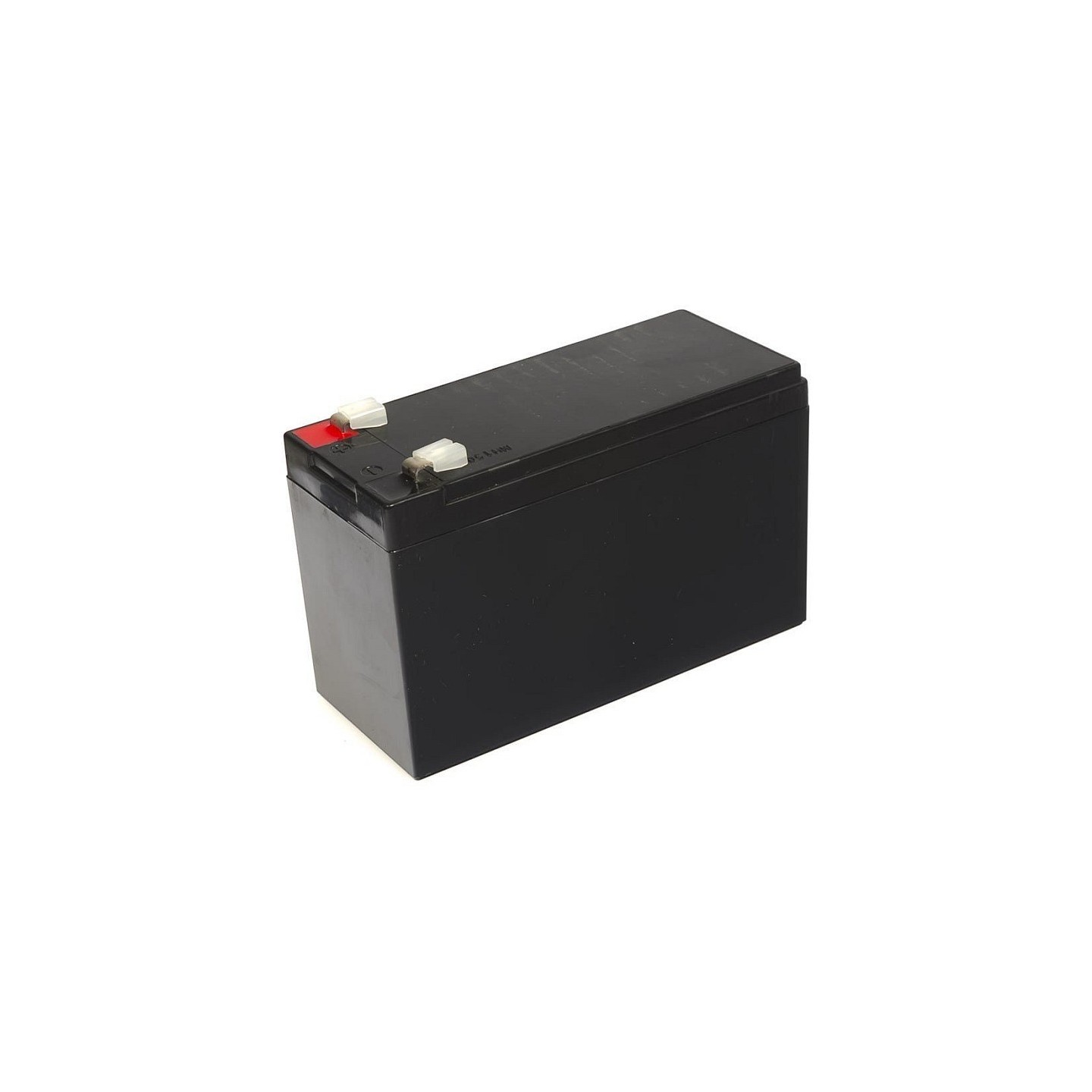

Green Cell AGM05 12V 7.2Ah VRLA Sealed Lead Acid Battery (Boxed)
Green Cell AGM05 is a 12V 7.2Ah sealed lead-acid (VRLA) replacement battery designed for UPS systems, alarm systems, and portable devices. Features maintenance-free operation for 5+ years with AGM technology ensuring safety and reliability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | Replacement Battery |
|---|
The Green Cell AGM05 is a premium sealed lead-acid (VRLA) replacement battery engineered for uninterruptible power supplies, alarm systems, electric toys, monitoring devices, and portable equipment. With a nominal capacity of 7.2Ah at 12V, this battery delivers reliable backup power with maintenance-free operation for over 5 years.
Built with advanced AGM (Absorbent Glass Mat) technology, the battery features special glass fibers that ensure complete electrolyte absorption, preventing leakage and enabling safe operation in any position. The self-regulating VRLA valve system maintains optimal internal pressure while the low internal resistance (≤30mΩ at 25°C) ensures efficient charging and discharging cycles. With a maximum charging current of 2.16A and self-discharge rate of only 2% per month, this battery is ideal for both standby and cyclic applications.
Compact dimensions (151×65×95mm) and lightweight design (2.15kg) make it easy to install in existing UPS systems. The F1 terminal connectors (0.187") provide secure connections, while the robust construction offers excellent vibration resistance and reliable performance across a wide temperature range (-15°C to 40°C).
- Capacity: 7.2Ah at 12V nominal voltage
- Technology: VRLA AGM sealed lead-acid
- Lifespan: 5+ years maintenance-free operation
- Internal Resistance: ≤30mΩ at 25°C
- Maximum Charging Current: 2.16A
- Buffer Charging: 13.5-13.8V (-20mV/°C)
- Cyclic Charging: 14.5-14.9V (-30mV/°C)
- Self-Discharge: 2% per month at 25°C

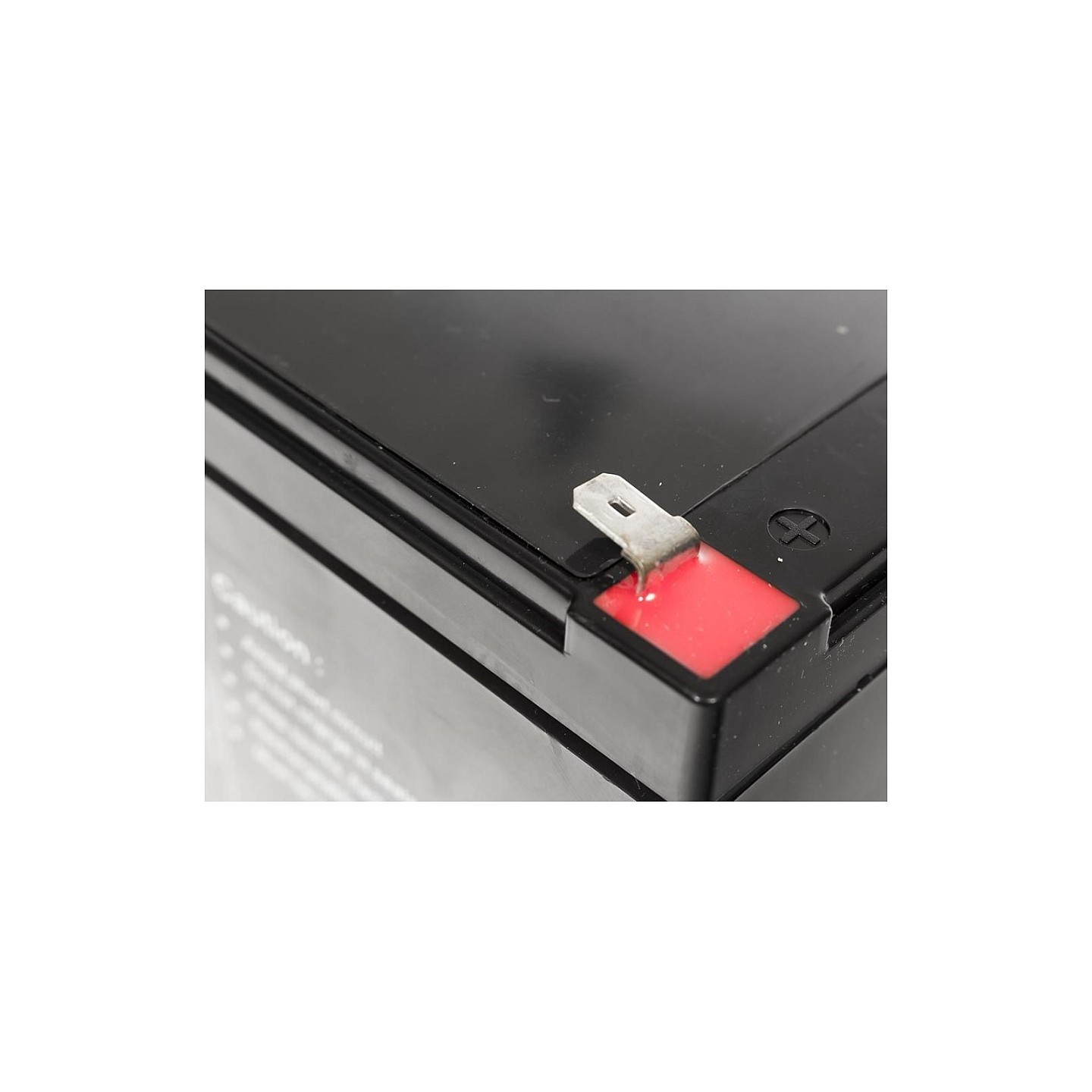

- Terminal Type: F1 Faston 250 connectors
- Dimensions: 151mm (L) × 65mm (W) × 95mm (H)
- Weight: 2.15kg
- Warranty: 24 months
| Type | VRLA AGM (Valve Regulated Lead Acid, Absorbent Glass Mat) |
| Voltage | 12V |
| Capacity | 7.2Ah |
| Color | Black |
| Dimensions (L×W×H) | 151 × 65 × 95 mm |
| Total Height with Connectors | 101 mm |
| Weight | 2.15 kg |
| Terminal Type | F1 Faston 250 (0.187 |
| Internal Resistance | ≤30 mΩ at 25°C |
| Self-Discharge Rate | 2% per month at 25°C |
| Maximum Charging Current | 2.16 A |
| Buffer Charging Voltage | 13.5 – 13.8 V (-20 mV/°C) |
| Cyclic Charging Voltage | 14.5 – 14.9 V (-30 mV/°C) |
| Capacity by Temperature | 40°C: 102% | 25°C: 100% | 0°C: 85% | -15°C: 65% |
| Lifespan | 5+ years |
| Warranty | 24 months |
| Manufacturer Part Number | AGM05 |
| EAN Code | 5902701411510 |
| Manufacturer | Green Cell |
| Quantity | 1 piece |
| Applications | UPS systems, electric toys, alarm systems, monitoring devices, portable equipment |
| Included Accessories | Screws and caps |
