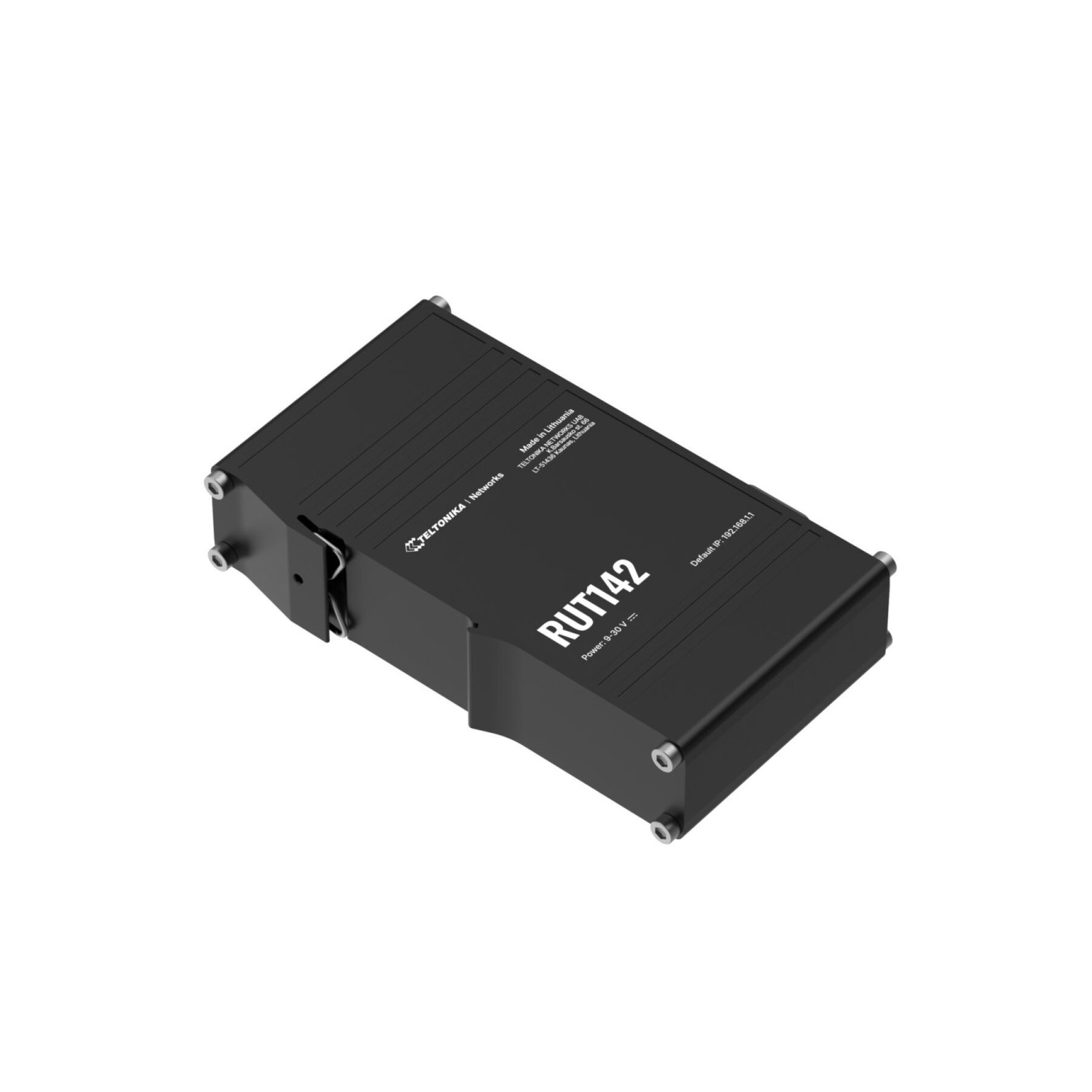

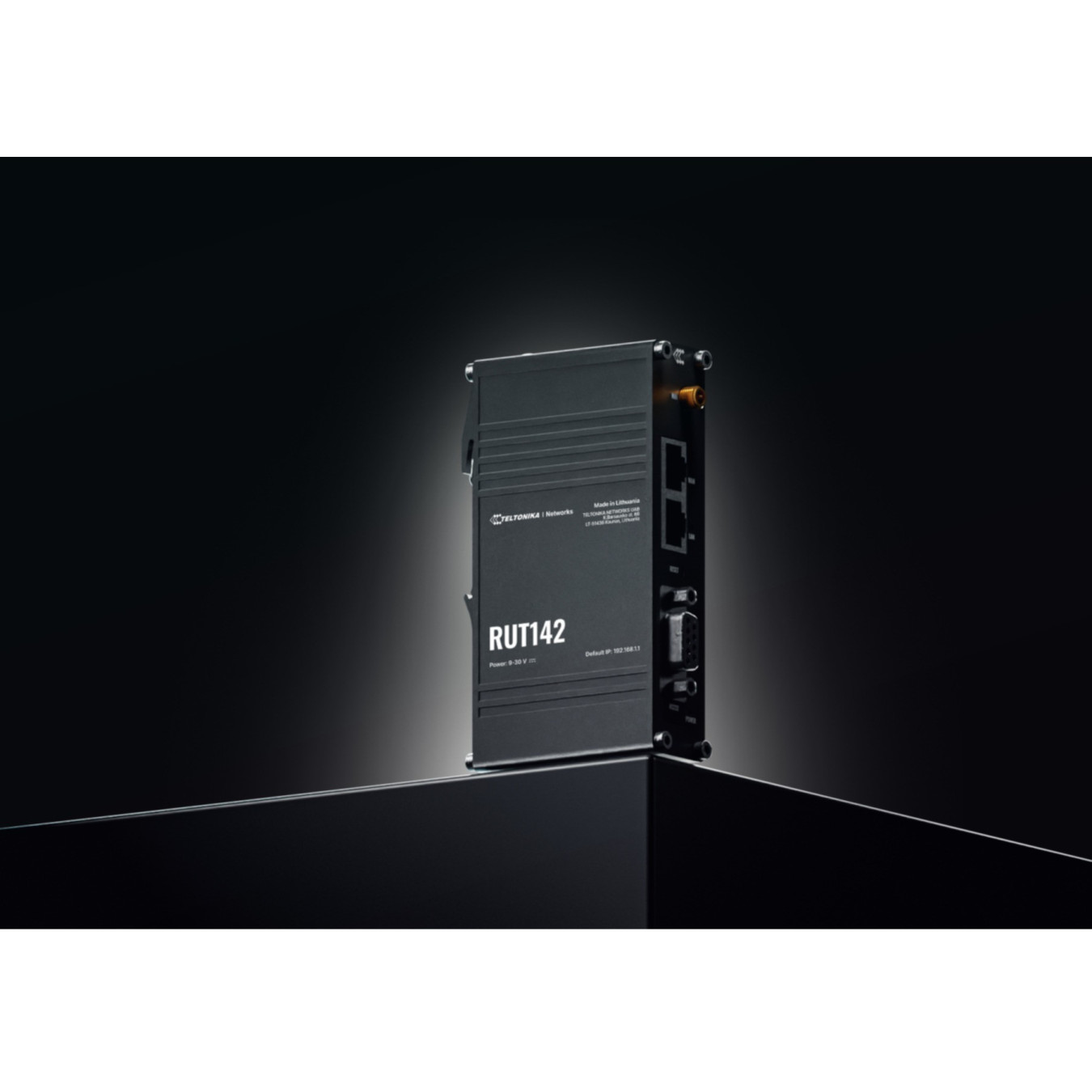

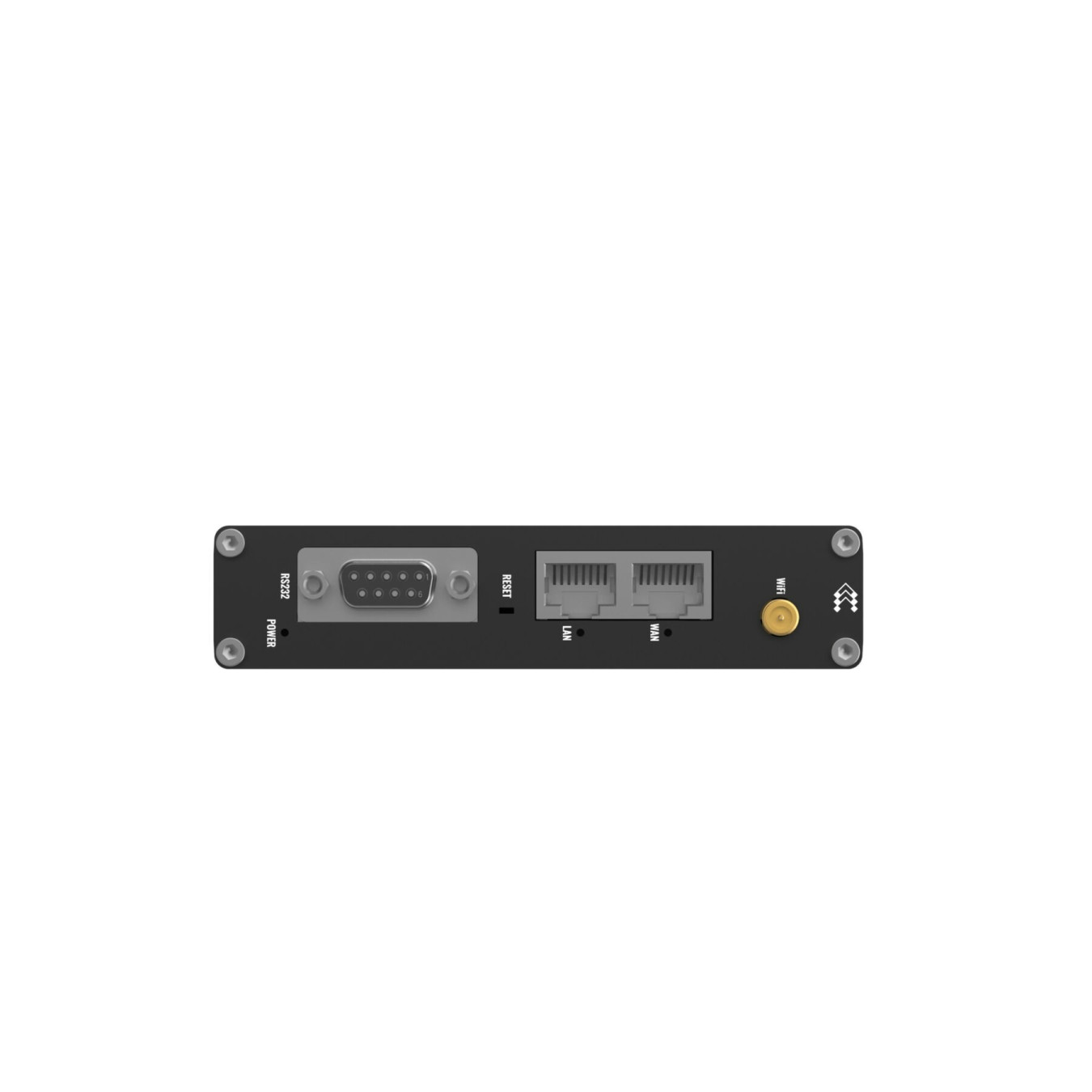

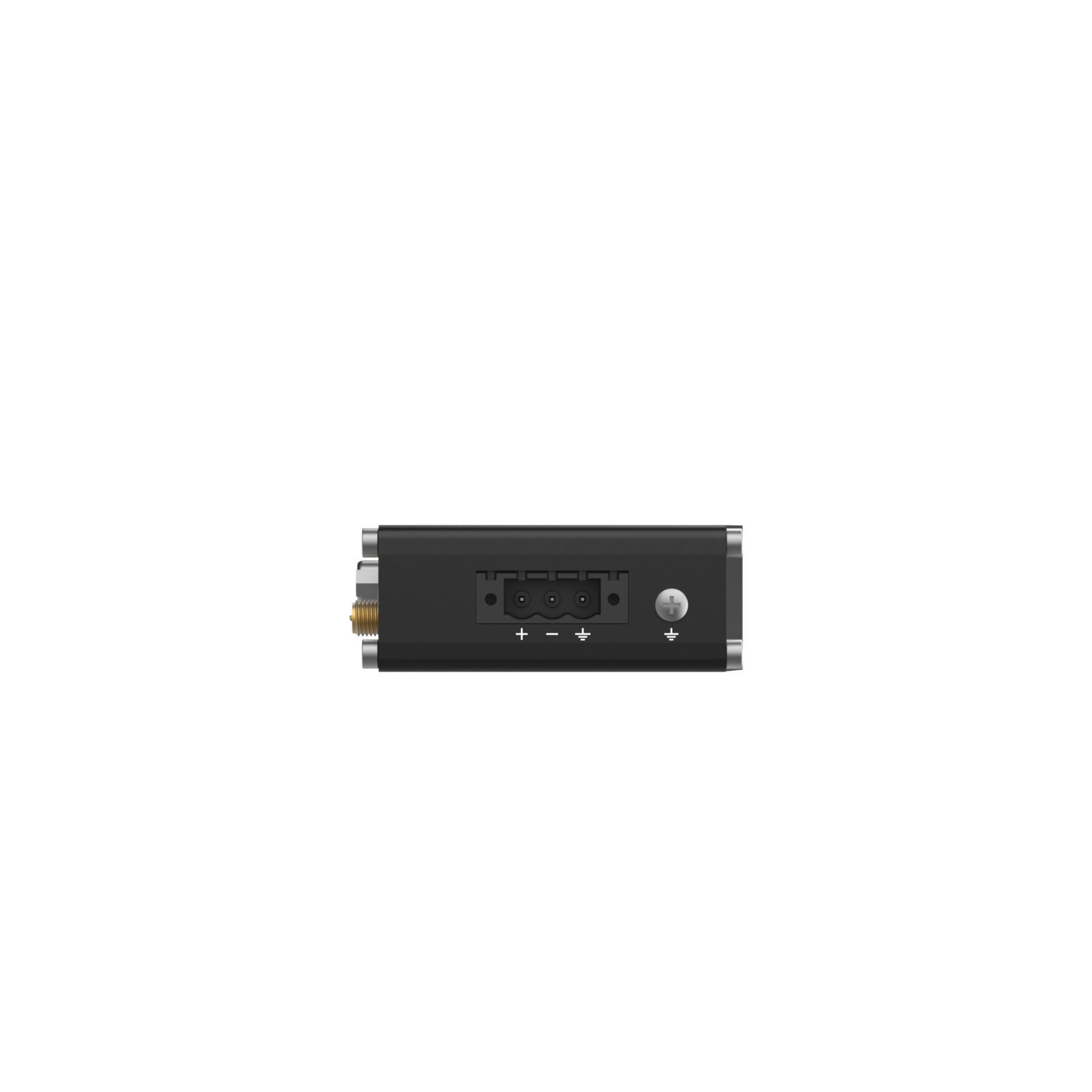

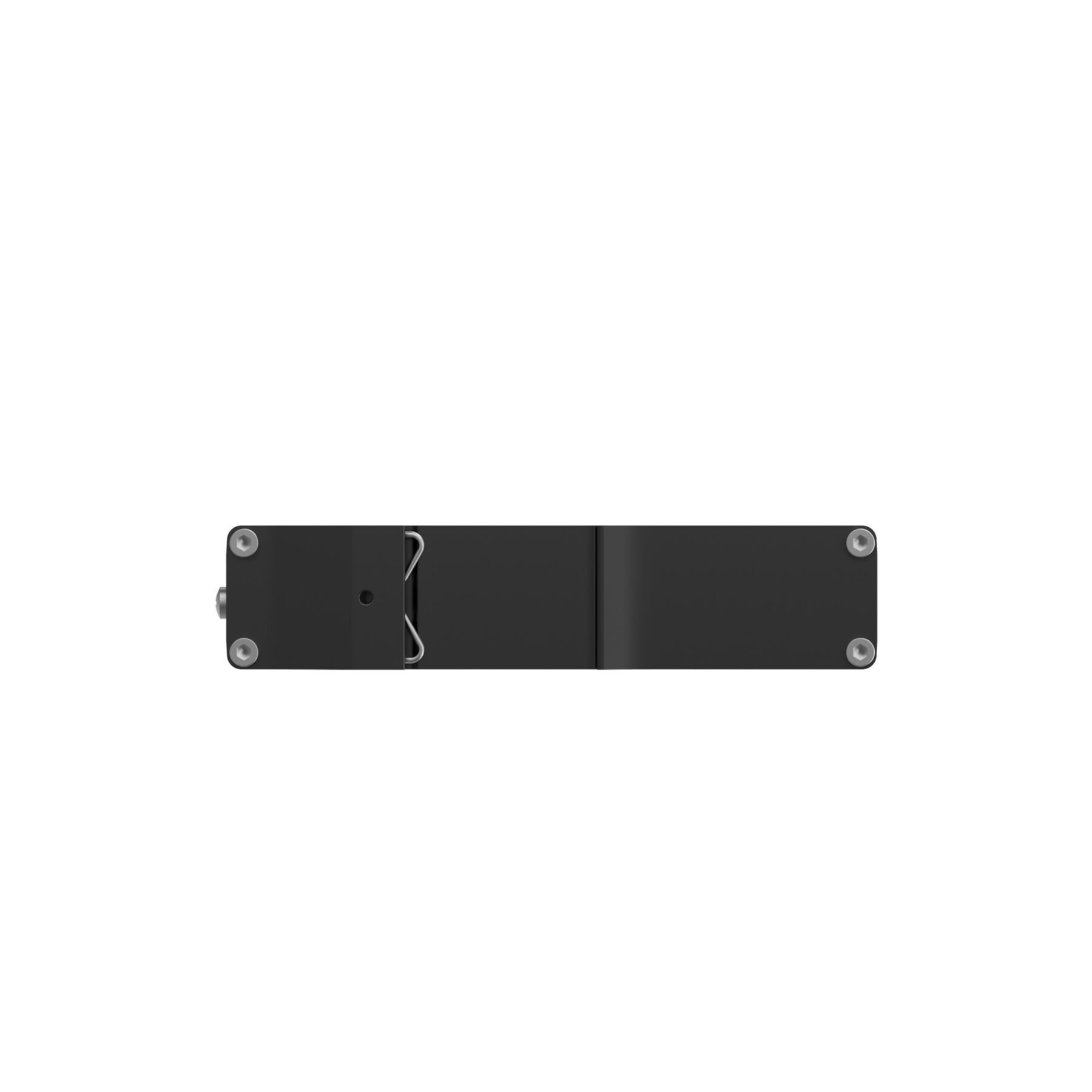

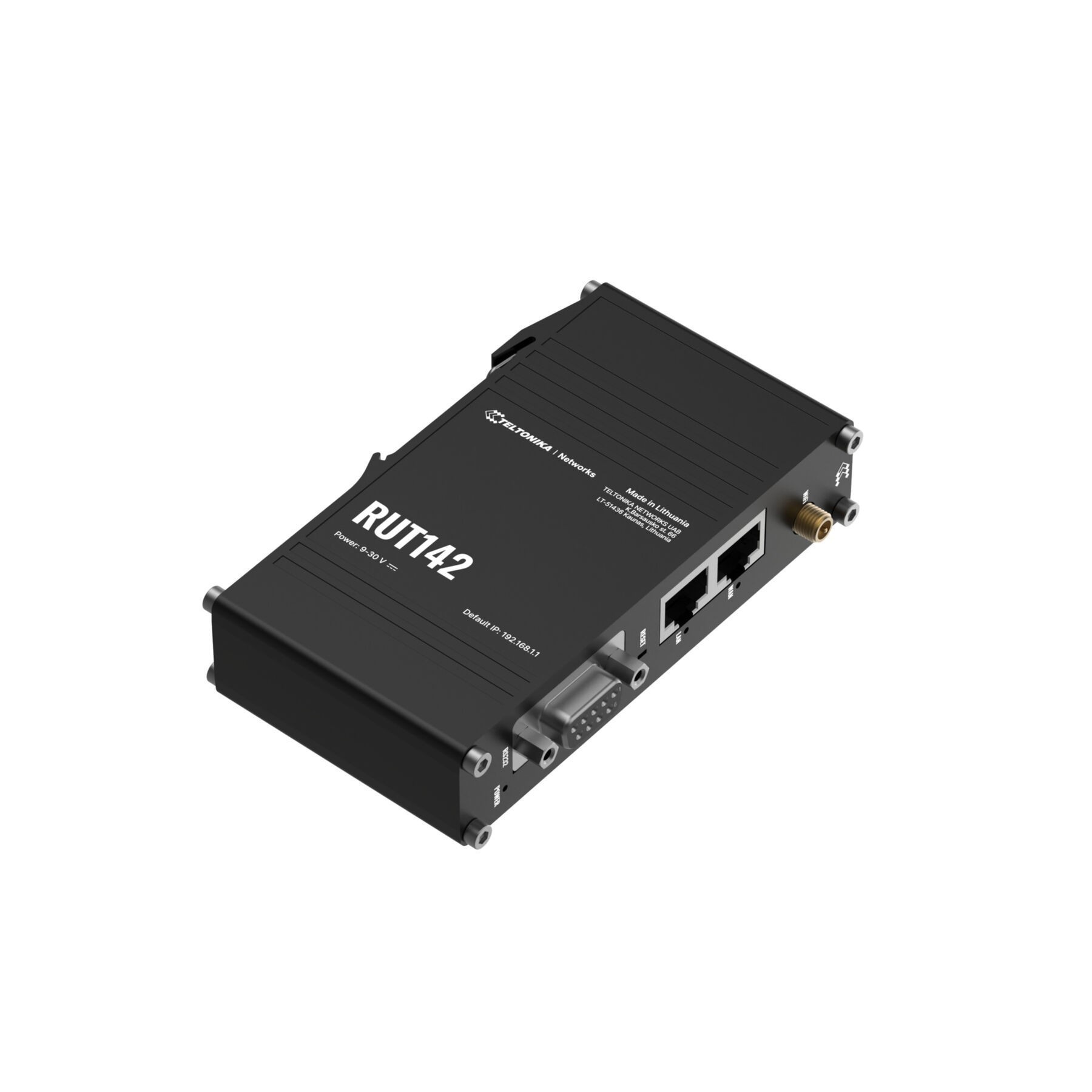

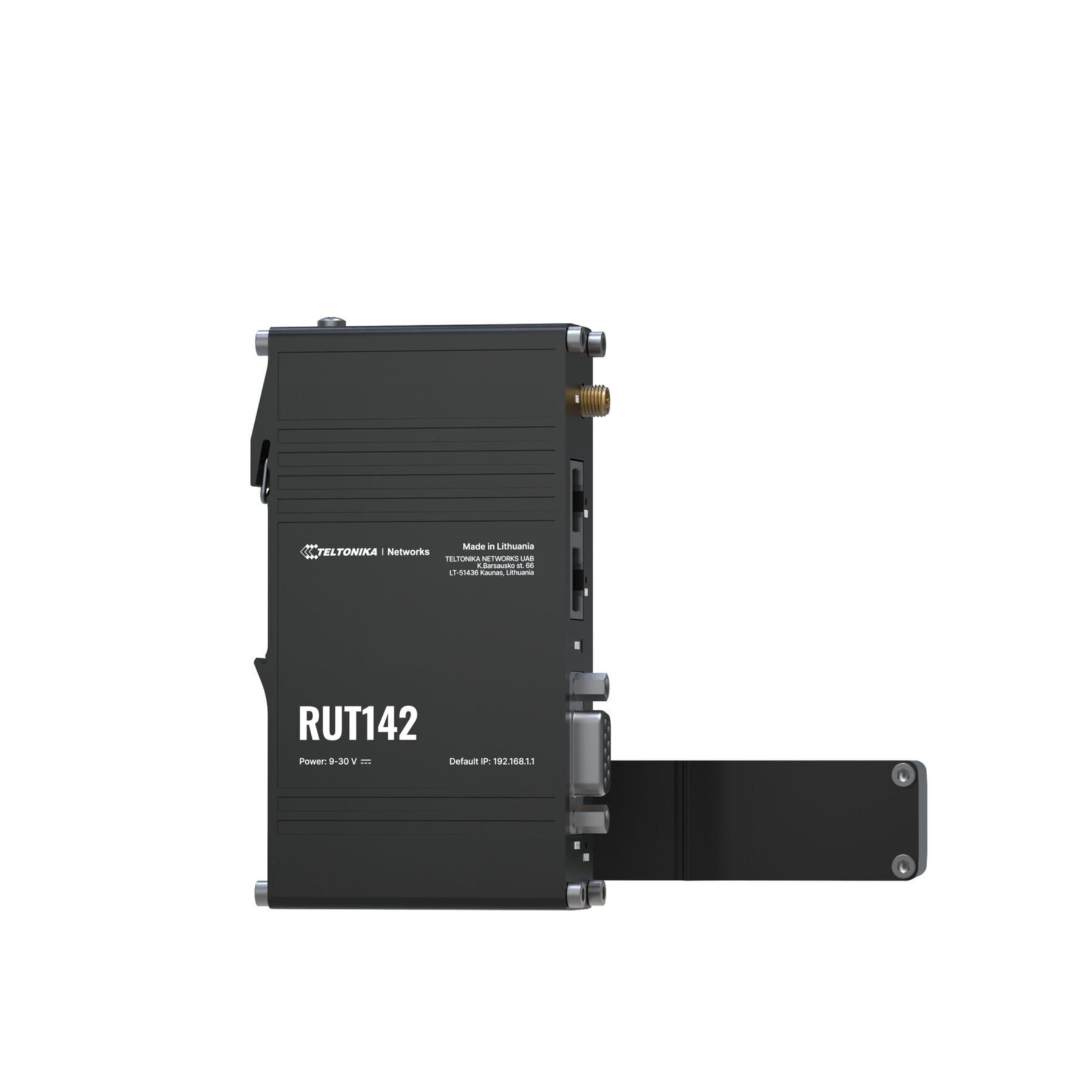

Teltonika RUT142 - Industrial RS232 Router, 2x Ethernet, Wi-Fi 4 (2.4 GHz), DIN-rail, RutOS
Compact industrial router with RS232 serial, 2x Fast Ethernet, single-band Wi‑Fi 4 (2.4 GHz), Modbus/DLMS/DNP3/OPC UA support, RMS remote management, DIN-rail mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Bands | Single-band (2.4 GHz) |
|---|
The RUT142 is a compact industrial Ethernet router, enhancing security through network isolation for end devices. Equipped with the RS232 serial interface, two Ethernet ports, DIN rail bracket, and an industrial 3-pin connector, it ensures seamless connectivity and easy installation. The router comes with RutOS, Wi-Fi 4, and supports industrial protocols such as Modbus, DLMS, DNP3, and OPC UA, and is compatible with RMS for efficient remote and on-site management.
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| WAN connection type | RJ-45 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10, 100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u |
| Full duplex | Yes |
| Auto-sensing | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | No |
| USB 2.0 ports quantity | 1 |
| RS-232 ports | 1 |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | AES-CCMP, EAP-TLS, OWE, SSH, TKIP, WPA-PSK, WPA2-EAP, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE |
| DHCP client | Yes |
| DHCP server | Yes |
| Product colour | Black |
| Housing material | Aluminium |
| International Protection (IP) code | IP30 |
| Indication light | Yes |
| LED indicators | LAN, Power, WAN |
| Product type | Industrial router |
| Certification | CE/RED, UKCA, CB, RCM, FCC, IC, EAC, UCRF, WEEE |
| Antenna design | External |
| Antenna connector type | RP-SMA |
| Antennas quantity | 1 |
| Built-in processor | Yes |
| Processor manufacturer | MediaTek |
| Processor architecture | MIPS 24Kc |
| Processor frequency | 580 MHz |
| Internal memory | 128 MB |
| Internal memory type | DDR2 |
| Flash memory | 16 MB |
| Power source type | DC, PoE |
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 113.1 mm |
| Depth | 68.6 mm |
| Height | 25 mm |
| Weight | 149.2 g |
