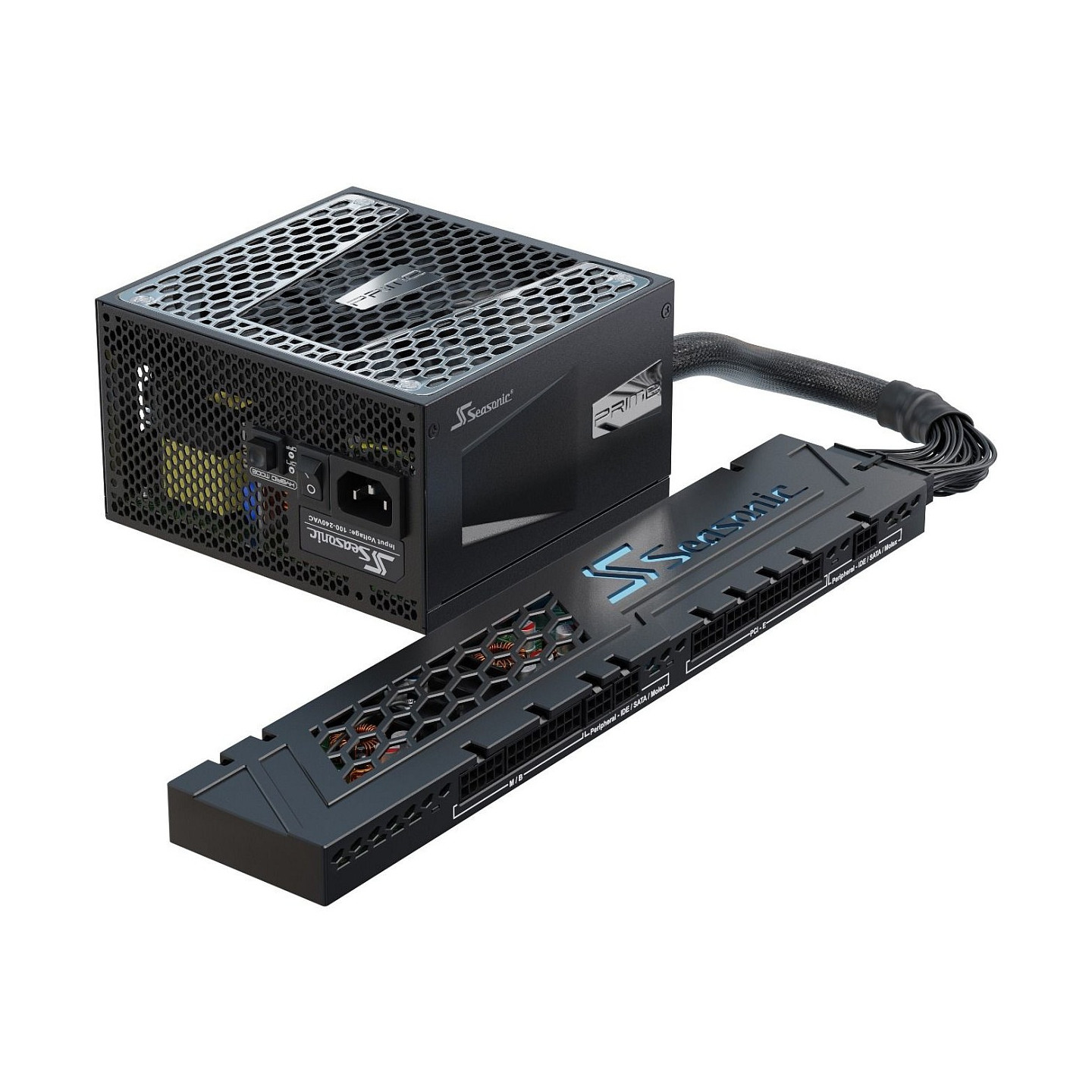

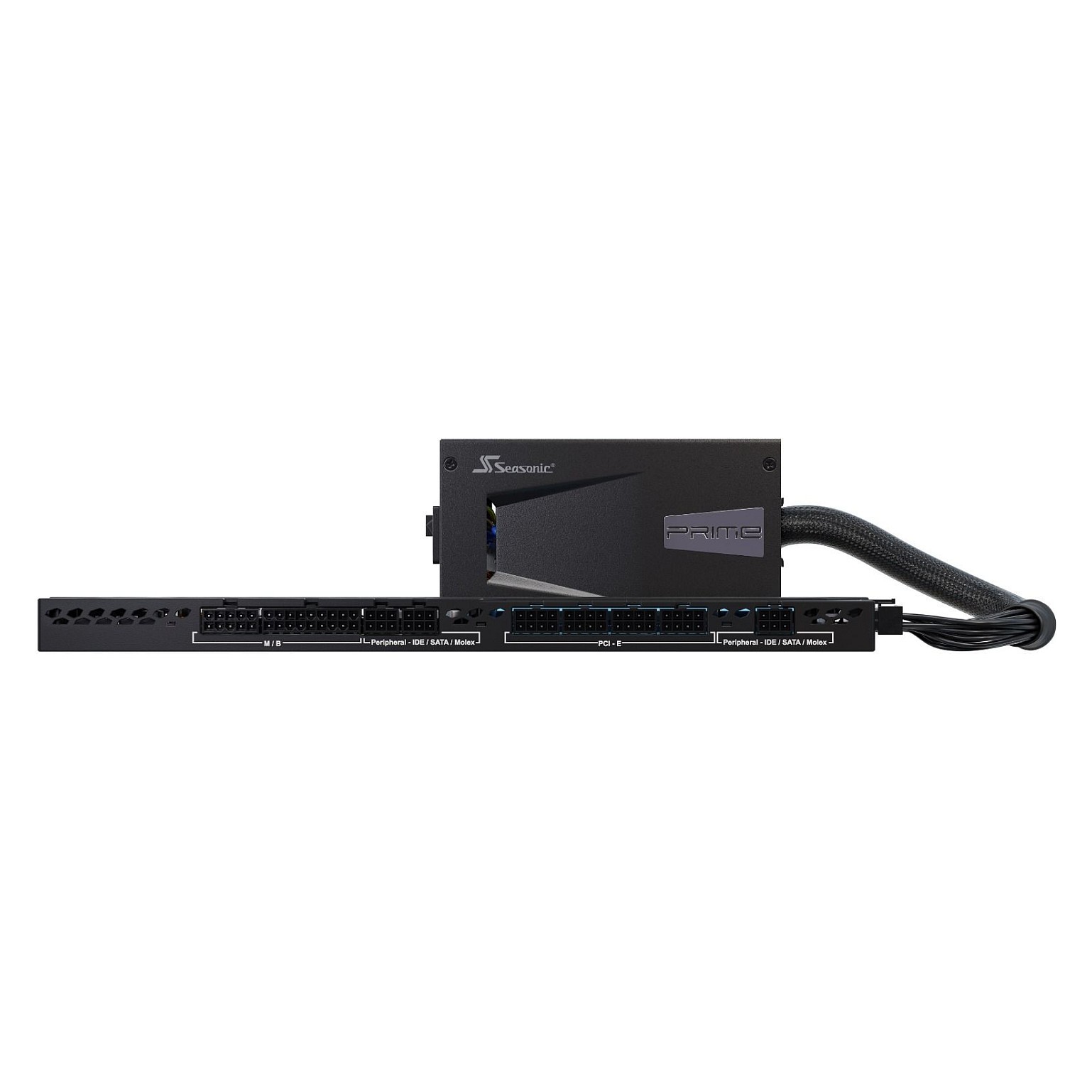

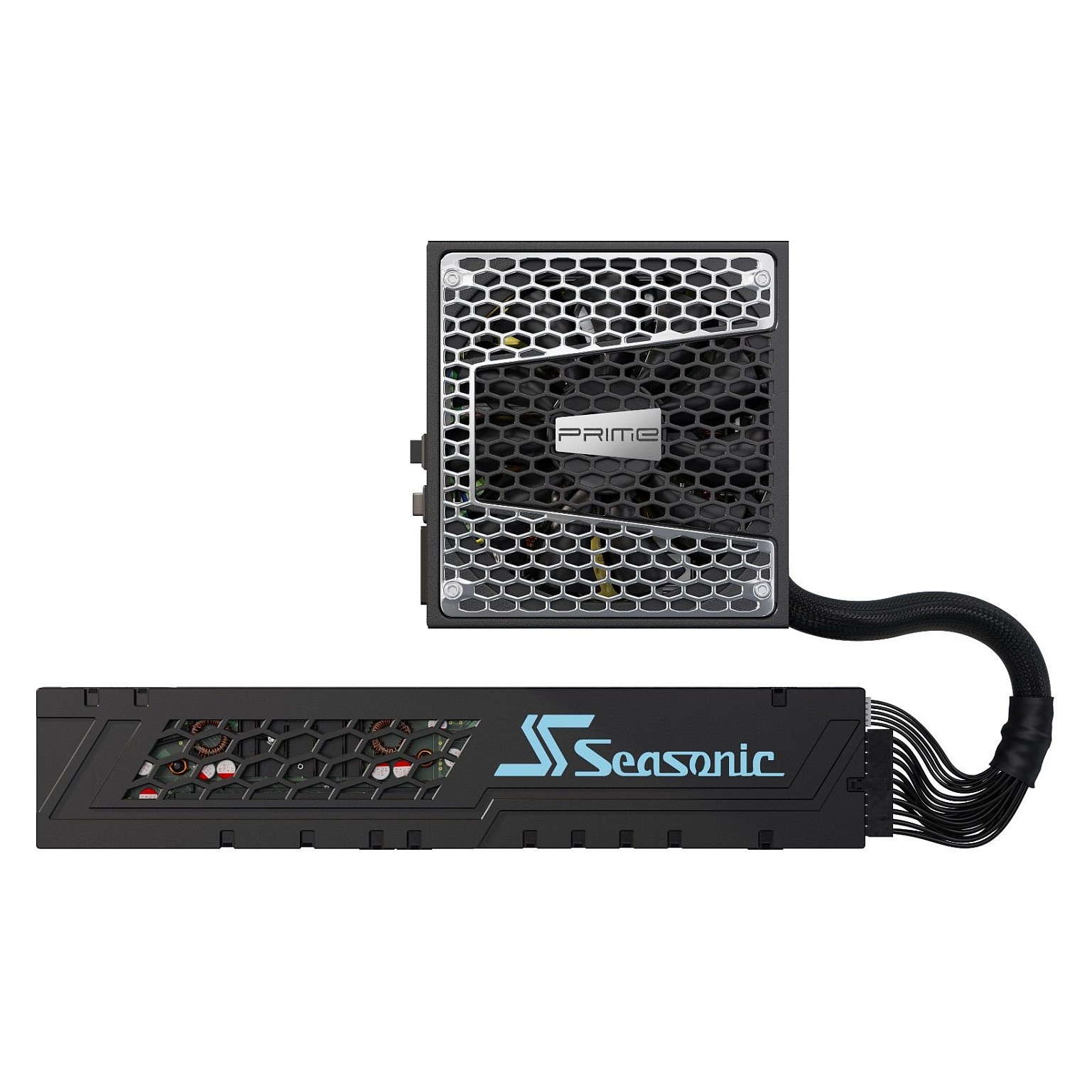

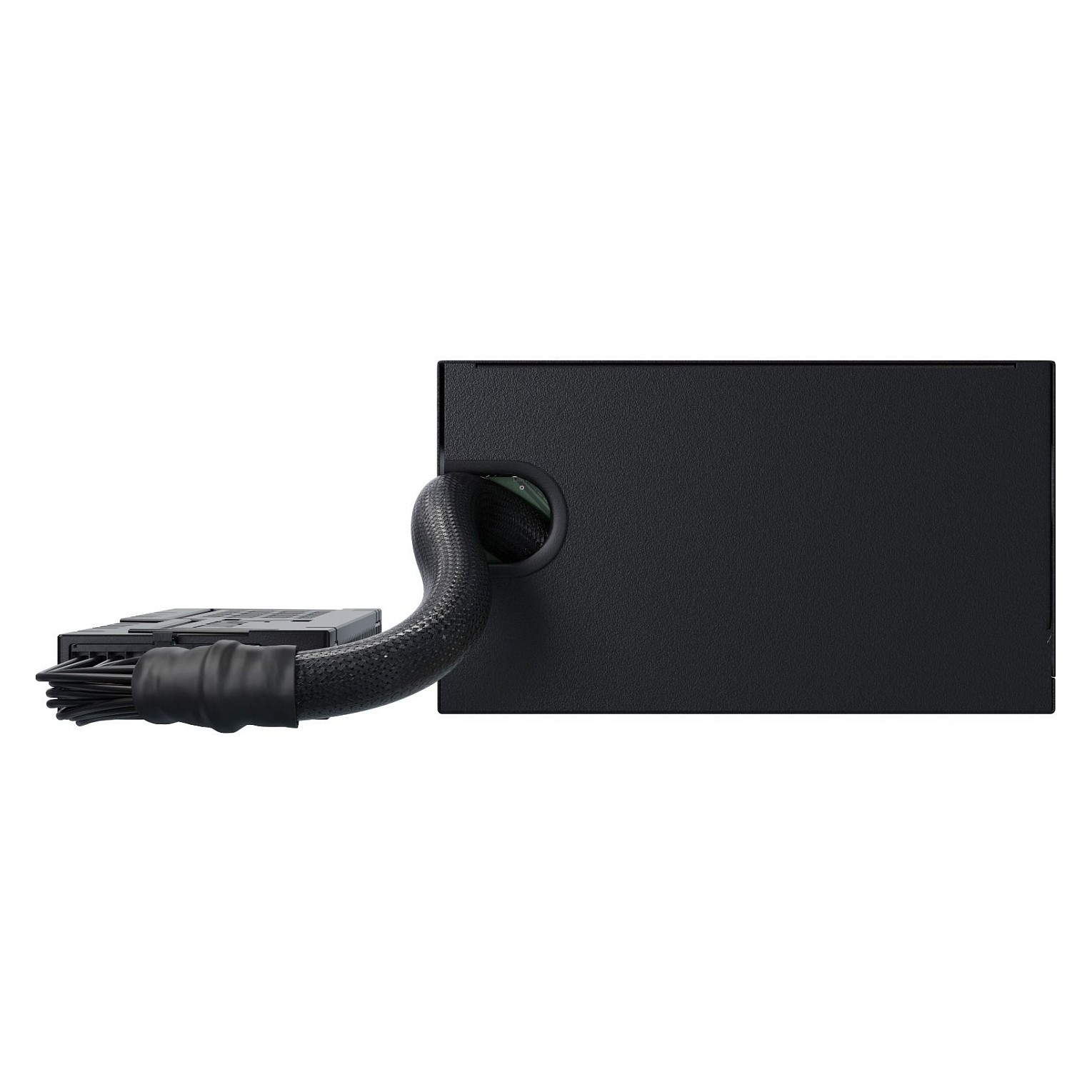

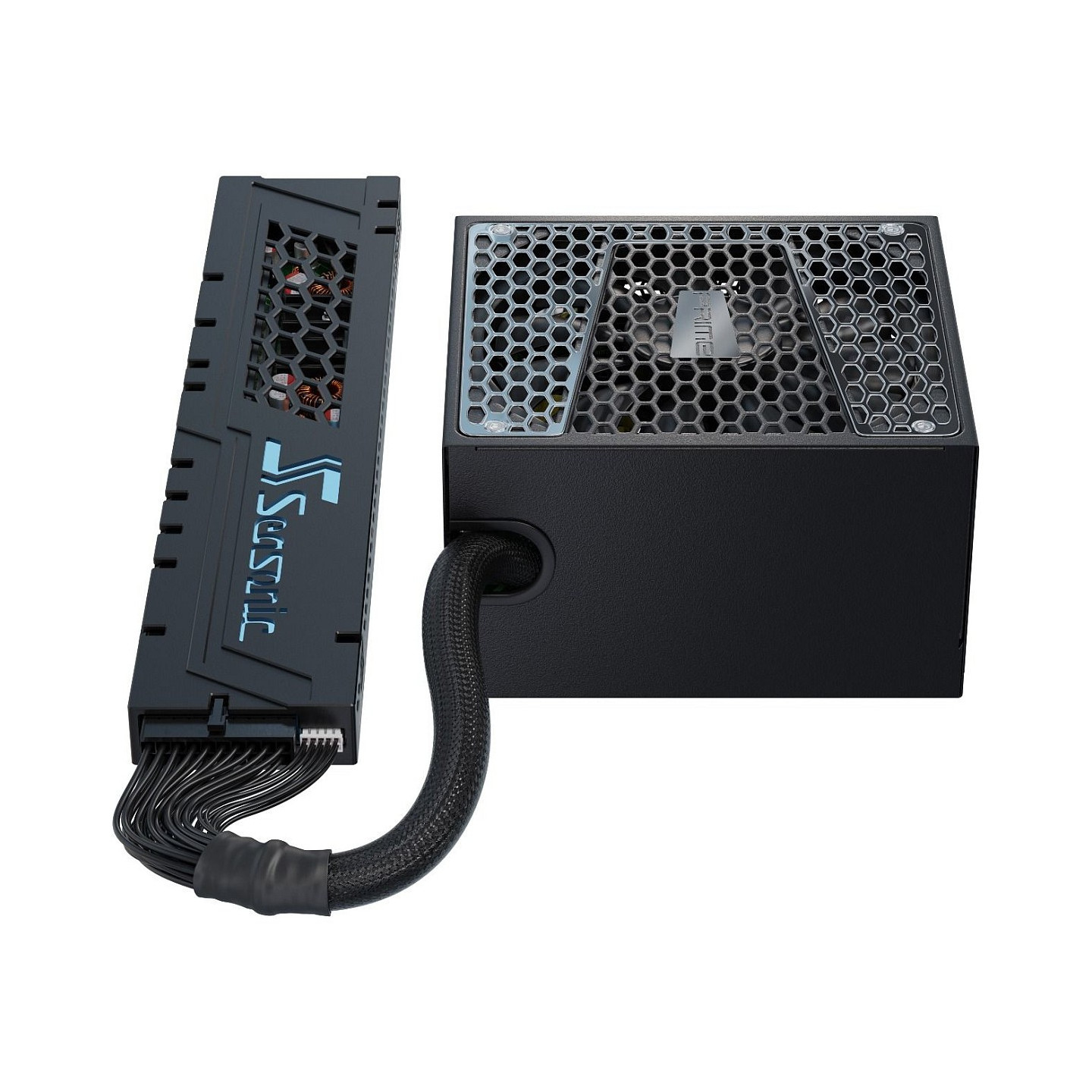

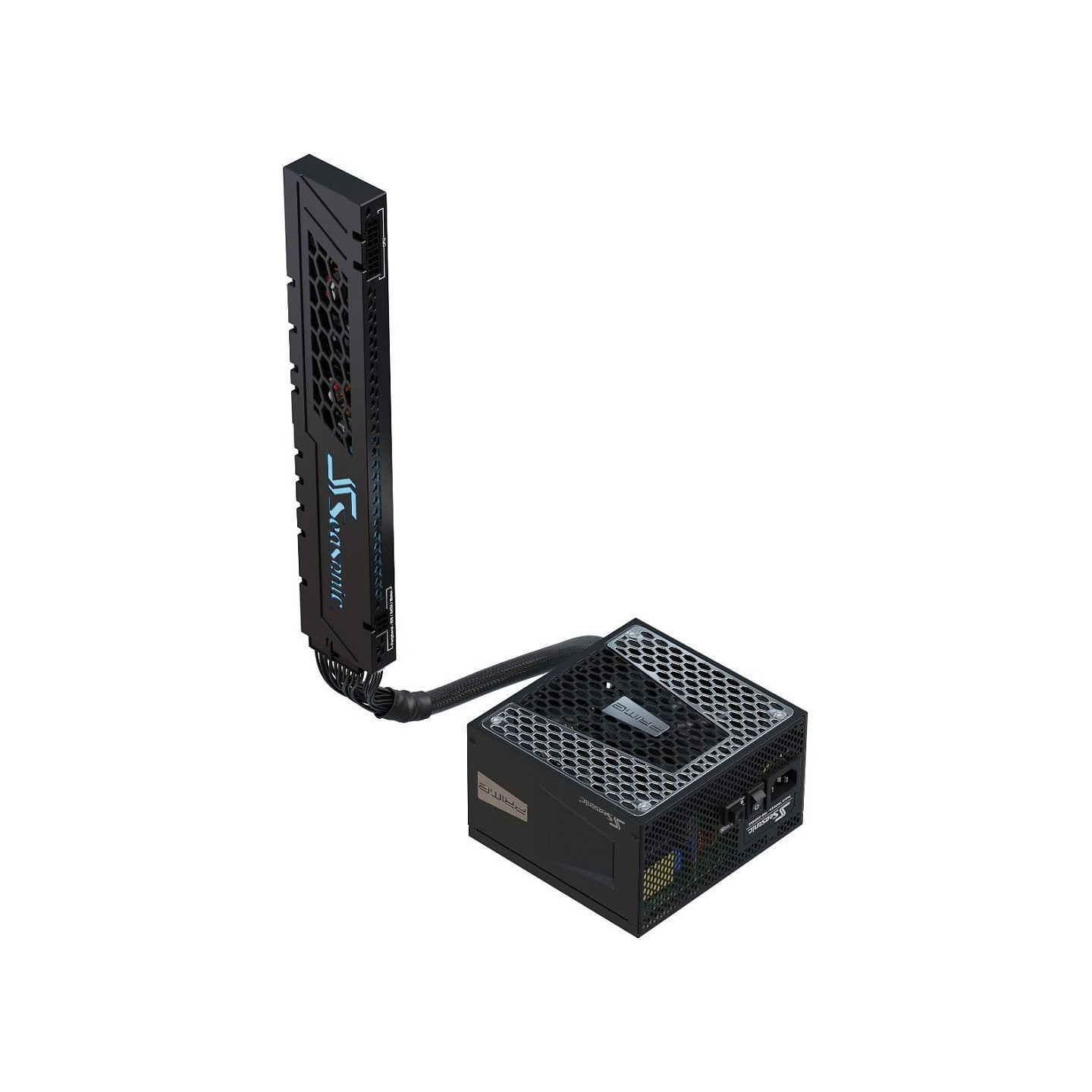

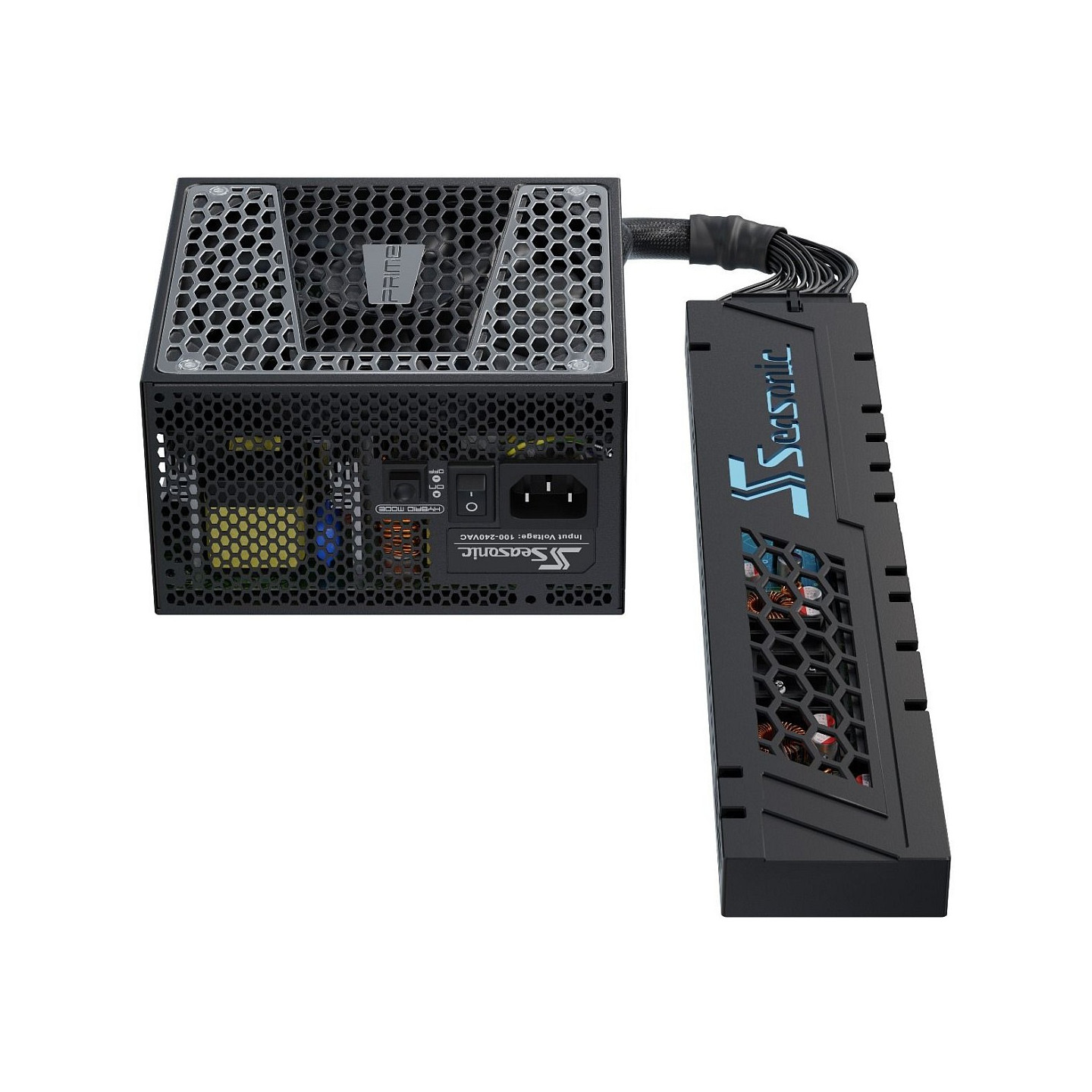

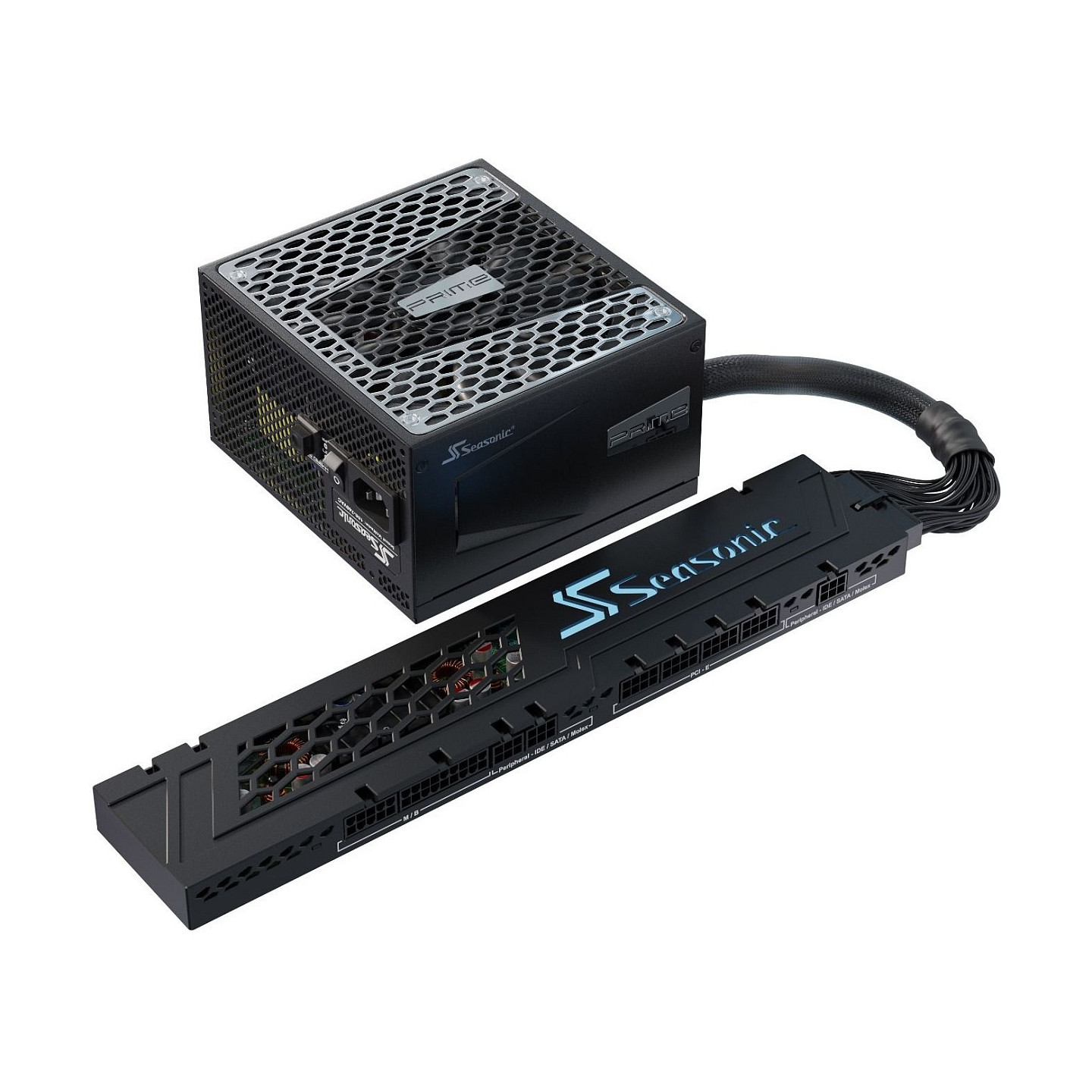

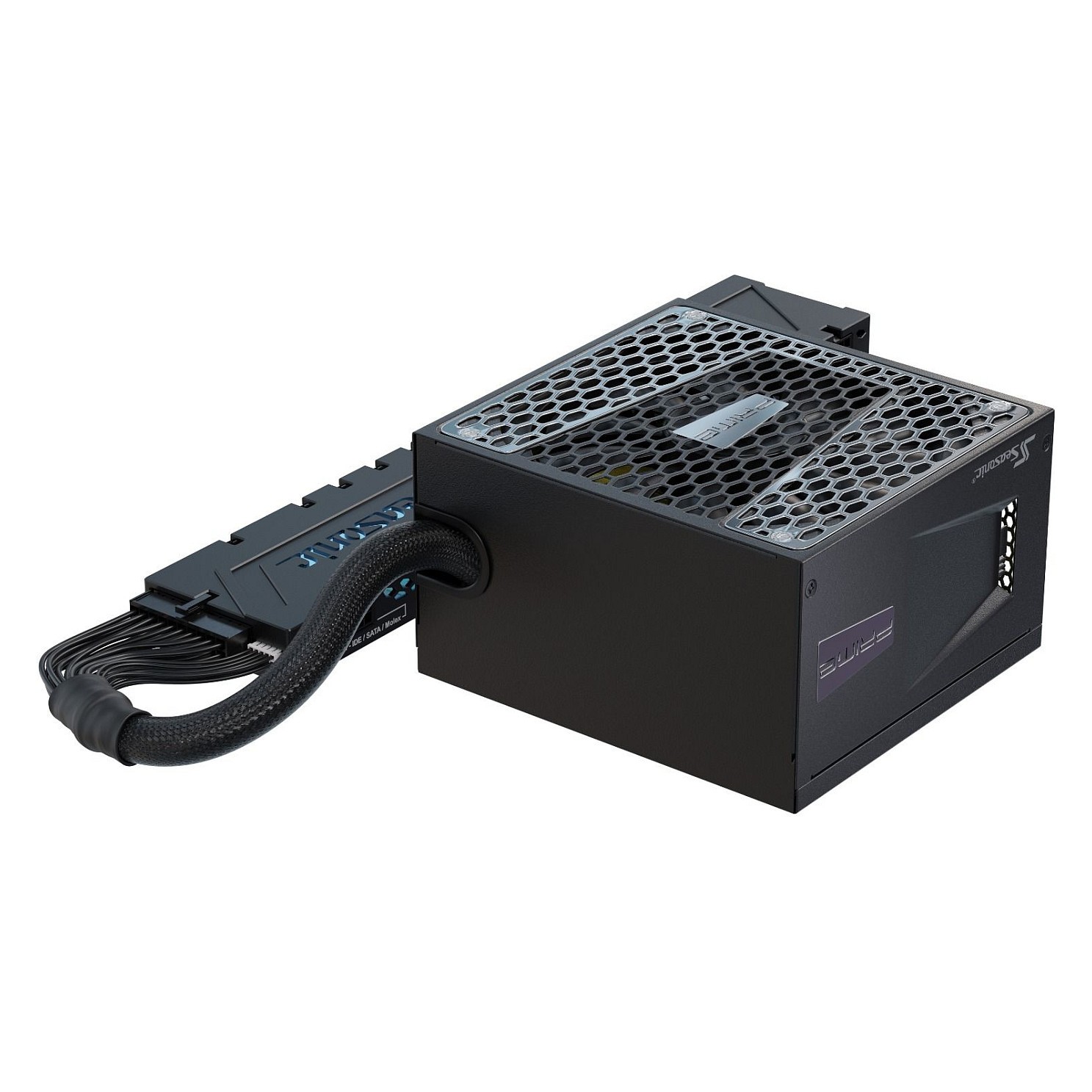

750W Seasonic Connect 80+ Gold
Seasonic SSR-750FA. 750 W. 100 - 240 V. 50 - 60 Hz. 5 - 10 A. 100 W. 744 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Seasonic SSR-750FA. Gesamtleistung: 750 W. AC Eingangsspannung: 100 - 240 V. AC Eingangsfrequenz: 50 - 60 Hz. Motherboard Anschlussstecker: 20+4 pin ATX. Stromkabellänge Motherboard: 20 cm. SATA-Netzkabellänge: 230.210.470 mm. Zweck: PC. Stromversorgungseinheit (PSU) Formfaktor: ATX. 80 Plus Zertifizierung: 80 PLUS Gold. Produktfarbe: Schwarz. Kühlung: Aktiv. Mitgelieferte Kabel: CPU. PCIe. Peripheral (Molex). Peripheral (Molex) to SATA 3.3. SATA
| Gesamtleistung | 750 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Eingangsstrom | 5 - 10 A |
| Kombinierter Strom (+3.3V) | 100 W |
| Kombinierter Strom (+12V) | 744 W |
| Kombinierter Strom (+5V) | 100 W |
| Kombinierter Strom (-12V) | 3.6 W |
| Kombinierter Strom (+5Vsb) | 15 W |
| Max. Ausgangsstrom (+3.3V) | 20 A |
| Max. Ausgangsstrom (+12V) | 62 A |
| Max Ausgangsstrom (+5V) | 20 A |
| Max. Ausgangsstrom (-12V) | 0.3 A |
| Max. Ausgangsstrom (+5Vsb) | 3 A |
| Energieschutzeigenschaften | Überstrom. Überlastung. Überspannung. Kurzschluß. Unterspannung |
| Motherboard Anschlussstecker | 20+4 pin ATX |
| Stromkabellänge Motherboard | 20 cm |
| Anzahl SATA Stromstecker | 3 |
| SATA-Netzkabellänge | 230.210.470 mm |
| Anzahl Molex Anschlüsse 4pin | 1 |
| Periphere (Molex) Netzkabellänge | 690 mm |
| Anzahl PCI Express Stromstecker 8pin | 4 |
| PCI Express Netzkabellänge | 28 cm |
| CPU-Leistung Kabellänge | 23 cm |
| CPU Stecker (8-pin) | 2 |
| Kabeltyp | Vollständig modular |
| 80 Plus Zertifizierung | 80 PLUS Gold |
| Unterstützte Motherboards Formfaktoren | ATX |
| Zweck | PC |
| Stromversorgungseinheit (PSU) Formfaktor | ATX |
| Lagertyp | FDB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 150000 h |
| Produktfarbe | Schwarz |
| Kühlung | Aktiv |
| Feature | Schrauben enthalten |
| Betriebstemperatur | 0 - 50 °C |
| Relative Luftfeuchtigkeit in Betrieb | 15 - 65% |

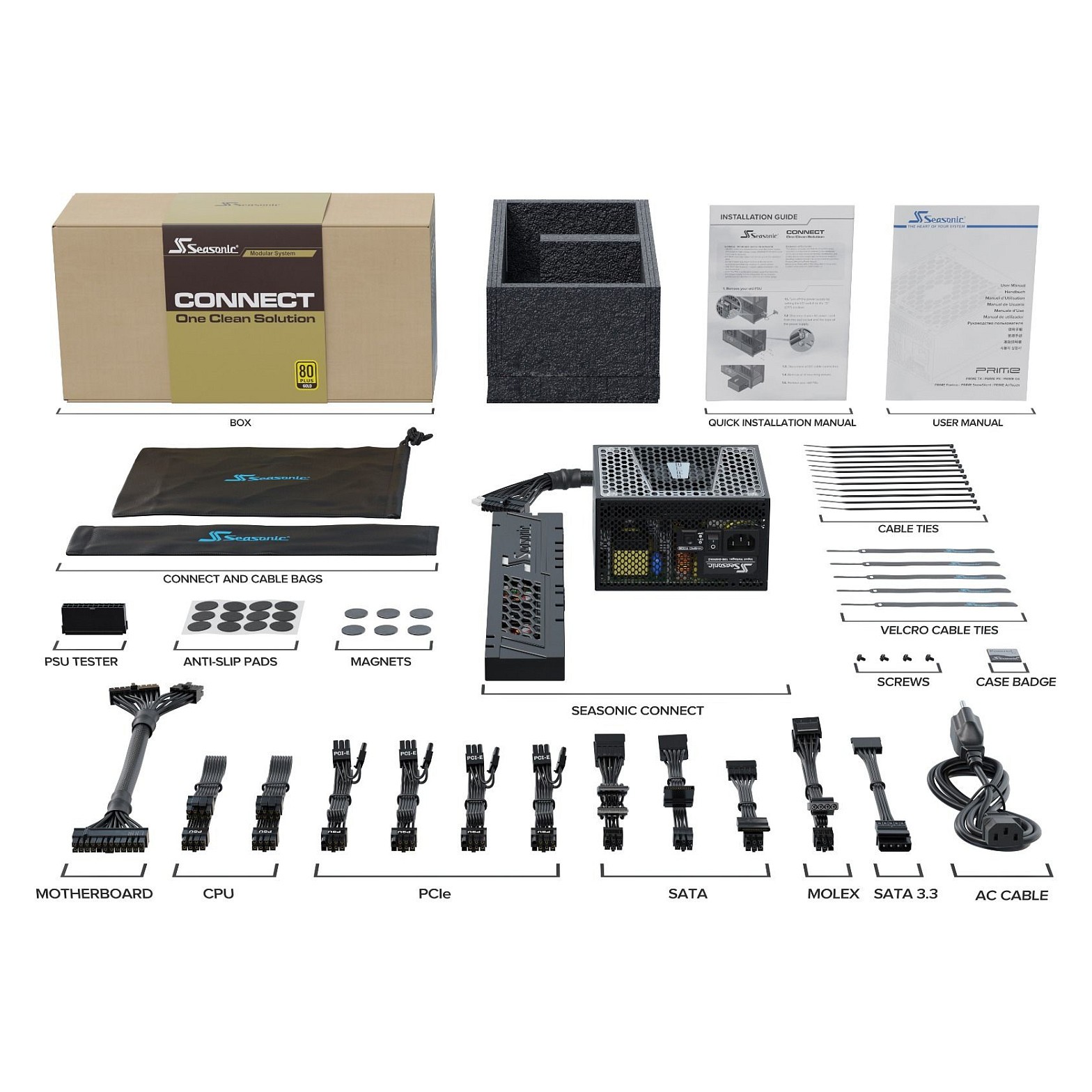

| Mitgelieferte Kabel | CPU. PCIe. Peripheral (Molex). Peripheral (Molex) to SATA 3.3. SATA |
| Konformitätsbescheinigungen | RoHS |
| Zertifizierung | cTUVus. TUV. CB. CCC. BSMI. EAC. CE. WEEE. ErP Lot 6. REACH |
| Breite | 150 mm |
| Tiefe | 140 mm |
| Höhe | 86 mm |
| Verpackungsart | Box |
| Nachhaltigkeitszertifikate | ENERGY STAR |
| Warentarifnummer (HS) | 84733020 |
| Anzahl von Schrauben | 4 |
