FSP MEGA-1000GM 1000W ATX 3.1 80+ Gold Fully Modular PSU (Boxed)
FSP MEGA-1000GM 1000W ATX 3.1 PSU with 80+ Gold efficiency, fully modular cables, 135mm FDB fan. Supports PCIe 5.1 with 1x 12V-2x6 (600W) + 4x 6+2 pin connectors. OCP/OVP/OTP protections. Quiet operation for high-end PCs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The FSP MEGA-1000GM is a high-performance 1000W power supply unit compliant with the latest ATX 3.1 and PCIe 5.1 standards. Certified 80 PLUS Gold with up to 90% efficiency at typical loads, it features a fully modular cable design for clean builds and optimal airflow. Equipped with a quiet 135mm Fluid Dynamic Bearing (FDB) fan and comprehensive protections including OCP, OVP, OPP, SCP, OTP, and SIP.

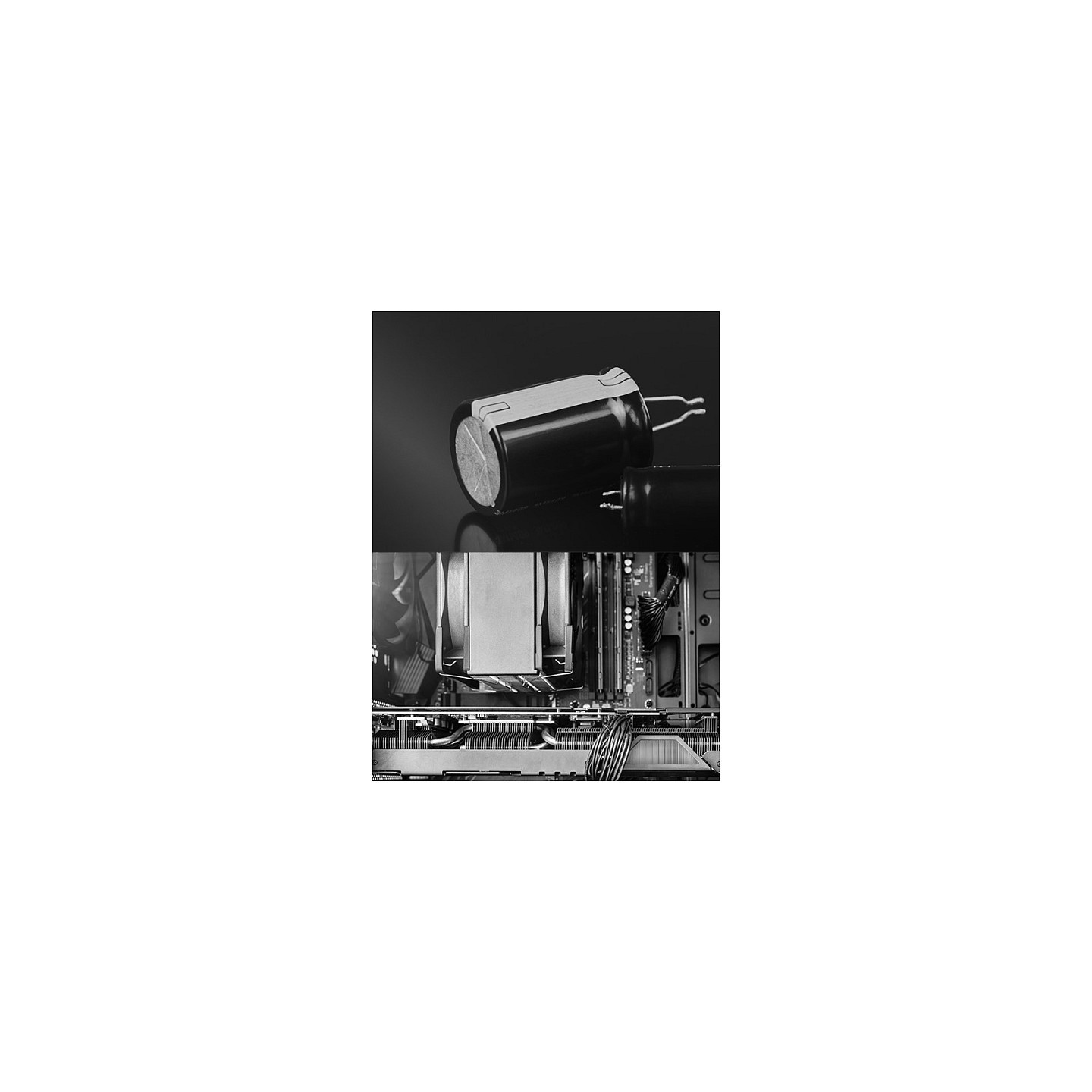

Ideal for demanding gaming rigs and workstations, it delivers stable power via single +12V rail (83.3A), 2x EPS 4+4pin connectors for modern CPUs, 1x 12V-2x6 (600W) for next-gen GPUs like RTX 40 series, and 4x PCIe 6+2 pin connectors. Japanese capacitors ensure long-term reliability with a 10-year warranty.
- ✅ 1000W total power, 80+ Gold certified

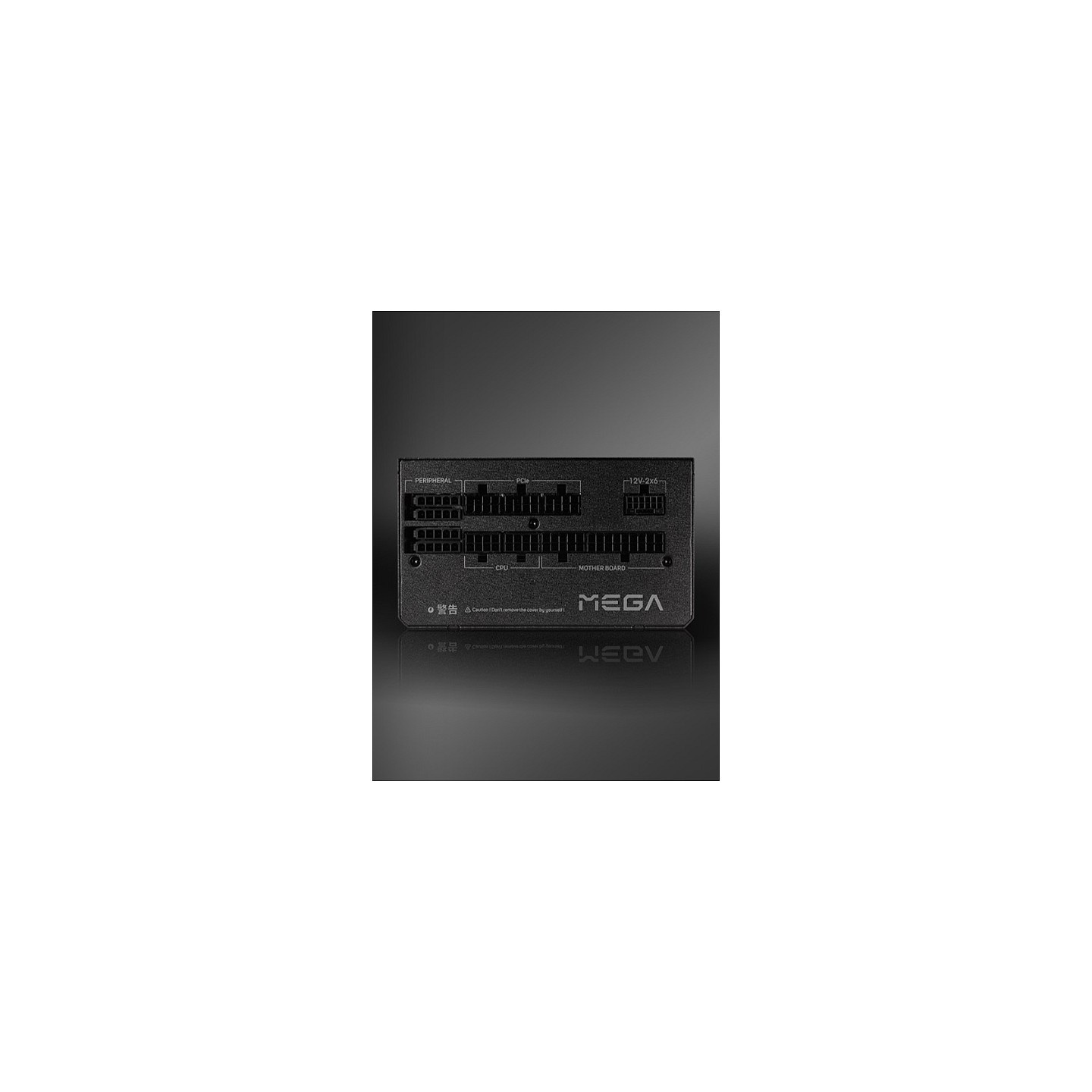

- ✅ Fully modular black cables
- ✅ ATX 3.1 / PCIe 5.1 compliant
- ✅ 135mm FDB fan, active cooling
- ✅ Full protection suite + 10-year warranty
| Total Power | 1000 W |
| Efficiency | 80 PLUS Gold (90% at typical load) |
| Form Factor | ATX |
| ATX Version | 3.1 |
| Modularity | Fully modular |
| Fan Diameter | 135 mm FDB |
| Color | Black |
| EPS Connectors | 2x 4+4pin EPS/ATX12V |
| PCIe Connectors | 1x 12V-2x6 (600W), 4x 6+2 pin |
| Protections | OCP, OVP, OPP, SCP, OTP, SIP, UVP |
| Warranty | 10 years |

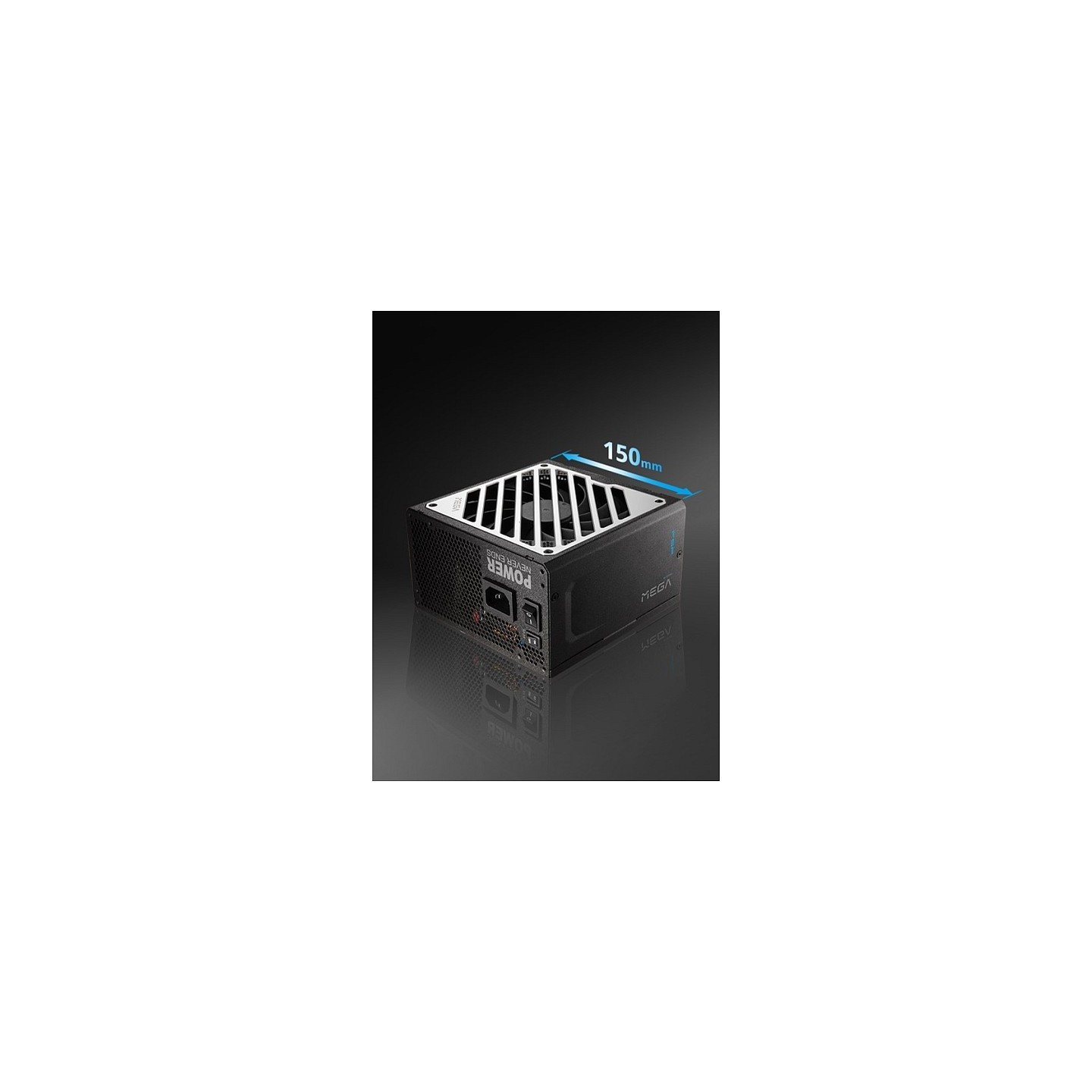

| Dimensions (Unit) | 150 x 150 x 86 mm |
| Cooling | Active, 1x 135mm FDB fan |
