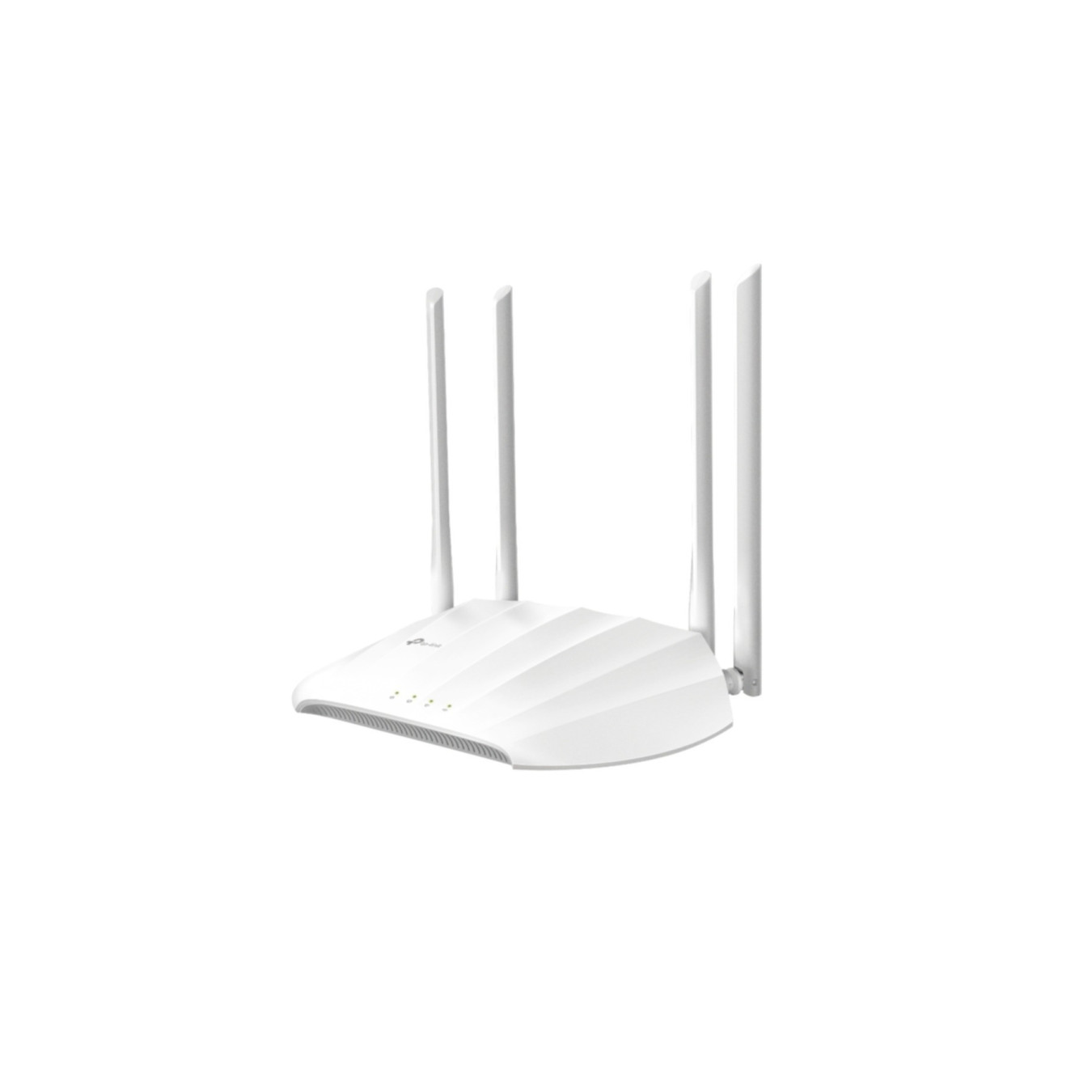

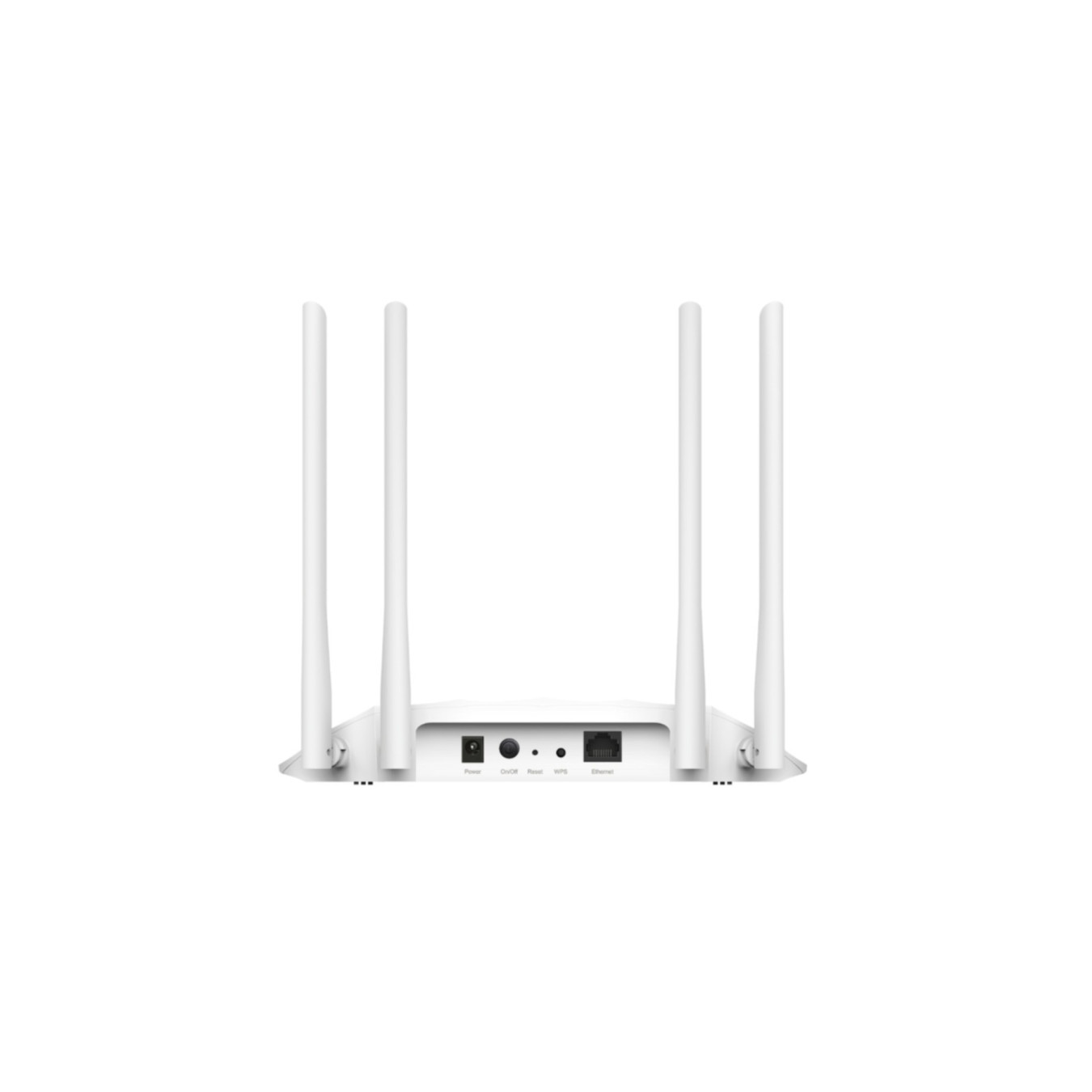

TP-Link TL-WA1201 Access Point - Dual-Band AC (Wi-Fi 5) - White, Gigabit Ethernet, PoE
Dual-band 2.4/5 GHz AC access point (300 + 867 Mbps), 1x Gigabit RJ45 with Active PoE, multiple SSIDs, WPA/WPA2 security. Desktop mount, white.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Mounting | Desktop |
| Access Points - Outdoor Rating | None |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 867 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Multicast VLAN |
| Quality of Service (QoS) support | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 30 dBm |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Auto Wireless Distribution System (WDS) | Yes |
| Access Control List (ACL) | Yes |
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) type supported | Active PoE |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Placement | Table |
| Product colour | White |
| On/off switch | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Antenna type | External |
| Antennas quantity | 4 |
| Compatible operating systems | Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser |
| Compliance certificates | RoHS, Federal Communications Commission (FCC), CE |
| Width | 225 mm |
| Depth | 145.5 mm |
| Height | 37 mm |
| Package width | 400 mm |
| Package depth | 255 mm |
| Package height | 69 mm |
| Package weight | 860 g |
| Quantity per pack | 1 pc(s) |
| AC adapter included | Yes |
| PoE adapter included | Yes |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Sustainability compliance | Yes |
