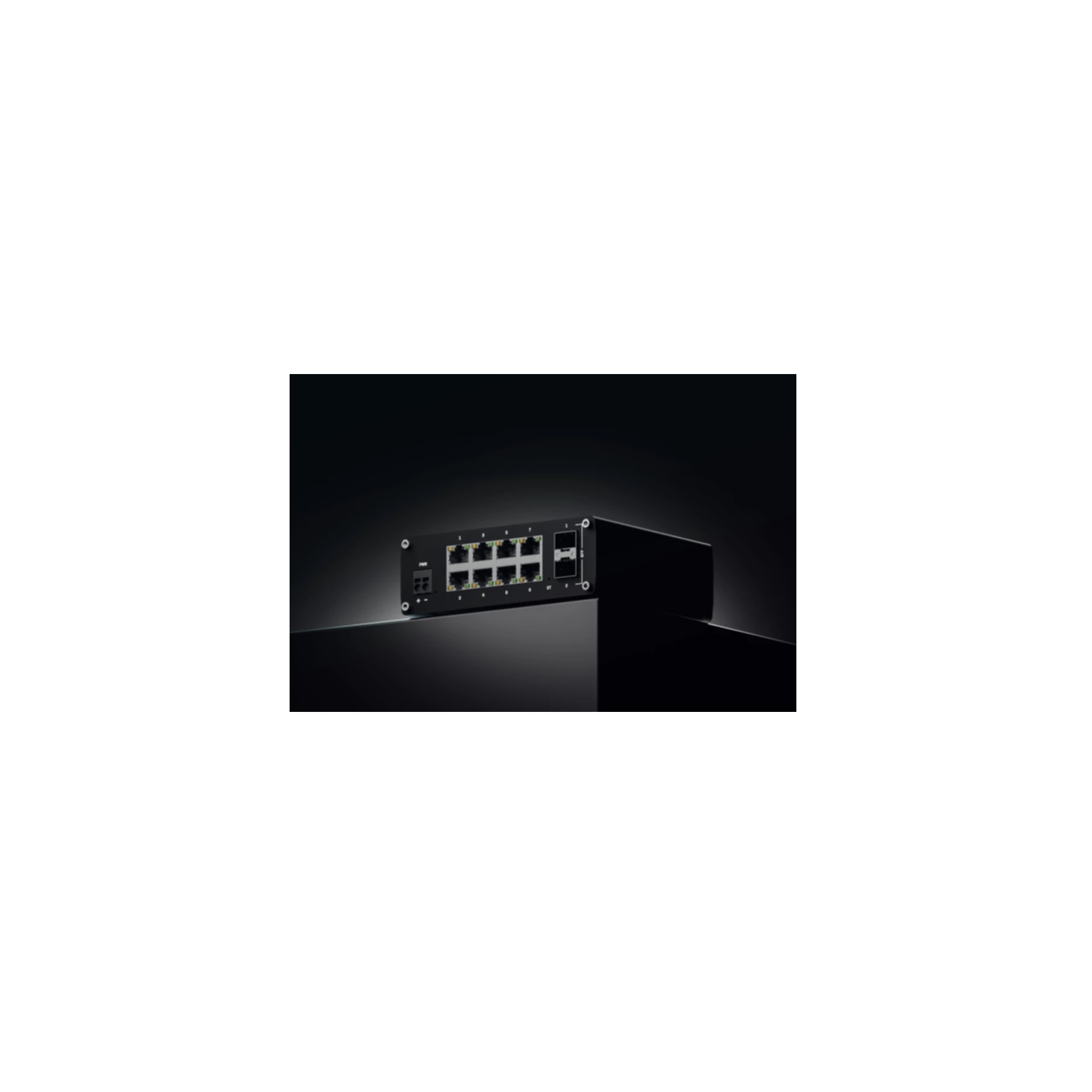

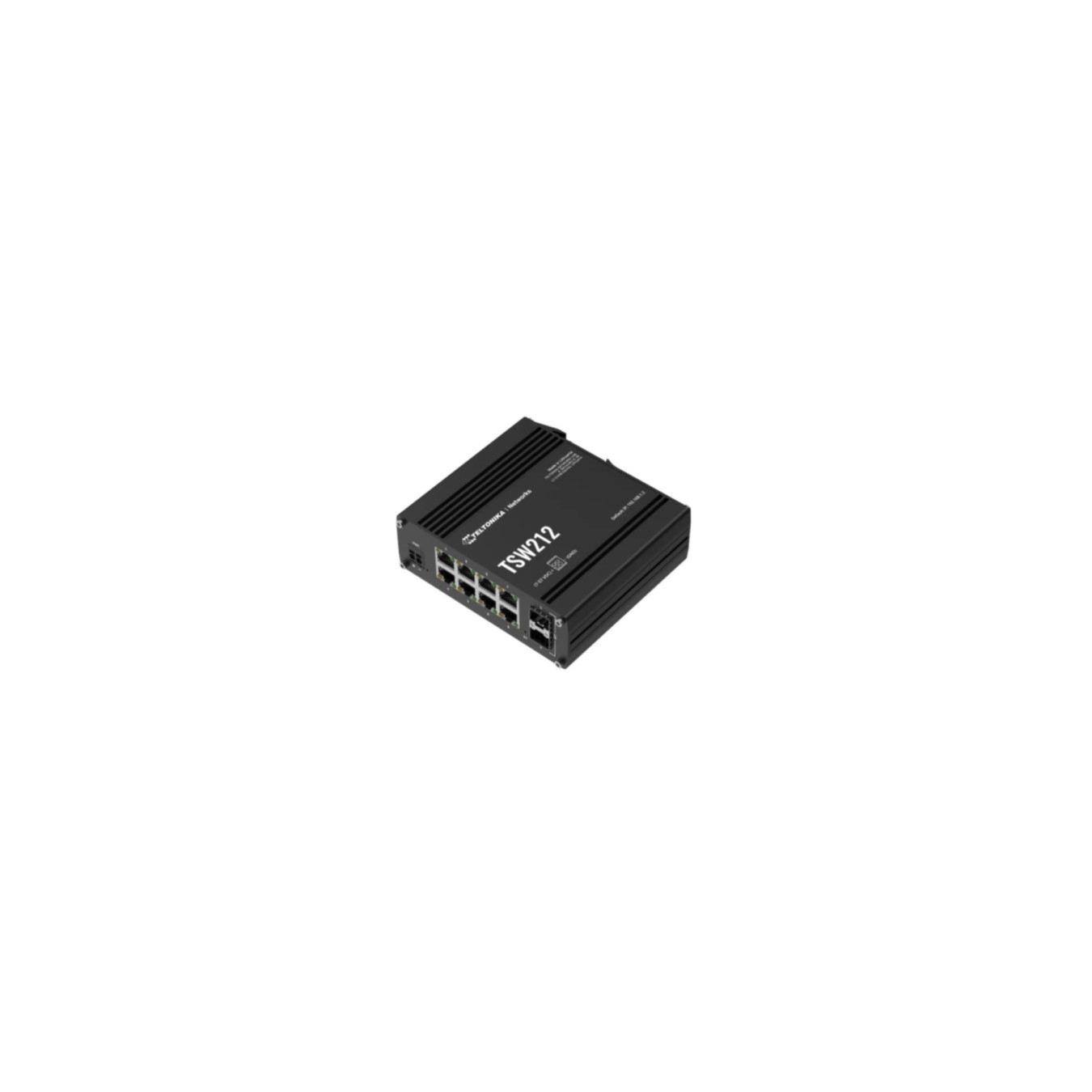

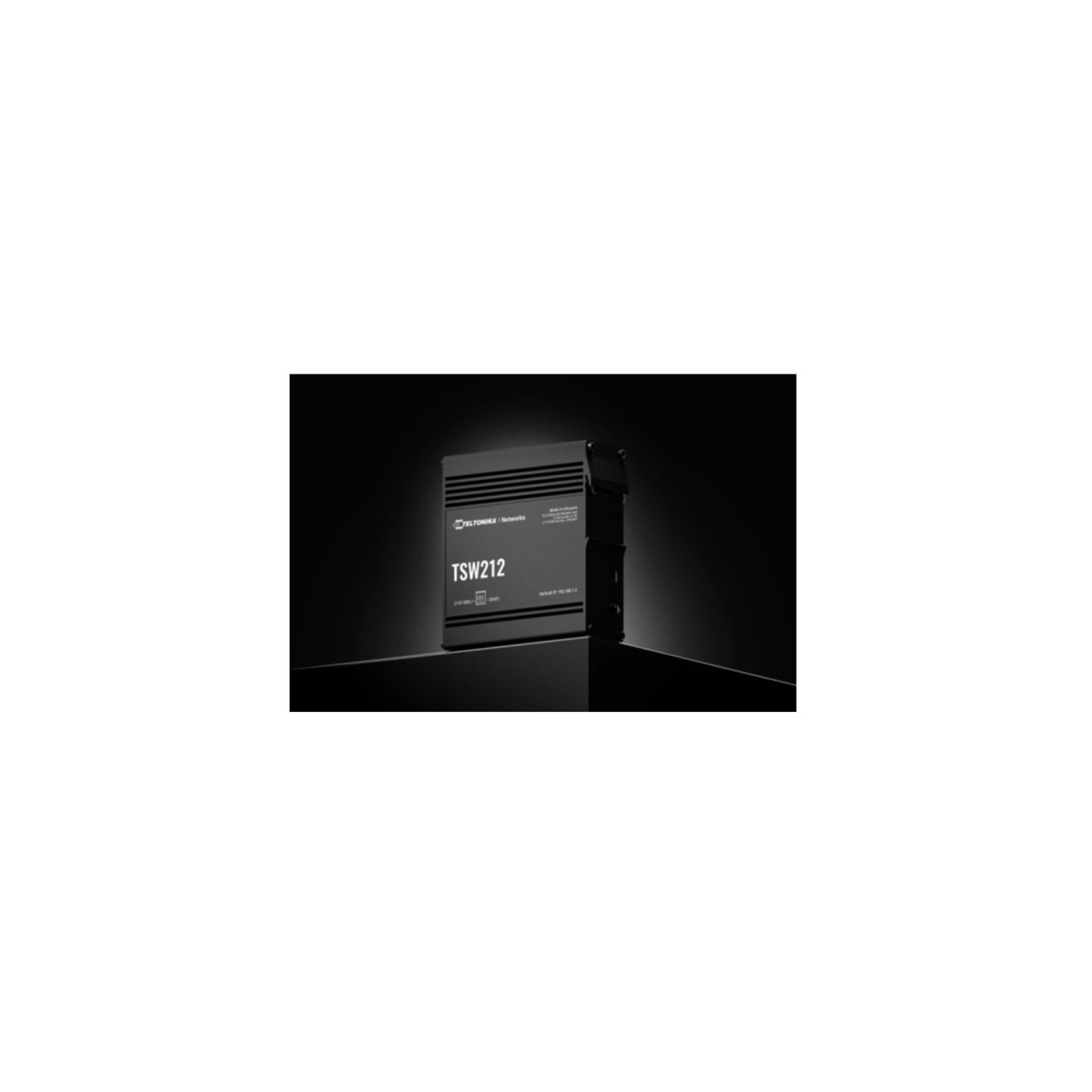

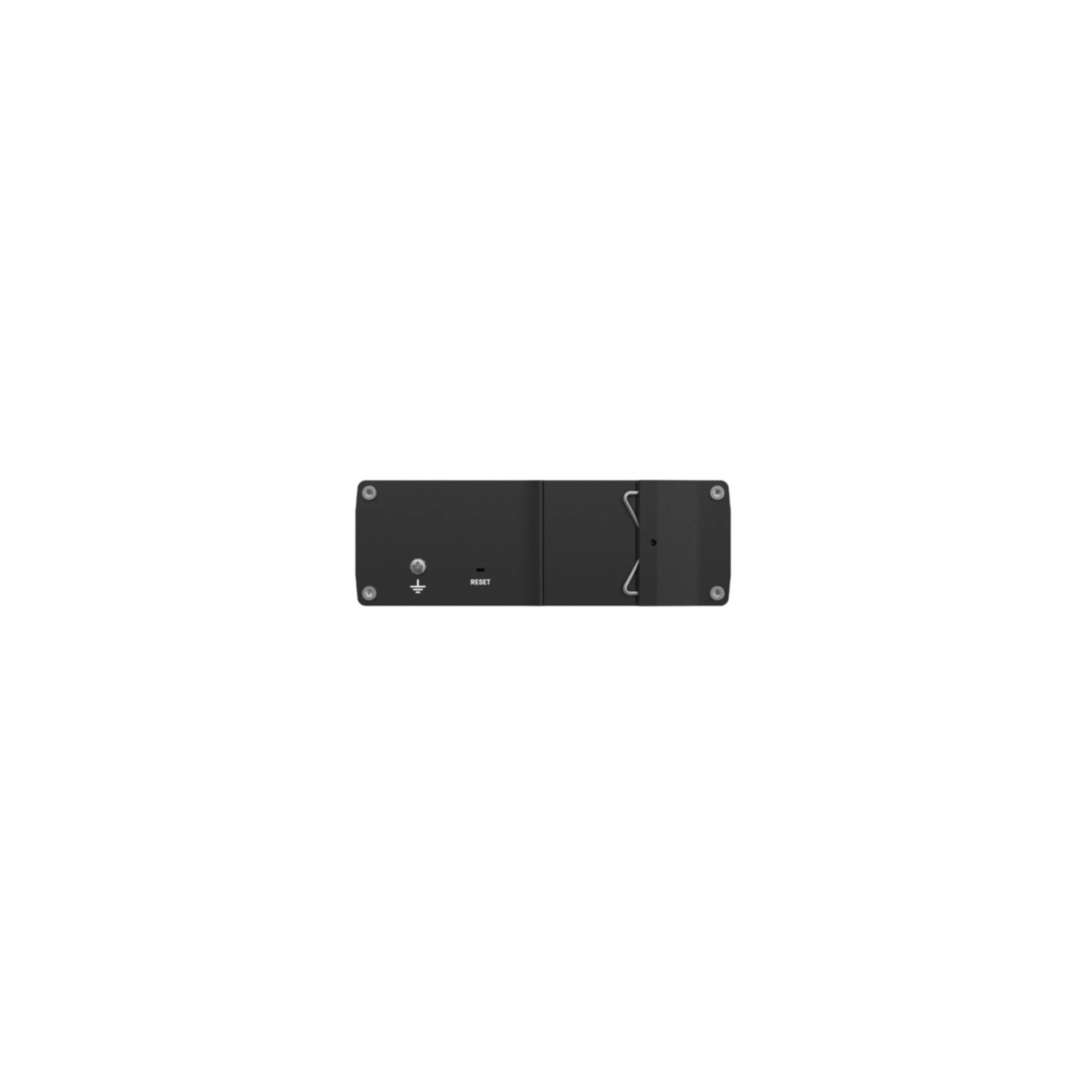

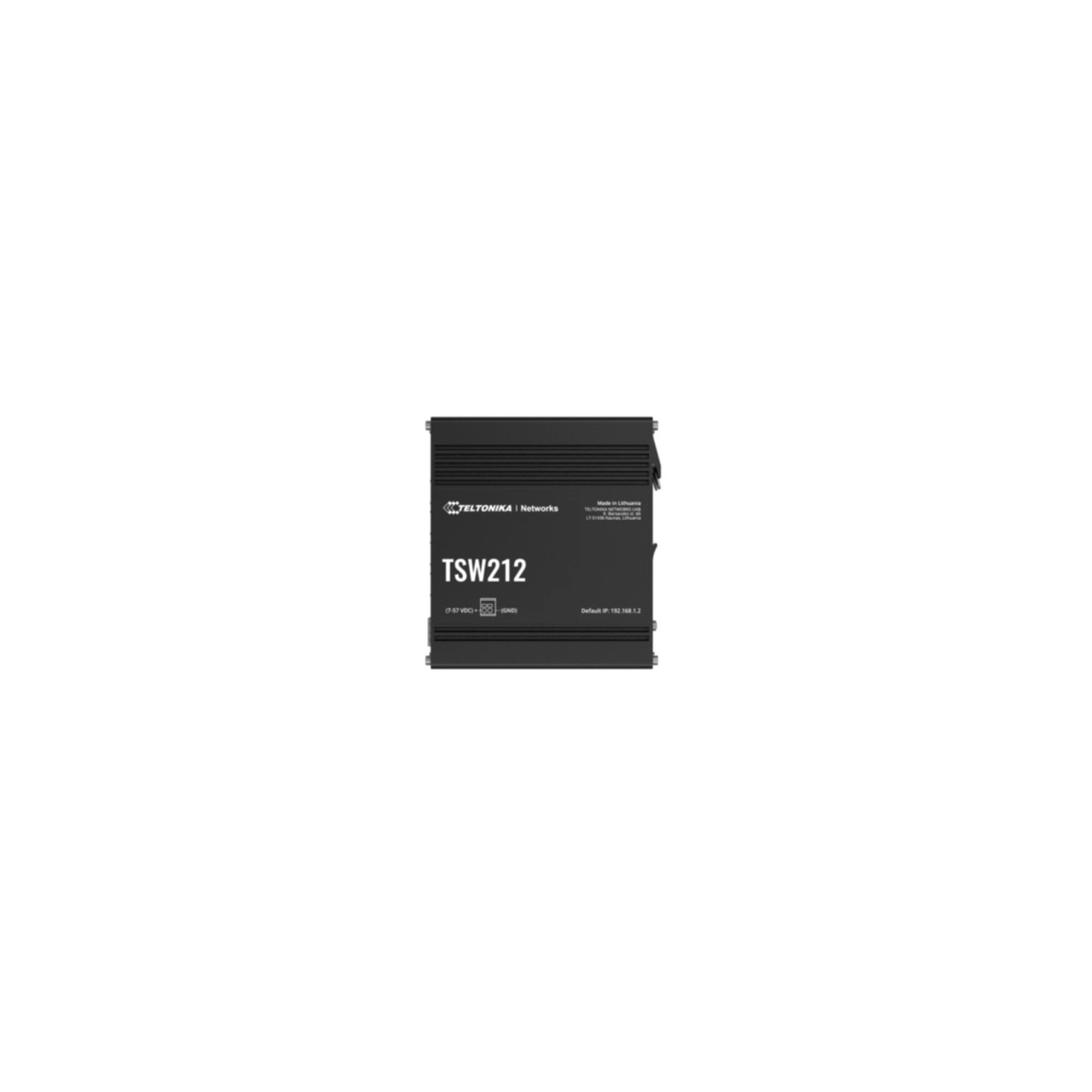

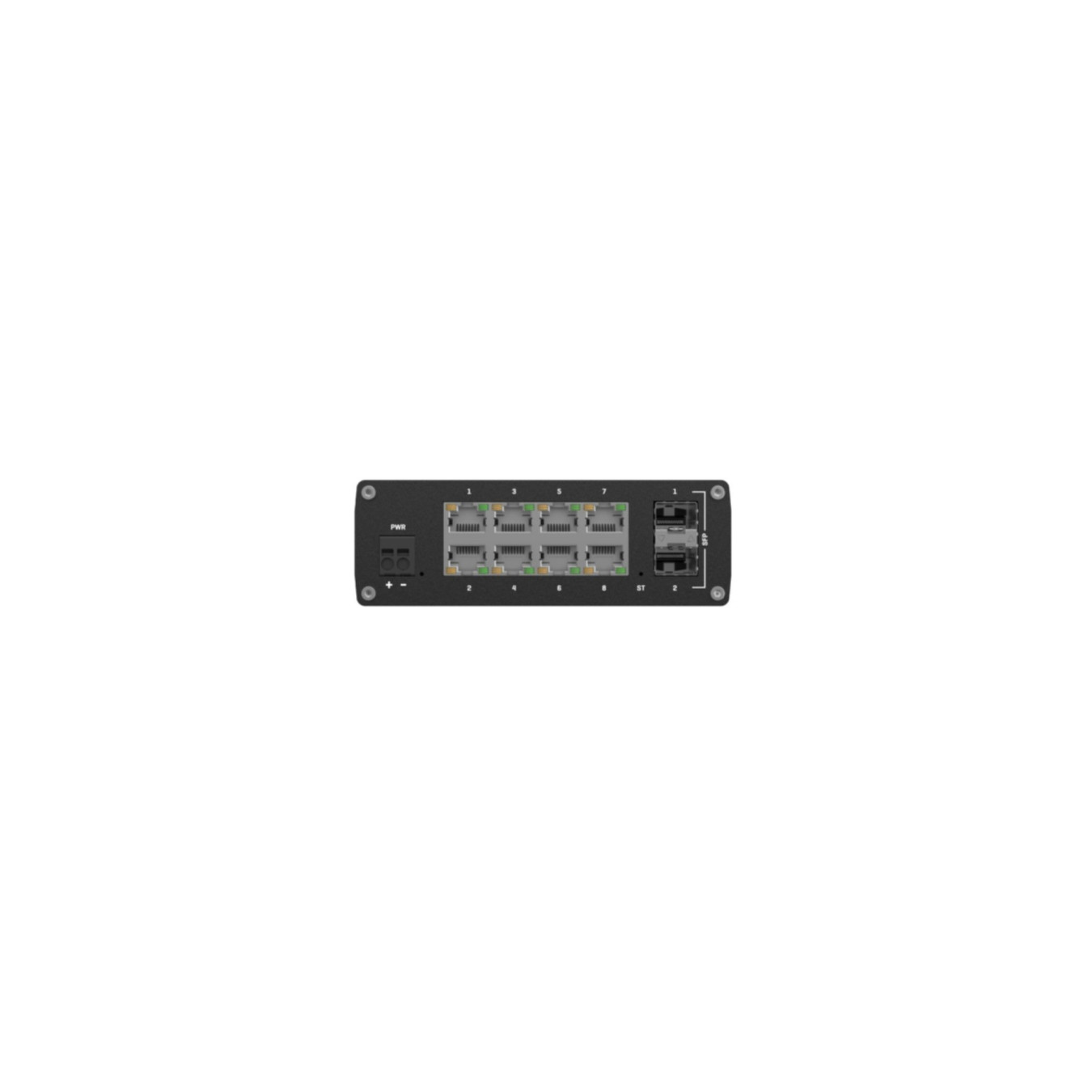

Teltonika TSW212 - 8-Port Gigabit Managed L2 Switch, 2x SFP, Black, 128MB RAM
Managed L2 switch with 8x Gigabit RJ45 + 2x SFP, VLAN & QoS, 20 Gbps switching capacity, 8K MAC, jumbo frames (10k), 128MB DDR3, 16MB flash, 6W, IP30.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
MANAGED ETHERNET SWITCH
TSW212 is an L2 managed Ethernet switch with additional L3 features, like DHCPv6 client support and static IPv6 routing. This switch supports protocols, including EtherNet/IP, PROFINET, and MRP, and has 8 Gigabit Ethernet ports and 2 SFP ports to ensure robust long-range fibre optic communication.
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az |
| 10G support | No |
| Port mirroring | Yes |
| IP routing | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Yes |
| Switching capacity | 20 Gbit/s |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 10000 |
| DHCP features | DHCP client, DHCP server |
| Security algorithms | SNMPv2, SNMPv3 |
| Queue scheduling algorithms | WFQ, WFQ+SP, Weighted Round Robin (WRR) |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | LAN, Power |
| International Protection (IP) code | IP30 |
| Memory type | DDR3-SDRAM |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Power source | DC |
| Power supply included | No |
| Power consumption (max) | 6 W |
| Power over Ethernet (PoE) | No |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 132 mm |
| Depth | 122.2 mm |
| Height | 44.2 mm |
| Weight | 615 g |
