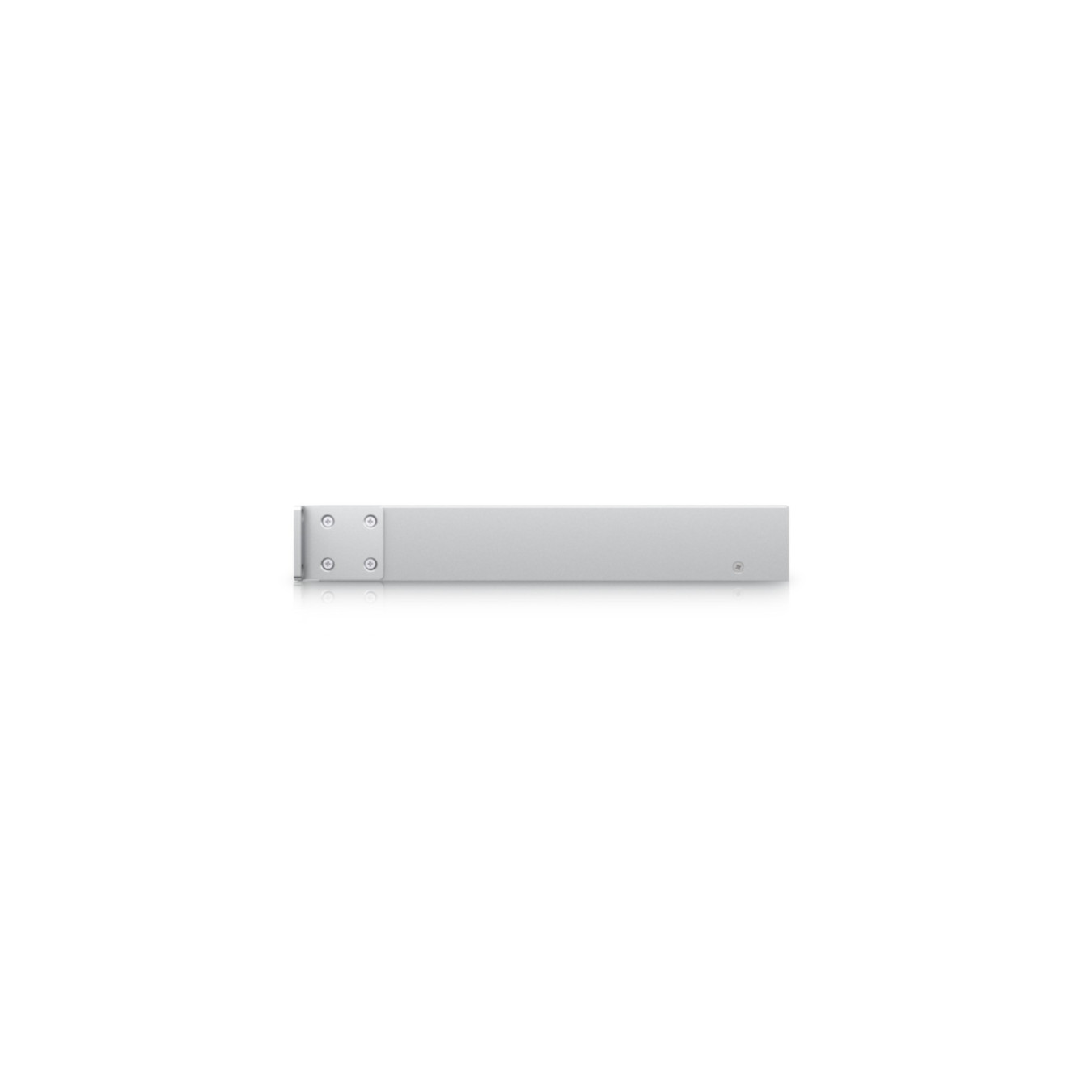

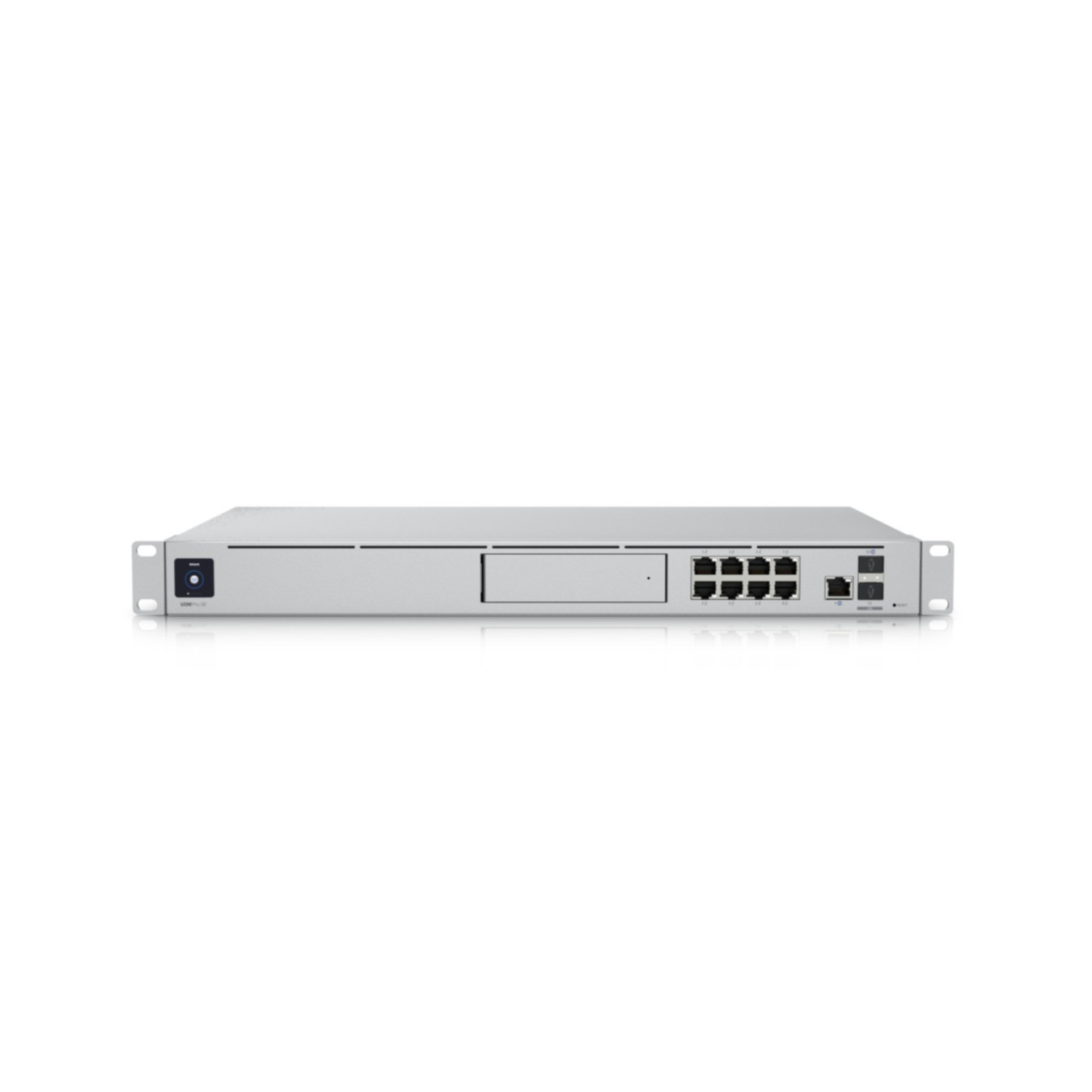

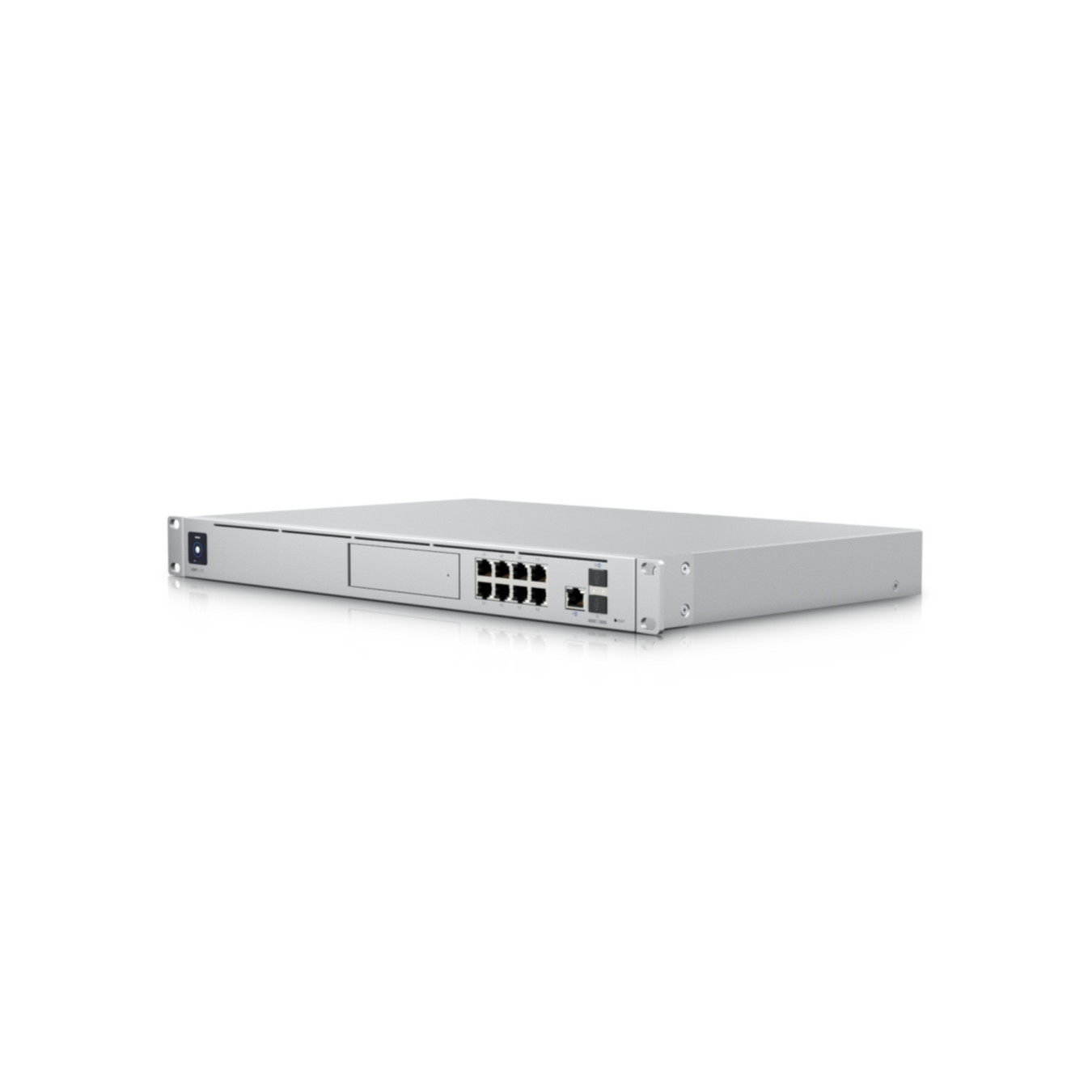

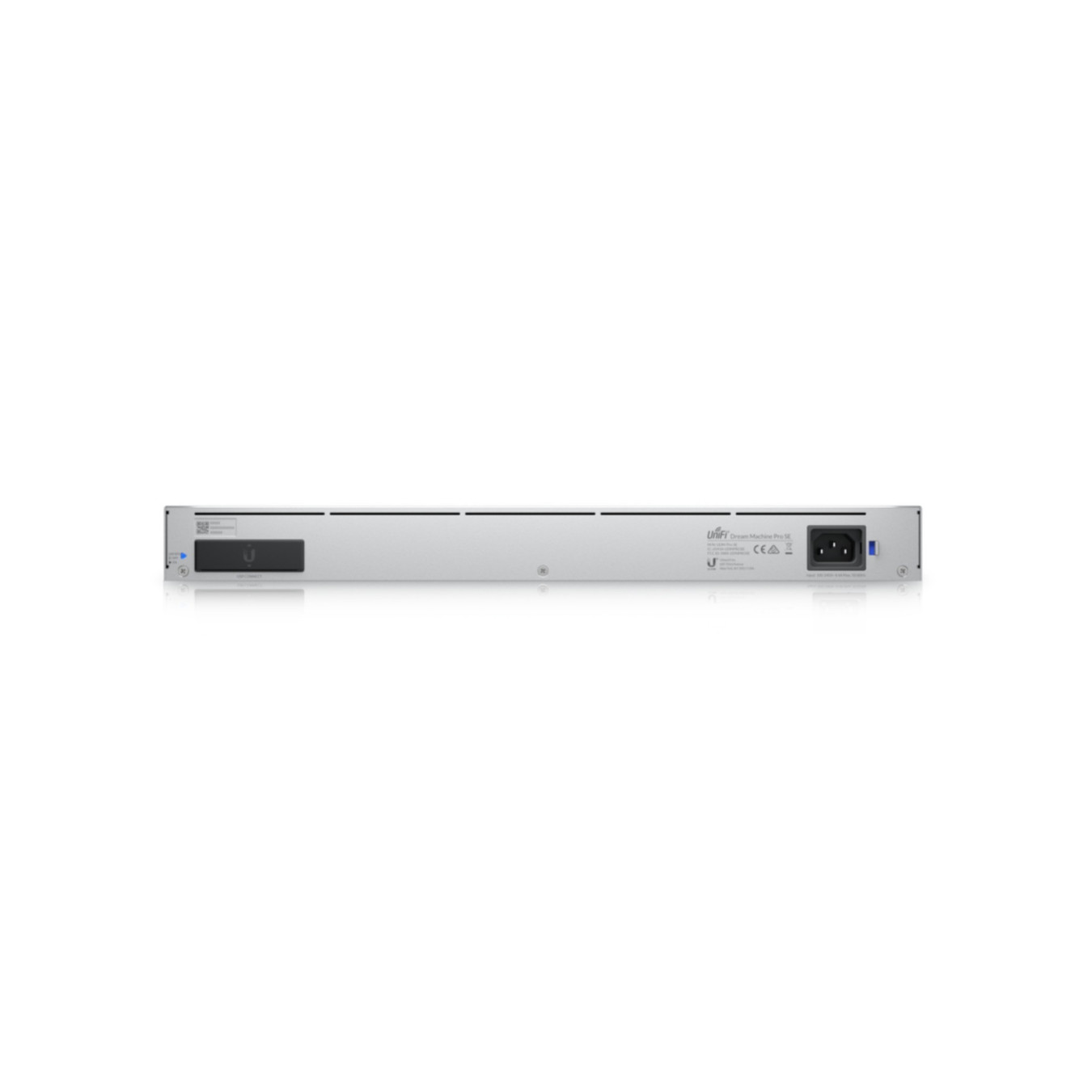

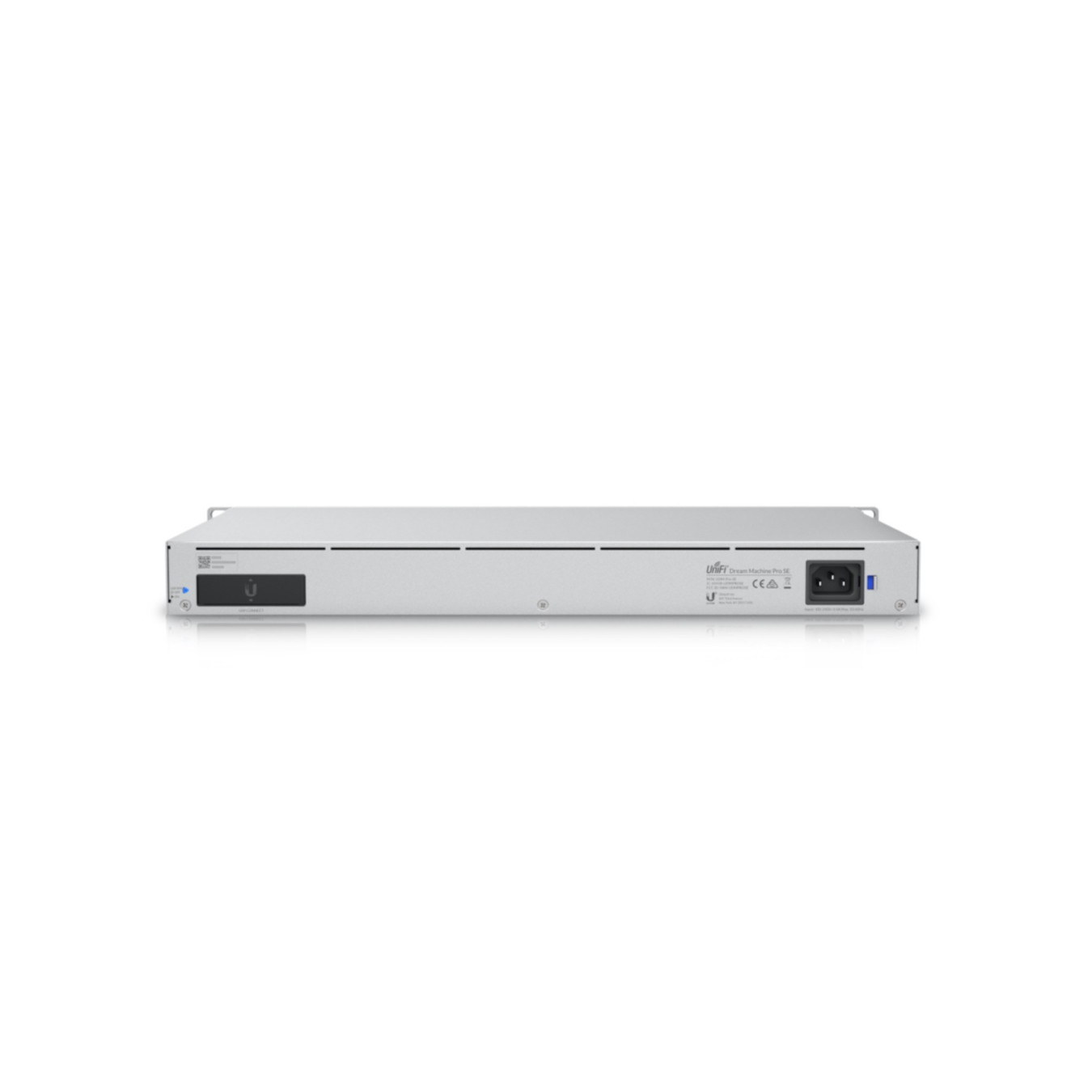

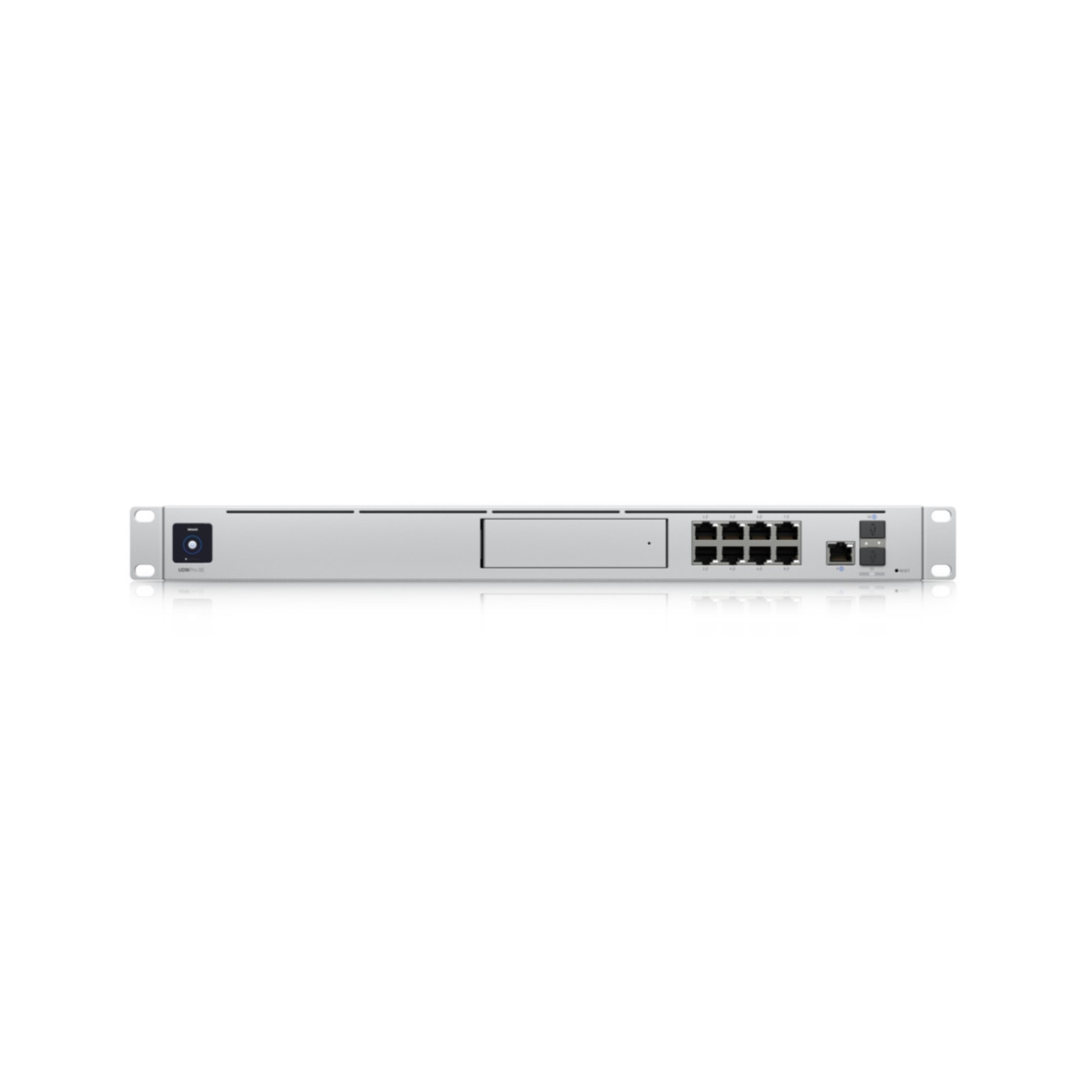

Ubiquiti UniFi Dream Machine SE UDM-SE 1.7GHz 4GB 16GB+128GB SSD 1U Rack (Boxed)
Rack-mount UniFi UDM-SE security gateway: quad-core 1.7GHz CPU, 4GB DDR4, 16GB eMMC+128GB SSD, 8x GbE PoE switch (6x af/2x at), dual WAN (10G SFP+/2.5GbE), 3.5Gbps IPS, 1.3in touchscreen.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wired Gateway |
|---|---|
| Routers - Special Features | Cloud Managed Failover Support Firewall Intrusion Prevention PoE Support Traffic Monitoring VLAN Support |
| Routers - LAN Ports | 9-16 |
| Routers - Wi-Fi Standard | Wired Only |
The Ubiquiti UniFi Dream Machine Special Edition (UDM-SE) is a powerful 1U rack-mountable all-in-one cloud gateway, security appliance, PoE switch, and NVR console. Featuring a quad-core ARM Cortex-A57 1.7 GHz processor, 4 GB DDR4 RAM, 16 GB eMMC, and integrated 128 GB SSD, it supports 100+ UniFi devices and 1,000+ clients with 3.5 Gbps IPS routing throughput.
It includes high-speed dual WAN (1x 10G SFP+, 1x 2.5 GbE RJ45), 8x 1 GbE RJ45 LAN ports (6x 802.3af PoE at 15.4W, 2x 802.3at PoE+ at 30W), 1x 10G SFP+ LAN, and a 1.3" touchscreen for status monitoring. Additional features include stateful firewall, IDS/IPS, VRRP failover, Bluetooth management, and UniFi OS support for Network, Protect, Talk, and Access.
- Enterprise-grade PoE switching up to 130W total
- Internal 240W PSU with RPS DC backup option
- Aluminum CNC chassis with SGCC steel mounts
- Operating temp: -10 to 40°C, 5-95% humidity
- Dimensions: 442.4 x 43.7 x 285.6 mm, Weight: 5 kg
| Product colour | Stainless steel |
| Rack capacity | 1U |
| Enclosure material | Aluminum CNC, SGCC steel |
| Mounting type | Rack mounting |
| Processor frequency | 1.7 GHz |
| Number of processors installed | 1 |
| Processor model | Quad-core ARM Cortex-A57 |
| Internal memory | 4096 MB |
| Internal memory type | DDR4 |
| Flash memory | 16384 MB eMMC + 128 GB SSD |
| Ethernet LAN data rates | 1000 Mbit/s |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Ethernet LAN (RJ-45) ports | 8 |
| SFP+ ports quantity | 2 |
| WAN ports | 1x 2.5 GbE RJ45 + 1x 10G SFP+ |
| PoE ports | 6x 802.3af (15.4W), 2x 802.3at (30W) |
| WAN connection | Ethernet (RJ-45) |
| Power consumption (typical) | 50 W |
| Input voltage | 100 - 240 V |
| Input frequency | 50 - 60 Hz |
| Input current | 4.4 A |
| Power supply | 240 W AC/DC internal |
| Width | 442.4 mm |
| Depth | 285.6 mm |
| Height | 43.7 mm |
| Weight | 5 kg |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Display diagonal | 3.3 cm (1.3 in) |
| IDS/IPS throughput | 3.5 Gbps |
| Harmonized System (HS) code | 85176990 |
