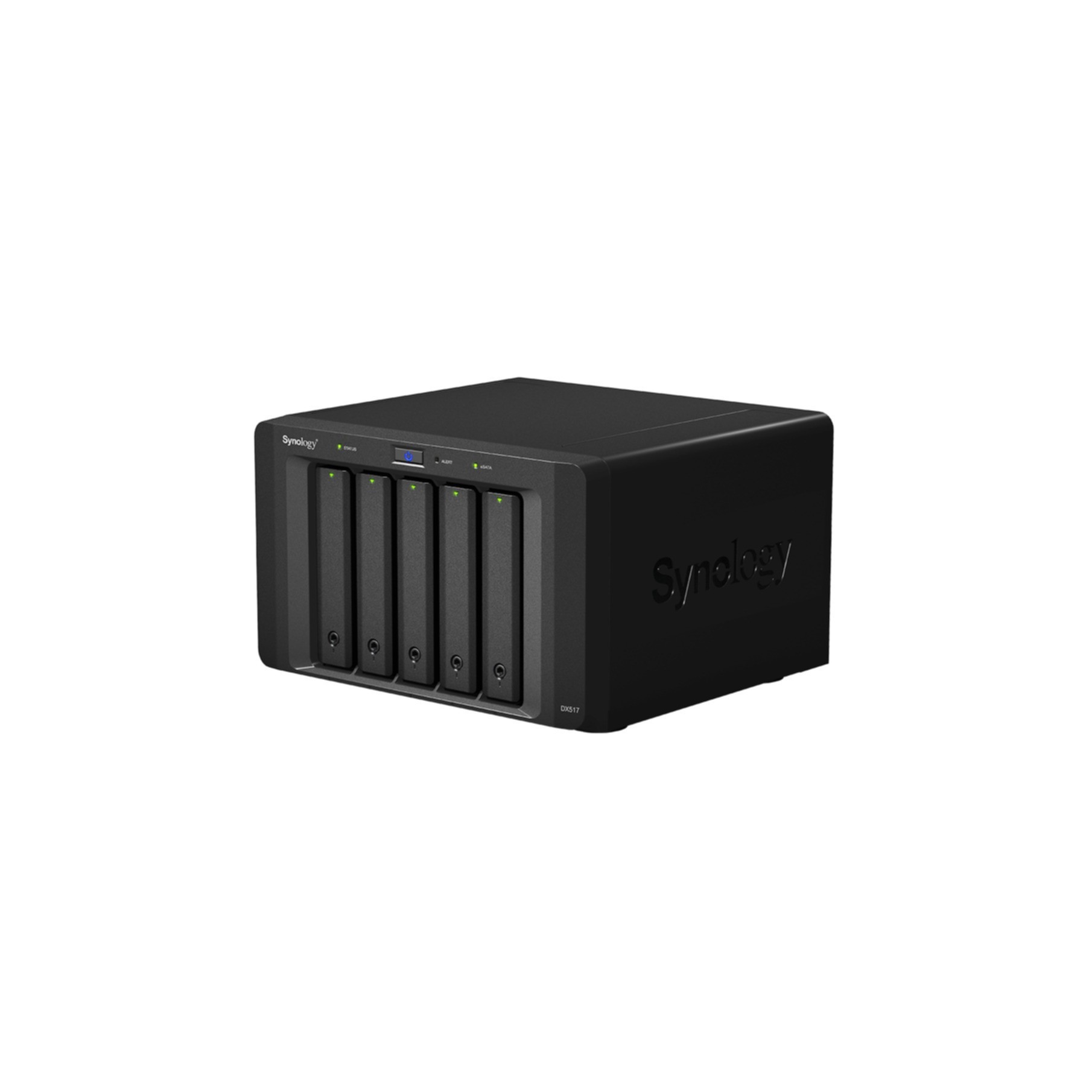

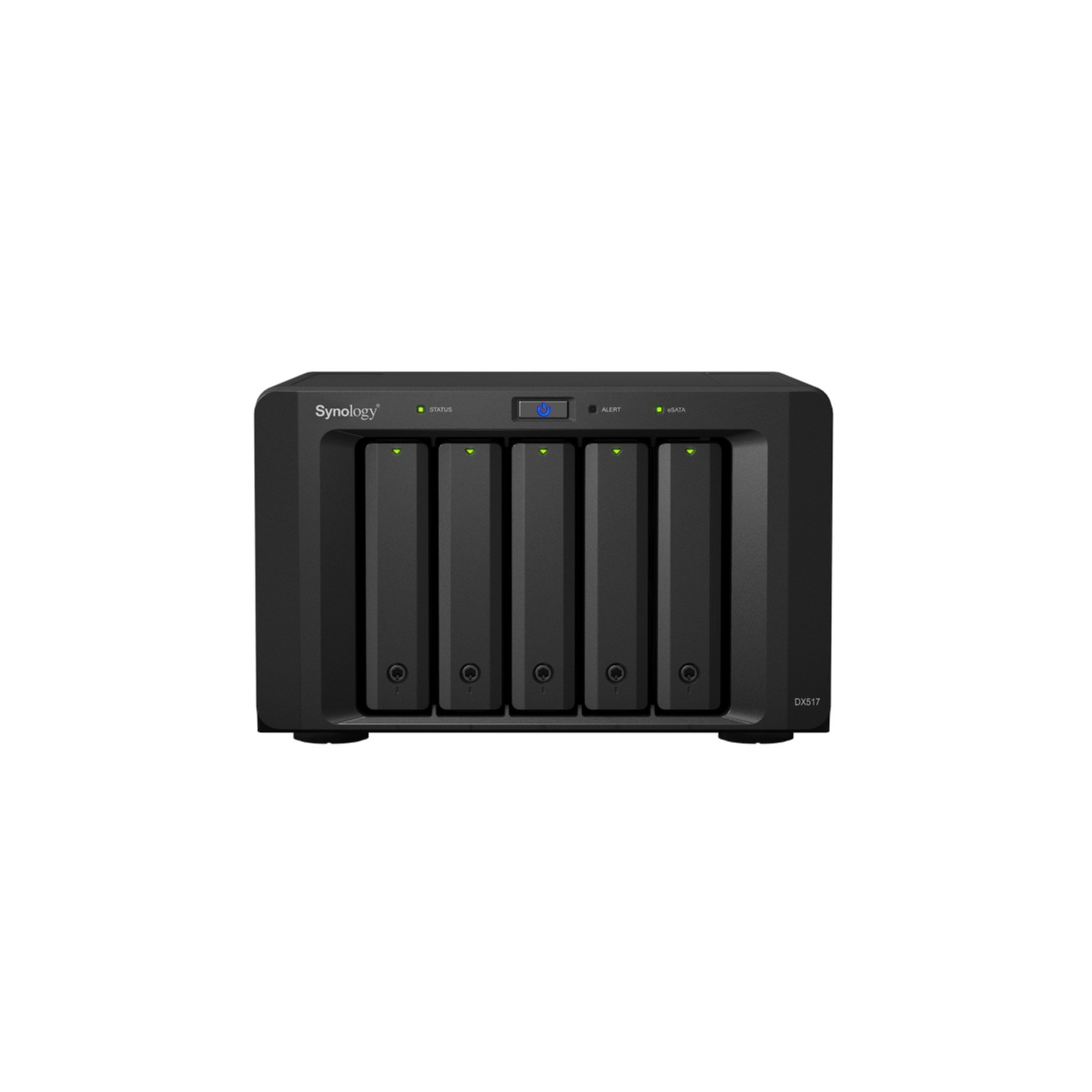

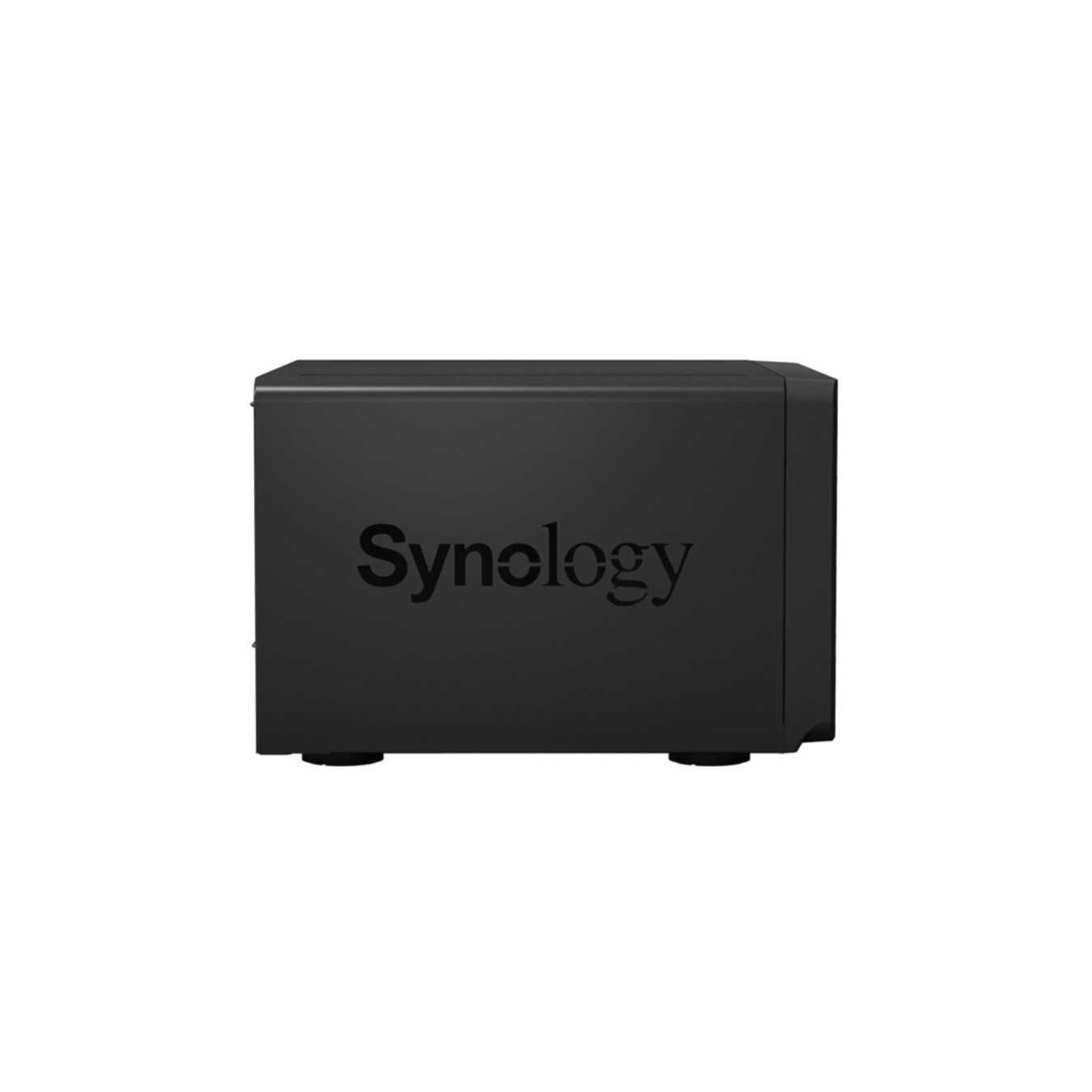

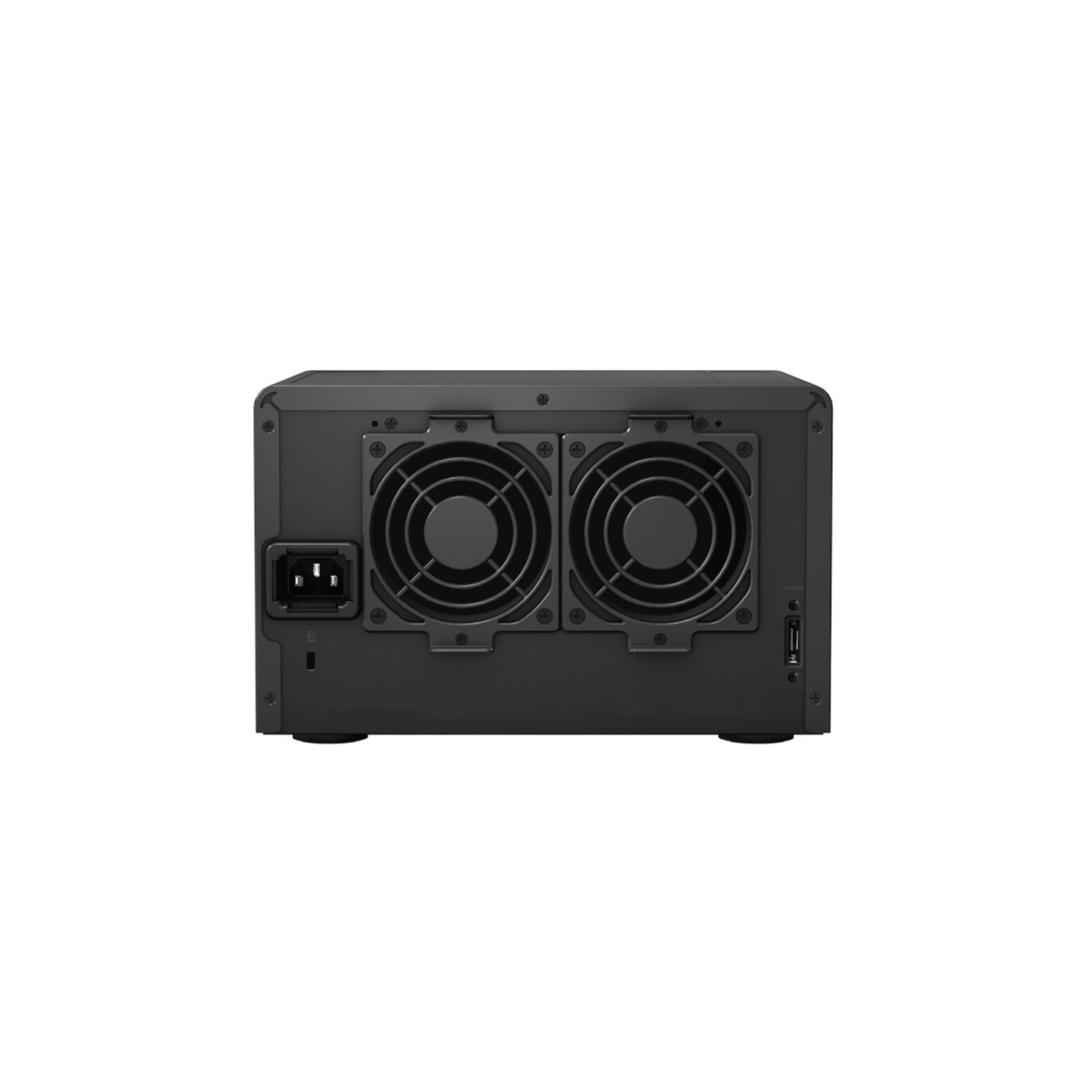

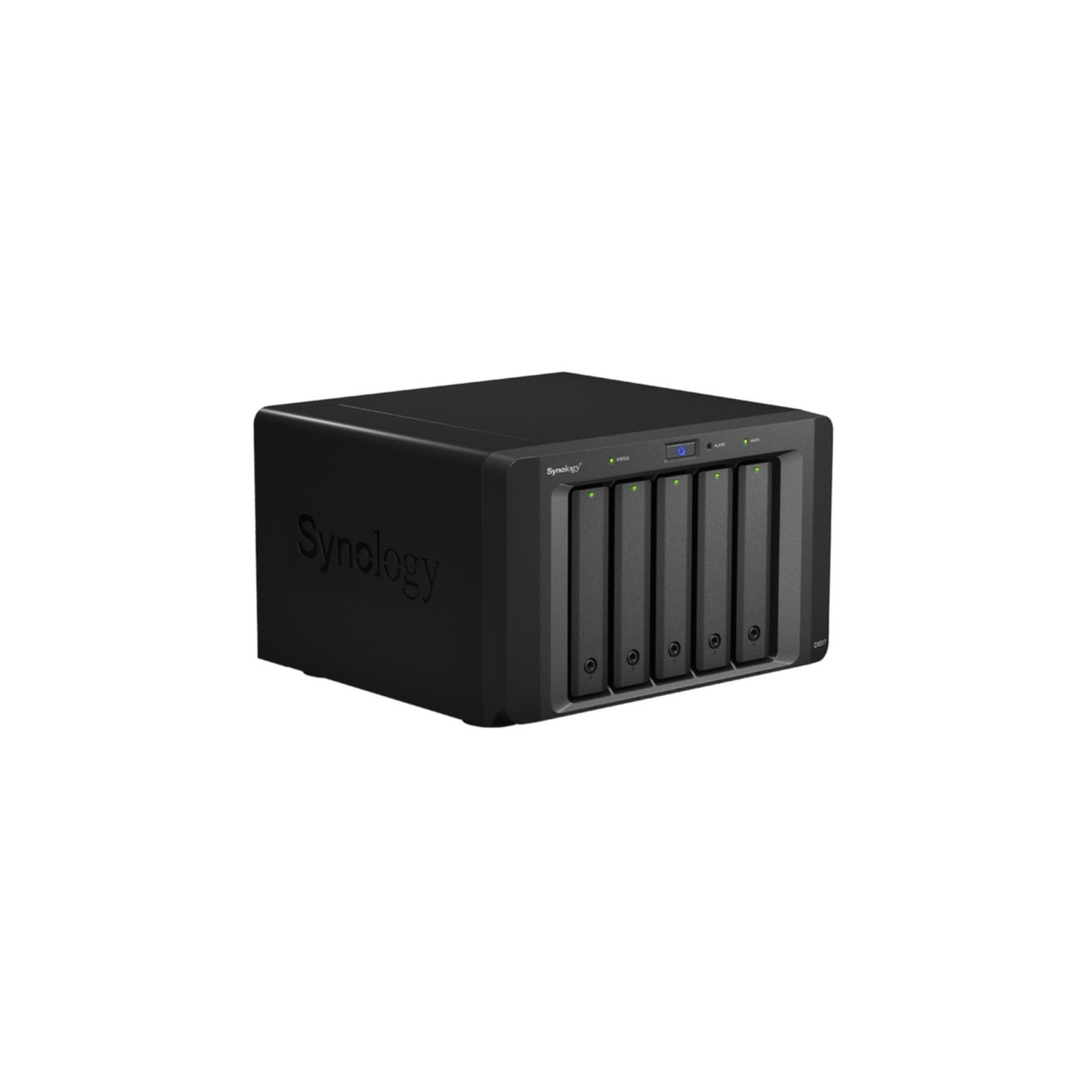

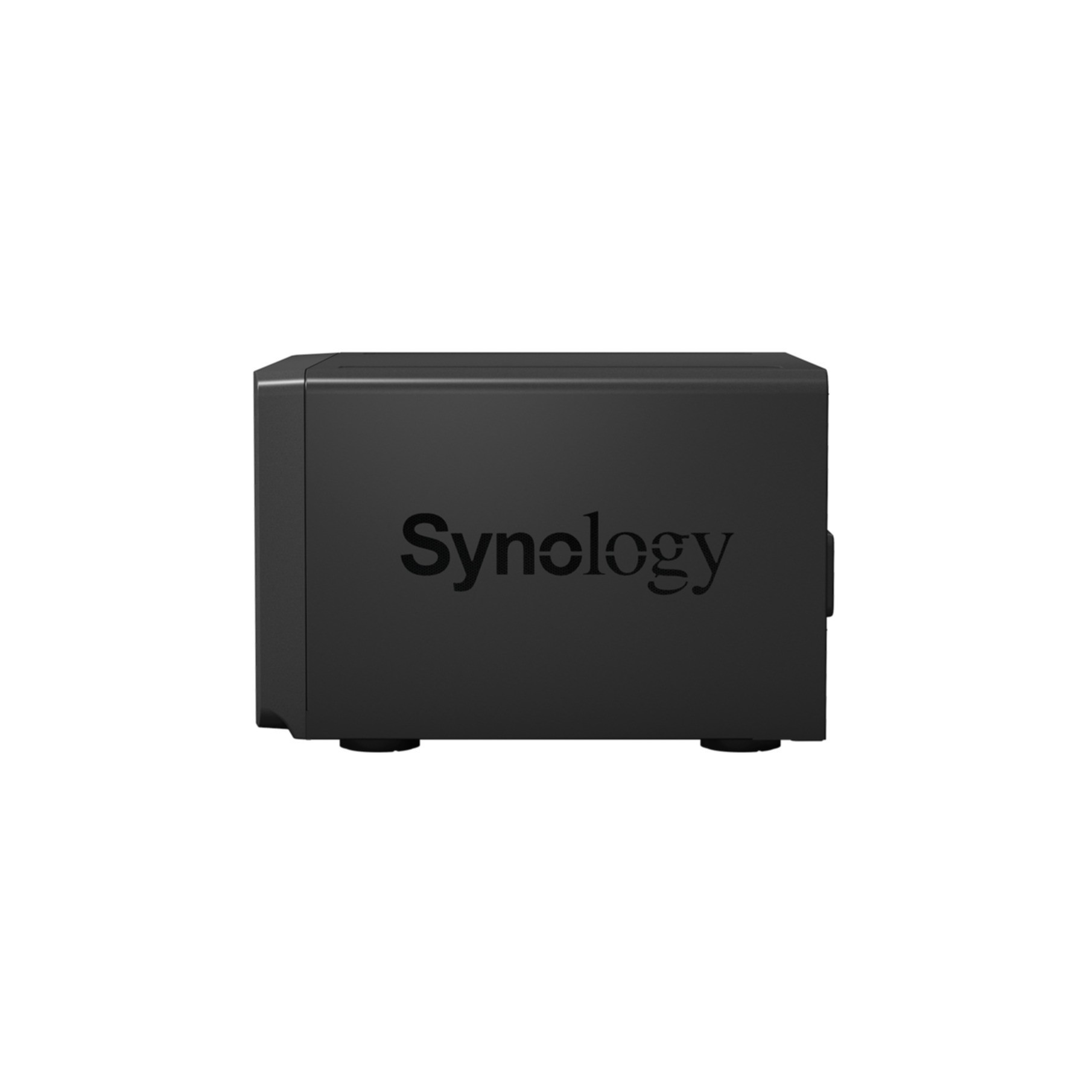

Synology DiskExpansion DX517 - 5-Bay Hot-Swap Expansion Unit, Black, eSATA (for DS1517+/DS1817+)
5-bay expansion unit (DX517) with hot-swappable 3.5"/2.5" drive bays, eSATA connection, up to 80 TB, low 21.5 dB noise; compatible with Synology DS1517+ and DS1817+.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - M.2 Slots | None |
|---|---|
| NAS (Network Attached Storage) - USB | None |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Effortless capacity expansion for Synology DiskStation solutions on-the-fly.
5-bay 3.5”/2.5” SATA expansion
Easily add 5 additional drive bays to Synology DiskStation. Supporting both 2.5” and 3.5” SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination.
Online volume expansion
Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion.
Hot-swappable drive tray design
The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup.
Dedicated local backup solution
Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.
| Storage drives installed | No |
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 5 |
| Maximum supported storage capacity | 80 TB |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| Hot-swap drive bays | Yes |
| USB connectivity | No |
| eSATA ports quantity | 1 |
| Device class | Small & Medium Business |
| Chassis type | Desktop |
| Product colour | Black |
| LED indicators | Alarm, Power, Status |
| Number of fans | 2 fan(s) |
| Noise level | 21.5 dB |
| Compatible products | Synology DS1817+, DS1517+ |
| Certification | FCC B, CE B, BSMI B |
| Power supply unit (PSU) capacity | 200 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 29.9 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 248 mm |
| Depth | 233 mm |
| Height | 157 mm |
| Weight | 3.91 kg |
| Cables included | AC, eSATA |
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -10 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84717020 |
