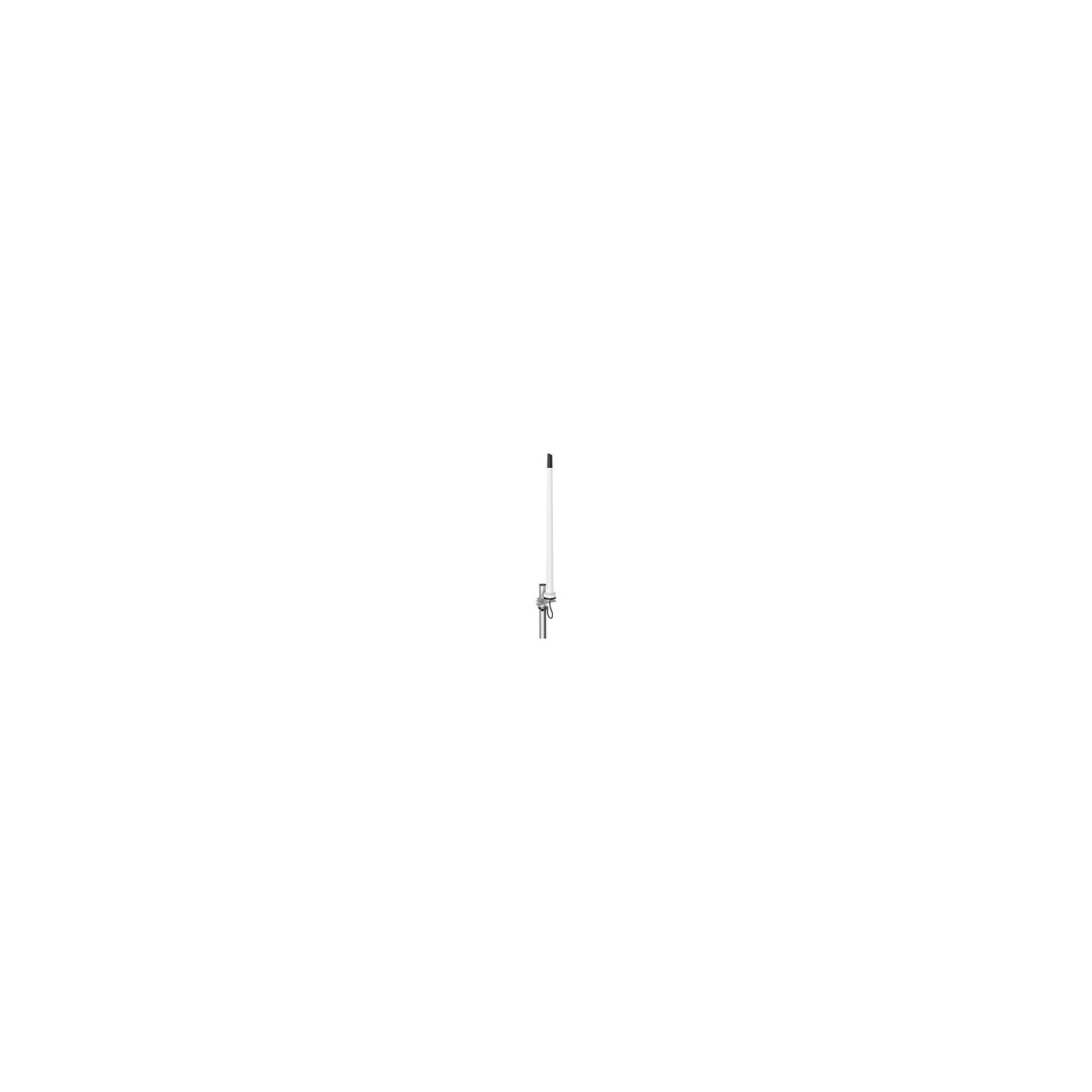

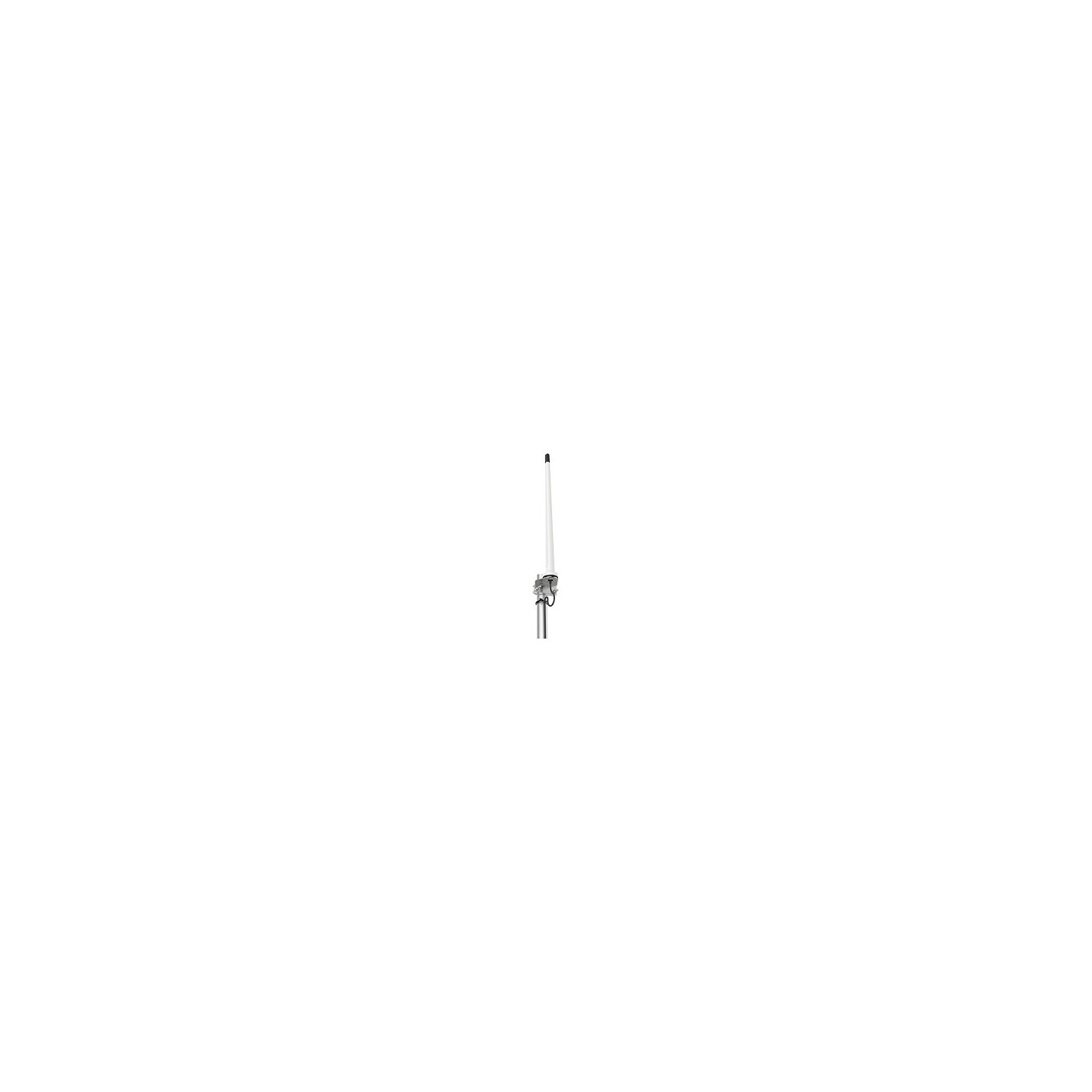

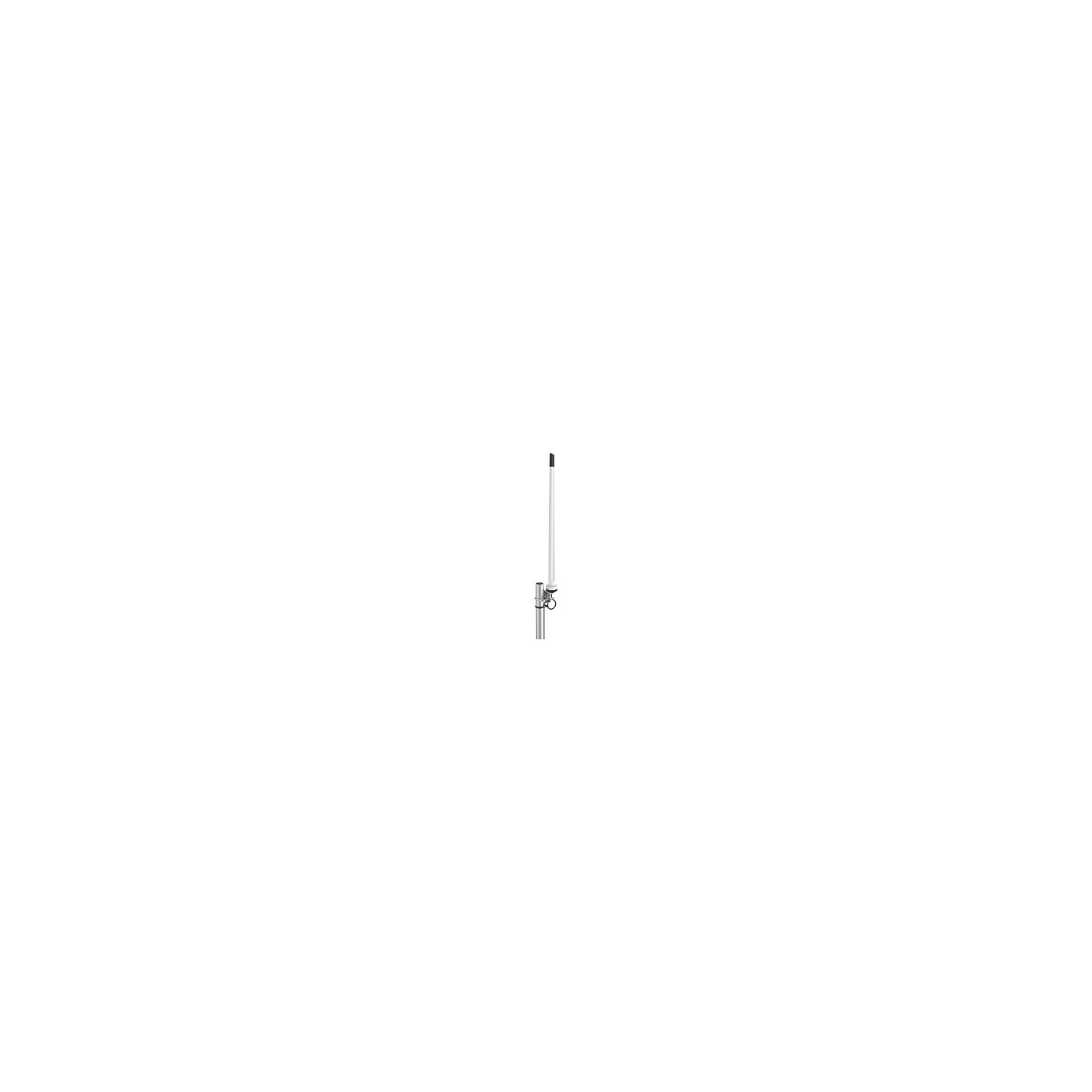

Poynting Antennas LTE GSM Mast Wand A-OMNI-0121-V3 weiß SMA (M) 2.4dbi Rundstrahl Wand 8m Kabel SMA-M LTE
Poynting A-OMNI-0121-V3. 6 dBi. 1.71 - 2.7 GHz. 6 dBi. 50 Ohm. 802.11g. Omnidirektionale Antenne
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Poynting A-OMNI-0121-V3. Antenne Zunahmeniveau (max): 6 dBi. Frequenzband: 1.71 - 2.7 GHz. Verstärkung dBi (bei Antennenkabel): 6 dBi. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Spannung Stellung-Welle Verhältnis (VSWR): 2:1. Enthält nicht: Halogen. Konformitätsbescheinigungen: CE. RoHS. Höhe: 553 mm. Durchmesser: 5 cm. Gewicht: 570 g. Verpackungsbreite: 65 mm. Verpackungstiefe: 130 mm. Verpackungshöhe: 595 mm
| Frequenzband | 1.71 - 2.7 GHz |
| Verstärkung dBi (bei Antennenkabel) | 6 dBi |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 6 dBi |
| WLAN-Standards | 802.11g |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Spannung Stellung-Welle Verhältnis (VSWR) | 2:1 |
| Produktfarbe | Weiß |
| Gehäusematerial | Acrylnitril-Butadien-Styrol (ABS) |
| Schutzfunktion | Staubresistent. Feuerfest. Schlagfest. Wasserfest |
| Internationale Schutzart (IP-Code) | IP65 |
| Feature | Wasserfest |
| Überlebens-Windgeschwindigkeit | 160 km/h |
| Maximale Eingangsleistung | 10 W |
| Kabellänge | 8 m |
| Kabeltyp | HDF-195 |
| Montage | Wand- / Mast |
| Zweck | Innen & Außen |
| Enthält nicht | Halogen |
| Konformitätsbescheinigungen | CE. RoHS |
| Betriebstemperatur | -40 - 80 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 98% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Höhe | 553 mm |
| Durchmesser | 5 cm |
| Gewicht | 570 g |
| Verpackungsbreite | 65 mm |
| Verpackungstiefe | 130 mm |
| Verpackungshöhe | 595 mm |
| Paketgewicht | 720 g |
| 4G-Standards | LTE |
| Menge pro Packung | 1 Stück(e) |
