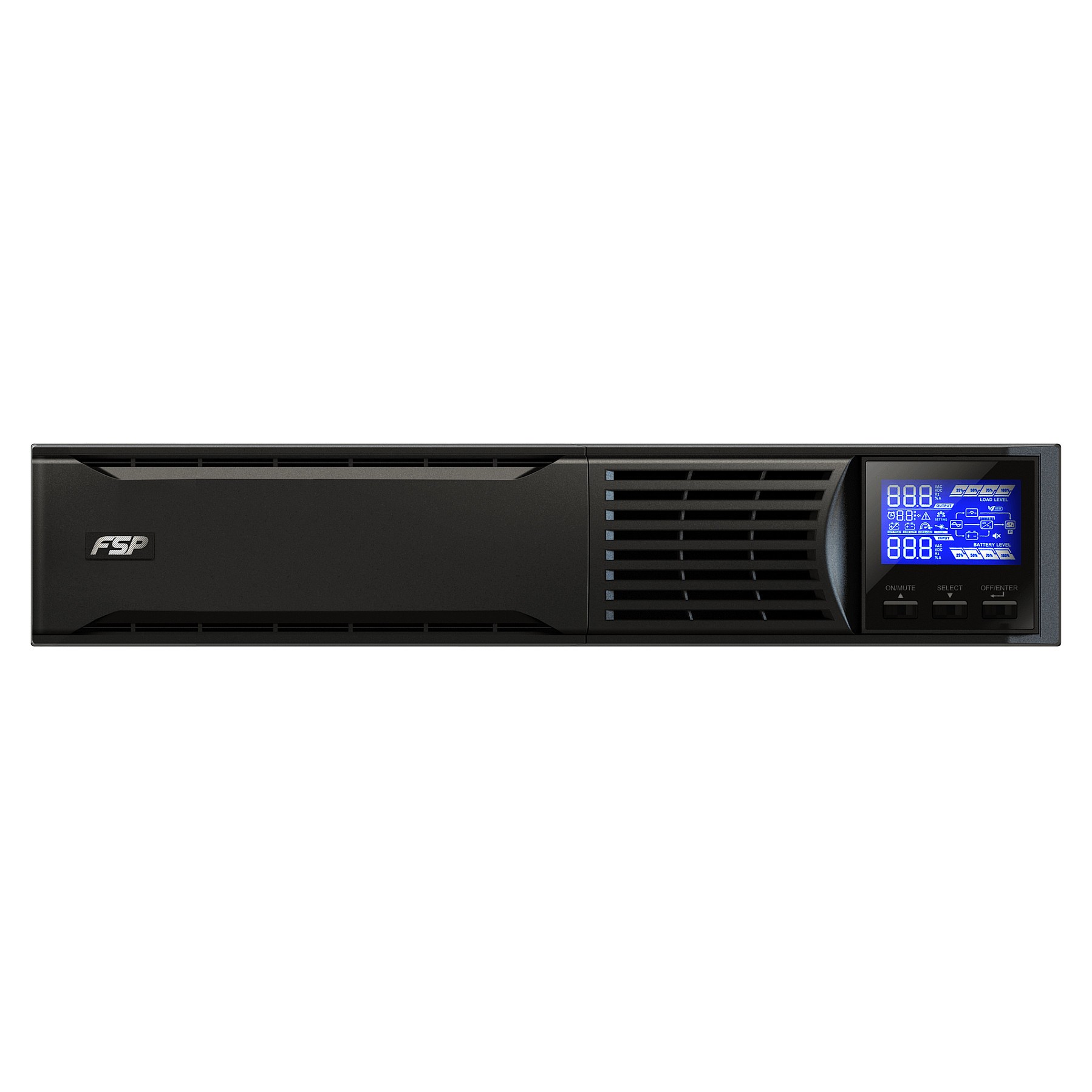

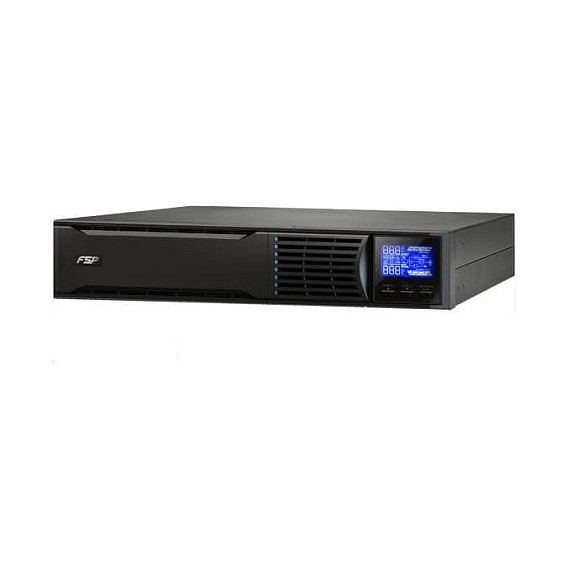

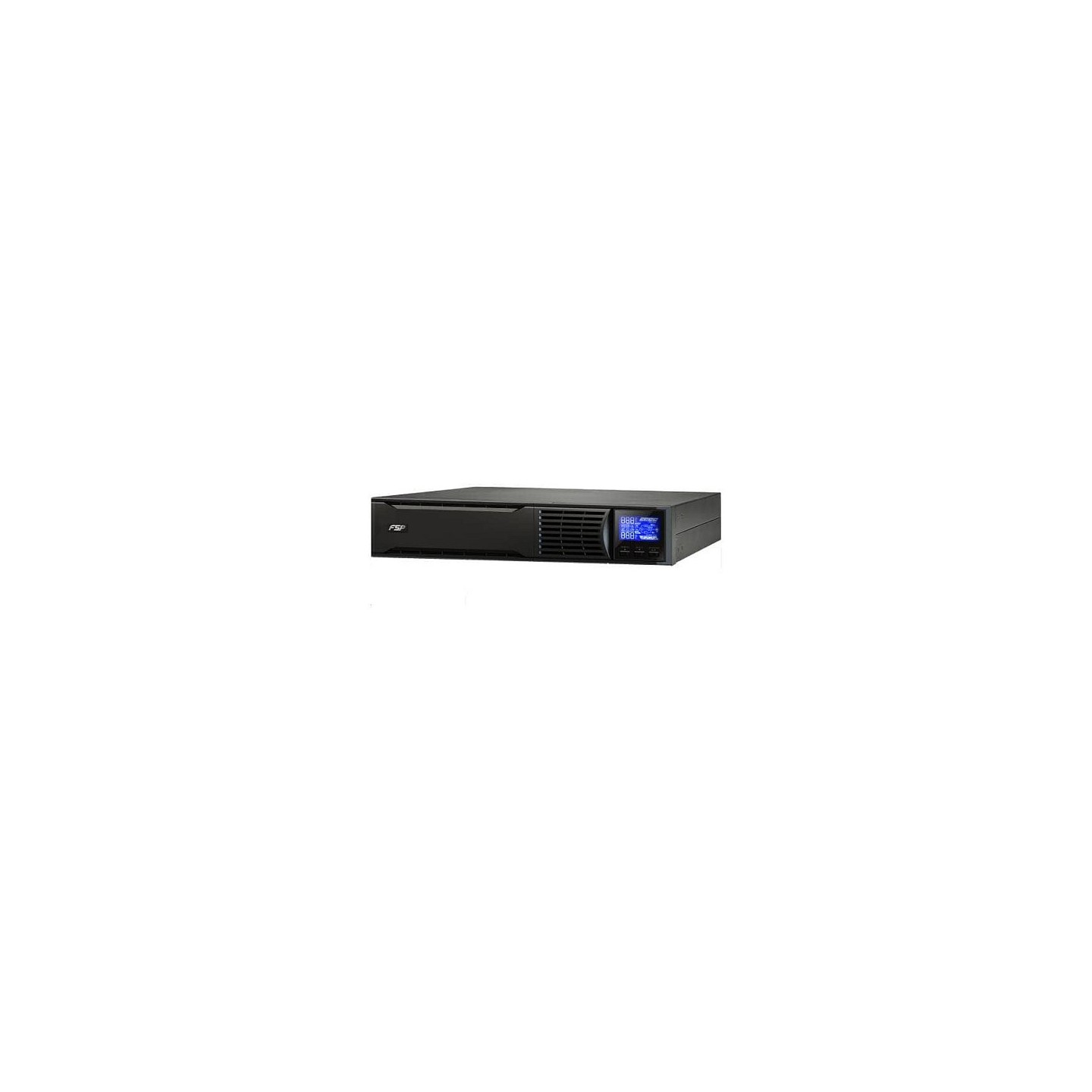

FSP Champ 1K Rack Online UPS 1000VA 900W (Boxed)
FSP Champ 1K Rack is a double-conversion online UPS with 1000VA/900W capacity, pure sine wave output, and 3 Type F outlets. Features LCD display, USB and RS-232 connectivity, and 12V/9Ah battery with 4-hour recharge time.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Online (Double Conversion) |
| UPS & Power Backup - Form Factor | Rackmount |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
| UPS & Power Backup - Outlets (Qty) | 2 |
| UPS & Power Backup - Special Features | LCD Display Pure Sine Wave Output |
The FSP Champ 1K Rack Online UPS is a professional-grade uninterruptible power supply designed for rack-mounted deployment in data centers and server environments. Utilizing double-conversion (online) technology, this UPS delivers a pure sine wave output with 1000VA/900W capacity, ensuring clean and stable power to sensitive equipment even during input voltage fluctuations. The unit supports input voltage ranges from 120-300 VAC at 40-70 Hz frequency, with selectable output voltages (110/115/120/127 VAC or 208/220/230/240 VAC).
Built into a compact 2U rackmount form factor measuring 310x438x88mm, the Champ 1K features an internal battery system with 2 cells rated at 12V/9Ah capacity, providing approximately 4 hours to reach 90% charge. Communication capabilities include RS-232 and USB Type-B ports for remote monitoring and management via compatible software (Windows, Linux, Unix, MAC). The unit operates quietly at less than 50dB and maintains functionality across 0-40°C operating temperatures with 20-90% relative humidity tolerance.
Key specifications and features include:
- Output Power Factor: 0.9
- Output Voltage Regulation: 1%

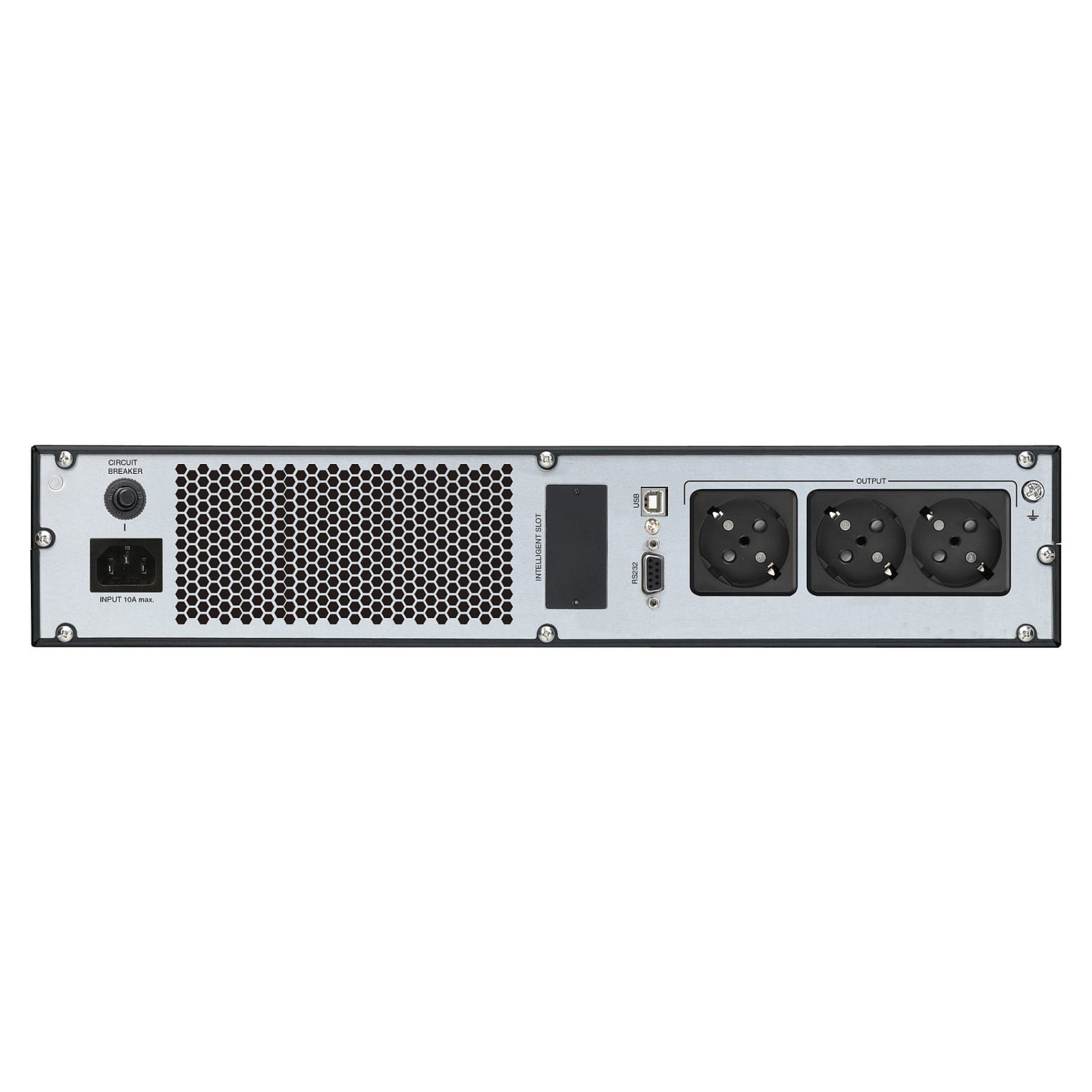

- 3x Type F (Schuko) AC outlets
- LCD display with status monitoring
- Active cooling system
- Noise Level: <50 dB at 1 meter
- 2-year warranty
- CE compliance certification
| UPS Topology | Double Conversion (Online) |
| Output Capacity | 1000 VA |
| Output Power | 900 W |
| Waveform | Pure Sine Wave |
| Input Voltage Range | 120-300 VAC |
| Input Frequency Range | 40-70 Hz |
| Output Voltage Options | 110/115/120/127 VAC or 208/220/230/240 VAC |
| Output Frequency | 47/63 Hz |
| Output Voltage Regulation | 1% |
| Output Power Factor | 0.9 |
| Input Power Factor | ≥0.99 @ nominal voltage |
| Response Time | 0 ms |
| Crest Factor | 3:1 |
| Total Harmonic Distortion (Linear Load) | 3% |
| Total Harmonic Distortion (Non-Linear Load) | 6% |
| Noise Level | <50 dB at 1 meter |
| AC Outlet Type | Type F (Schuko) |
| Number of AC Outlets | 3 |
| USB Ports | 1x USB Type-B |
| Serial Interface | 1x RS-232 |
| Battery Type | Internal sealed lead-acid |
| Battery Voltage | 12 V |
| Battery Capacity | 9 Ah |
| Number of Battery Cells | 2 |
| Battery Recharge Time (90%) | 4 h |
| Charging Voltage | 27.4 VDC ±1% |
| Form Factor | Rackmount |
| Rack Height | 2U |
| Cooling | Active |
| Display Type | LCD |
| Control Method | Push buttons |
| Width | 438 mm |
| Depth | 310 mm |
| Height | 88 mm |
| Weight (Unit Only) | 12 kg |
| Operating Temperature | 0-40 °C |
| Operating Humidity | 20-90% RH |
| Input Phase | Single phase with ground |
| Compliance Certifications | CE |
| Harmonized System Code (HS) | 85078000 |
| EAN13 | 4713224520600 |
| Warranty | 2 years |
| Communication Software Support | Windows 2000/2003/XP/Vista/2008/7/8, Linux, Unix, macOS; Optional SNMP |
| Alarm Modes | Battery mode alarm, fault alarm, low battery warning, overload alarm |
