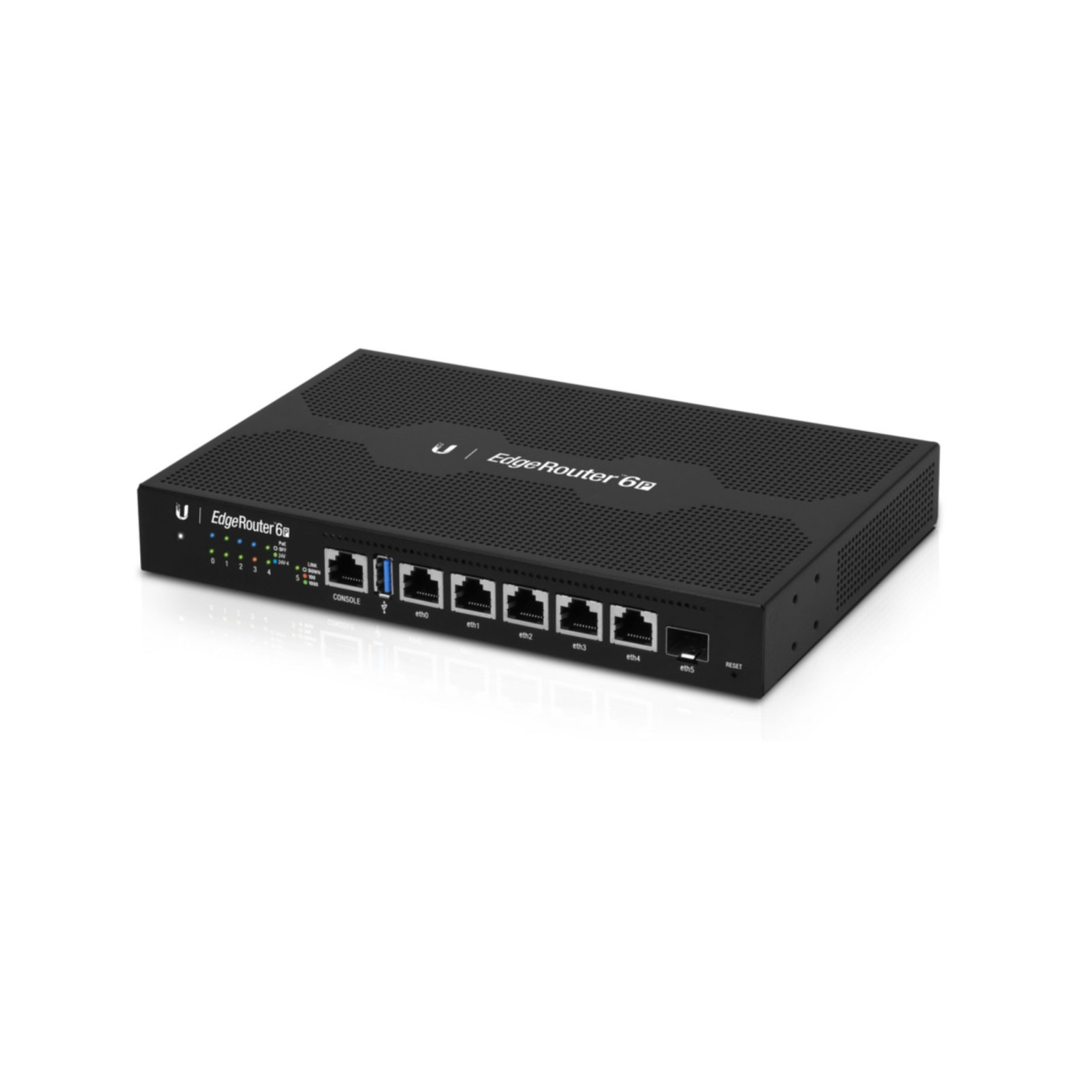

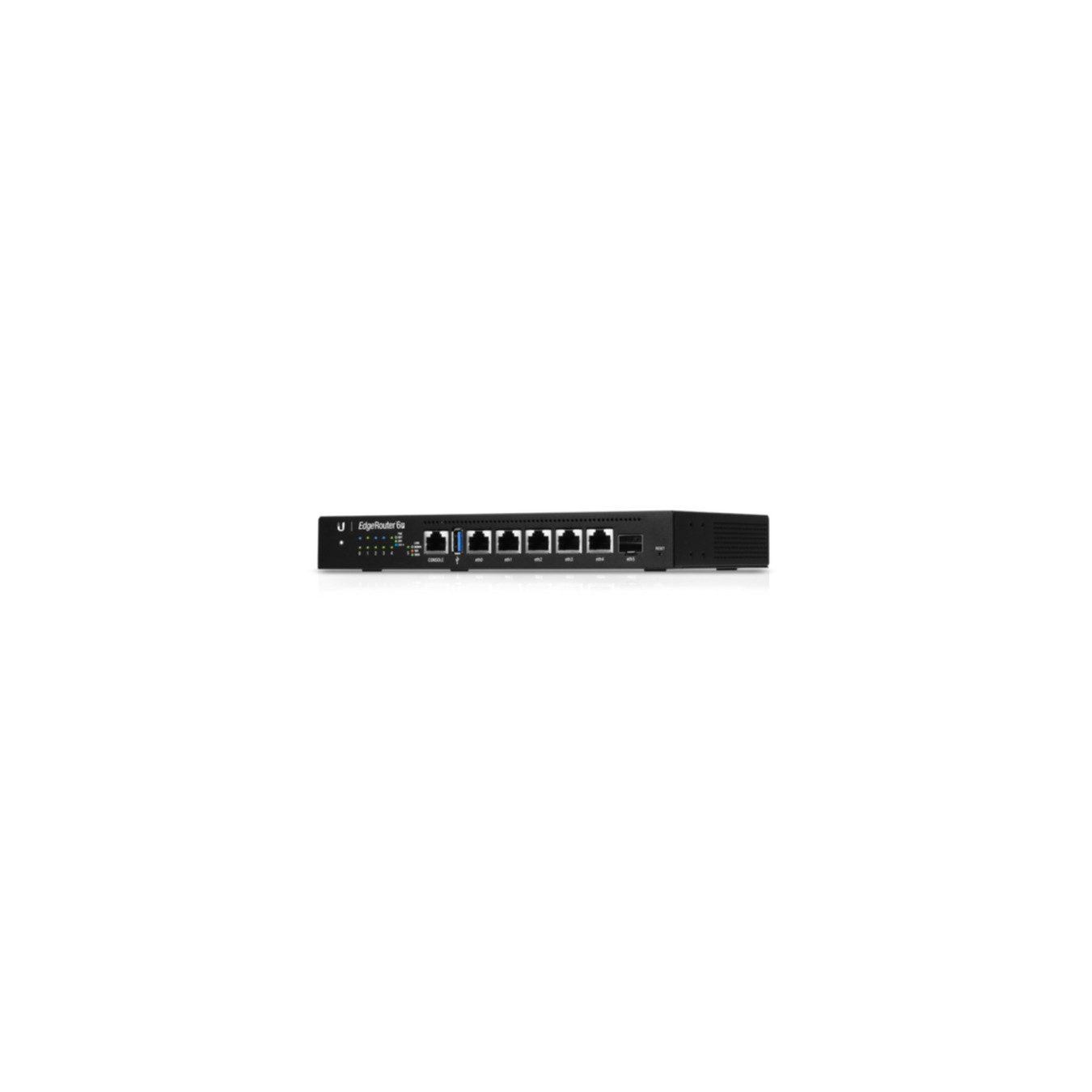

Ubiquiti EdgeRouter - ER-6P - 6-Port Gigabit Router with 1 SFP, 6 Gbps Switching, 3.4Mpps
High-performance 6-port Gigabit router with 1 SFP port; up to 3.4Mpps and 6 Gbps throughput. UNMS-managed with web-based control, QoS and rack-mountable option.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
6-Port Gigabit Router with 1 SFP Port
The EdgeRouter™ 6P delivers 3.4 million packets per second routing performance in a compact and cost-effective unit.
Price/Performance Breakthrough
The EdgeRouter™ 6P offers next-generation price/performance value: up to 3.4 million packets per second processing with a line rate of up to 6 Gbps.
Versatile Design
The EdgeRouter 6P can be rack-mounted with the use of the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).
Centralized Management
The EdgeRouter 6P is supported and managed by UNMS™ (Ubiquiti® Network Management System), a comprehensive controller with an intuitive UI. A single control plane manages registered EdgeMAX® devices across multiple sites.
| Ethernet WAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Forwarding rate | 3.4 Mpps |
| Switching capacity | 6 Gbit/s |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Ethernet LAN (RJ-45) ports | 6 |
| Gigabit Ethernet (copper) ports quantity | 6 |
| Power over Ethernet (PoE) ports quantity | 5 |
| Installed SFP modules quantity | 1 |
| USB ports quantity | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Serial ports quantity | 1 |
| DC-in jack | Yes |
| Management protocols | UNMS, CLI, SNMP, NetFlow, LLDP, NTP |
| DHCP client | Yes |
| DHCP server | Yes |
| Security algorithms | IPSEC, SNMP, SSH |
| Firewall | Yes |
| VPN support | IPSec Site-to-Site and Remote Access OpenVPN Site-to-Site and Remote Access PPTP Remote Access L2TP Remote Access PPTP Client |
| AC adapter included | Yes |
| Manual | Yes |
| Built-in processor | Yes |
| Processor architecture | MIPS64 |
| Processor frequency | 1000 MHz |
| Processor cores | 4 |
| Storage media | eMMC |
| Internal storage capacity | 4 GB |
| Internal memory | 1024 MB |
| Internal memory type | DRAM |
| Certification | CE, FCC, IC |
| Product colour | Black |
| Rack mounting | Yes |
| Rack capacity | 1U |
| LED indicators | Activity, Link, Speed |
| Antenna type | Not supported |
| Power consumption (typical) | 16 W |
| Power source type | AC |
| AC input voltage | 110 - 240 V |
| Power over Ethernet (PoE) | Yes |
| Operating temperature (T-T) | -10 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Width | 229 mm |
| Depth | 136.5 mm |
| Height | 31.1 mm |
| Weight | 730 g |
| Package type | Box |
| Harmonized System (HS) code | 85176990 |
