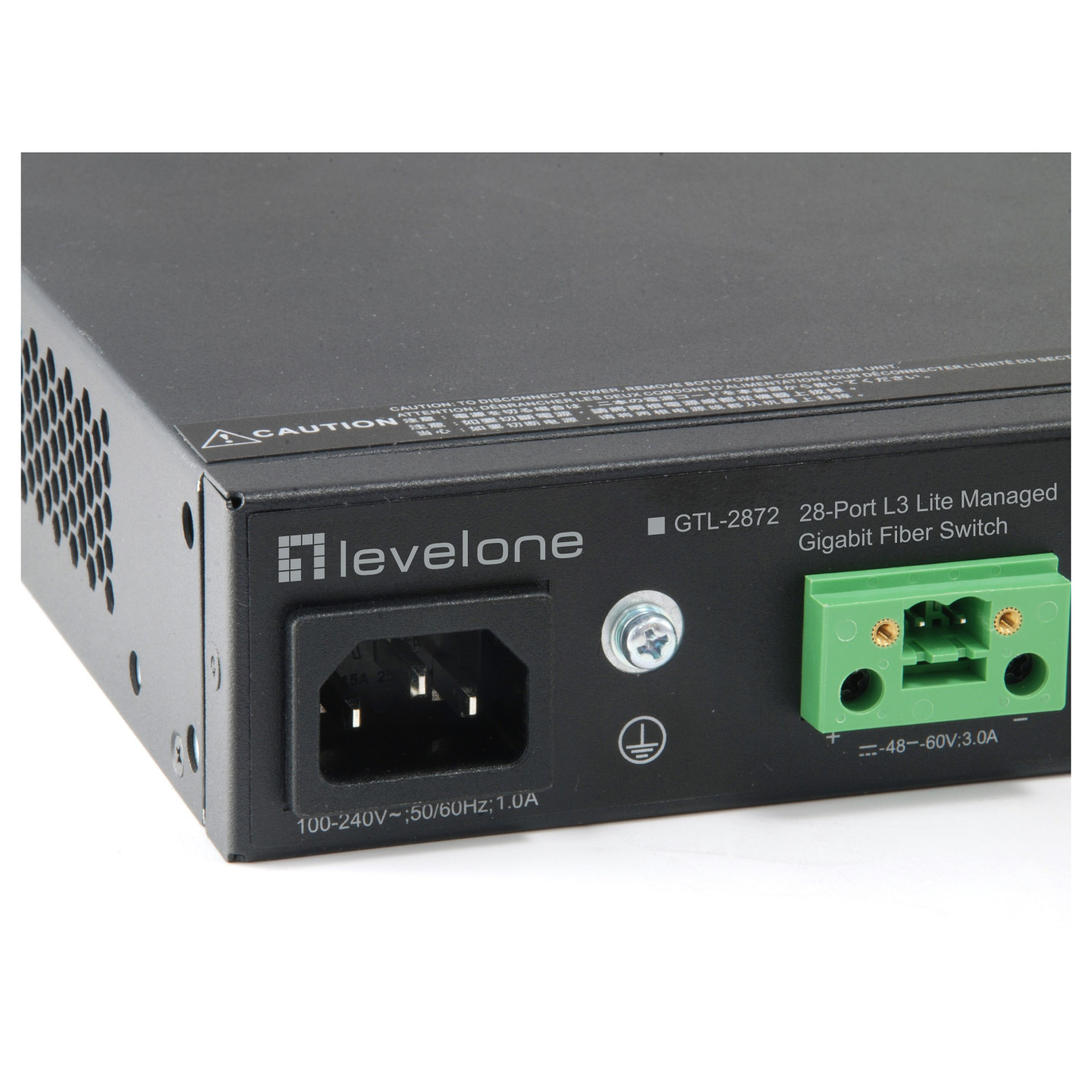

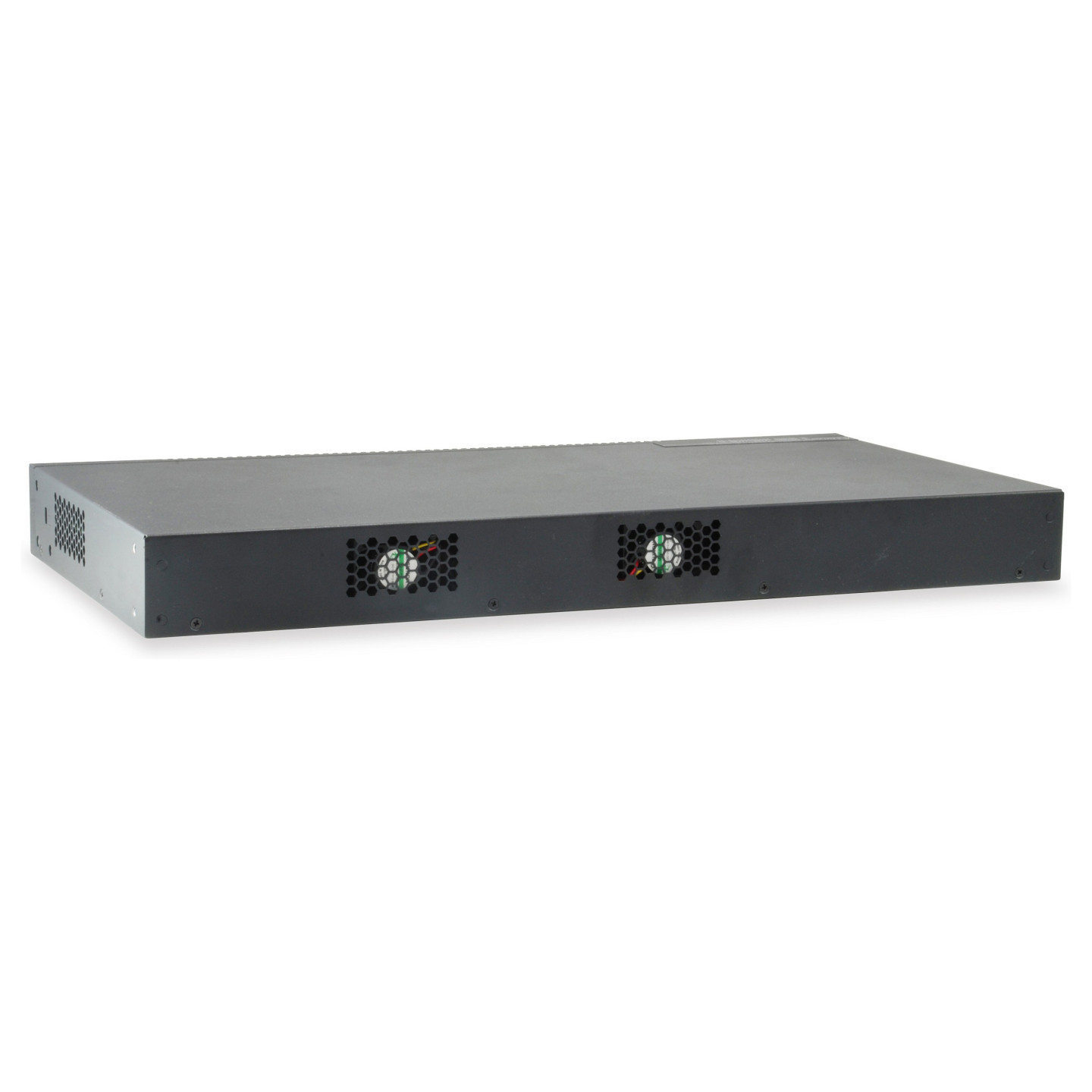

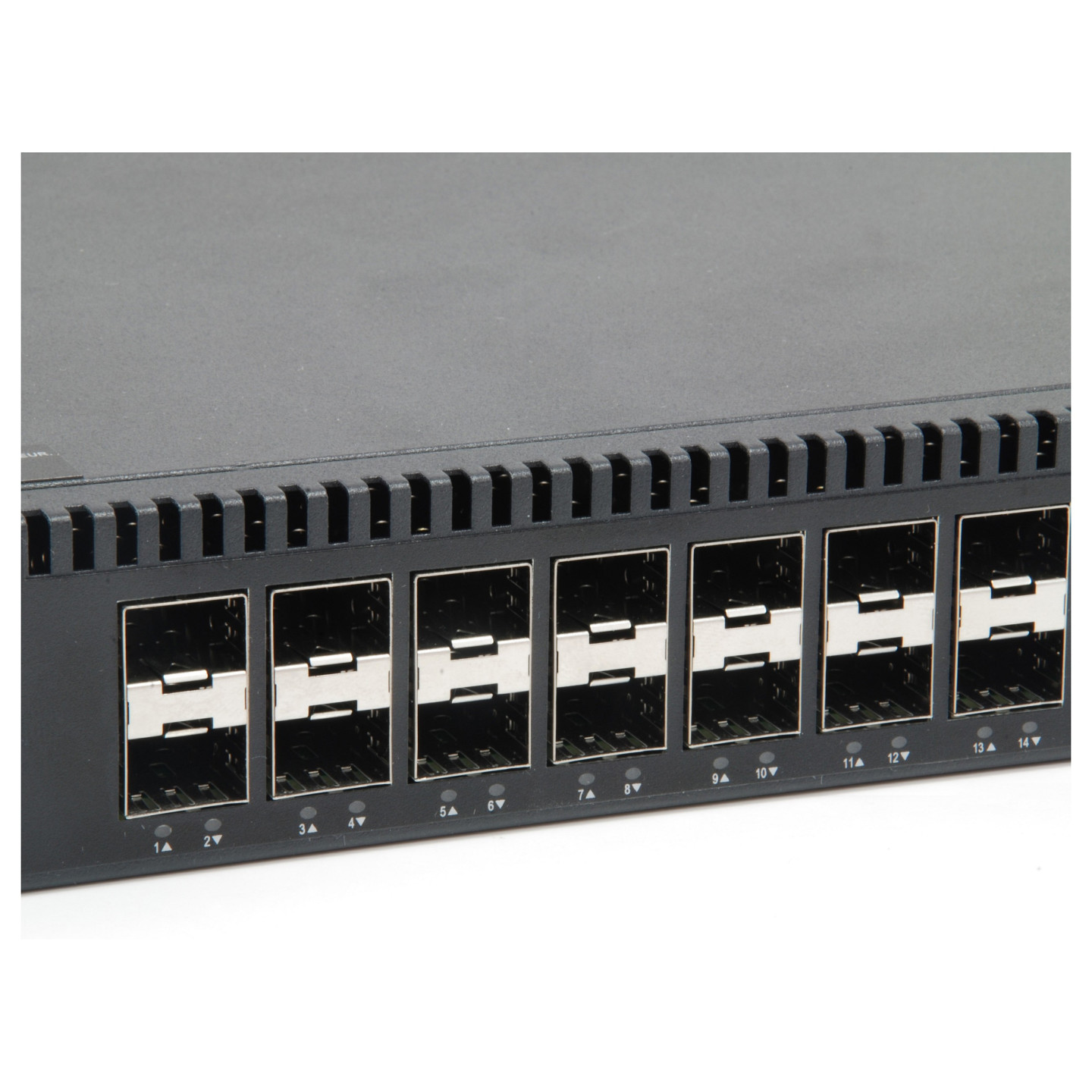

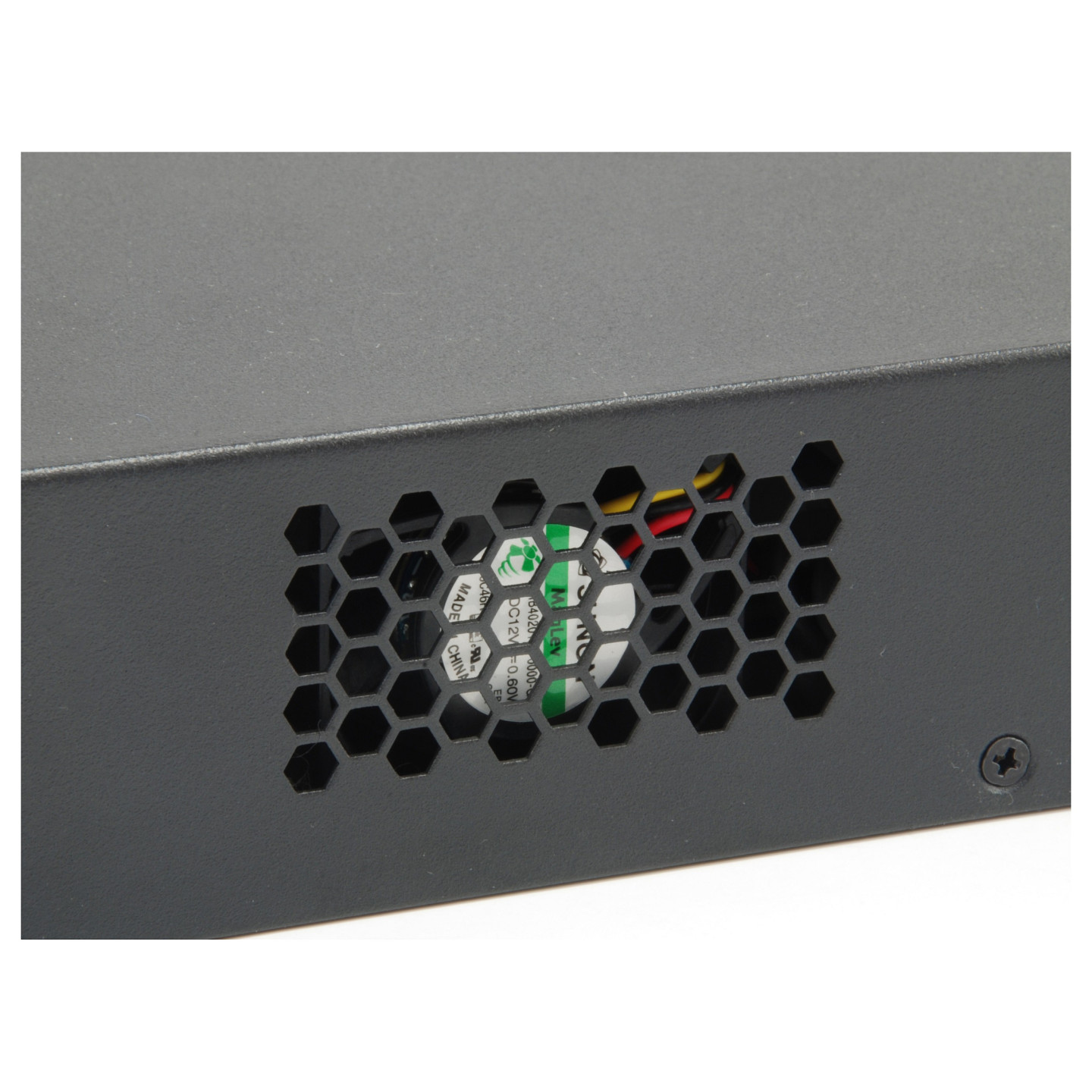

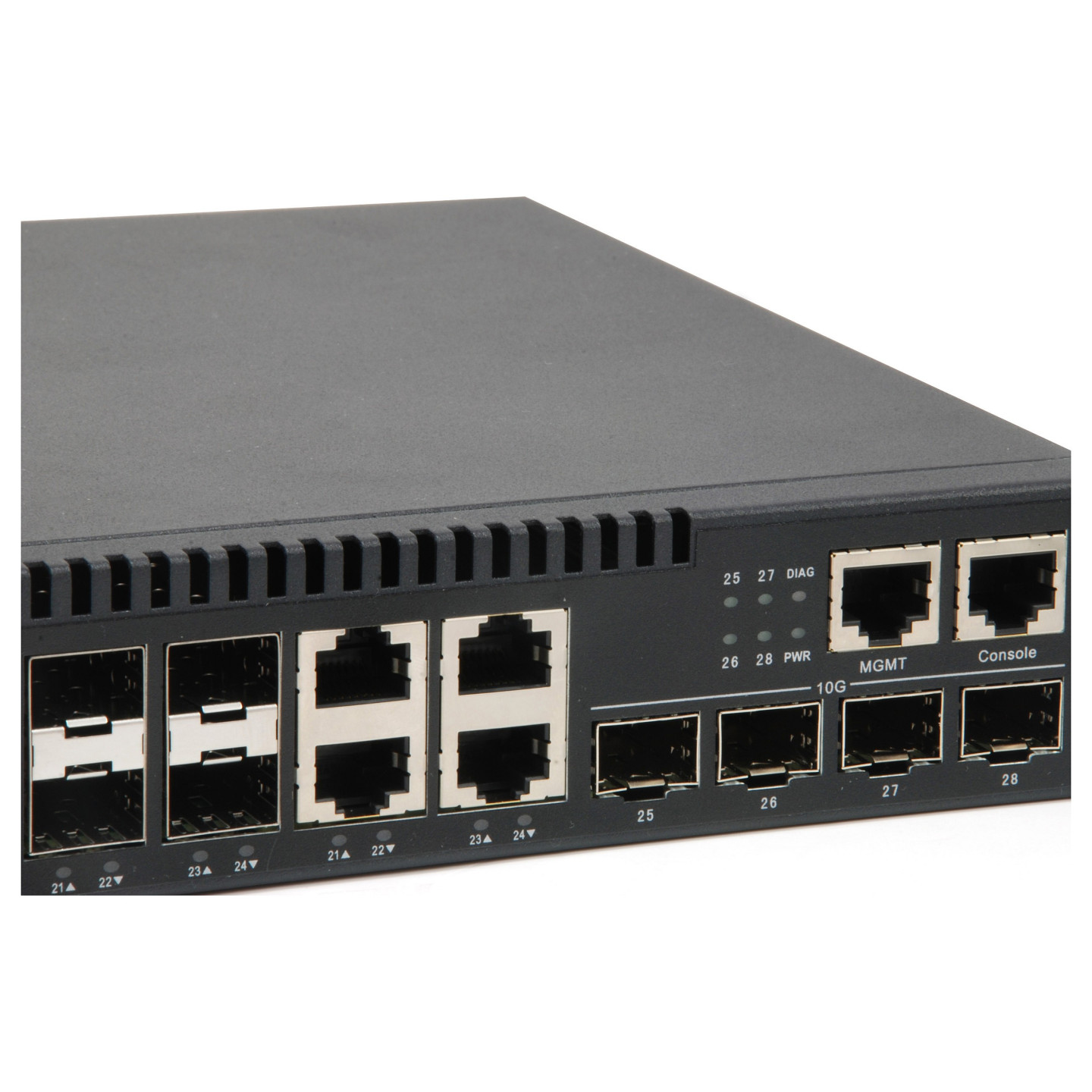

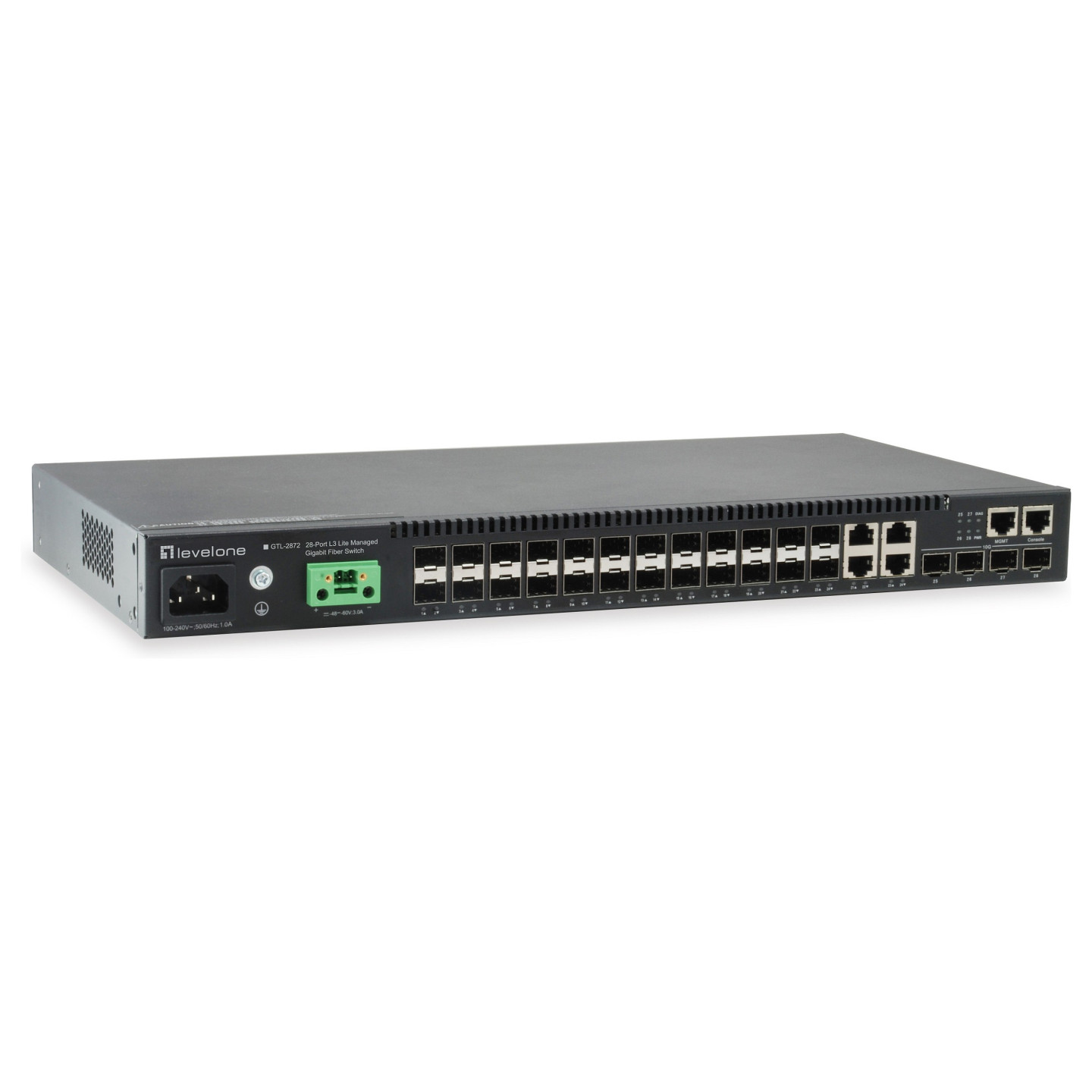

Switch 48.3cm 24x SFP GTL-2872 4xGE 4xSFP+ - Switch - Glasfaser (LWL)
LevelOne GTL-2872. Managed. L3. Vollduplex. Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GTL-2872. Switch-Typ: Managed. Switch-Ebene: L3. Konsolen-Port: RJ-45. Vollduplex. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 128 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1ag. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ad. IEEE 802.3ae. IEEE 802.3ah..... Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Ressourcen-CD |
| Anzahl Combo-SPF-Anschlüsse | 4 |
| Menge SFP-Modul-Steckplätze | 20 |
| Menge Modul-Steckplätze SFP+ | 4 |
| Optischer Kabelverbinder | SFP |
| Konsolen-Port | RJ-45 |
| Netzstandard | IEEE 802.1D. IEEE 802.1ag. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ad. IEEE 802.3ae. IEEE 802.3ah. IEEE 802.3x. IEEE 802.3z |
| Virtuelle LAN-Funktionen | Protocol-based VLAN. MAC address-based VLAN. Port-based VLAN. IP subnet–based VLAN |
| Ethernet-Kabel Verkablungstechnologie | 10GBASE-ER. 10GBASE-LR. 10GBASE-SR. 1000BASE-LHX. 1000BASE-SX. 1000BASE‑LX. 1000BASE‑ZX |
| Routing-/Switching-Kapazität | 128 Gbit/s |
| Transferrate | 95 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 9000 |
| Authentifizierung | MAC-basierte Authentifizierung. Port-basierte Authentifizierung. Webbasierte Authentifizierung |
| Paketfilterung | CDP/PVST+ |
| Management-Protokolle | CLI. WEB. TELNET |
| IPv4 & IPv6-Funktionen | Dual stack IPv4/IPv6 |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Diagnostisch. Link. Leistung |
| Sicherheit | UL (UL60950-1) |
| Speichertyp | DRAM |
| Speicherkapazität | 512 MB |
| Flash-Speicher | 256 MB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 298951 h |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Eingangsspannung | 48 - 60 V |
| Stromverbrauch (Standardbetrieb) | 21.48 W |
| Betriebstemperatur | 0 - 50 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 440 mm |
| Tiefe | 220 mm |
| Höhe | 44 mm |
| Gewicht | 2.82 kg |
| Mitgelieferte Kabel | AC |
| Verpackungsart | Box |
| Verpackungsbreite | 580 mm |
| Verpackungstiefe | 405 mm |
| Verpackungshöhe | 80 mm |
| Paketgewicht | 3.77 kg |
| Zertifizierung | CE. FCC. CISPR. BSMI |
| Ursprungsland | China |
| Breite des Versandkartons | 600 mm |
| Länge des Versandkartons | 435 mm |
| Höhe des Versandkartons | 340 mm |
| Warentarifnummer (HS) | 85176990 |
| Gewicht Versandkarton | 16.6 kg |
| Anzahl Produkte pro Versandkarton | 4 Stück(e) |
