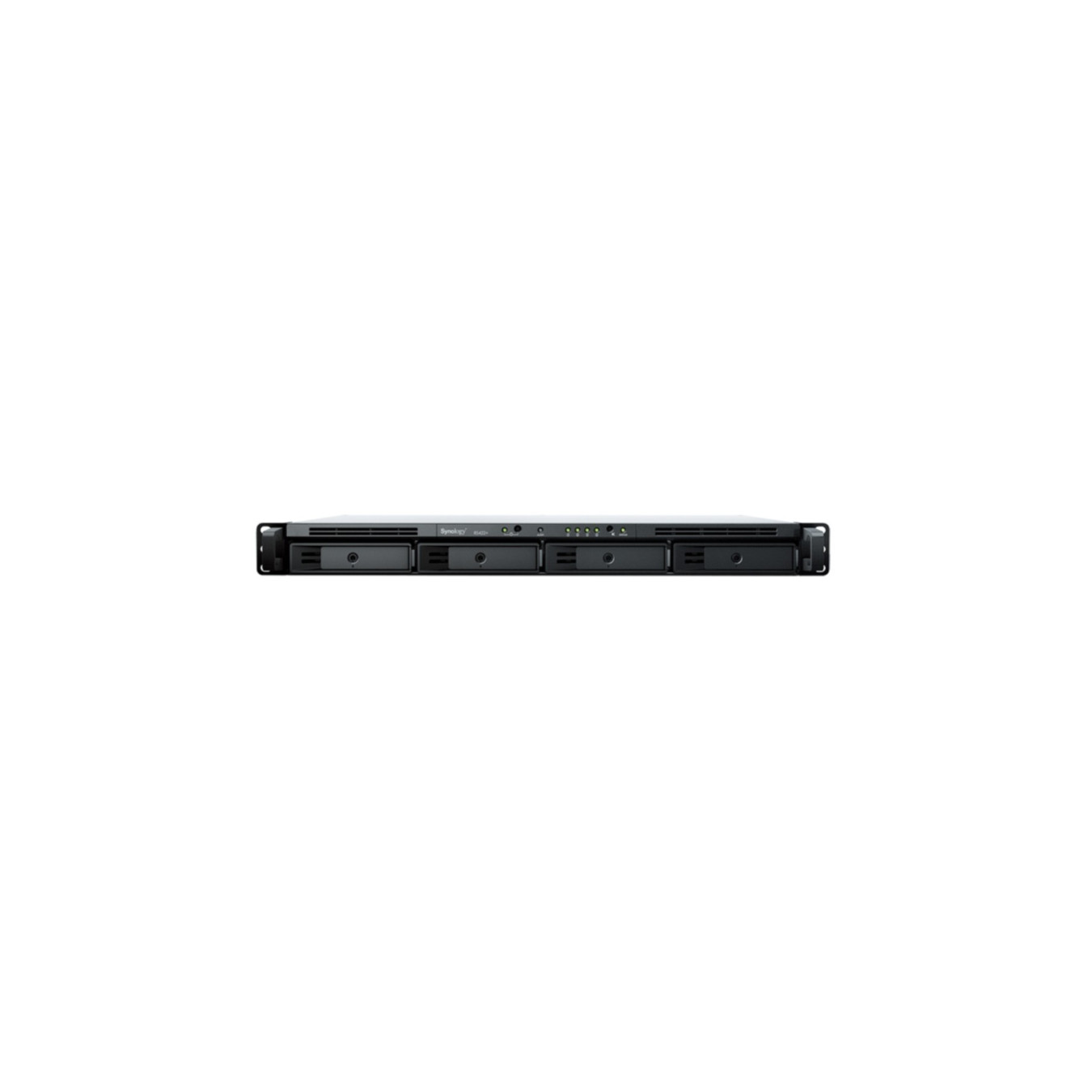

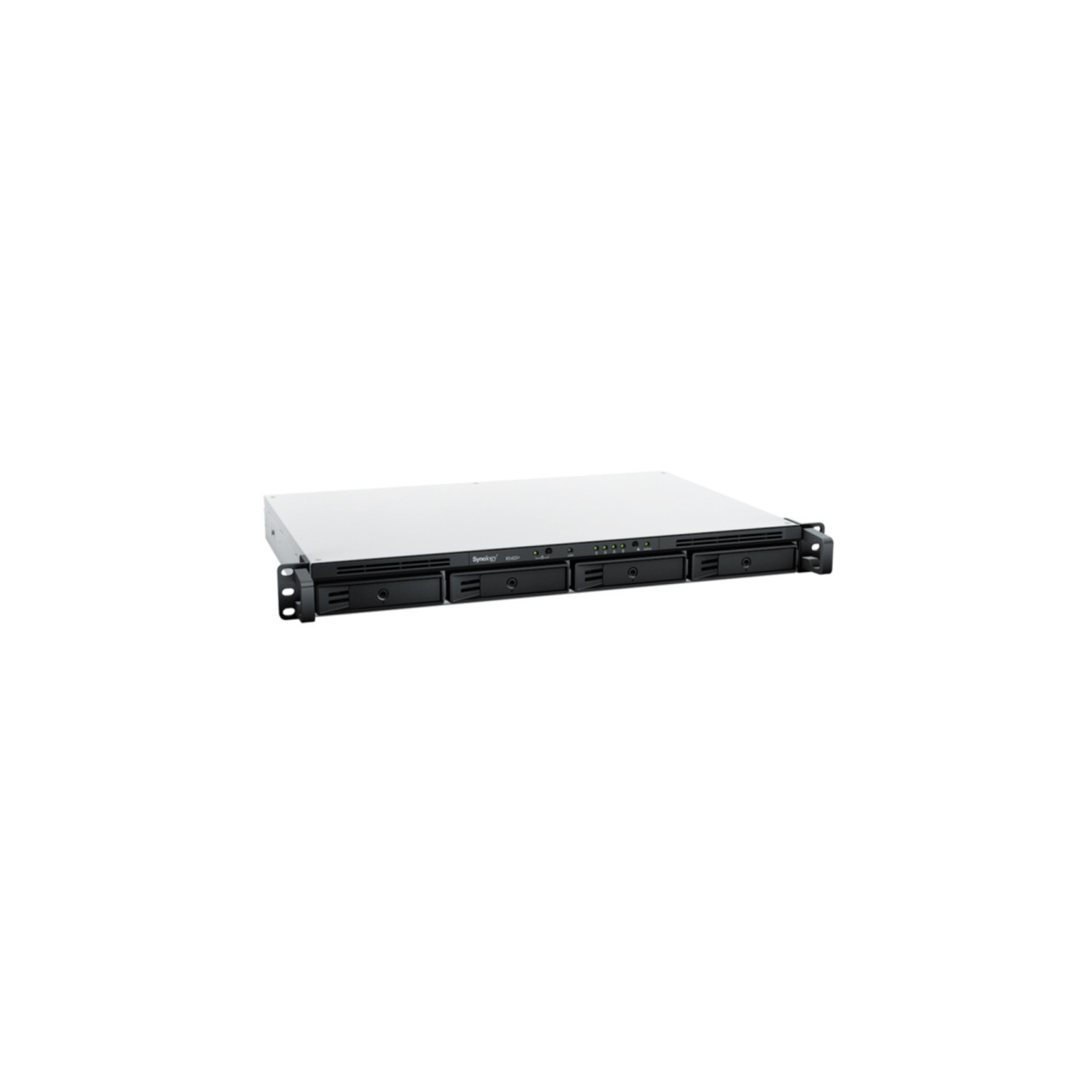

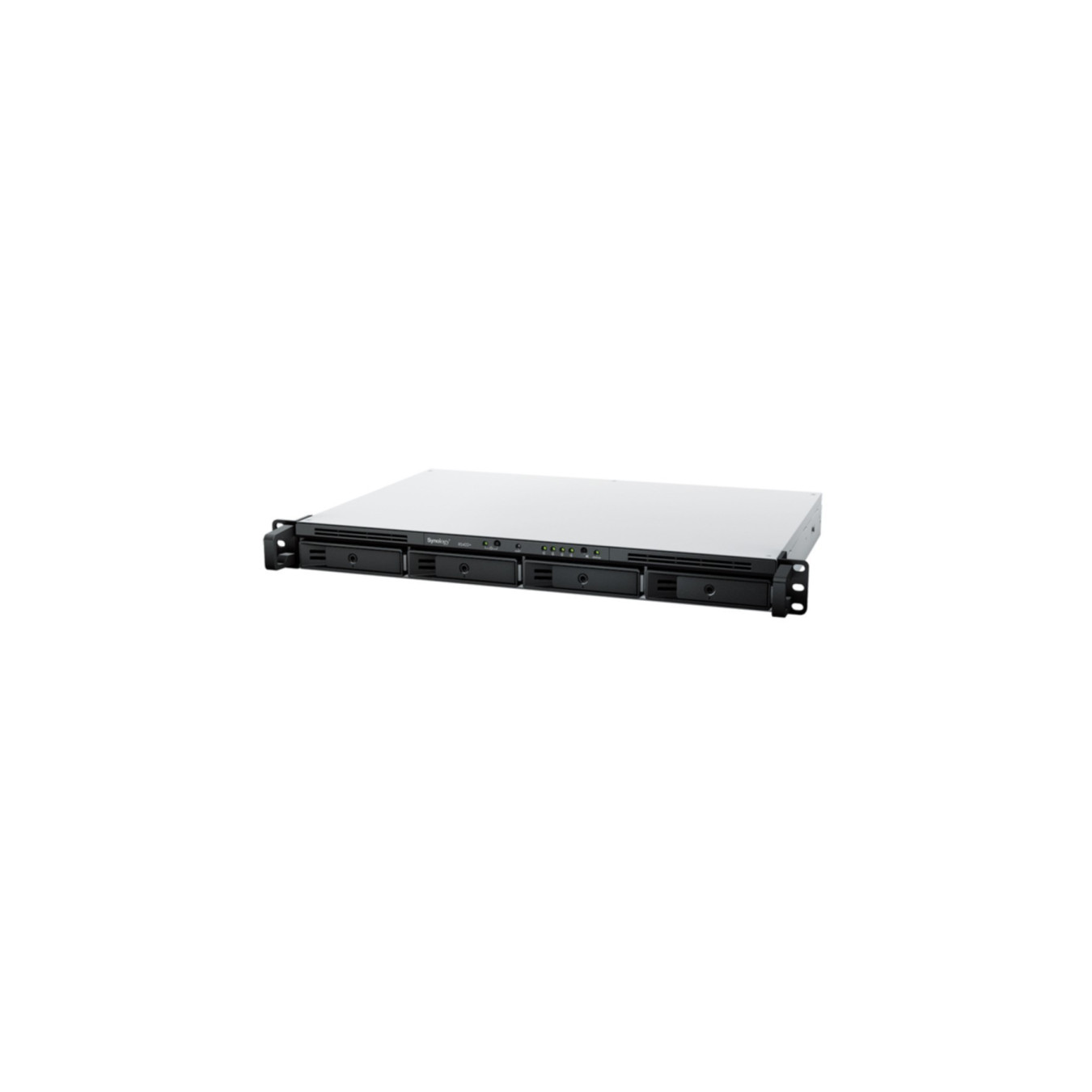

Synology RackStation RS422+ - 4-Bay 1U Rack NAS, AMD R1600 2.6–3.1GHz, 2GB ECC DDR4, Black
4-bay 1U rack NAS with AMD R1600 dual-core (2.6–3.1GHz), 2GB ECC DDR4, hot-swap bays, 2x1GbE, USB 3.0, supports 2.5/3.5 HDD & SSD, DSM 7.1
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 4 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - Memory (Installed) | 2 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
| NAS (Network Attached Storage) - LAN | 2x1GbE |
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Streamline your data management
With its compact 1U form factor and powerful Synology DiskStation Manager (DSM) operating system, the 4-bay Synology RackStation RS422+ is an affordable all-in-one solution for small businesses and home lab owners looking to meet their daily data management, sharing, synchronization, and backup needs.
Space-saving design for flexible deployment
Thanks to its compact 1U chassis, the RS422+ fits perfectly in a 2-post or wall mount rack. Deploy it in space-limited environments or anywhere else without investing in costly railkits or other server equipment.
Flexible networking options
Leverage built-in connectivity to integrate the RS422+ into any IT environment, or expand its capabilities by adding plug-and-play modules.
Built-in connectivity
Dual Gigabit ports with support for network failover and load balancing deliver fast and dependable performance out of the box.
Easy upgrade to 10GbE
Add an E10G22-T1-Mini Network Upgrade Module through the easily accessible slot to instantly enable faster networking.
All-in-one data management platform
The RS422+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient multi-platform file access, sharing, and synchronization across different locations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology systems and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
| Supported storage drive interfaces | Serial ATA |
| Storage drive sizes supported | 2.5, 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded R1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | R1600 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 3.1 GHz |
| Processor cores | 2 |
| Processor threads | 4 |
| On-board graphics card model | Not available |
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP, OpenVPN, L2TP) |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Expansion ports quantity | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Fan diameter | 4 cm |
| LED indicators | Yes |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Number of users | 2048 user(s) |
| Share folder access right management | Yes |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari 13 and later, and Safari (iOS 13.0 and later) on iPad, Chrome (Android 11.0 and later) on tablets |
| Share folder | 1024 |
| Operating system installed | DSM |
| Operating system version | 7.1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 430.5 mm |
| Depth | 295.5 mm |
| Height | 44 mm |
| Weight | 4.38 kg |
| Cables included | AC |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Harmonized System (HS) code | 84714100 |
| I/O ports | Console Port |
| Compliance certificates | RoHS |
