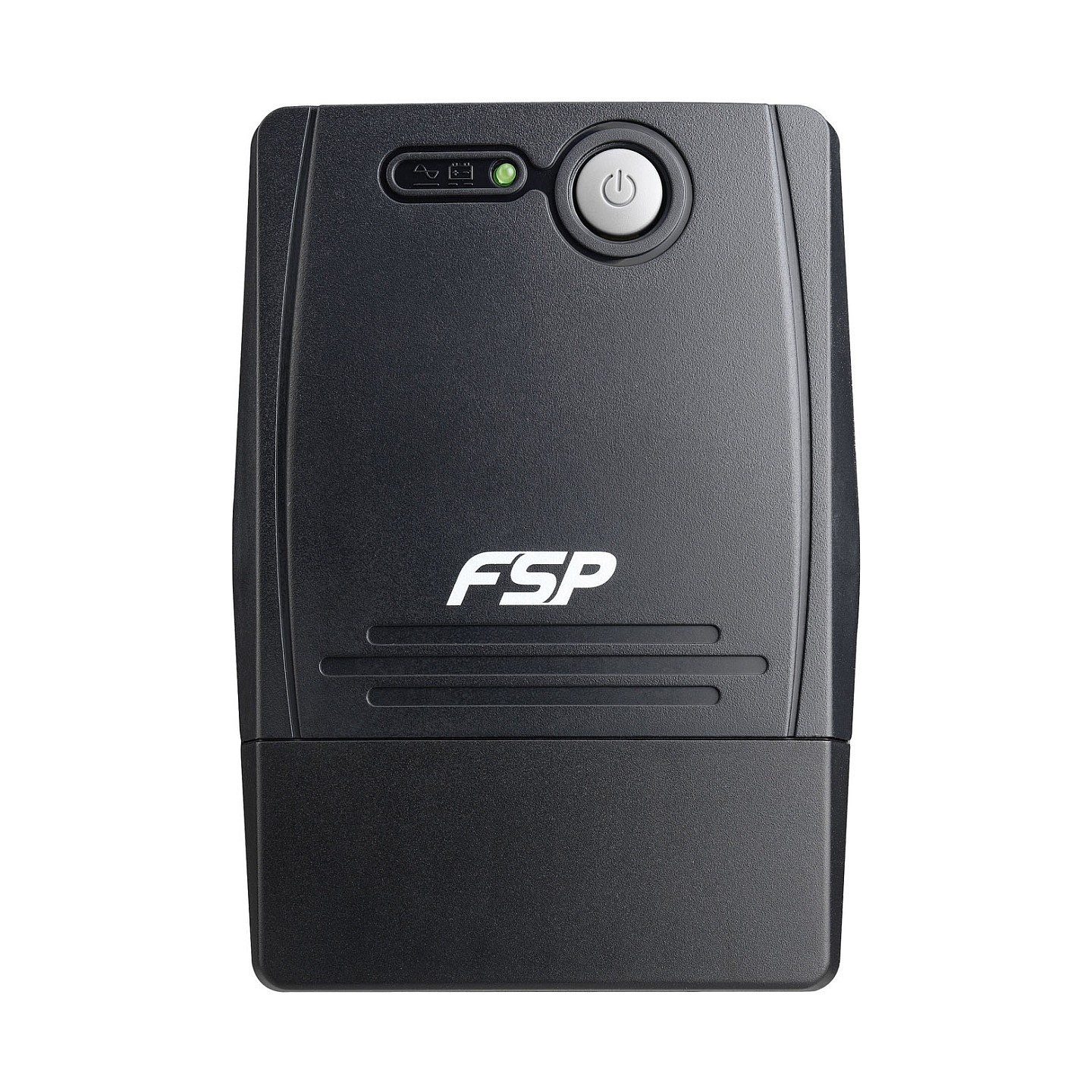

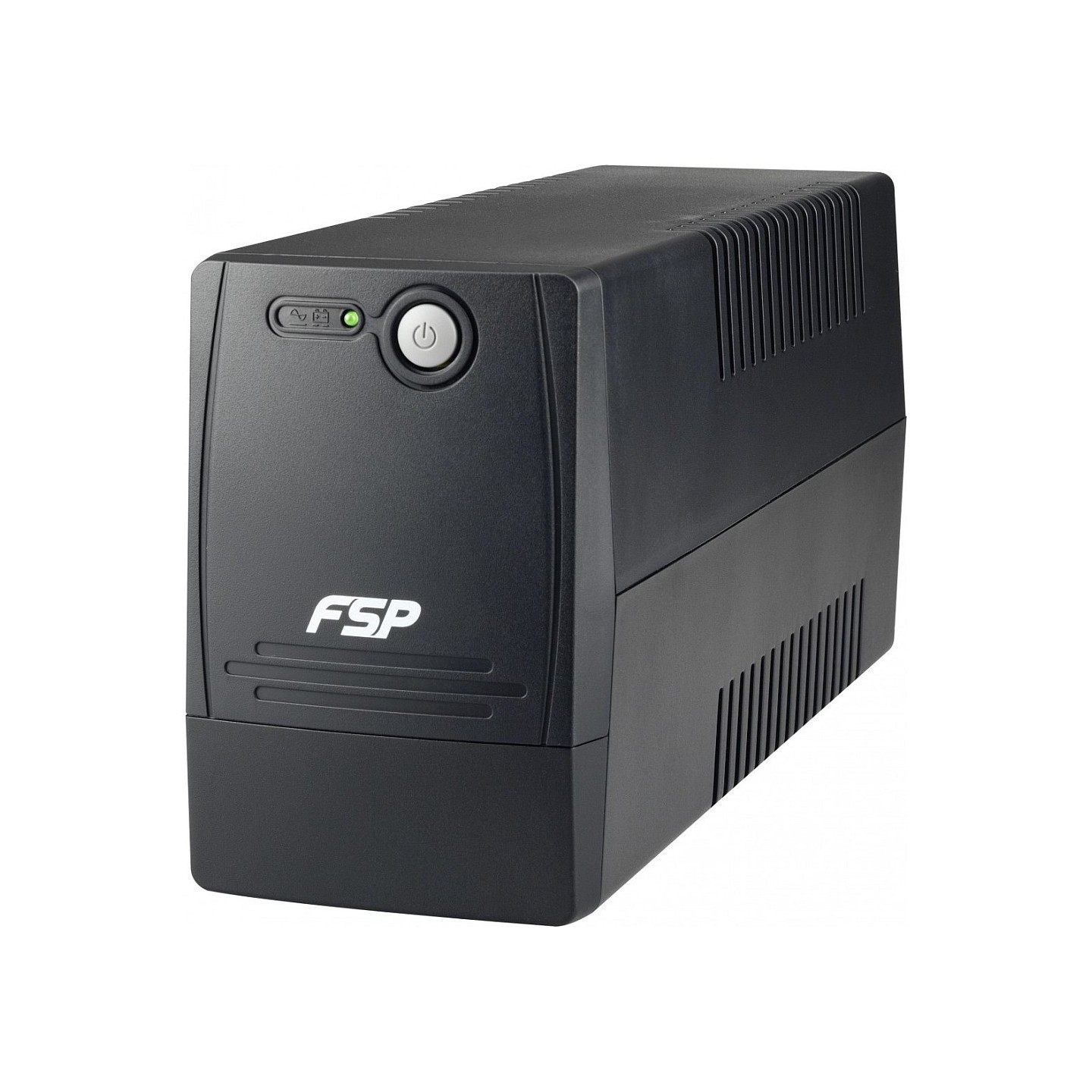

FSP FP 800 Line-Interactive UPS 800VA 480W 2x Schuko (Boxed)
FSP FP 800 Line-Interactive UPS: 800VA/480W capacity, simulated sine wave output, 2x Schuko outlets. Wide input 162-290V with AVR, 12V/9Ah battery, 4-6h recharge. Compact tower design (279x101x142mm, 4.9kg) for PC protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 500 - 999 VA |
| UPS & Power Backup - Power Output (Watts) | Under 500 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | Schuko (Type F) |
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
| UPS & Power Backup - Outlets (Qty) | 2 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |
The FSP FP 800 is a reliable line-interactive UPS designed for home offices, small businesses, and telecom applications. With 800VA/480W capacity, it provides stable backup power during outages using a simulated sine wave output. Featuring Automatic Voltage Regulation (AVR), it stabilizes input voltages from 162-290V, protecting connected devices from surges and brownouts.

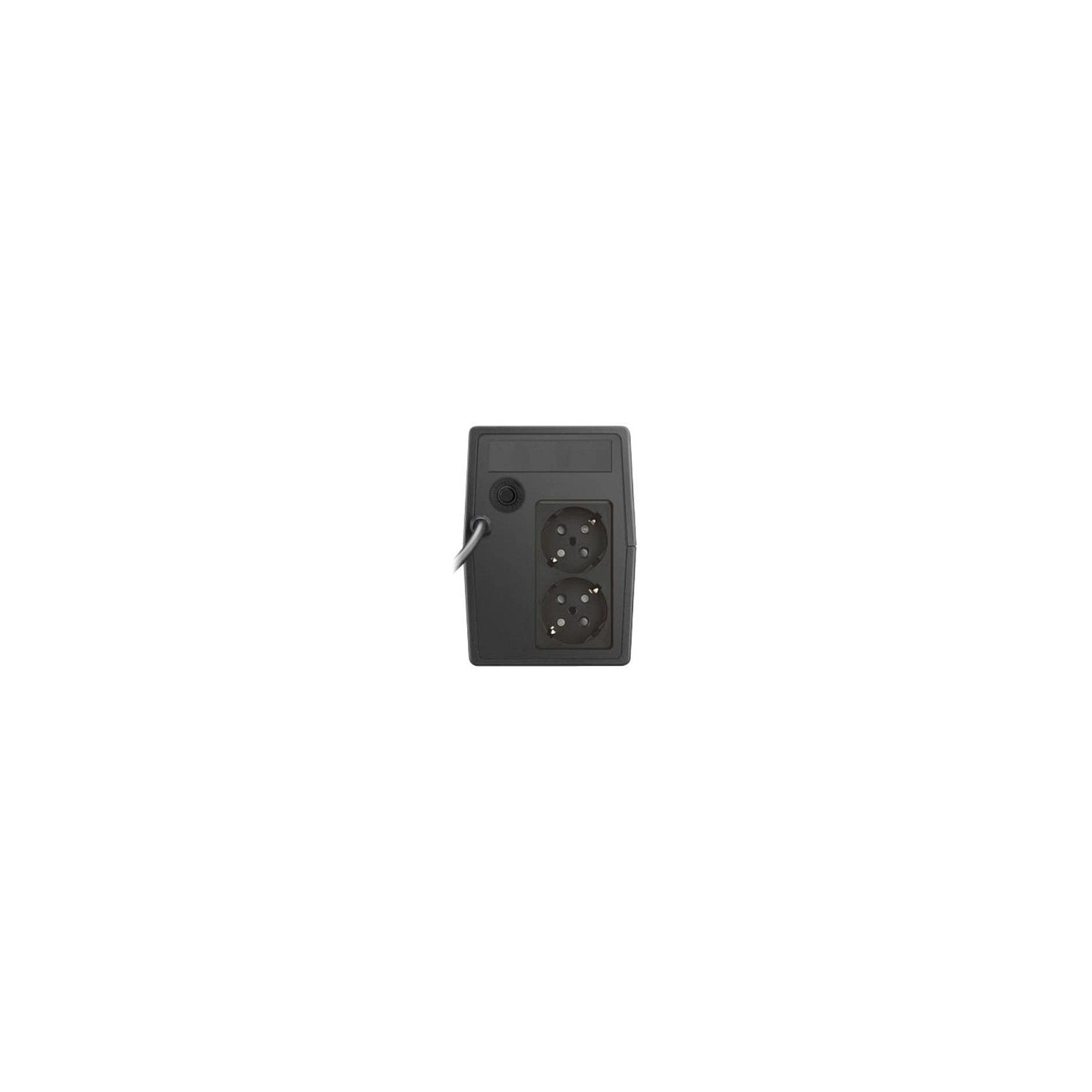

Equipped with 2x Schuko (Type F) outlets and a matching input plug, this compact tower UPS (279 x 101 x 142 mm, 4.9 kg net) supports a 12V/9Ah sealed lead-acid battery with 4-6 hours recharge time to 90% capacity. Transfer time is typically 2-6 ms, with LED indicators for AC/battery mode and audible alarms for low battery, overload, and faults. Cold start and off-mode charging enhance usability.
- Key Features: Line-interactive topology, AVR, simulated sine wave, 2x Schuko outlets
- Protections: Overload, overcharge, discharge, surge
- Ideal for: PCs, modems, routers (up to 20 min runtime for typical loads)
| Output Capacity | 800 VA / 480 W |
| Topology | Line-Interactive |
| Waveform | Simulated Sine Wave |
| Input Voltage Range | 162-290 VAC |
| Input Frequency | 50/60 Hz (auto sensing) |
| Output Voltage | 220/230/240 VAC ±10% |
| Transfer Time | Typical 2-6 ms |
| AC Outlet Type | Type F (Schuko) |
| Number of AC Outlets | 2 |
| Battery Type | 12 V / 9 Ah x 1 |
| Battery Recharge Time | 4-6 hours (to 90% capacity) |
| Form Factor | Tower |
| Product Color | Black |
| Dimensions (D x W x H) | 279 x 101 x 142 mm |
| Net Weight | 4.9 kg |
| Operating Temperature | 0 - 40 °C |
| Noise Level | 40 dB |
