Ubiquiti Dream Router 7 UDR7 - Tri-band Wi-Fi 7 10G SFP+ WAN PoE Switch (Boxed)
Desktop 10G cloud gateway with tri-band Wi-Fi 7 (BE11000: 688+4300+5700Mbps), 4x2.5GbE LAN (1 PoE), 10G SFP+/2.5GbE WAN, microSD, full UniFi apps, WireGuard VPN, 160m² coverage, 300 users.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Routers - Device Type | Wireless Router |
|---|---|
| Routers - Special Features | App Control Beamforming Cloud Managed Failover Support Firewall Guest Network Load Balancing MU-MIMO OFDMA PoE Support QoS VLAN Support VPN Support WPA3 Security |
| Routers - LAN Ports | 4 |
| Routers - Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Routers - Bands | Tri-band (2.4+5+6 GHz) |

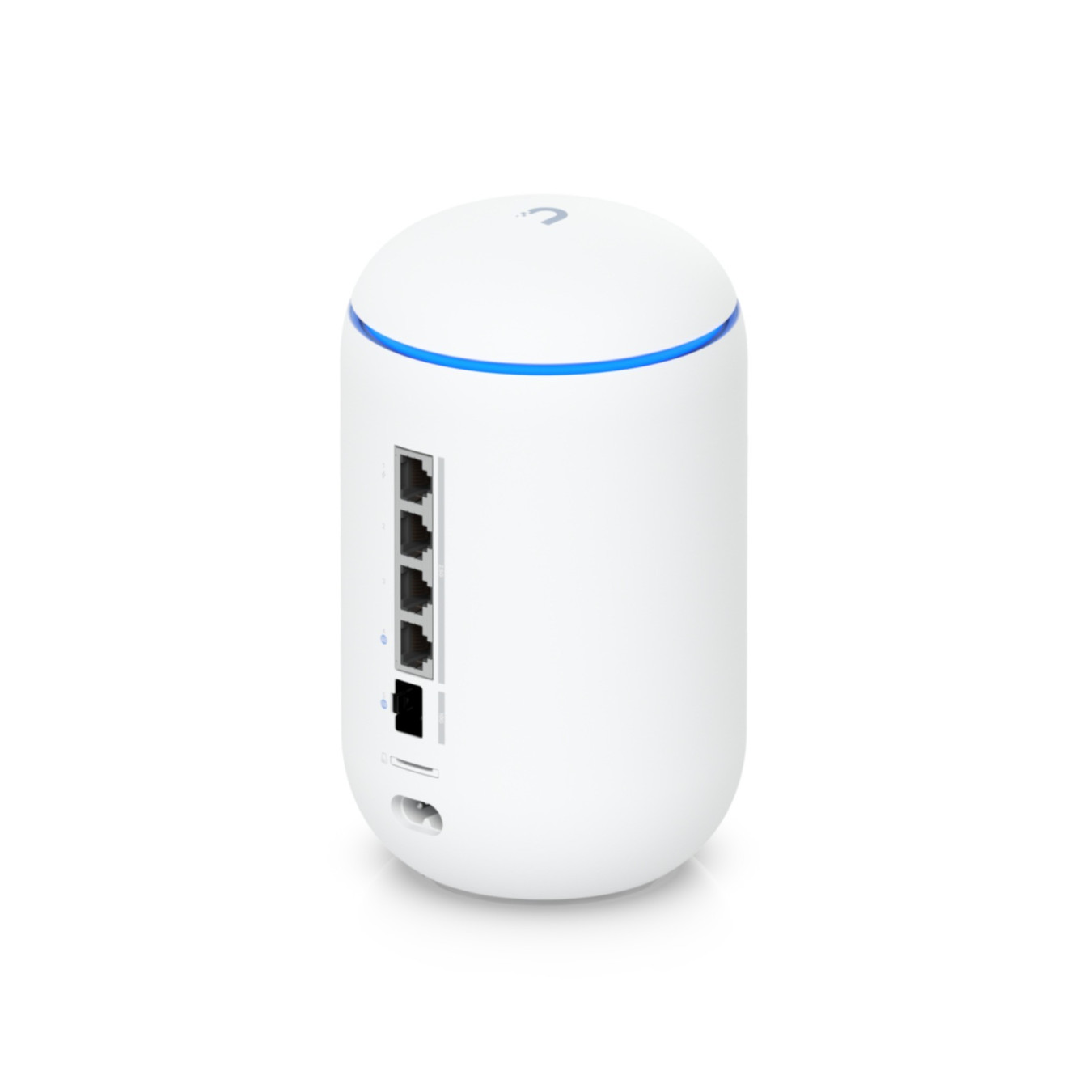

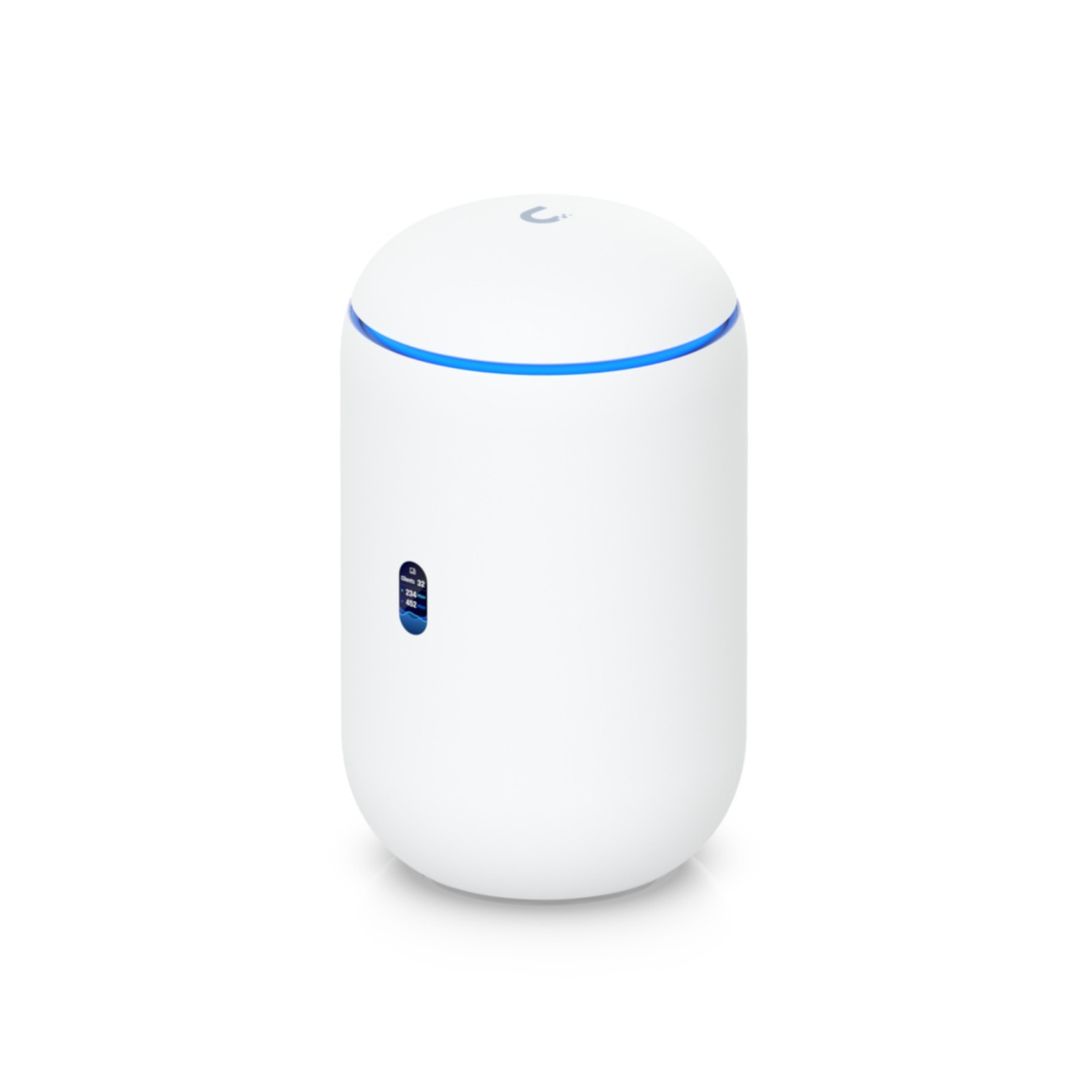

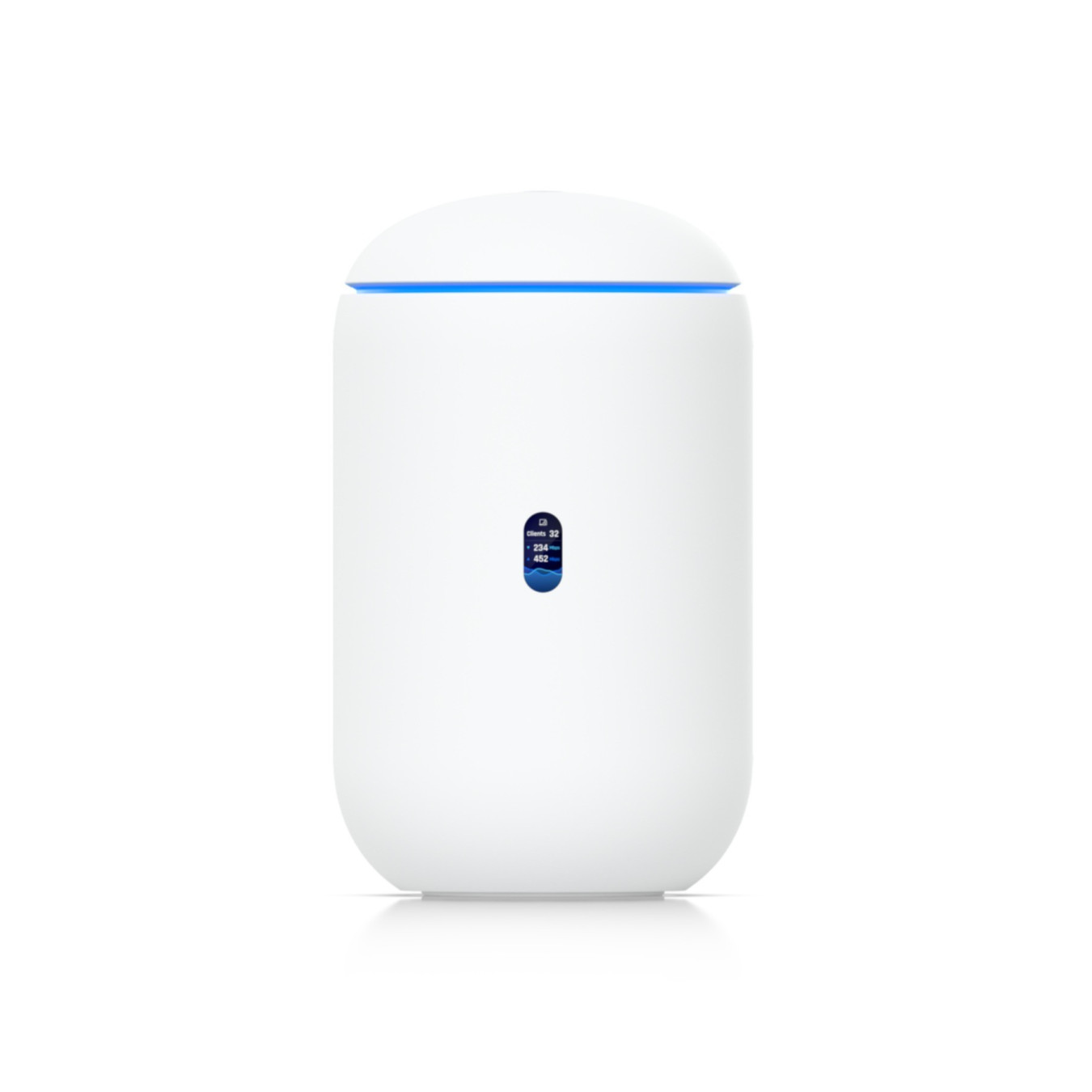

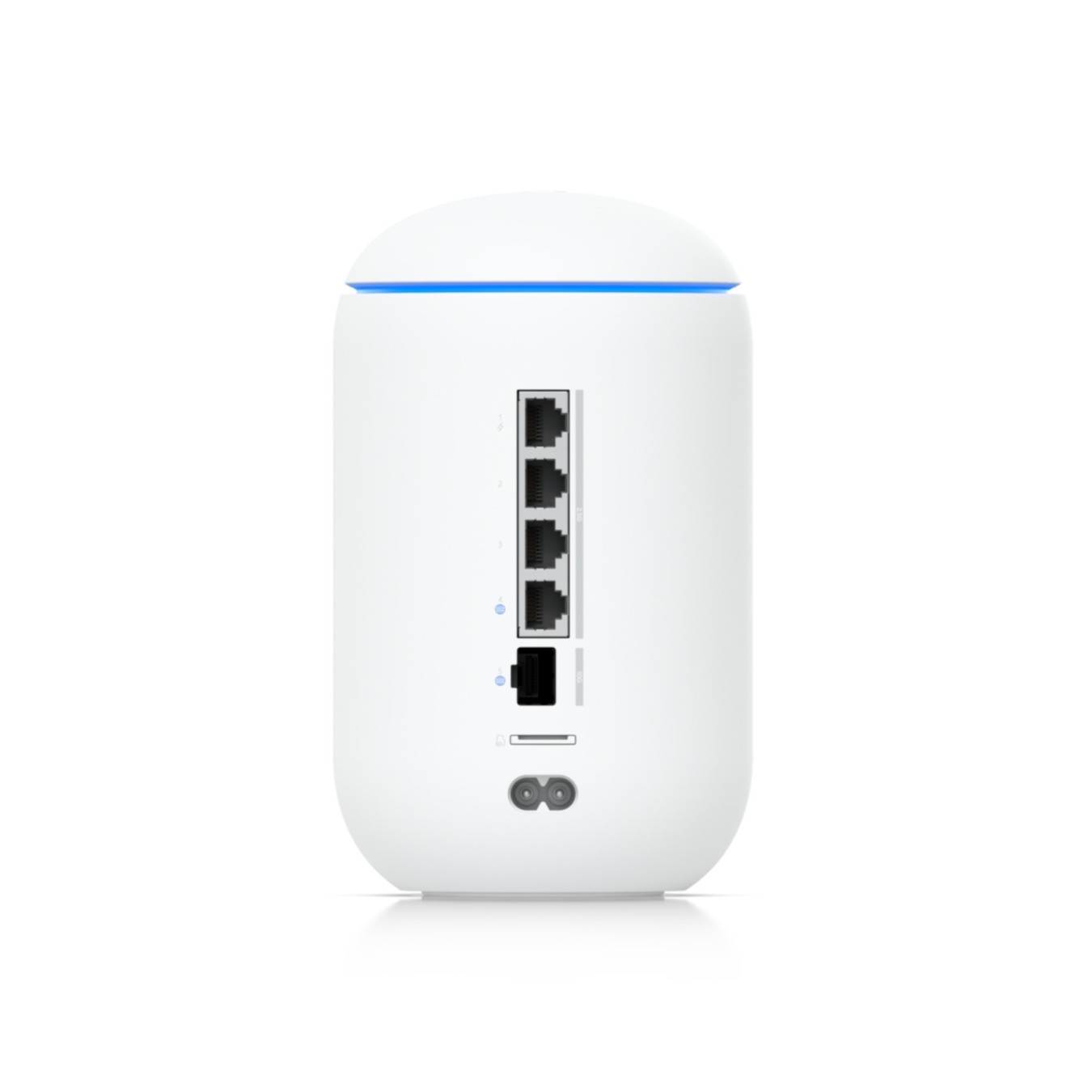

The Ubiquiti Dream Router 7 (UDR7) is a compact desktop cloud gateway delivering next-generation tri-band Wi-Fi 7 performance with speeds up to 5.7Gbps on 6GHz, 4.3Gbps on 5GHz, and 688Mbps on 2.4GHz. It features integrated 10G connectivity via SFP+ WAN port, 2.5GbE RJ45 WAN, and a 4-port 2.5GbE LAN switch with one PoE output for powering UniFi devices.
Full UniFi application suite support includes Network, Protect, Access, Talk, and more, with advanced security like stateful firewall, DPI, IPS/IDS (2.3Gbps throughput), VLANs, QoS, OSPF routing, and RADIUS server. Manage up to 30+ UniFi devices and 300 simultaneous users across 160m² coverage. Includes microSD slot for local storage and 0.96" LCM status display.
- Tri-band Wi-Fi 7 (802.11be) with 2x2 MU-MIMO, MLO support
- Multi-WAN, load balancing, WireGuard/OpenVPN server
- Quad-core ARM Cortex-A53 1.5GHz, 3GB RAM
- Internal 50W PSU, PoE switch, compact polycarbonate design
- Wireless security: WPA3, WPA-Enterprise, PPSK
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 5700 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 4300 Mbit/s |
| WLAN data transfer rate (third band) | 5700 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 2500 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Multicast support | Yes |
| Load balancing system | Yes |
| Policy-based routing | Yes |
| Maximum coverage | 160 m² |
| VPN server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| Maximum Tx power (2.4 GHz) | 23 dBm |
| Maximum Tx power (5 GHz) | 26 dBm |
| Maximum Tx power (6 GHz) | 24 dBm |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Fiber optic connector | SFP+ |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Firewall | Yes |
| Filtering | Yes |
| MAC address table | 2000 entries |
| DHCP server | Yes |
| Routing protocols | OSPF |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| LED indicators | Status |
| Built-in display | Yes |
| Display type | LCM |
| Product type | Tabletop router |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Cables included | AC |
| Manual | Yes |
| Antenna design | Internal |
| Antenna gain level (max) | 7 dBi |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53 |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
| Internal memory | 3000 MB |
| Number of simultaneously connected devices (max) | 300 |
| Bluetooth | Yes |
| Power source type | AC, PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 26 W |
| Power supply | 50 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 184.1 mm |
| Weight | 1.1 kg |
| Number of products included | 1 pc(s) |
| IDS/IPS Throughput | 2.3 Gbps |
| Managed UniFi Devices | 30+ |
| PoE LAN Ports | 1 |
