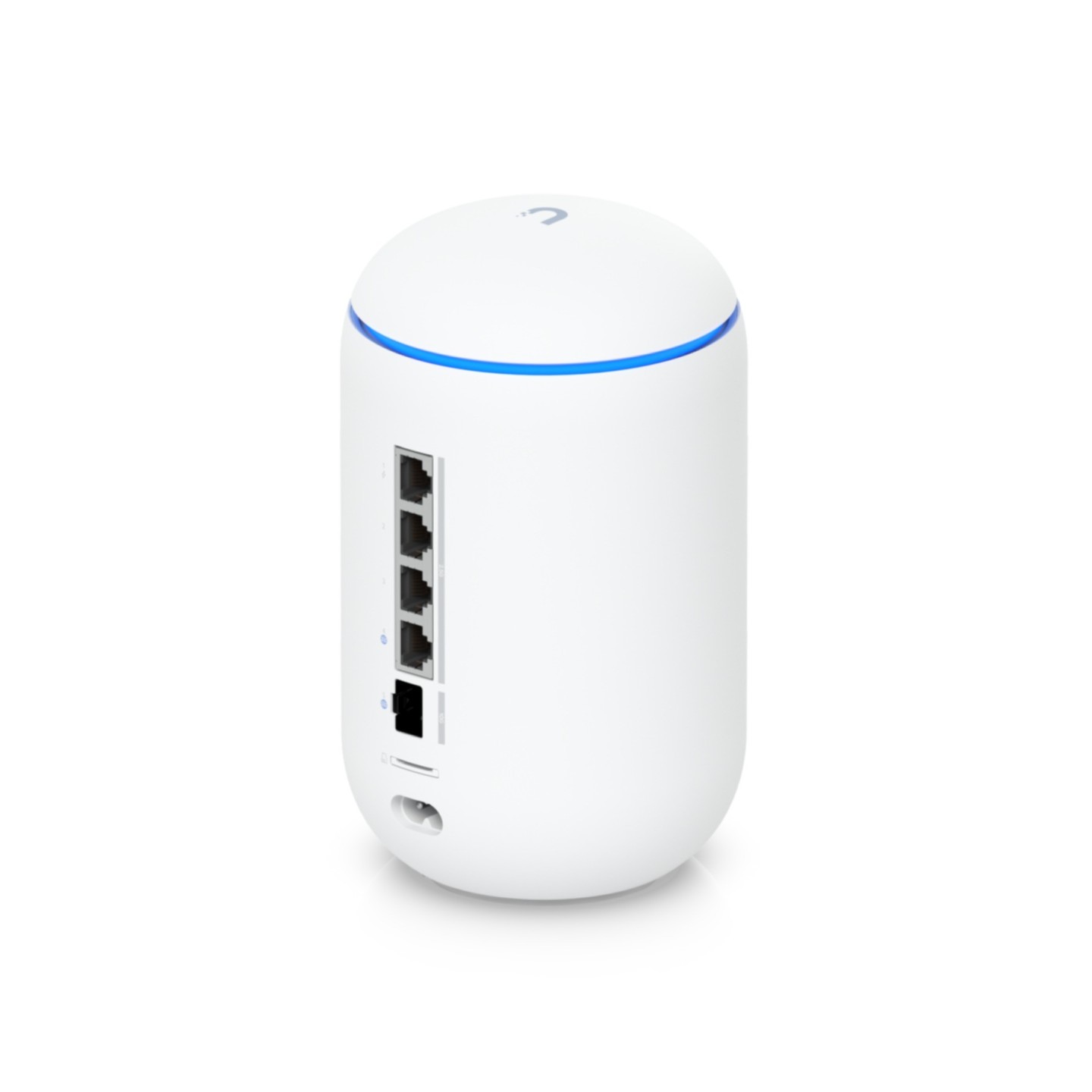

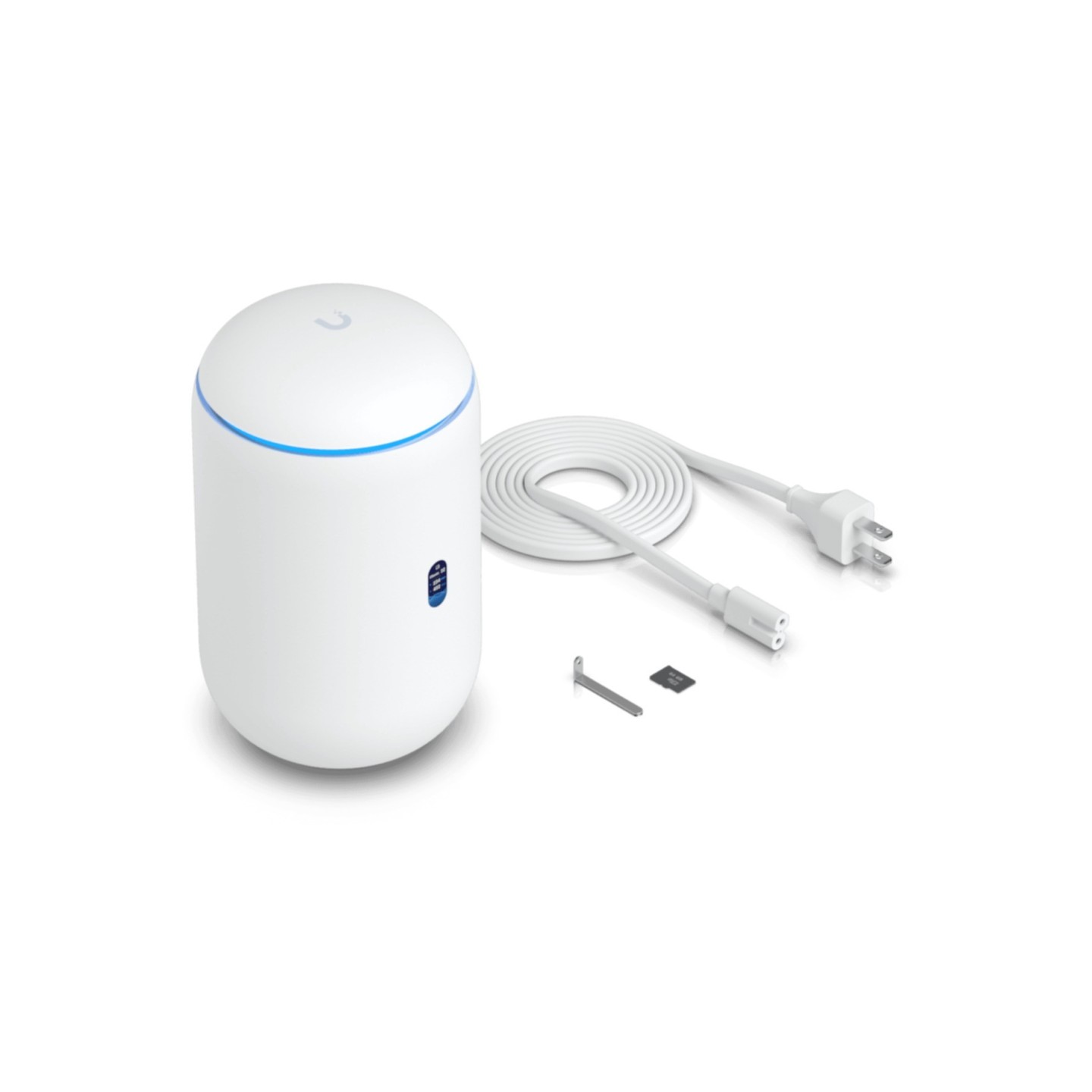

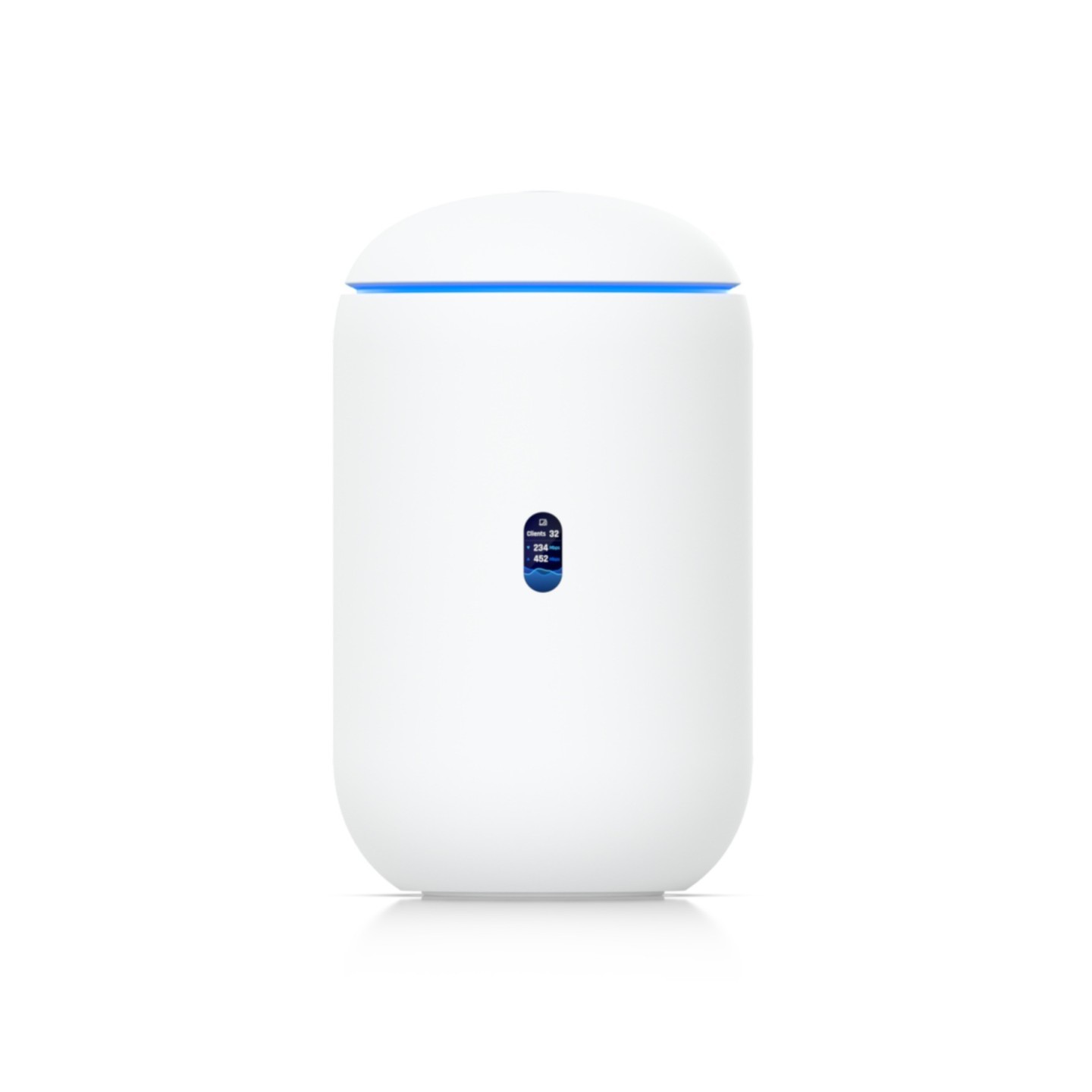

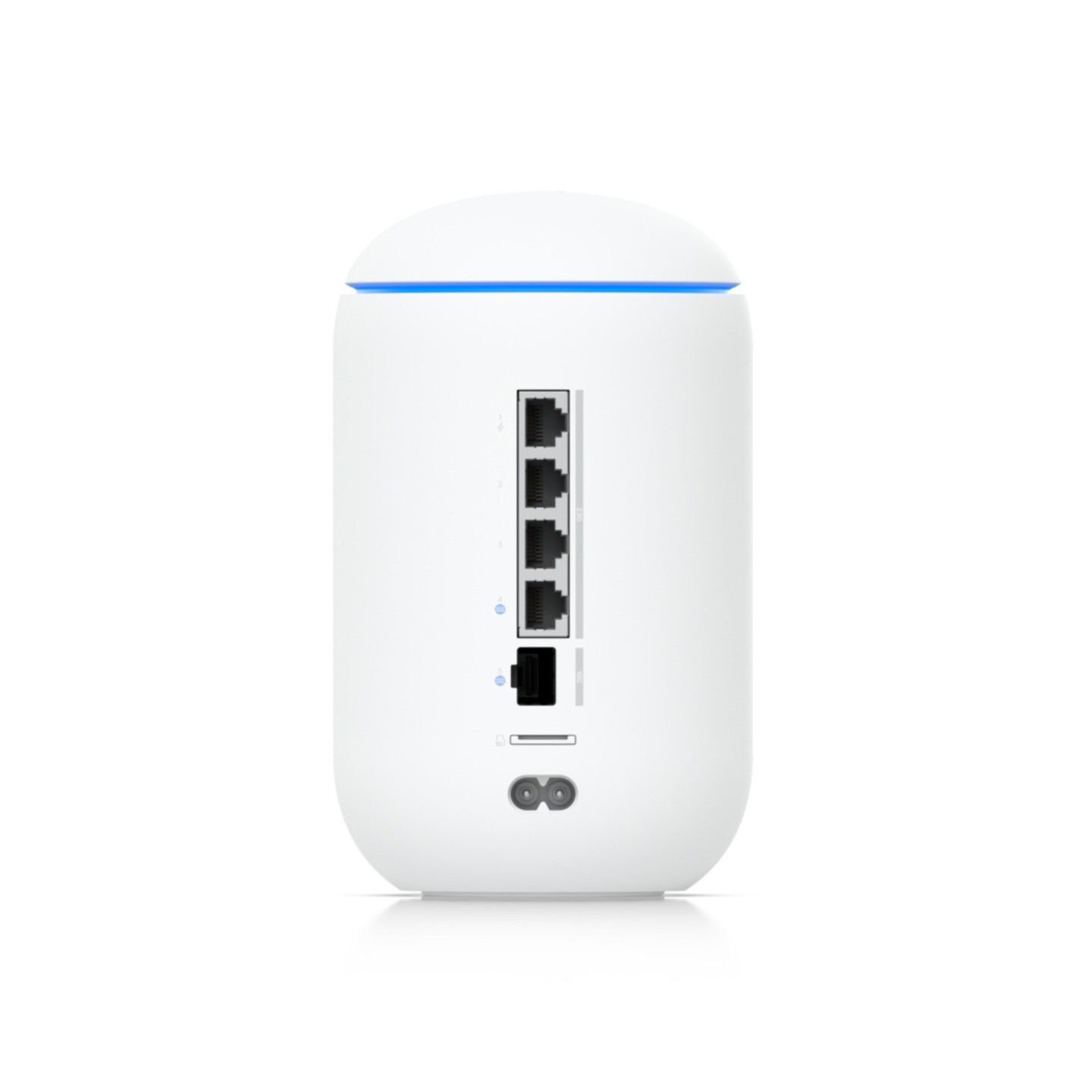

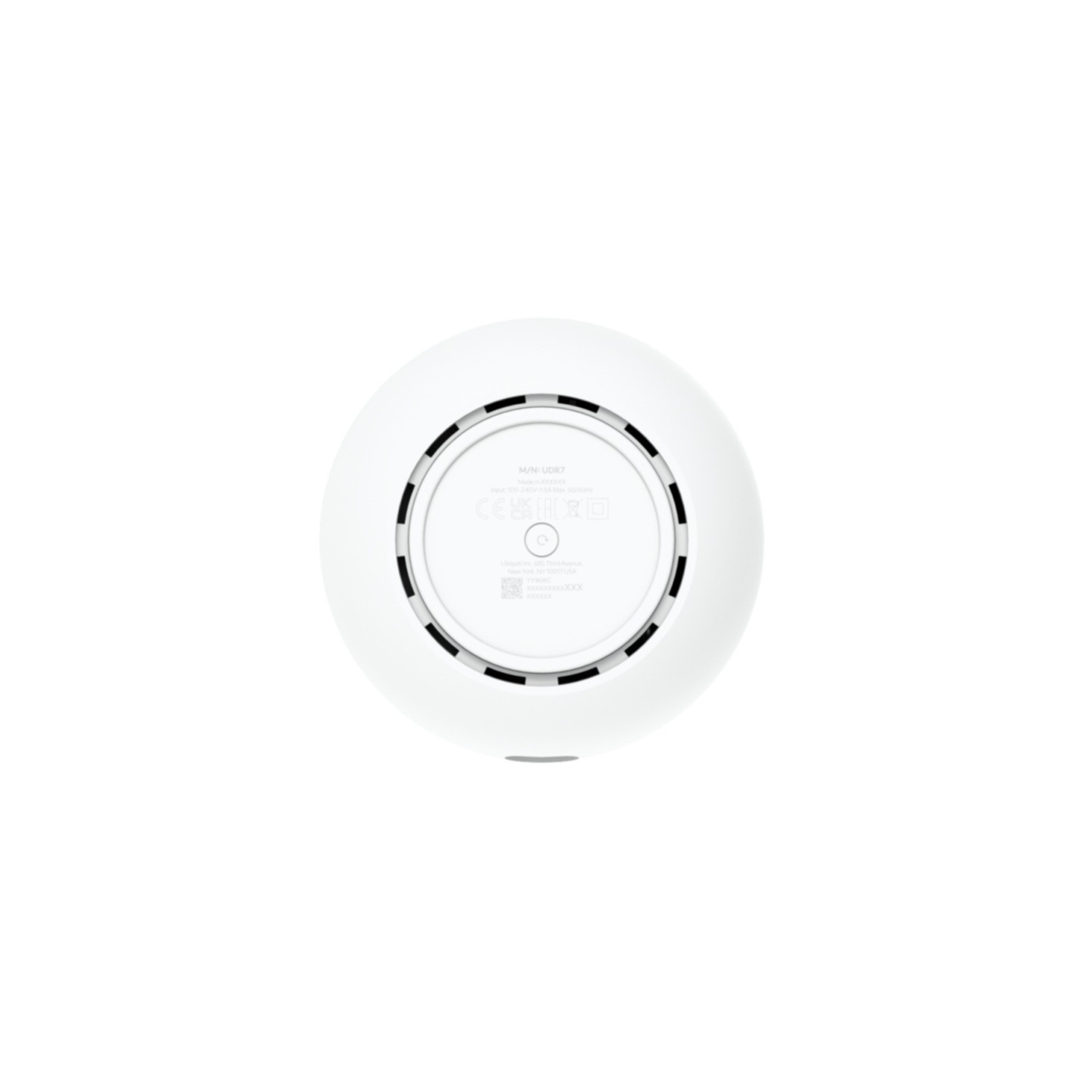

Ubiquiti Dream Router 7 - UDR7 - Tri-band Wi-Fi 7, 10G WAN, Integrated PoE Switch, microSD
Desktop 10G cloud gateway with tri-band Wi‑Fi 7 (2.4/5/6 GHz), 4x 2.5GbE LAN, integrated PoE switch, microSD storage and UniFi app support; WireGuard/OpenVPN server.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Wi-Fi Standard | Wi-Fi 7 |
|---|---|
| Routers - Bands | Tri-band (2.4+5+6 GHz) |
| Routers - VPN | Server (OpenVPN/WireGuard/PPTP/L2TP) |
| Routers - LAN Ports | 4 |
| Routers - 3G/4G/5G Failover | No |
| Routers - App Management | Yes |
Desktop 10G Cloud Gateway with integrated WiFi 7, PoE switch, microSD storage, and full UniFi application support.
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (max) | 5700 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| WLAN data transfer rate (first band) | 688 Mbit/s |
| WLAN data transfer rate (second band) | 4300 Mbit/s |
| WLAN data transfer rate (third band) | 5700 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 2500 Mbit/s |
| Networking standards | IEEE 802.1Q |
| Multicast support | Yes |
| Load balancing system | Yes |
| Policy-based routing | Yes |
| Maximum coverage | 160 m² |
| VPN server | Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN, WireGuard, OpenVPN, L2TP |
| Maximum Tx power (2.4 GHz) | 23 dBmW |
| Maximum Tx power (5 GHz) | 26 dBmW |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Fiber optic connector | SFP+ |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| MU-MIMO technology | Yes |
| MIMO | Yes |
| Security algorithms | PPSK, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |
| Firewall | Yes |
| Filtering | Yes |
| MAC address table | 2000 entries |
| DHCP server | Yes |
| Routing protocols | OSPF |
| Product colour | White |
| Housing material | Polycarbonate (PC) |
| LED indicators | Status |
| Built-in display | Yes |
| Display type | LCM |
| Product type | Tabletop router |
| Compliance certificates | CE, Federal Communications Commission (FCC), Industry Canada (IC) |
| Cables included | AC |
| Manual | Yes |
| Antenna design | Internal |
| Antenna gain level (max) | 7 dBi |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53 |
| Processor frequency | 1500 MHz |
| Processor cores | 4 |
| Internal memory | 3000 MB |
| Number of simultaneously connected devices (max) | 300 |
| Bluetooth | Yes |
| Power source type | AC, PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 26 W |
| Power supply | 50 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) voltage | 57 V |
| Operating temperature (T-T) | -10 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Width | 110 mm |
| Depth | 110 mm |
| Height | 184.1 mm |
| Weight | 1.1 kg |
| Number of products included | 1 pc(s) |
