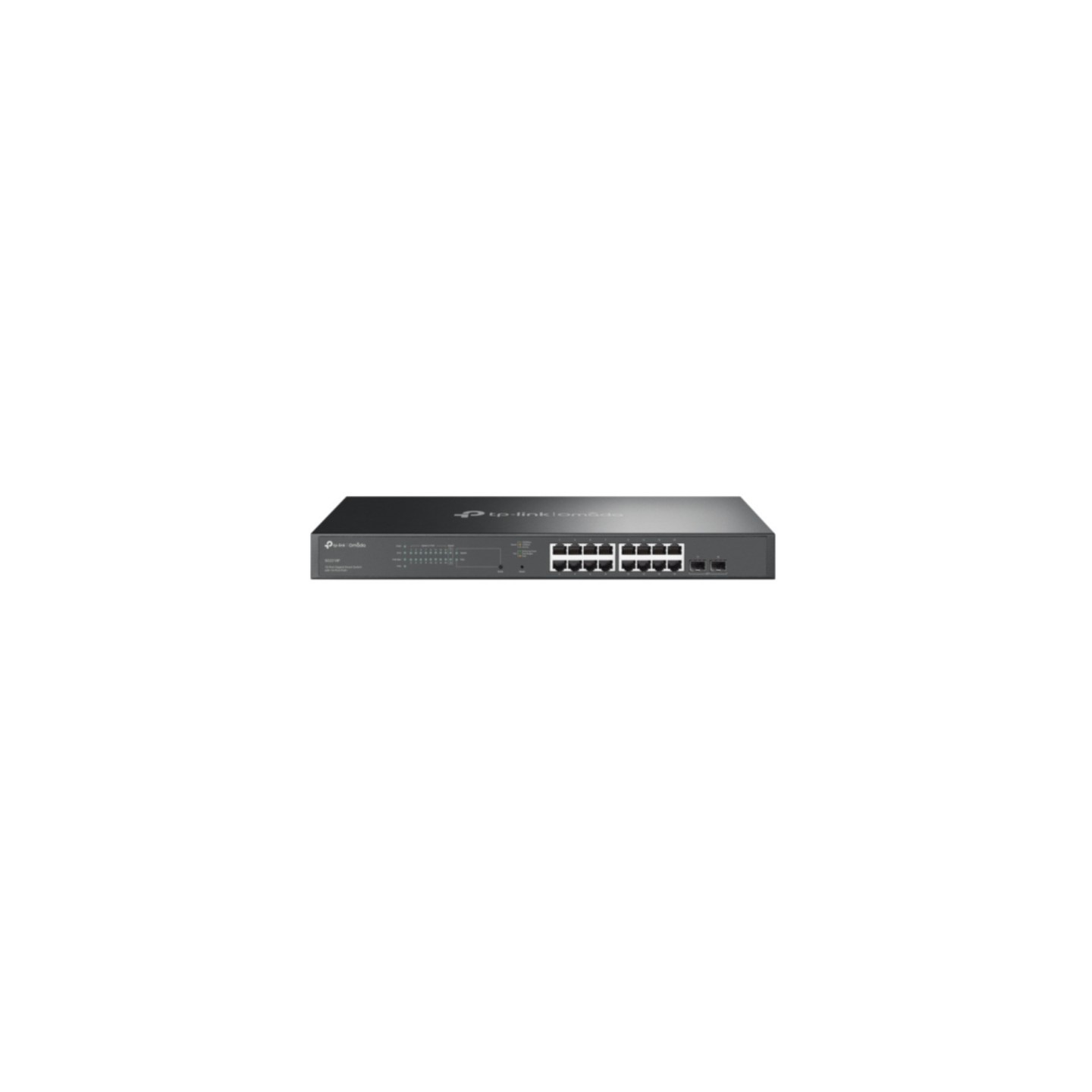

TP-Link TL-SG2218P - 16-Port Gigabit PoE Managed L2 Switch - Black, 150W PoE Budget
Managed L2 16x Gigabit RJ45 + 2 SFP ports, PoE with 150W budget, 26.78 Gbps switching capacity, VLAN/QoS/ACL support, rackmount 1U, ideal for SMB networks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
Realize More Possibilities with Omada
JetStream 18-Port Gigabit Smart Switch with 16-Port PoE+
Centralized
Cloud Management
Omada SDN Platform Integration
Advanced L2+ Features
L2/L3/L4 QoS, ACL,
Static Routing and More
Abundant Security
Strategies
LAN Area Investment Protection
PoE+ Output
16 PoE+ Ports with
Total 150 W Power Budget
Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| MIB support | MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIBs, RMON MIB(RFC1757, rmon 1,2,3,9) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP module slots quantity | 2 |
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support | No |
| IP routing | Yes |
| Policy-based routing | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Broadcast storm control | Yes |
| Rate limiting | Yes |
| Auto MDI/MDI-X | Yes |
| Spanning tree protocol | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| VLAN support | Yes |
| Switching capacity | 26.78 Gbit/s |
| Forwarding rate | 26.78 Mpps |
| MAC address table | 8000 entries |
| Jumbo frames support | Yes |
| Jumbo frames | 9 |
| Packet buffer memory | 4.1 MB |
| DHCP features | DHCP client, DHCP relay, DHCP snooping |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Loop protection | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast support | Yes |
| Multicast features | Multicast forwarding |
| Rack mounting | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Power source | DC/PoE |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 181.4 W |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 150 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 619.06 BTU/h |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | LAN (RJ-45) |
| User guide | Yes |
| Package type | Box |
| Package width | 250 mm |
| Package depth | 528 mm |
| Package height | 80 mm |
| Package weight | 2.76 kg |
| Certification | CE, FCC, RoHS |
