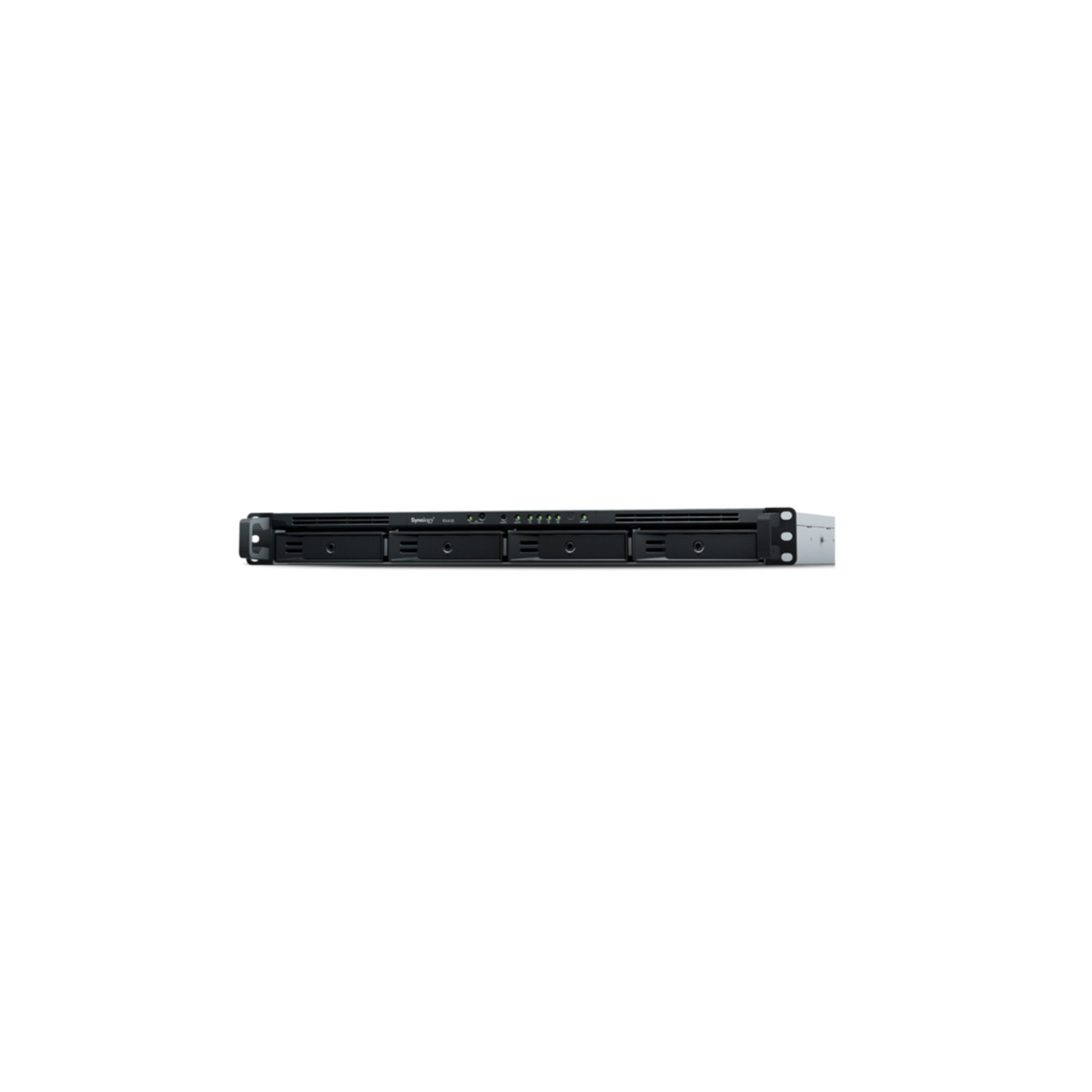

Synology RX418 Rack Expansion - 4-Bay 1U NAS Expansion (Black/Grey) - Hot-Swap, eSATA
4-bay 1U Synology RX418 rack expansion for compatible Synology NAS. Supports 3.5" HDD and SSD up to 56 TB, hot-swappable bays, eSATA, 100W PSU, typical 23W power.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - Bays | 4 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - M.2 Slots | None |
| NAS (Network Attached Storage) - USB | None |
| NAS (Network Attached Storage) - Hot-swap | Yes |
Storage capacity expansion
When the storage capacity on Synology 1U RackStation reaches its limit, Synology expansion unit RX418 provides easy capacity expansion by adding 4 3.5"/2.5" SATA drives to the system. Synology RX418 can also be used as a dedicated local backup destination of Synology 1U RackStation for comprehensive data protection.
Reliable plug-and-play design
Simply connect Synology RX418 to corresponding Synology RackStation and it is ready to use. Drives in the connected Synology RX418 operate as though they were internal to the connected Synology NAS and can be managed directly by Synology DiskStation Manager (DSM), with no additional software installation required.
Green and easy to manage
Award-winning Synology DSM provides an intuitive user interface for easy system management. Drive hibernation can be configured in DSM to take effect automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of the installed drives.
| Storage drives installed | No |
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Number of storage drives supported | 4 |
| Maximum supported storage capacity | 56 TB |
| Supported storage drive interfaces | Serial ATA, Serial ATA II, Serial ATA III |
| Hot-swap drive bays | Yes |
| USB connectivity | No |
| eSATA ports quantity | 1 |
| Chassis type | Rack (1U) |
| Product colour | Black, Grey |
| Number of fans | 3 fan(s) |
| Noise level | 25.1 dB |
| Compatible products | Synology RS1219+, RS818(RP)+, RS815(RP)+, RS816, RS815 |
| Certification | FCC A, CE A, BSMI A, EAC, VCCI, RCM, KC |
| Power supply unit (PSU) capacity | 100 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 23.26 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Width | 480 mm |
| Depth | 325 mm |
| Height | 44 mm |
| Weight | 4.28 kg |
| Cables included | AC, eSATA |
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 84717020 |
