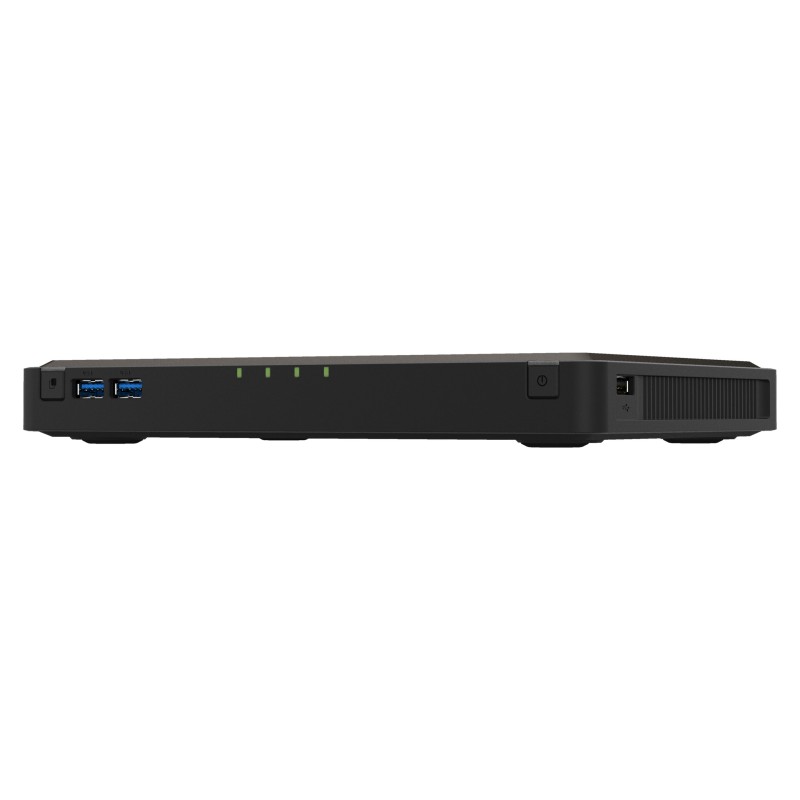

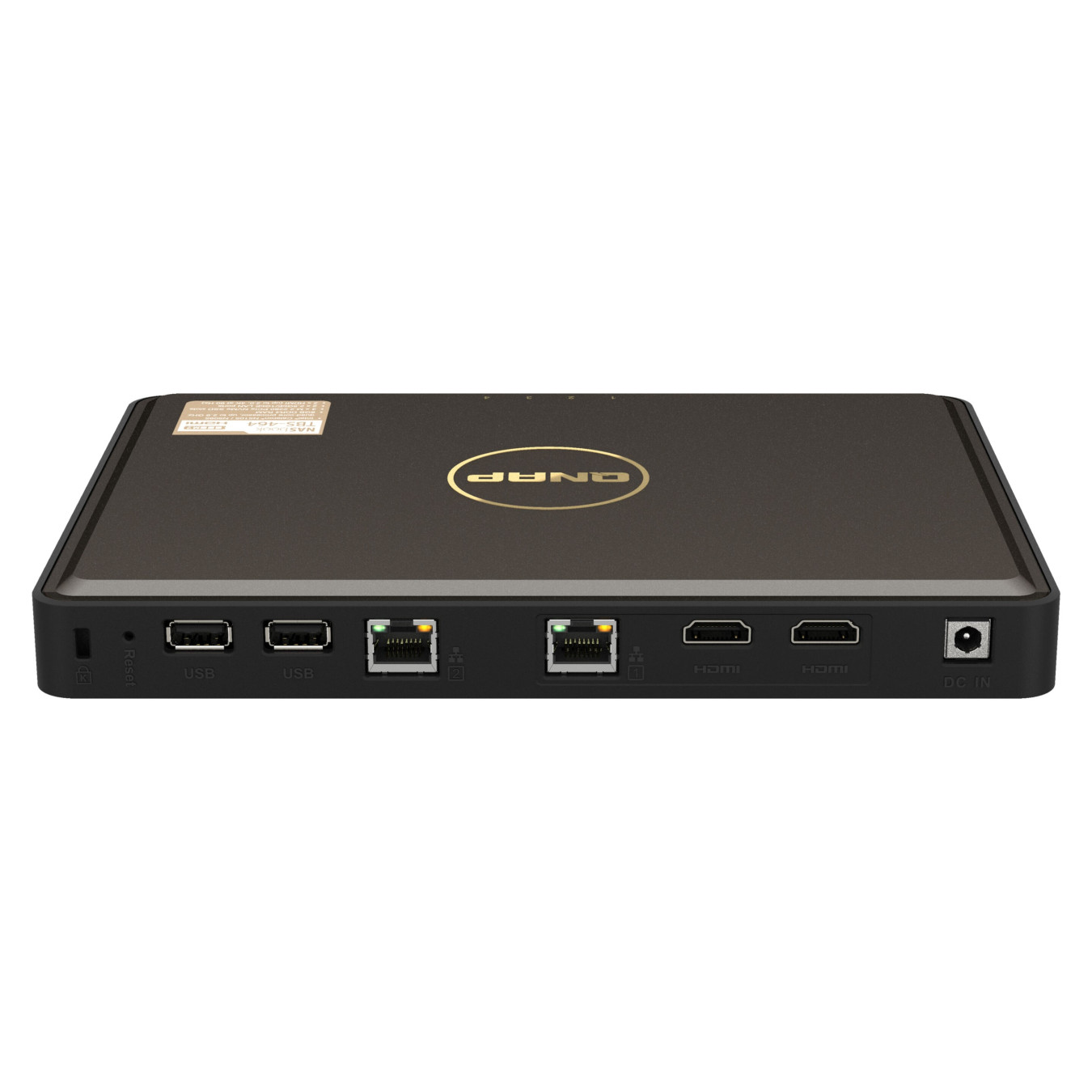

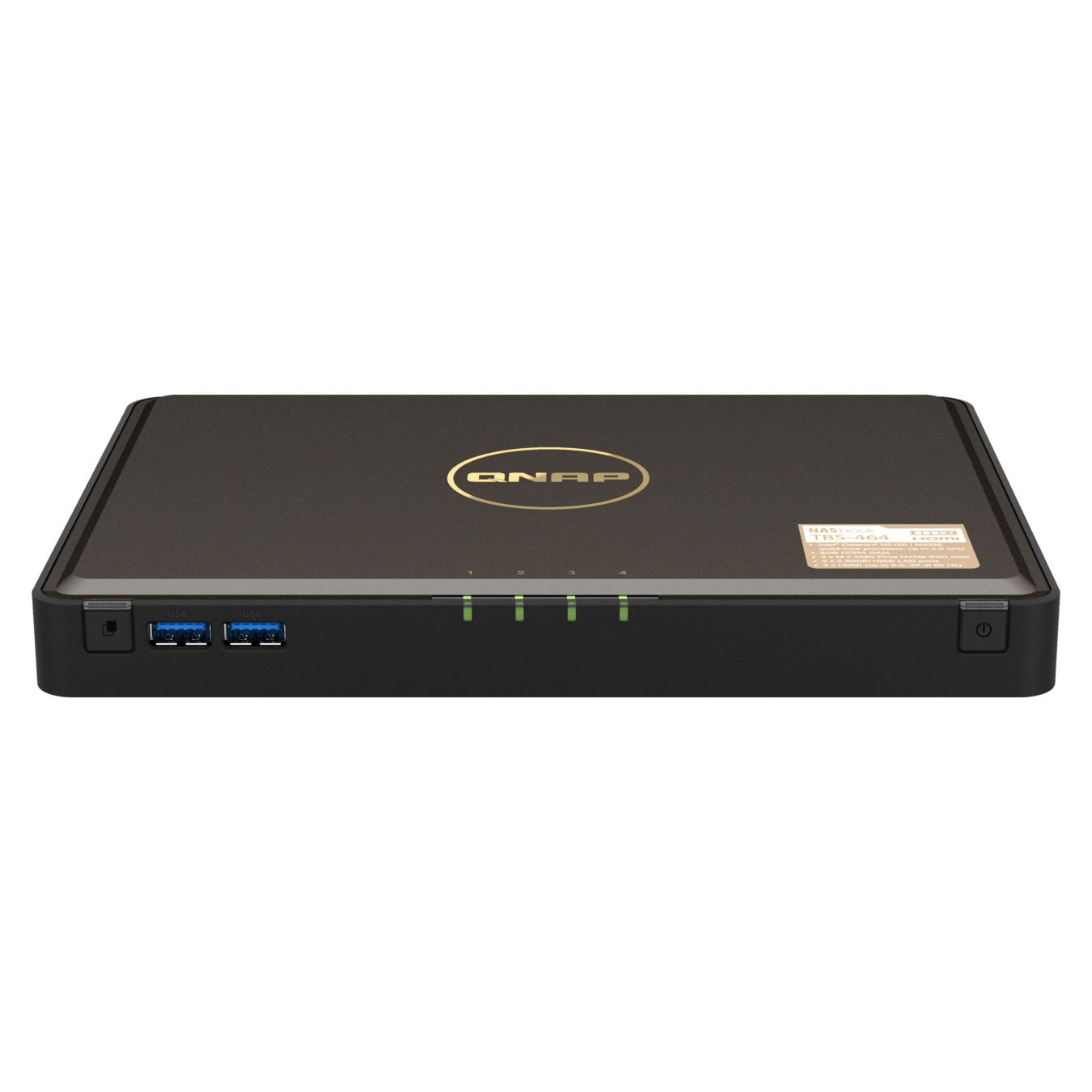

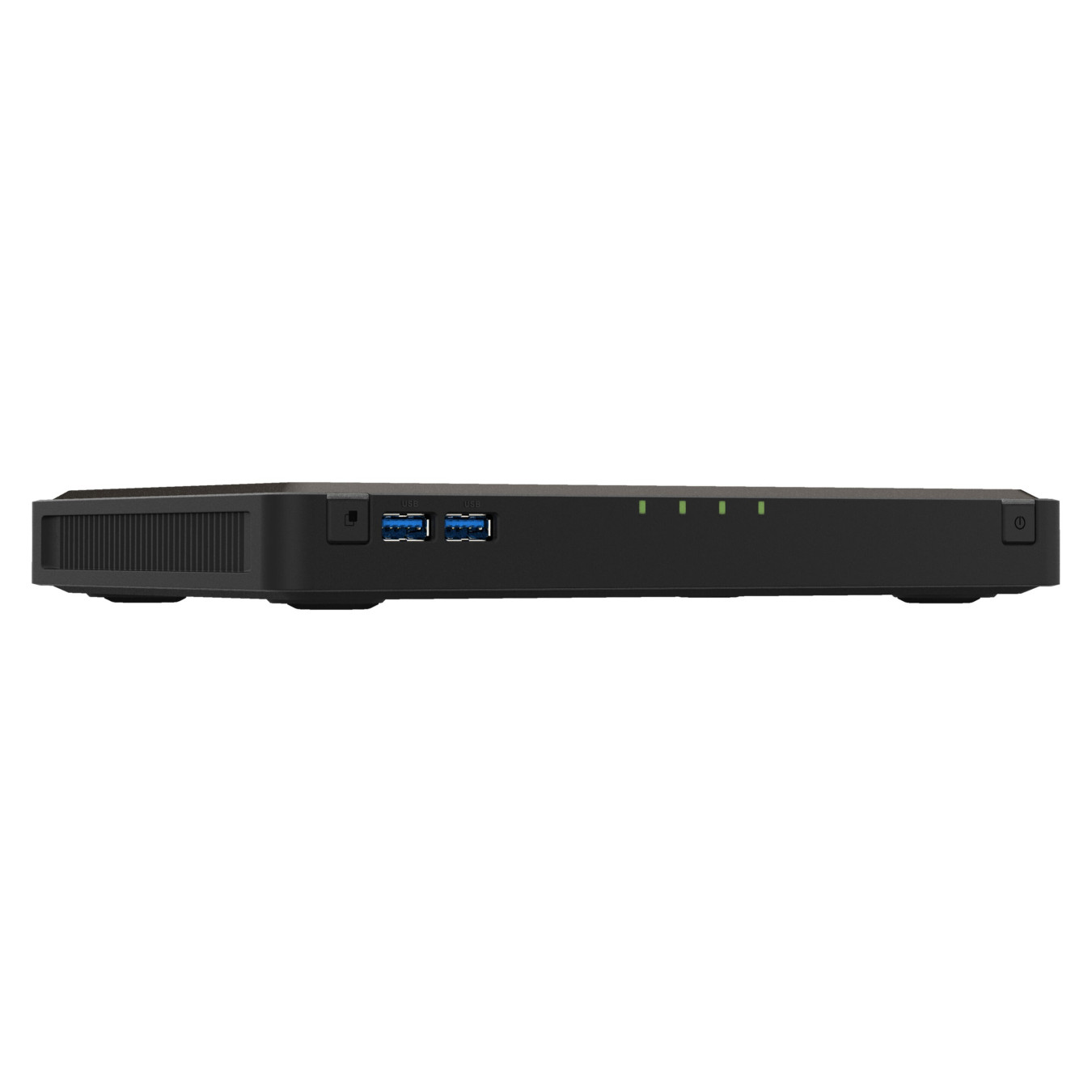

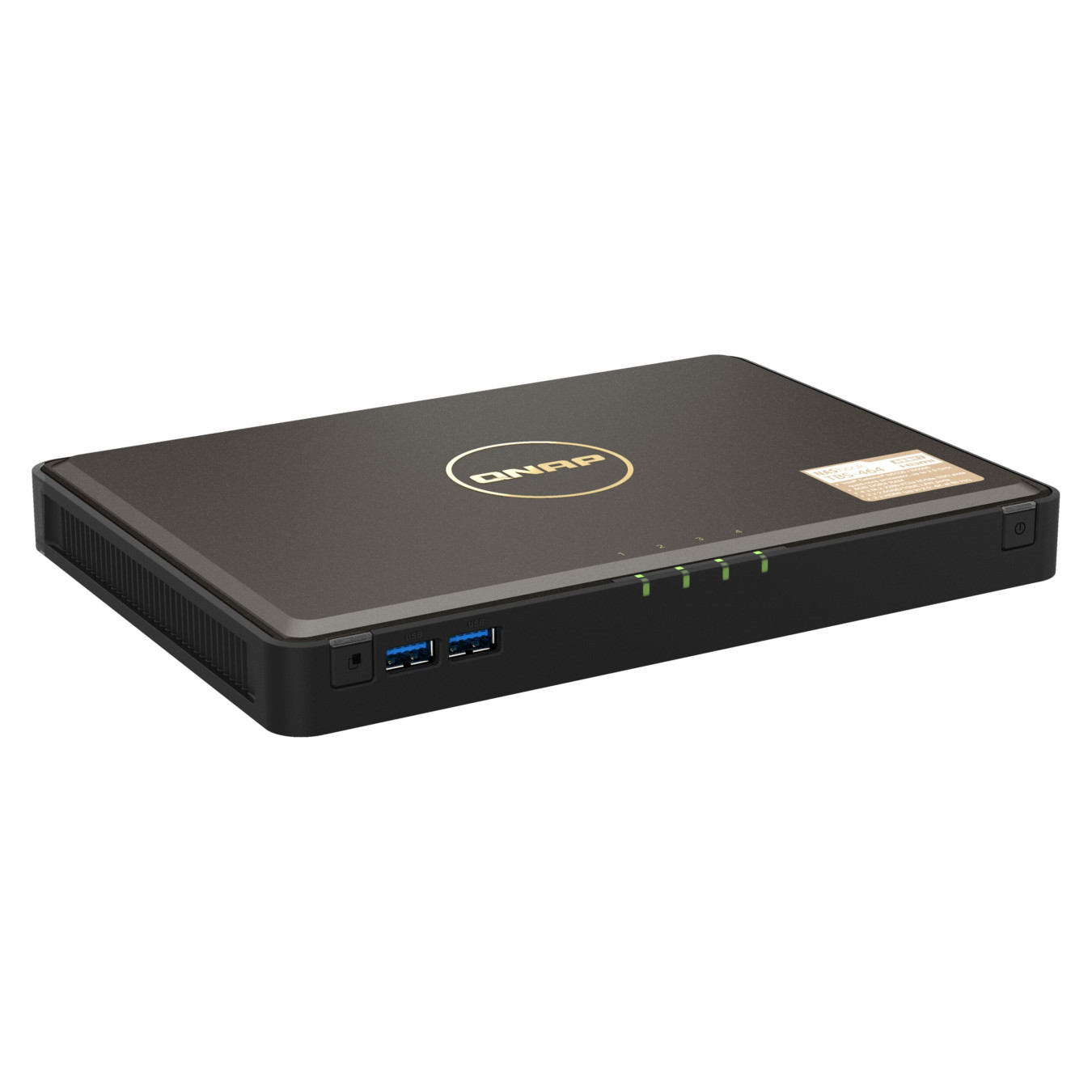

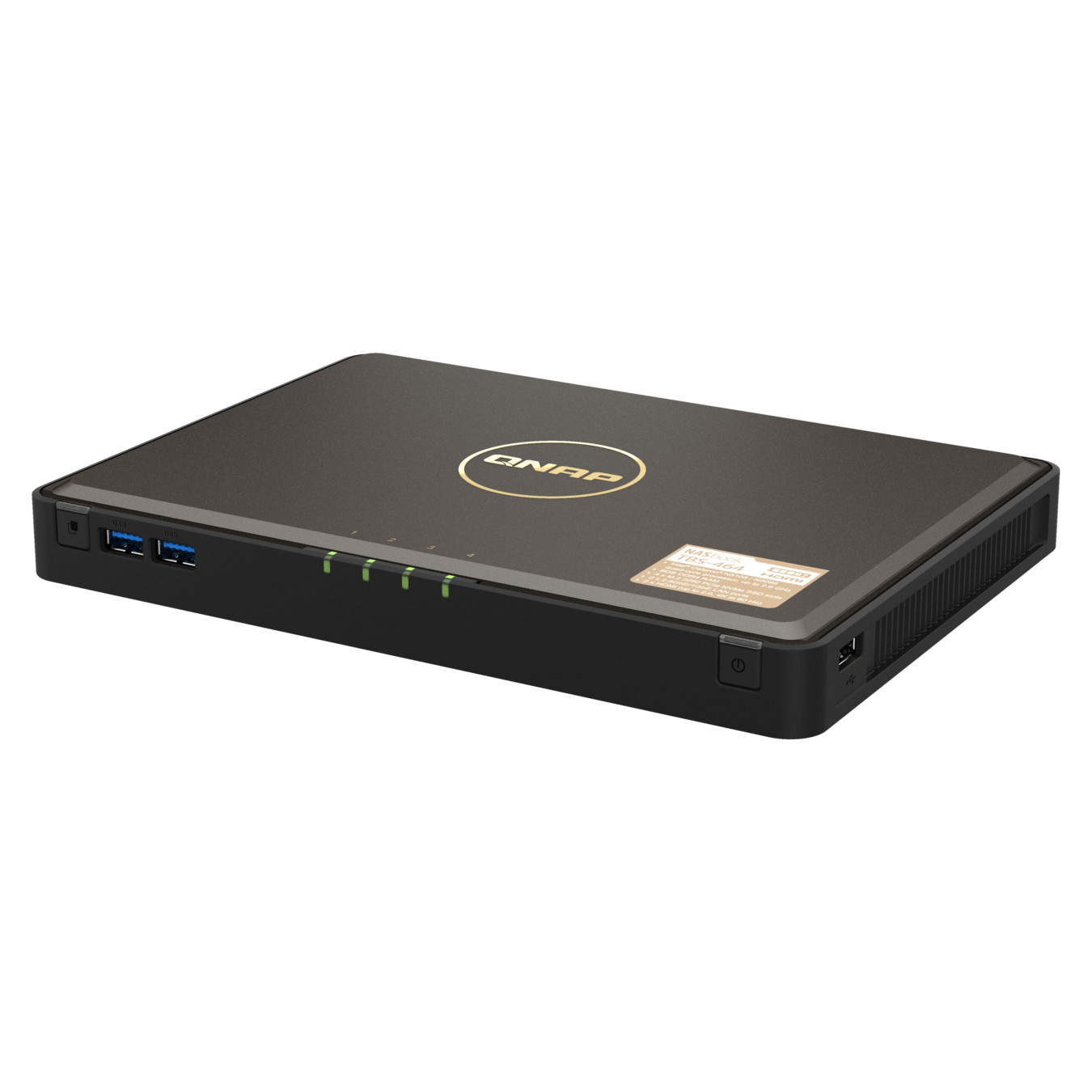

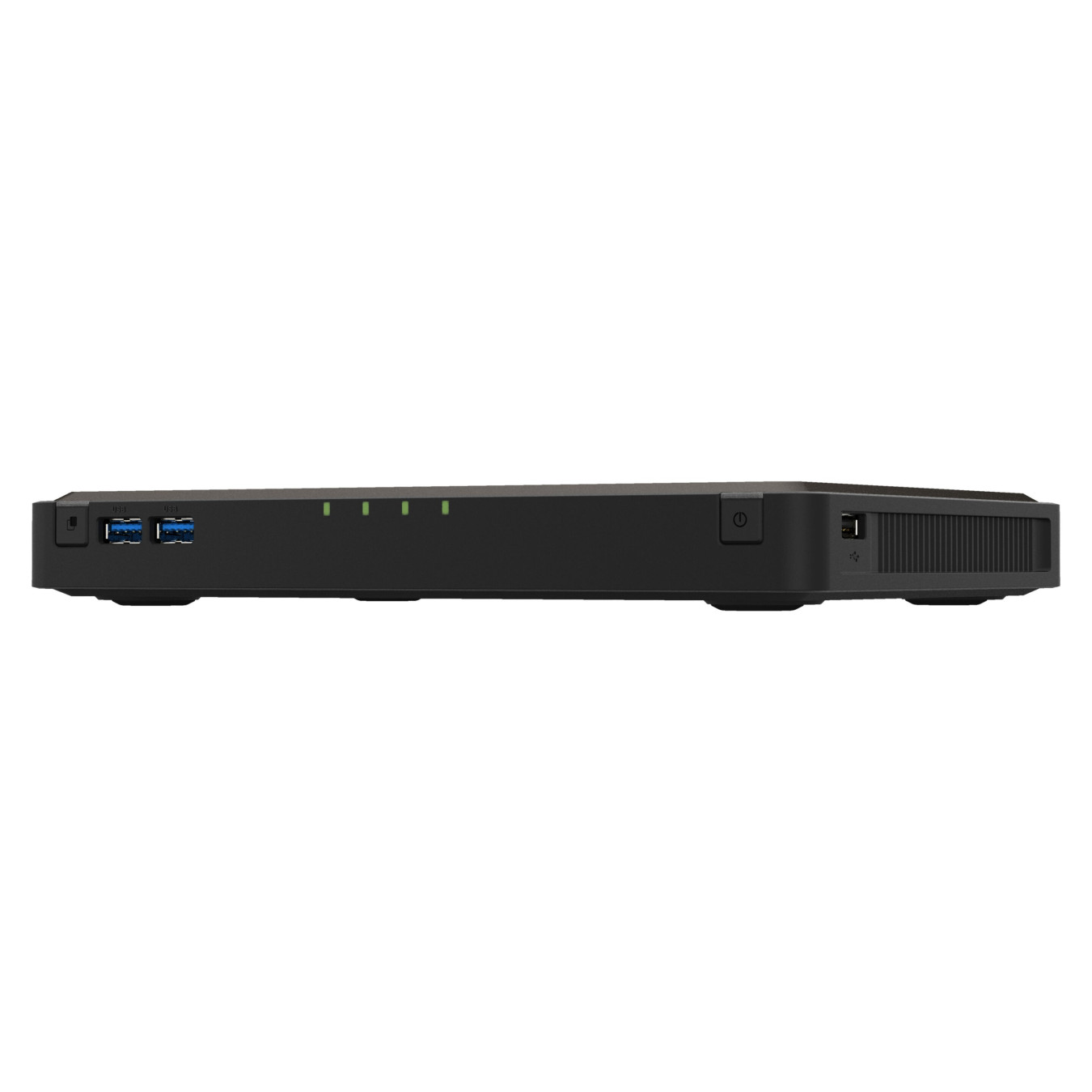

QNAP TBS-464 NASbook - 4-Bay M.2 SSD NAS - Intel Celeron N5105 2.0–2.9GHz, 8GB DDR4, Black
Compact 4-bay M.2 NASbook with Intel Celeron N5105 (2.0–2.9GHz), 8GB DDR4, dual 2.5GbE, HDMI 2.0, RAID 0/1/5/6/10/JBOD — ideal for home & small office.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - LAN | 2x2.5GbE |
|---|---|
| NAS (Network Attached Storage) - USB | USB 3.0 |
| Supported storage drive interfaces | M.2 |
| Number of M.2 (M & B) slots | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Supported file systems | FAT32, NTFS, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | SSD |
| Disk roaming | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel® Celeron® |
| Processor model | N5105 |
| Processor frequency | 2 GHz |
| Processor boost frequency | 2.9 GHz |
| Processor cores | 4 |
| Processor threads | 4 |
| CPU configuration (max) | 1 |
| Number of processors supported | 1 |
| On-board graphics card model | Intel® UHD Graphics |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 8 GB |
| Flash memory | 4000 MB |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 100, 1000, 2500 Mbit/s |
| DHCP server | Yes |
| Jumbo frames support | Yes |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Dynamic DNS (DDNS) | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| Ethernet LAN (RJ-45) ports | 2 |
| Chassis type | Desktop |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| LED indicators | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Type | NAS |
| Device class | Home & Home Office |
| Backup function | Yes |
| Backup features | Cloud |
| Buzzer | Yes |
| Multilingual support | Yes |
| Noise level | 25 dB |
| Snapshot | Yes |
| Security algorithms | 256-bit AES, FIPS 140-2, HTTPS, SNMPv2, SNMPv3 |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in FTP server | Yes |
| Browser supported | Mozilla Firefox, Microsoft Edge, Google Chrome, Apple Safari |
| Hot spare | Yes |
| S.M.A.R.T. support | Yes |
| Operating system installed | QNAP Turbo System |
| Operating system version | 5.0.0 |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power supply location | External |
| Power supply unit (PSU) capacity | 65 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 28 W |
| Power consumption (sleep) | 18 W |
| AC input voltage | 100 - 240 V |
| Width | 230 mm |
| Depth | 165 mm |
| Height | 30 mm |
| Weight | 800 g |
| Package weight | 1.7 kg |
| External power adapter | Yes |
| Cables included | AC, LAN (RJ-45) |
| Power cables quantity | 1 |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel 64 | Yes |
| Intel Trusted Execution Technology | No |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Harmonized System (HS) code | 84714100 |
