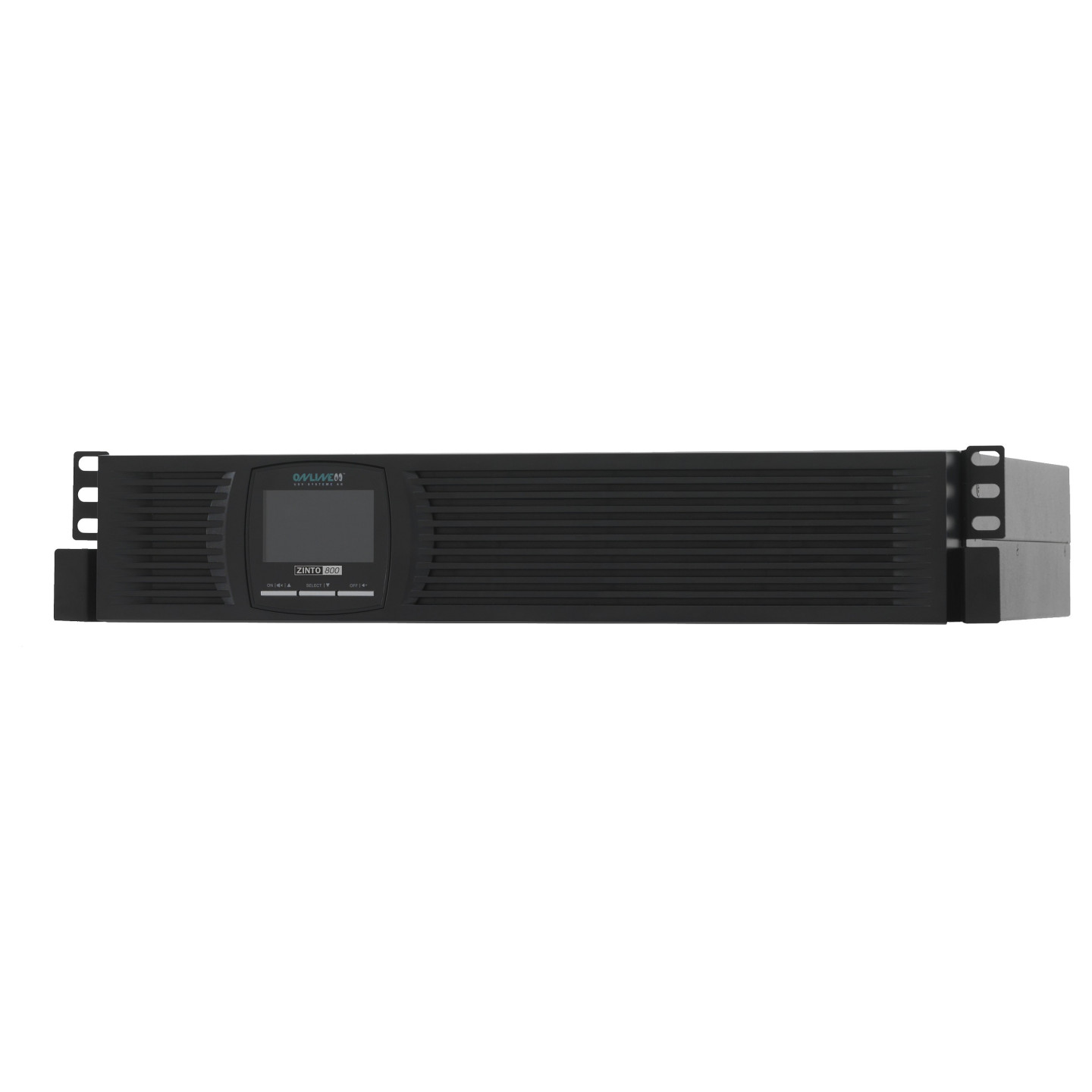

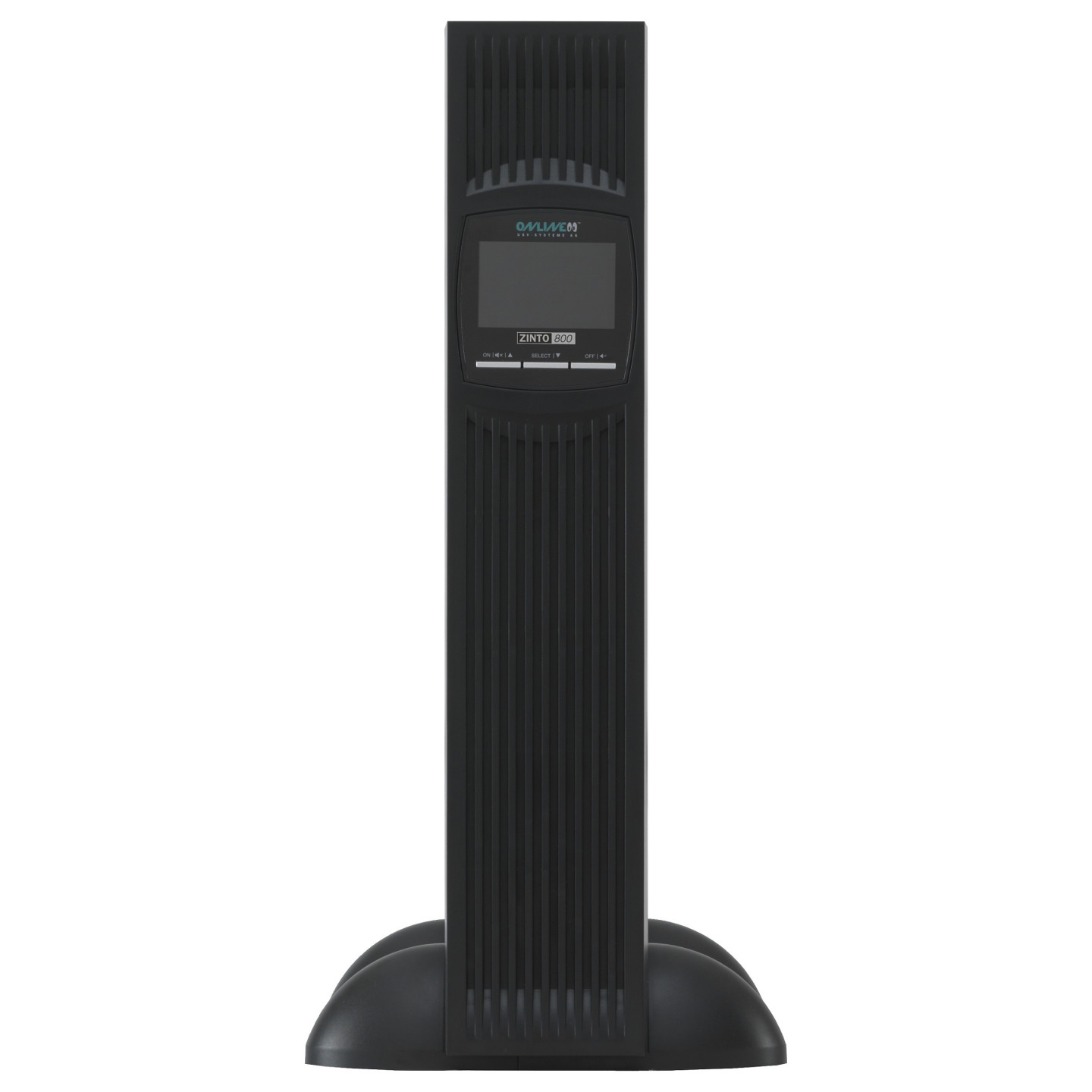

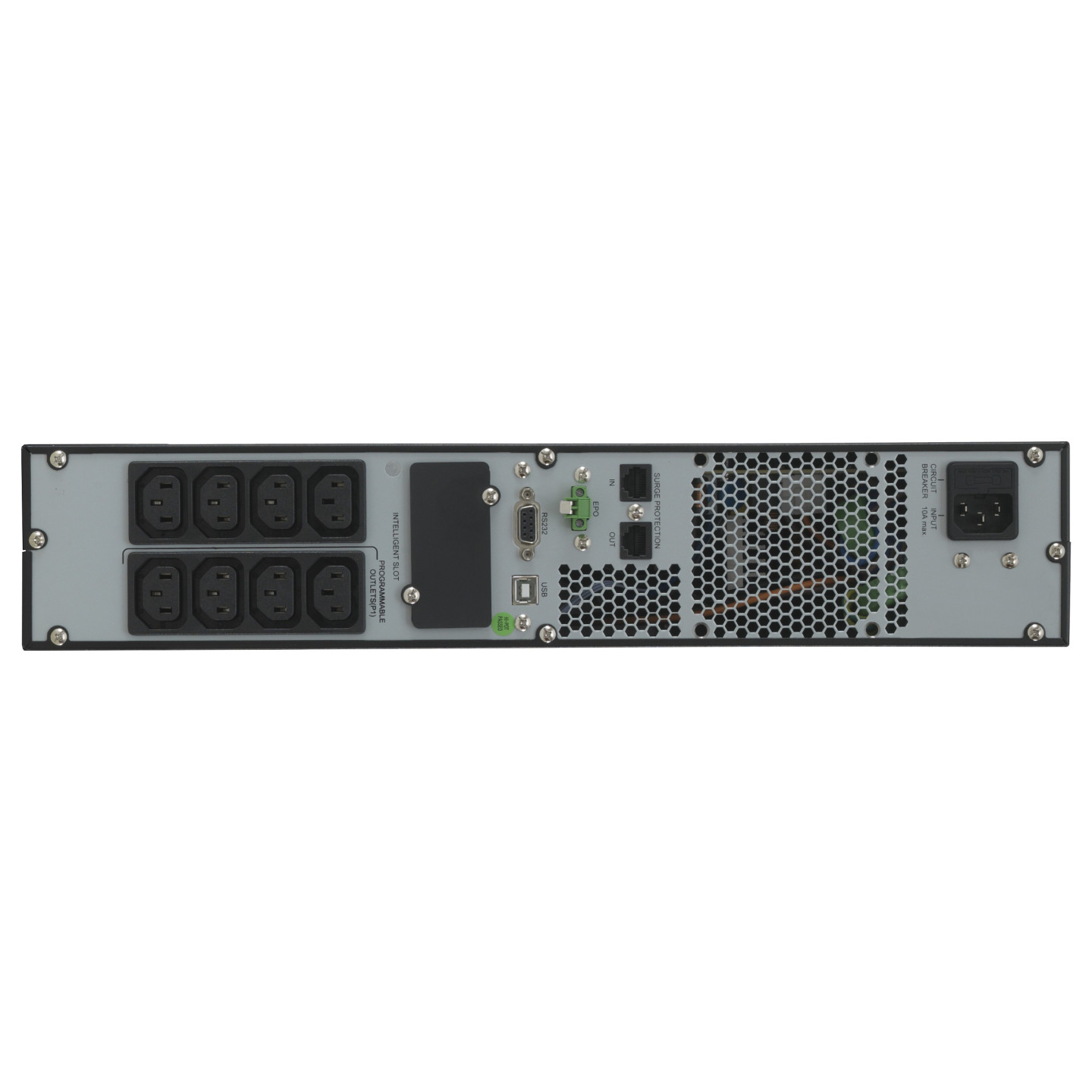

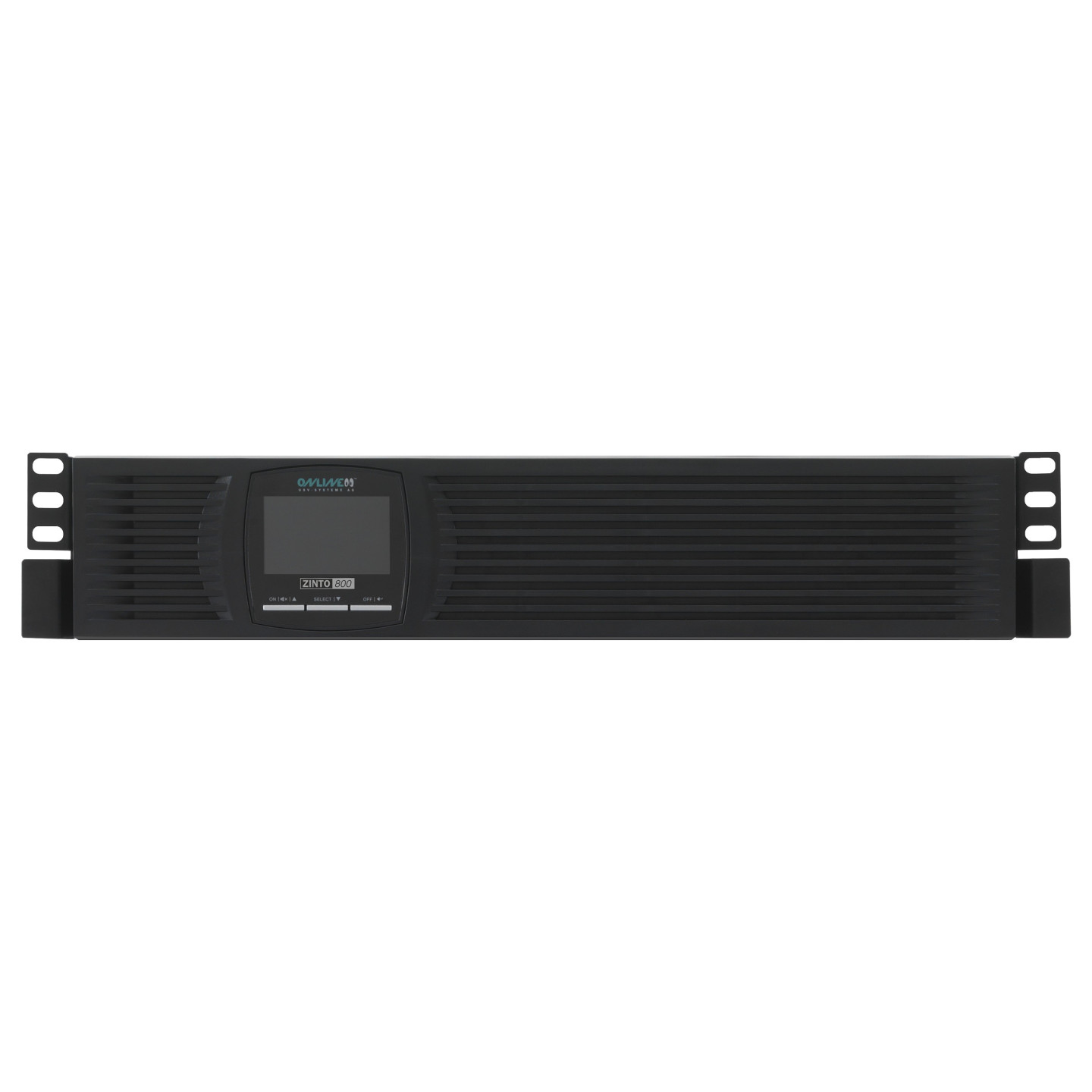

Online USV ZINTO Z800 800VA
ONLINE USV-Systeme ZINTO 800. Line-Interaktiv. 0.8 kVA. 720 W. 176 V. 274 V. 50/60 Hz
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
ONLINE USV-Systeme ZINTO 800. USV-Topologie: Line-Interaktiv. Ausgangskapazität: 0.8 kVA. Ausgangsleistung: 720 W. AC-Steckertypen: C13-Koppler. Stecker: C14-Koppler. Anzahl der AC-Ausgänge: 8 AC-Ausgänge. Batteriekapazität: 7 Ah. Akku-/Batteriespannung: 24 V. Typische Backup-Zeit bei voller Belastung: 6 min. Formfaktor: Rackmount/Tower. Produktfarbe: Schwarz. Rack-Kapazität: 2U. Zertifizierung: EN62040-2 (EN61000-2-2. EN61000-3-2. EN61000-4-2. EN61000-4-3. EN61000-4-4. EN61000-4-5....
| USV-Topologie | Line-Interaktiv |
| Ausgangskapazität | 0.8 kVA |
| Ausgangsleistung | 720 W |
| Eingangs-Betriebsspannung (min) | 176 V |
| Eingangs-Betriebsspannung (max) | 274 V |
| Eingangsfrequenz | 50/60 Hz |
| Ausgangs-Betriebsspannung (min) | 208 V |
| Ausgangs-Betriebsspannung (max) | 240 V |
| Regulierung der Ausgangsfrequenz | 50/60 Hz |
| Regulierung der Ausgangsspannung | +3 - -3% |
| Stromstärke (maximal) | 6 A |
| Effizienz | 97% |
| Geräuschpegel | 45 dB |
| AC-Steckertypen | C13-Koppler |
| Stecker | C14-Koppler |
| Anzahl der AC-Ausgänge | 8 AC-Ausgänge |
| Feature | Schnellinstallationsanleitung |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Serielle Schnittstelle | RS-232 |
| RS-232 port | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Batteriekapazität | 7 Ah |
| Akku-/Batteriespannung | 24 V |
| Typische Backup-Zeit bei voller Belastung | 6 min |
| Typische Backup-Zeit bei halber Belastung | 14 min |
| Formfaktor | Rackmount/Tower |
| Rack-Kapazität | 2U |
| Produktfarbe | Schwarz |
| Display-Typ | LCD |
| Internationale Schutzart (IP-Code) | IP20 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 90% |
| Zertifizierung | EN62040-2 (EN61000-2-2. EN61000-3-2. EN61000-4-2. EN61000-4-3. EN61000-4-4. EN61000-4-5. EN61000-4-6. EN61000-4-8). CE |
| Mitgelieferte Kabel | Lastkabel. USB-Kabel |
| Sicherheit | EN62040-1 |
| Breite | 438 mm |
| Tiefe | 412 mm |
| Höhe | 88 mm |
| Gewicht | 12.9 kg |
| Warentarifnummer (HS) | 85078000 |
