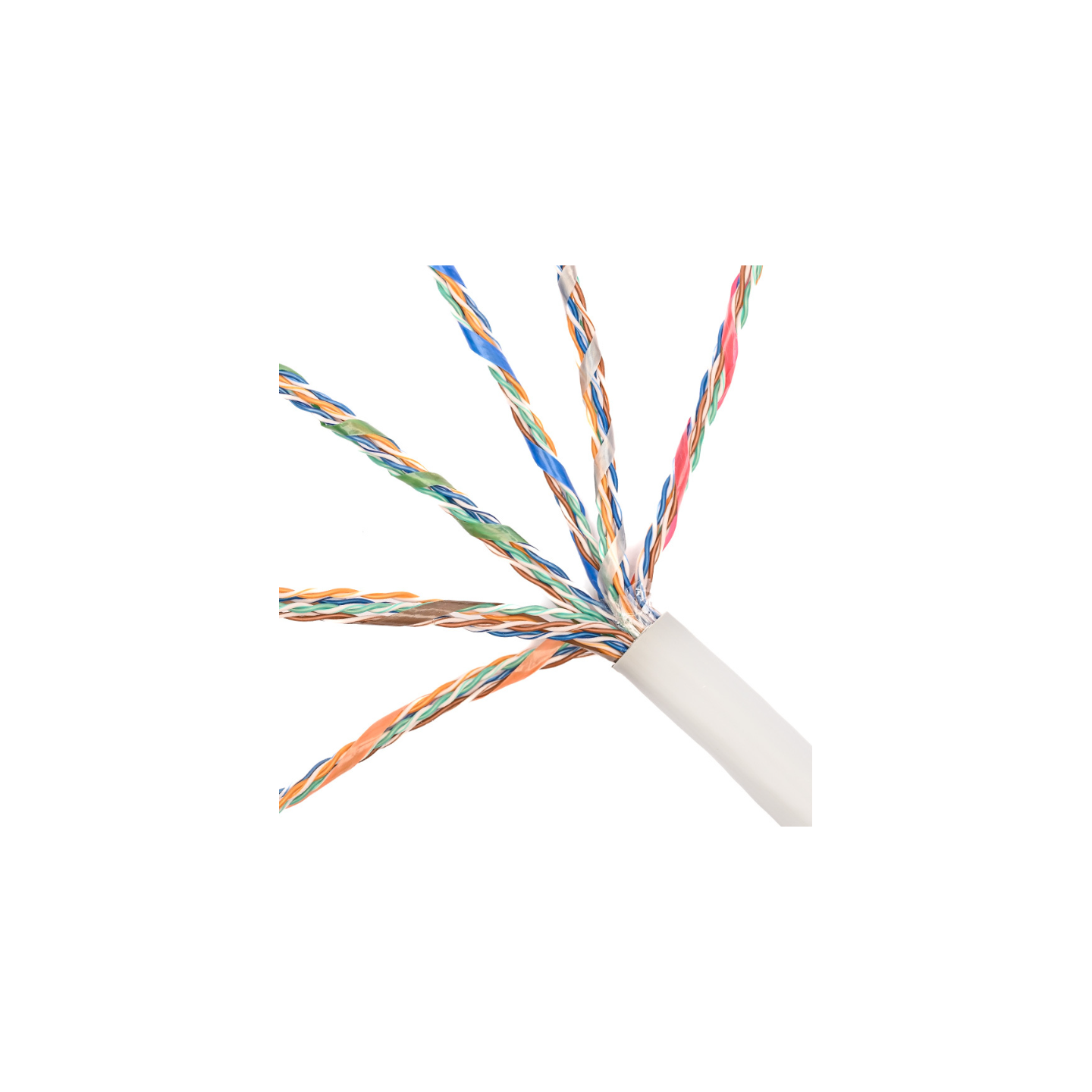

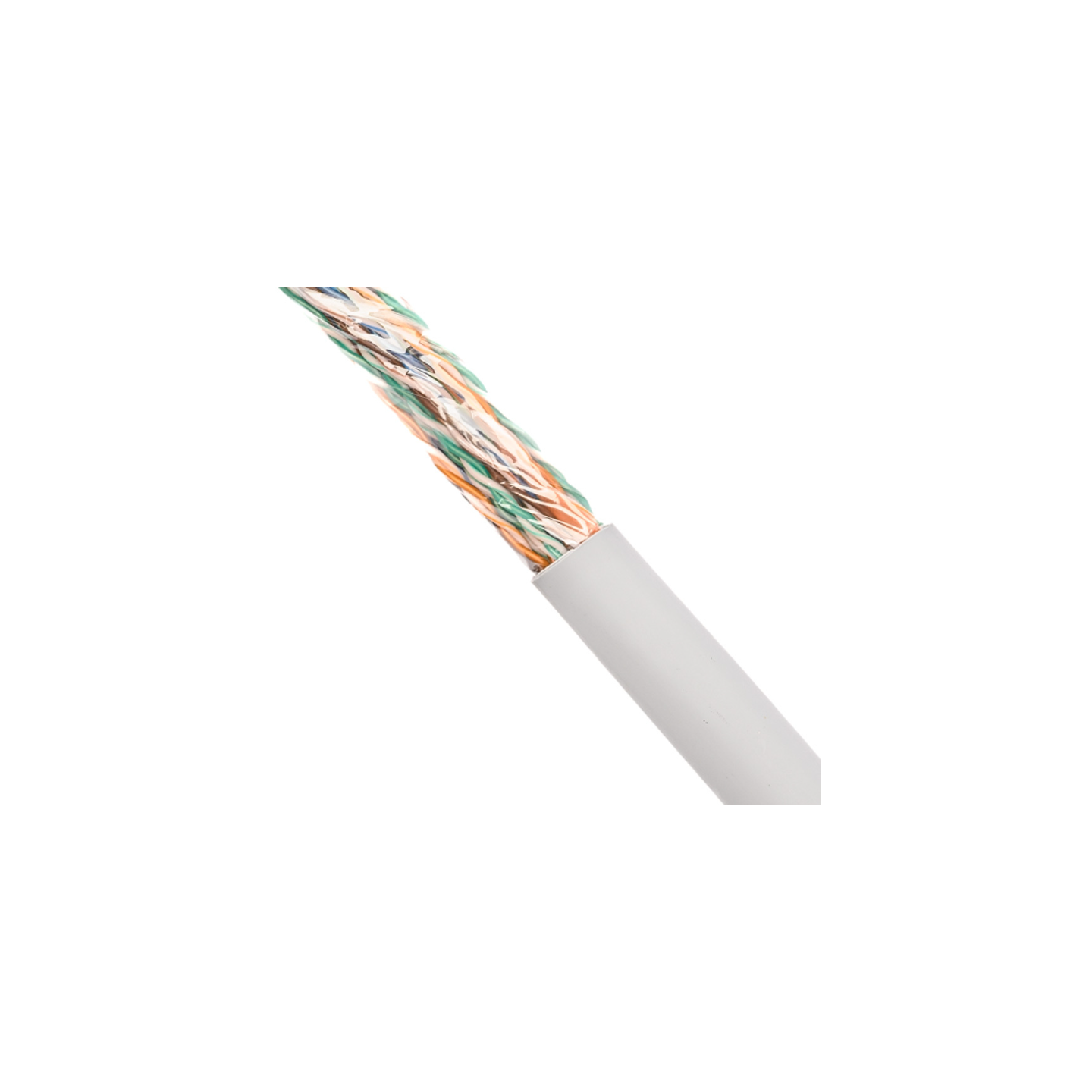

Lanberg CAT6 UTP Indoor Network Cable - 2m
CAT 6; Indoor; Material PVC; 23AWG
Length 2 meters
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LAN cable category 6 UTP (unshielded)
Length 305m
The wires are made of copper clad aluminium (CCA)
AWG 23 (4*2*0.57mm)
Conductor stranding: single wire
Color: grey RAL7035
Printed length counter at every meter of cable
External PVC insulation: 5.6mm
HDPE conductor insulation: 0.95mm
Operation up to 250Mhz
Compatibility with standards: ANSI/TIA/EIA-568&ISO/IEC 11801
Package: cardboard box
Packaging dimensions (W x D x H): 38x24x38 cm
Electrical characteristics (20 degrees):
Conductor resistance (max.): 60 - 90Om / 305m
Insulation resistance (min.): 5000mOm km
Pair-to-Ground capacitance: < 330PF / 100m
Characteristic impedance: < 100Om (+/- 15)
Transport and storage temperature: 0 - 60 degrees
Operating temperature: -20 - 70 degrees
Working distance: 100-120m
PVC isolation : 5.6 mm
Maximum operating frequency : 250 MHz
HDPE isolation : 0.93 mm
Category : ICT Cat. 6
Cable type : Solid
Material : copper plated (CCA)
Cable length : 305m
Colour : Grey RAL7035
