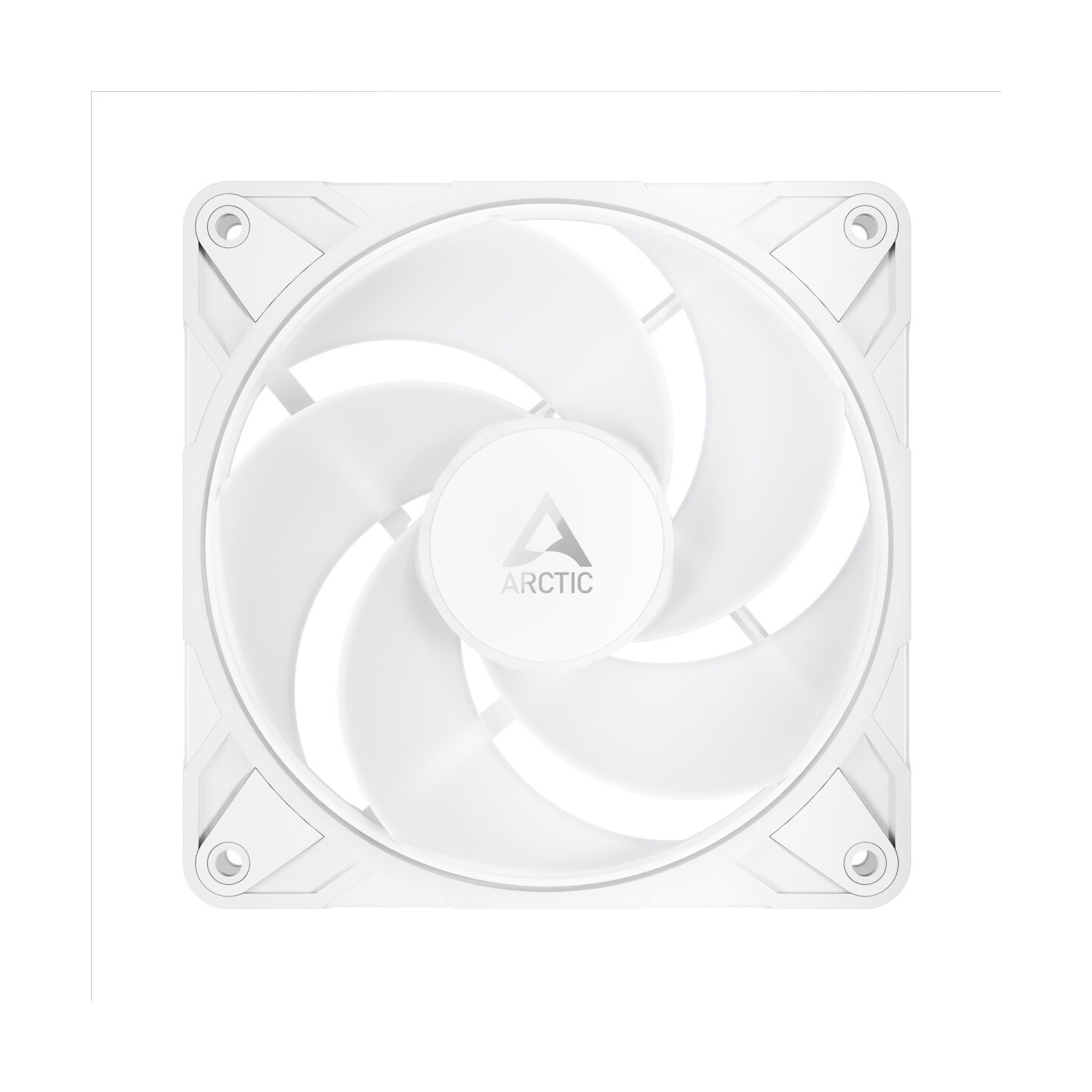

ARCTIC P12 Pro REVERSE A-RGB (White) 120mm Case Fan 3000 RPM (Boxed)
ARCTIC P12 Pro Reverse A-RGB (White) is a 120mm PWM case fan with reverse airflow for aesthetic intake from the back. Delivers 73 CFM, 4.5 mmH2O pressure at 500-3000 RPM using FDB bearing. Features 12 A-RGB LEDs, daisy-chain connectors for clean builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | Case Fan |
|---|---|
| Cooling (CPU & Case) - Fan Size | 120 mm |
| Cooling (CPU & Case) - Lightning | RGB |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | White |
| Cooling (CPU & Case) - Special Features | Daisy-Chain Low Noise Reverse Blade |
Reverse Airflow Design
The P12 Pro Reverse is optimized for intake from the rear side, perfect for glass-panel cases where standard fans would disrupt visuals. Its trumpet-shaped intake and droplet-shaped blades minimize turbulence and aerodynamic noise for efficient airflow.
Advanced Performance Features
Equipped with a state-of-the-art microcontroller that reduces motor noise, handles load fluctuations, and protects against startup currents. Automated balancing ensures smooth operation at high speeds up to 3000 RPM. Fluid Dynamic Bearing (FDB) with extended shaft provides quiet, durable performance.
Connectivity & Lighting
- PST daisy-chain: 4-pin PWM plug + socket for series connection and synchronized control

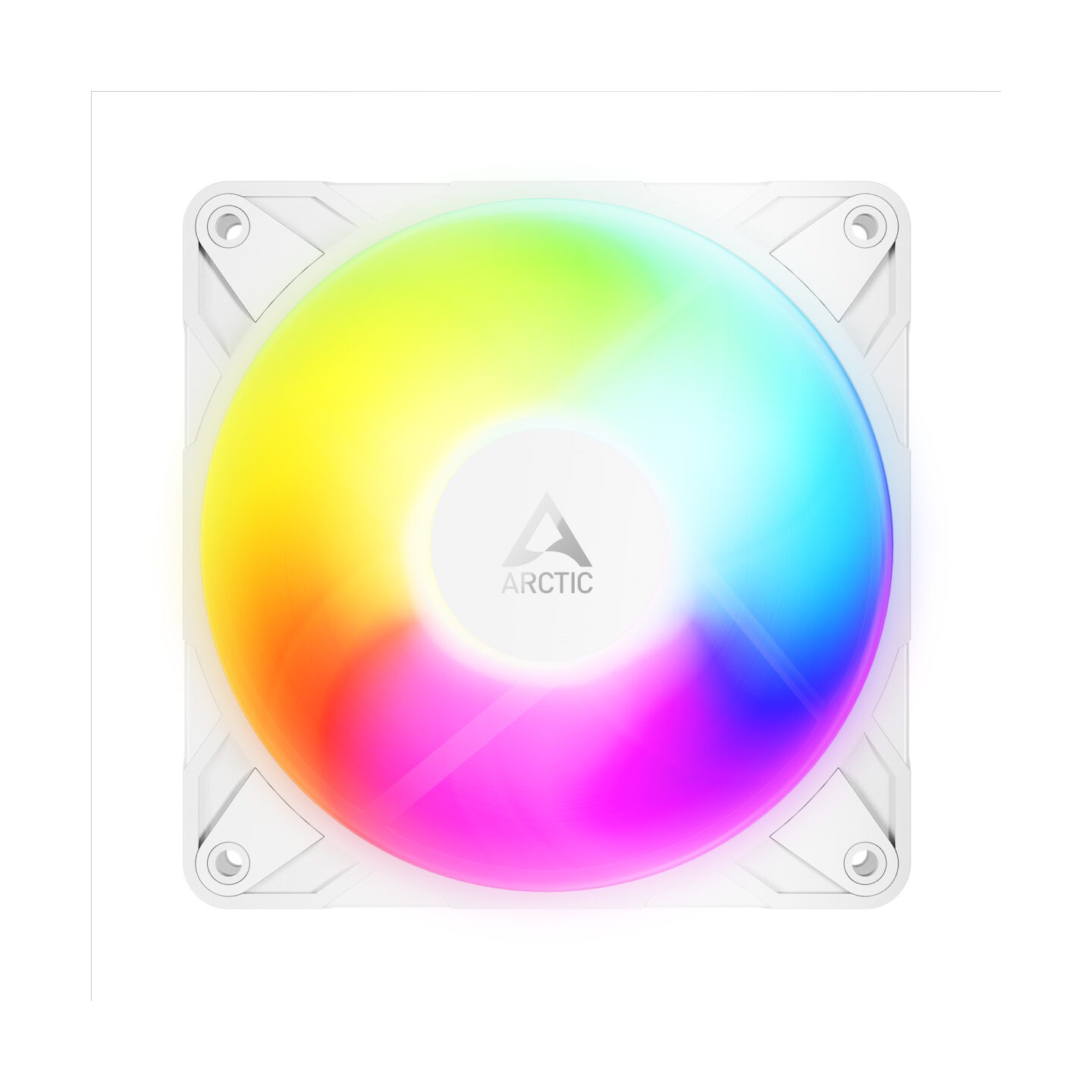

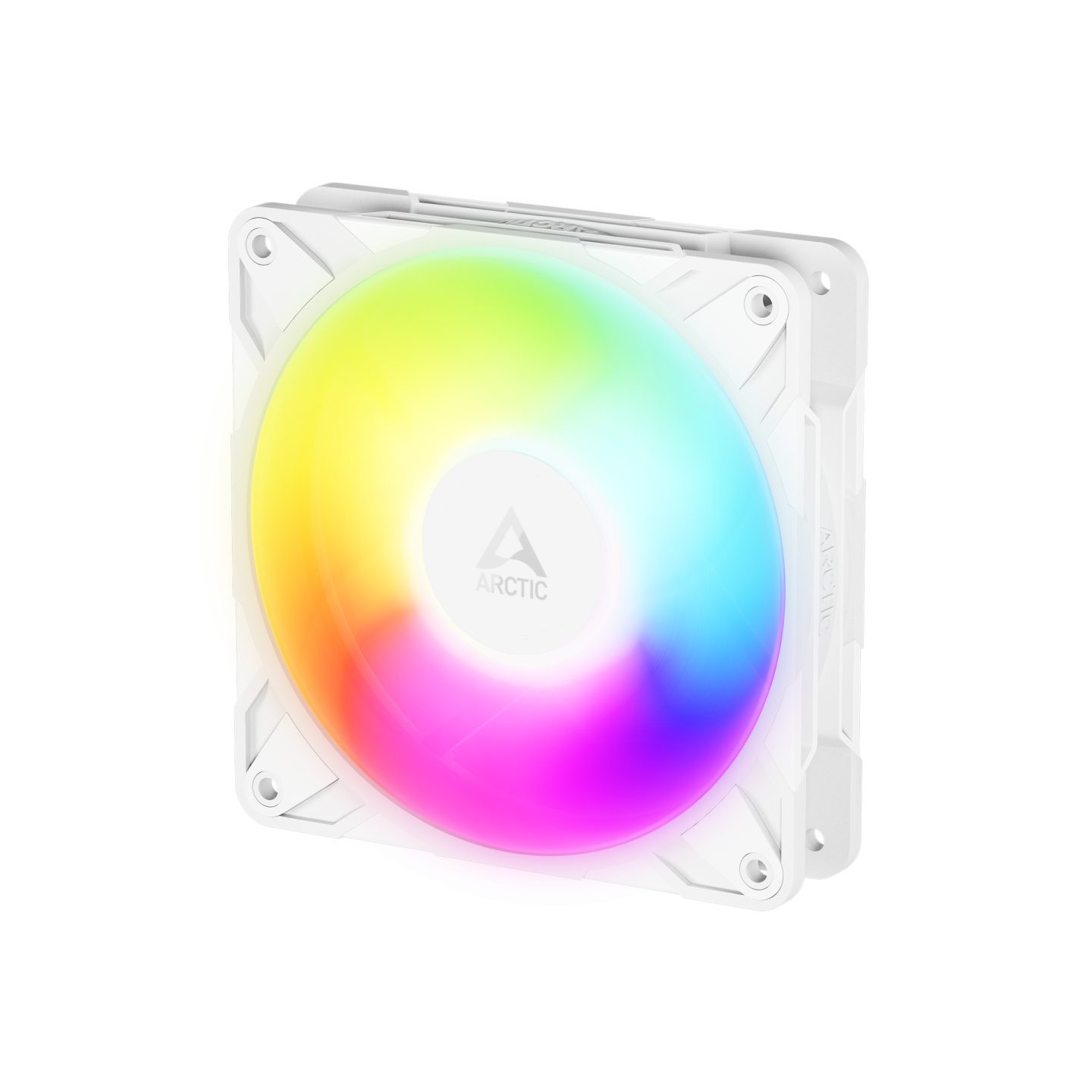

- 12x A-RGB Gen2 LEDs with 3-pin ARGB plug + socket for easy RGB syncing
- High static pressure (4.5 mmH2O) and airflow (73 CFM | 124 m³/h)
- Dimensions: 120x120x27mm, Net Weight: 172g, 6-Year Warranty
| Warranty | 6 Years |
| Operating Ambient Temperature | 0–40 °C |
| Dimensions | 120 (L) x 120 (W) x 27 (H) mm |
| Net Weight | 172 g |
| Fan Speed | 500-3000 rpm PWM Controlled - 0 rpm below 5% PWM |
| Airflow | 73 cfm | 124 m³/h |
| Static Pressure | 4.5 mmH2O |
| Fan Bearing | Fluid Dynamic Bearing |
| Typical Voltage | 12 V DC |
| Start Up Voltage | 3.5 V DC |
| Current | 0.4 A |
| Cable Length | 400 mm + 80 mm Daisy-Chain Cable |
| Connector | 4-Pin Fan Plug + 4-Pin Socket |
| LEDs | 12x A-RGB Gen2 LEDs |
| LED Current | Voltage | 0.40 A | 5 V DC |
| LED Connector | 3-Pin A-RGB Plug + 3-Pin Socket |
