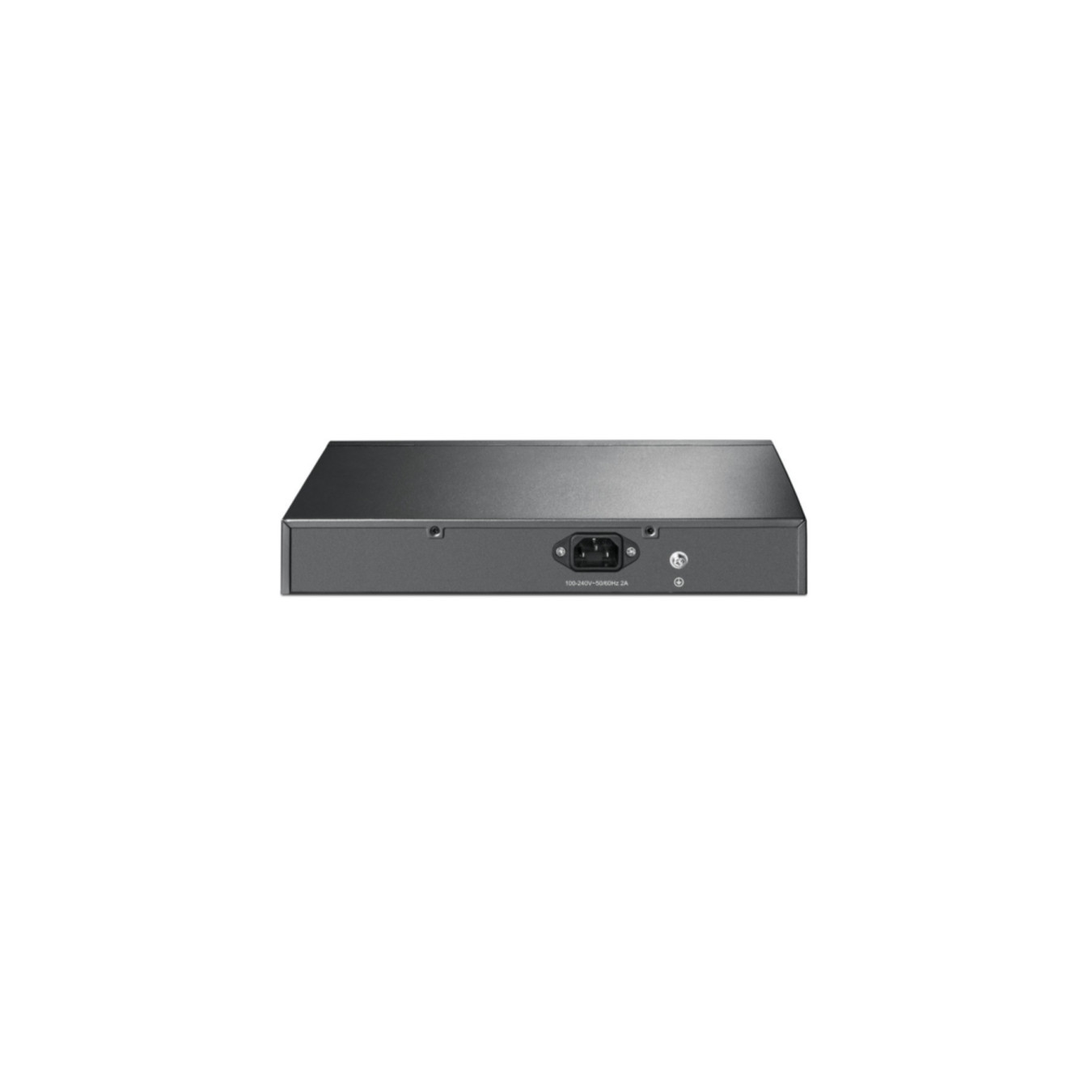

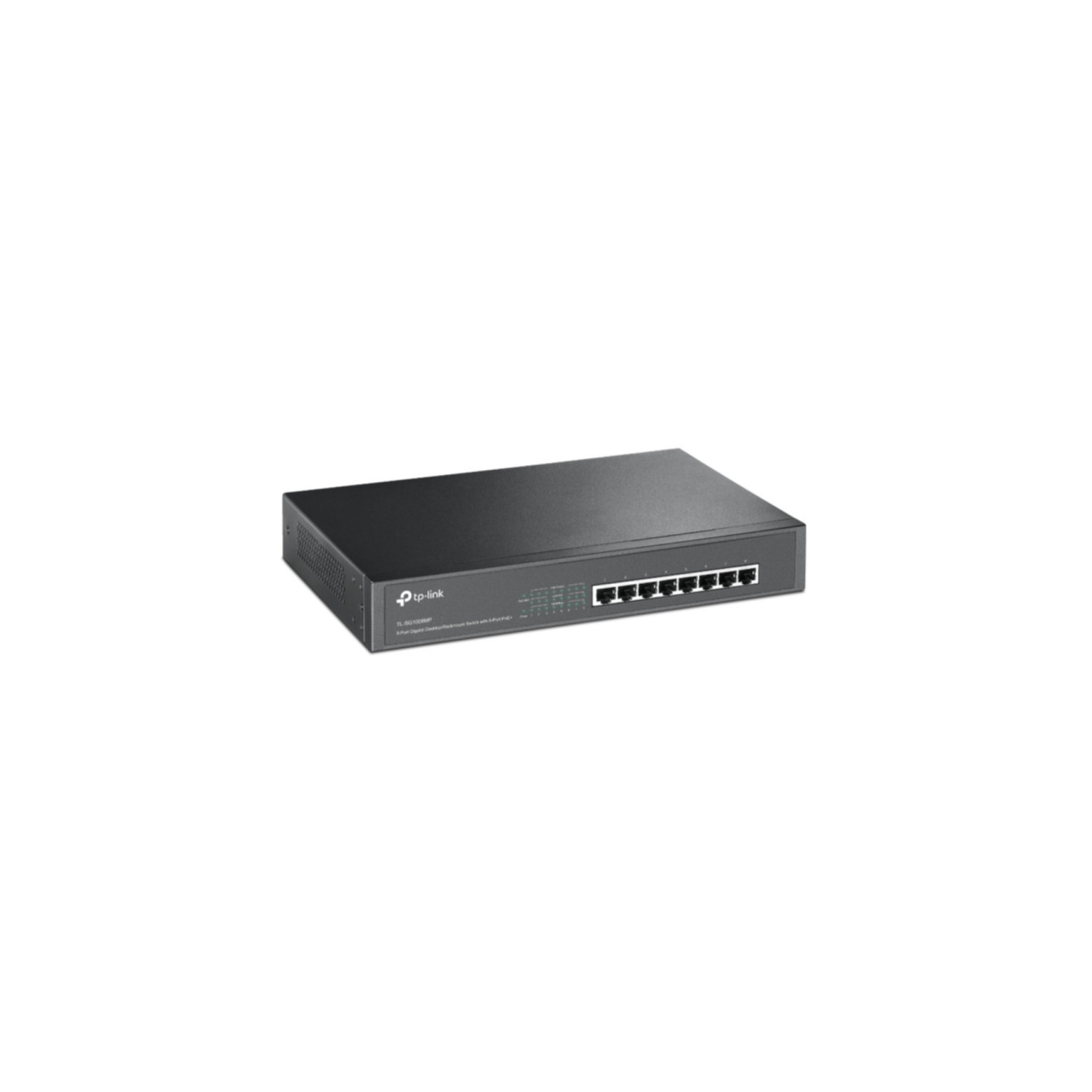

TP-Link 8-Port Gigabit PoE+ Switch - TL-SG1008MP - 8x 10/100/1000, PoE+ (Black)
Unmanaged TL-SG1008MP with 8x Gigabit RJ-45 ports, 8x PoE+ ports (124W total budget), rack-mountable, black — reliable desktop/rack PoE solution.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
What This Product Does
The TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
All 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power Supply
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To Use
TL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Switching capacity | 16 Gbit/s |
| MAC address table | 4000 entries |
| Store-and-forward | Yes |
| Packet buffer memory | 1.5 MB |
| Rack mounting | Yes |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Mean time between failures (MTBF) | 1 h |
| MTBF (PoE) | 1 h |
| Commodity Classification Automated Tracking System (CCATS) | 11 |
| Minimum system requirements | 1 |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 140.1 W |
| Power consumption (max) | 144.4 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 492.6 BTU/h |
| Width | 294 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Cables included | AC |
| User guide | Yes |
| Rack mount kit | Yes |
| Shipping (inner) case height | 1 mm |
| Shipping (inner) case width | 1 mm |
| Shipping (inner) case length | 1 mm |
| Shipping (inner) case net weight | 1 g |
| Products per shipping (inner) case | 1 pc(s) |
| Master (outer) cases per pallet layer | 1 pc(s) |
| Layers per pallet (air) | 1 pc(s) |
| Layers per pallet (sea) | 1 pc(s) |
| Pallet gross weight (air) | 1 g |
| Master (outer) cases per pallet (air) | 11 pc(s) |
| Products per pallet (air) | 1 pc(s) |
| Pallet gross length | 1 mm |
| Pallet gross width | 1 mm |
| Pallet height (air) | 1 mm |
| Pallet gross weight (sea) | 1 g |
| Master (outer) cases per pallet (sea) | 1 pc(s) |
| Products per pallet (sea) | 11 pc(s) |
| Pallet height (sea) | 1 mm |
| Shipping (inner) case gross weight | 1 g |
| Certification | FCC, CE, RoHS |
| Harmonized System (HS) code | 85176990 |
