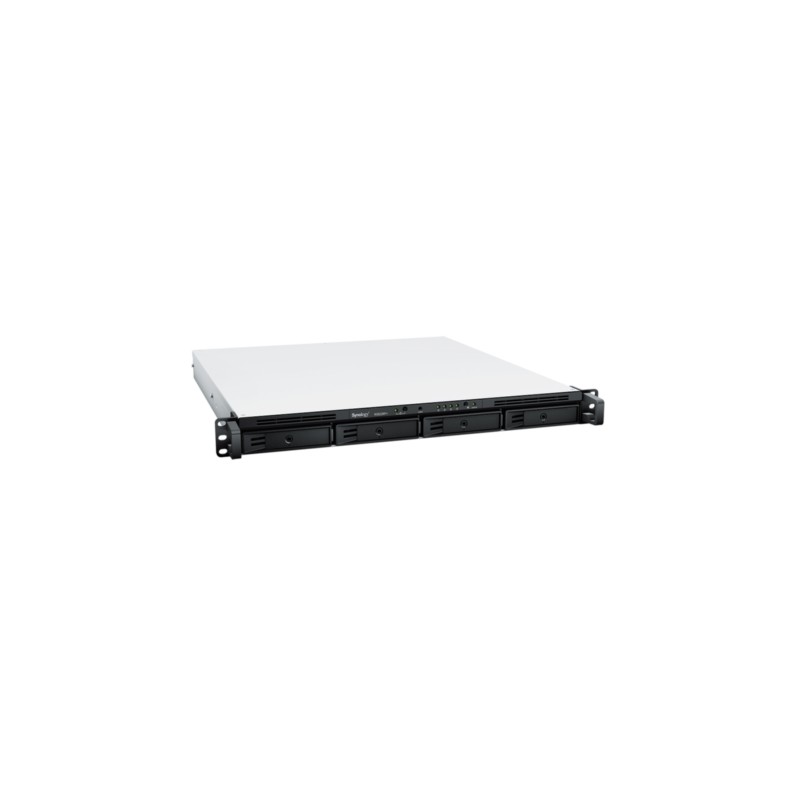

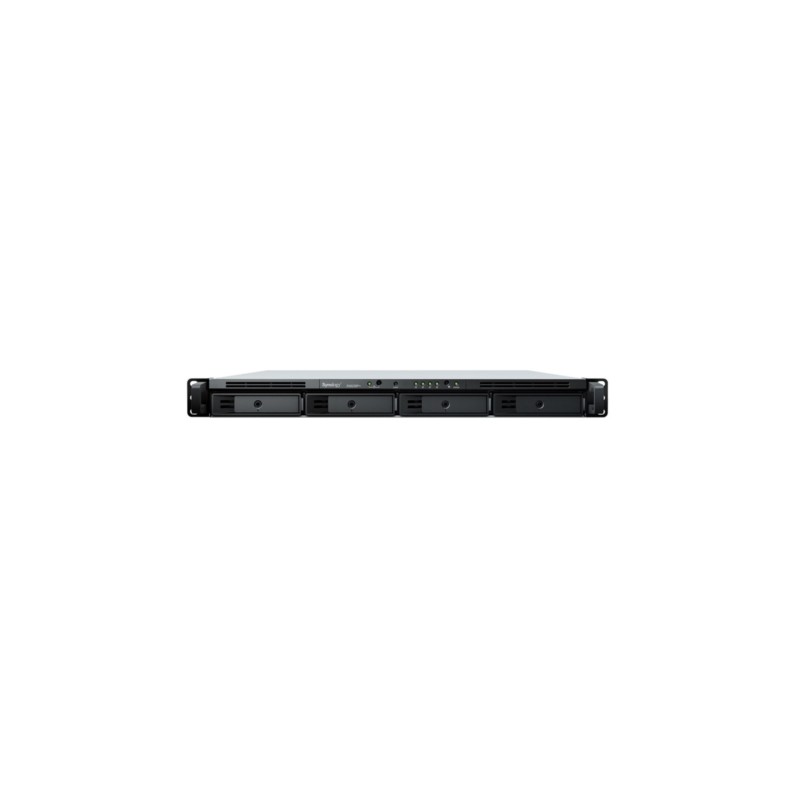

Synology RackStation RS822RP+ - 4-Bay 1U Rack NAS, AMD V1500B 2.2GHz, 2GB DDR4, Grey
Enterprise 1U 4-bay rack NAS with AMD Ryzen V1500B 2.2GHz quad-core, 2GB DDR4 (expandable to 32GB), hot-swap bays, RAID support, redundant PSU, DiskStation Manager.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 4 |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - Memory (Installed) | 2 GB |
| NAS (Network Attached Storage) - RAID Levels | RAID 5 |
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
An all-in-one edge storage solution
The compact 1U 4-bay Synology RackStation RS822+/RS822RP+ with its storage and connectivity expandability coupled with the powerful Synology DiskStation Manager (DSM) operating system is an ideal edge storage solution for branch offices and small and medium-sized businesses.
Built for reliability

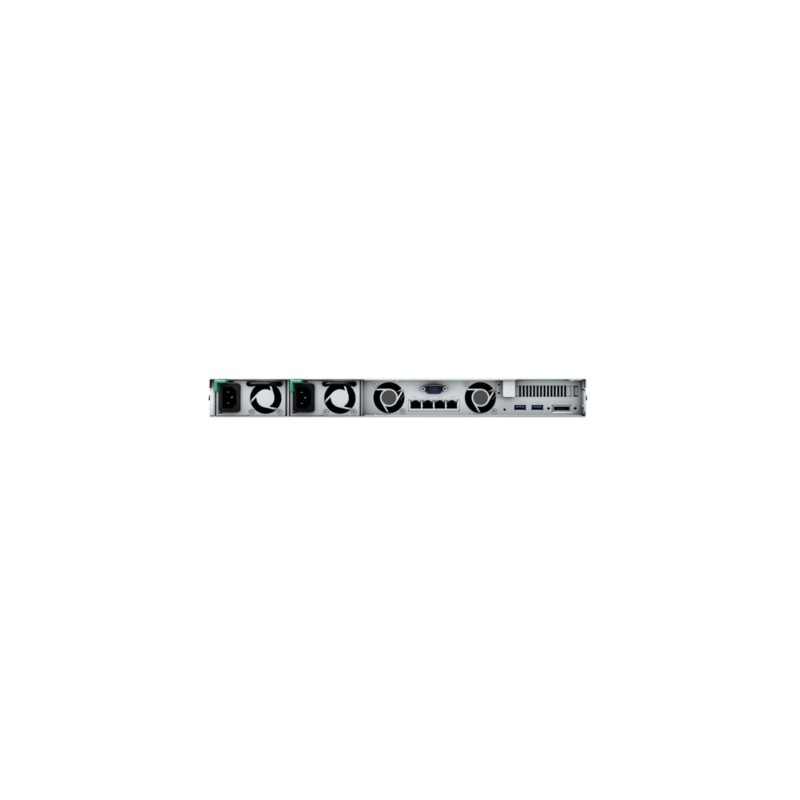

RS822+/RS822RP+ comes with four Gigabit RJ-45 ports which can be bonded with Link Aggregation to enable automatic network failover and load balancing.
Two RS822+/RS822RP+ units can be paired using Synology High Availability to form a reliable active/passive server cluster, maximizing service uptime.
Furthermore, the RS822RP+ features a redundant power supply for an extra edge in service continuity.
Room for expansion
Easily adjust the RS822+/RS822RP+ to match your usage environment, whether it needs performance, faster networking, or higher storage capacity.
All-in-one data management platform
The RS822+/RS822RP+ is designed to support small deployments in tackling common applications such as file management, data backup, and surveillance.
Edge storage for distributed teams
Provide secure and convenient cross-platform file access, sharing, and synchronization across multiplelocations.
Multi-endpoint data protection
Design an effective backup strategy to maximize system availability with a host of native and license-free solutions.
Smart surveillance for small deployments
Leverage flexible deployment options, intuitive management capabilities, and advanced video analytics to secure your premises.
Works best with Synology drives
Enjoy high sustained performance and reliability with enterprise-grade drives designed for Synology NAS and featuring built-in data protection.
Powered by Synology DSM
Take advantage of a whole host of native productivity, management, and security solutions available on the web-based DSM operating system.
| Supported storage drive interfaces | Serial ATA II, Serial ATA III |
| Storage drive sizes supported | 2.5, 3.5" |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 6, 10, JBOD |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Hot-swap drive bays | Yes |
| Supported file systems | BTRFS, FAT32, HFS+, NTFS, exFAT, ext3, ext4 |
| Storage drives installed | No |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 4 |
| Installed storage drive type | No |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| L2 cache | 2 MB |
| L3 cache | 4 MB |
| Number of processors supported | 1 |
| On-board graphics card model | Not available |
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| ECC | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| iSCSI support | Yes |
| Wake-on-LAN ready | Yes |
| Supported network protocols | SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV |
| Link aggregation | Yes |
| WLAN adapter supported | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| eSATA ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 4 |
| Concurrent connections | 500 |
| PCI Express x8 (Gen 3.x) slots | 1 |
| Chassis type | Rack (1U) |
| Cooling type | Active |
| Product colour | Grey |
| Number of fans | 2 fan(s) |
| Fan diameter | 4 cm |
| Drive bay locking | Yes |
| LED indicators | Alarm, HDD, Power, Status |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup function | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Number of users | 2048 user(s) |
| Noise level | 38.8 dB |
| Third-party support | Yes |
| Snapshot | Yes |
| Security algorithms | HTTPS, SSH, SSL/TLS |
| Access Control List (ACL) | Yes |
| Reset button | Yes |
| On/off switch | Yes |
| Built-in iTunes server | Yes |
| Built-in FTP server | Yes |
| Browser supported | Google Chrome, Firefox, Microsoft Edge, Safari |
| System log | Yes |
| Hot spare | Yes |
| Share folder | SMB/AFP/NFS/FTP/WebDAV |
| Operating system installed | DiskStation Manager |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 150 W |
| Redundant power supply (RPS) support | Yes |
| Power consumption (typical) | 47.69 W |
| Power consumption (HDD standby) | 16.7 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Width | 480 mm |
| Depth | 518.6 mm |
| Height | 44 mm |
| Weight | 8 kg |
| Cables included | AC |
| Power cables quantity | 2 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 8 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 5000 m |
| Compliance certificates | RoHS |
| Certification | FCC CE BSMI VCCI RCM UKCA EAC CCC KC UL |
