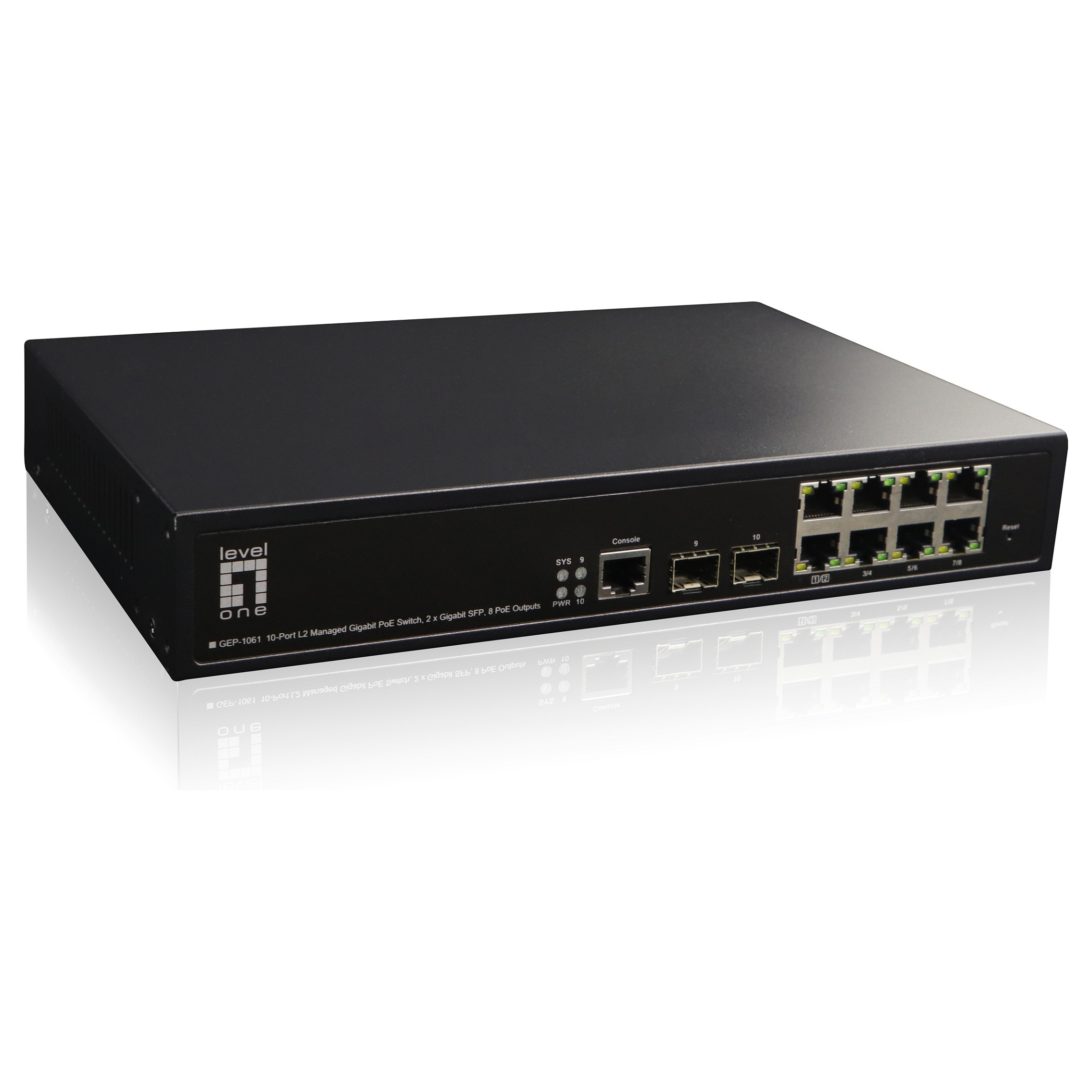

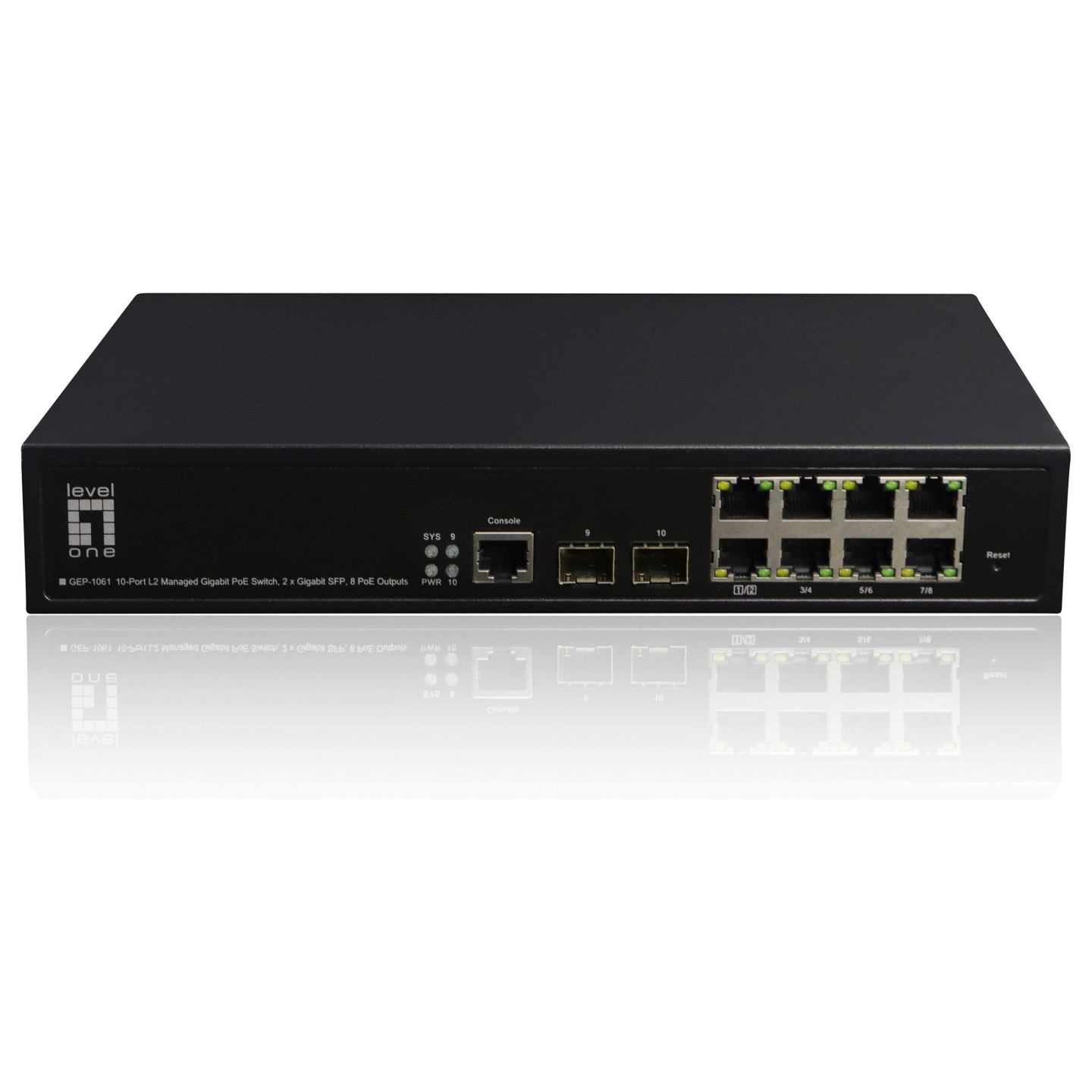

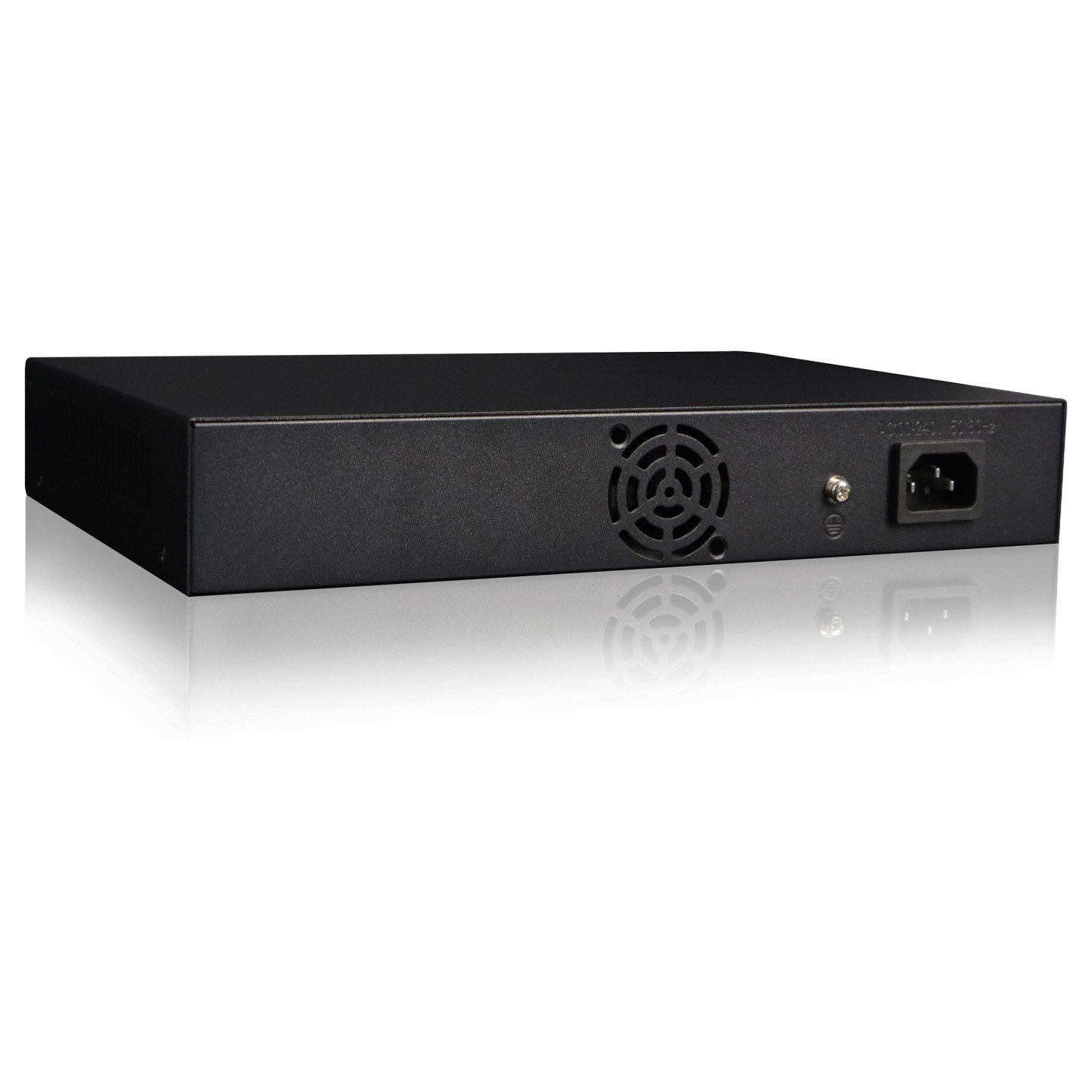

Switch 8x GE GEP-1061 2xGSFP 19' 180W 8xPoE+
LevelOne GEP-1061. Managed. L2. Gigabit Ethernet (10/100/1000). Power over Ethernet (PoE). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne GEP-1061. Switch-Typ: Managed. Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Konsolen-Port: RJ-45. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 20 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.3. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Feature | Ressourcen-CD |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Combo-SPF-Anschlüsse | 2 |
| Anzahl Faseranschlüsse | 2 |
| Optischer Kabelverbinder | SFP |
| Konsolen-Port | RJ-45 |
| Virtuelle LAN-Funktionen | MAC address-based VLAN. Port-based VLAN. Protocol-based VLAN. Tagged VLAN |
| Anzahl der VLANs | 4000 |
| Ethernet-Kabel Verkablungstechnologie | 100BASE-X. 1000BASE-X |
| Routing-/Switching-Kapazität | 20 Gbit/s |
| Transferrate | 14.9 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl der Leitungen | 8 |
| Anzahl Queues | 8 |
| Jumbo-Frames | 10000 |
| Datenpaket-Pufferspeicher | 4.1 MB |
| DHCP-Funktionen | DHCP client. DHCP snooping |
| Access Control List (ACL) Regeln | 512 |
| IPv4 & IPv6-Funktionen | IPv6 Telnet. IPv6 ping. IPv6 tracert |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Aktivität. Link. Leistung |
| Speicherkapazität | 32 MB |
| Geräuschpegel | 0 dB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (Standardbetrieb) | 80 W |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 8 |
| Power over Ethernet (PoE) Leistung pro Anschluss | 30 W |
| Gesamtleistung Power over Ethernet (PoE) | 125 W |
| Betriebstemperatur | -10 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 95% |
| Breite | 181 mm |
| Tiefe | 270 mm |
| Höhe | 44 mm |
| Gewicht | 800 g |
| Mitgelieferte Kabel | AC. LAN (RJ-45) |
| Verpackungsart | Sichtverpackung |
| Verpackungsbreite | 255 mm |
| Verpackungstiefe | 82 mm |
| Verpackungshöhe | 345 mm |
| Paketgewicht | 2 kg |
| Zertifizierung | CE class A. FCC. UL. VCCI. BSMI |
| Ursprungsland | China |
| Warentarifnummer (HS) | 85176990 |
