WAP-8231 AX1800 Wireless DualBand WiFi6 ws

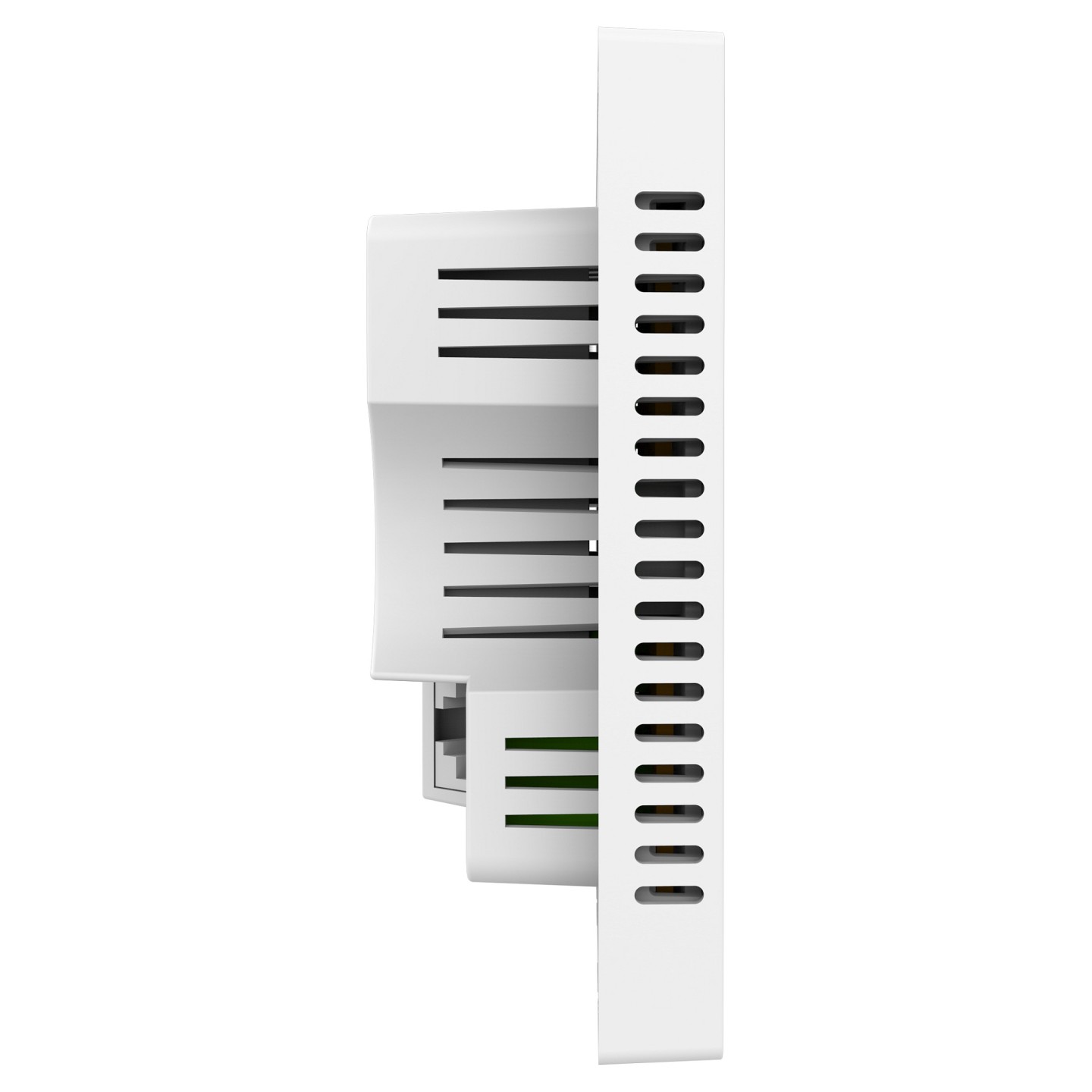

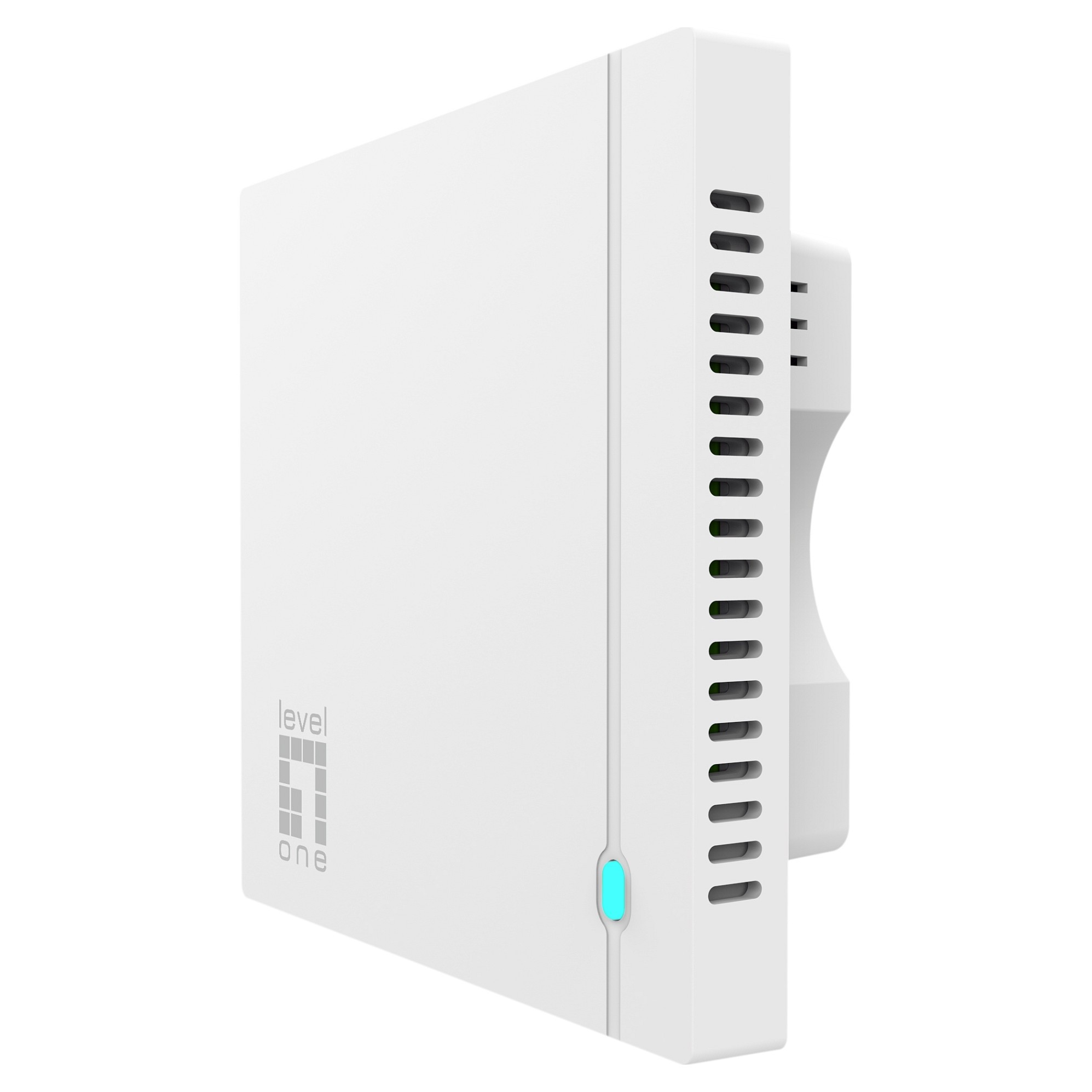

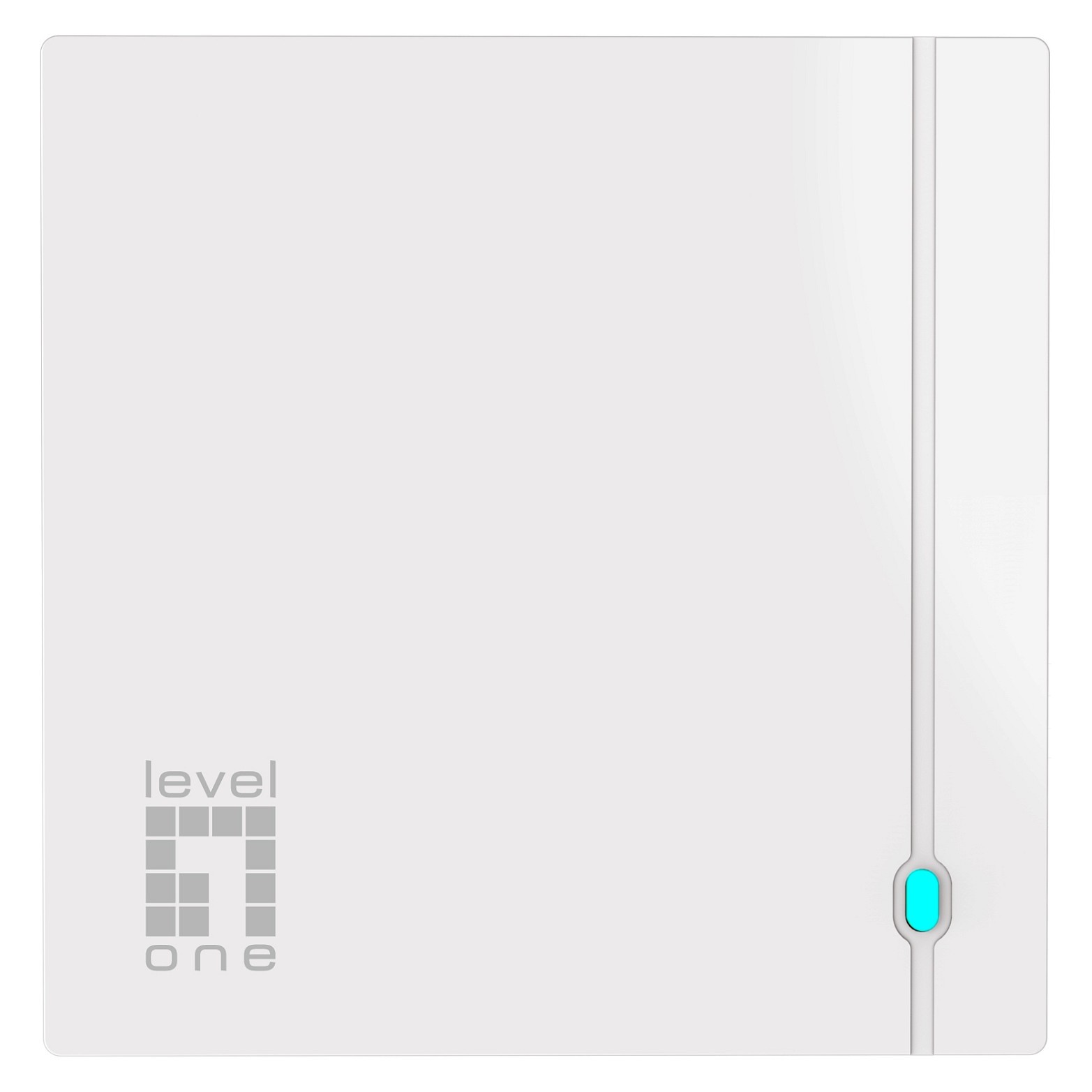

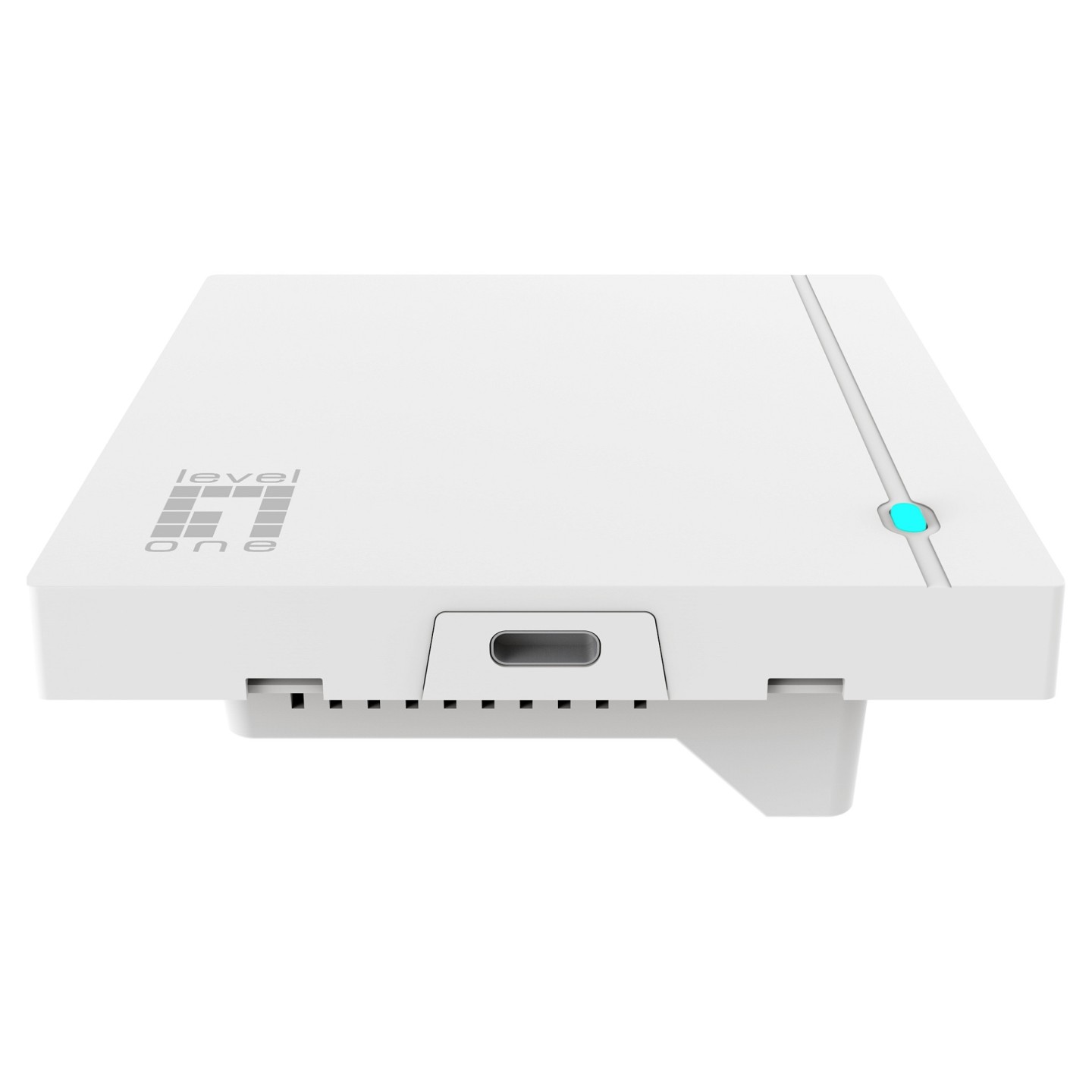

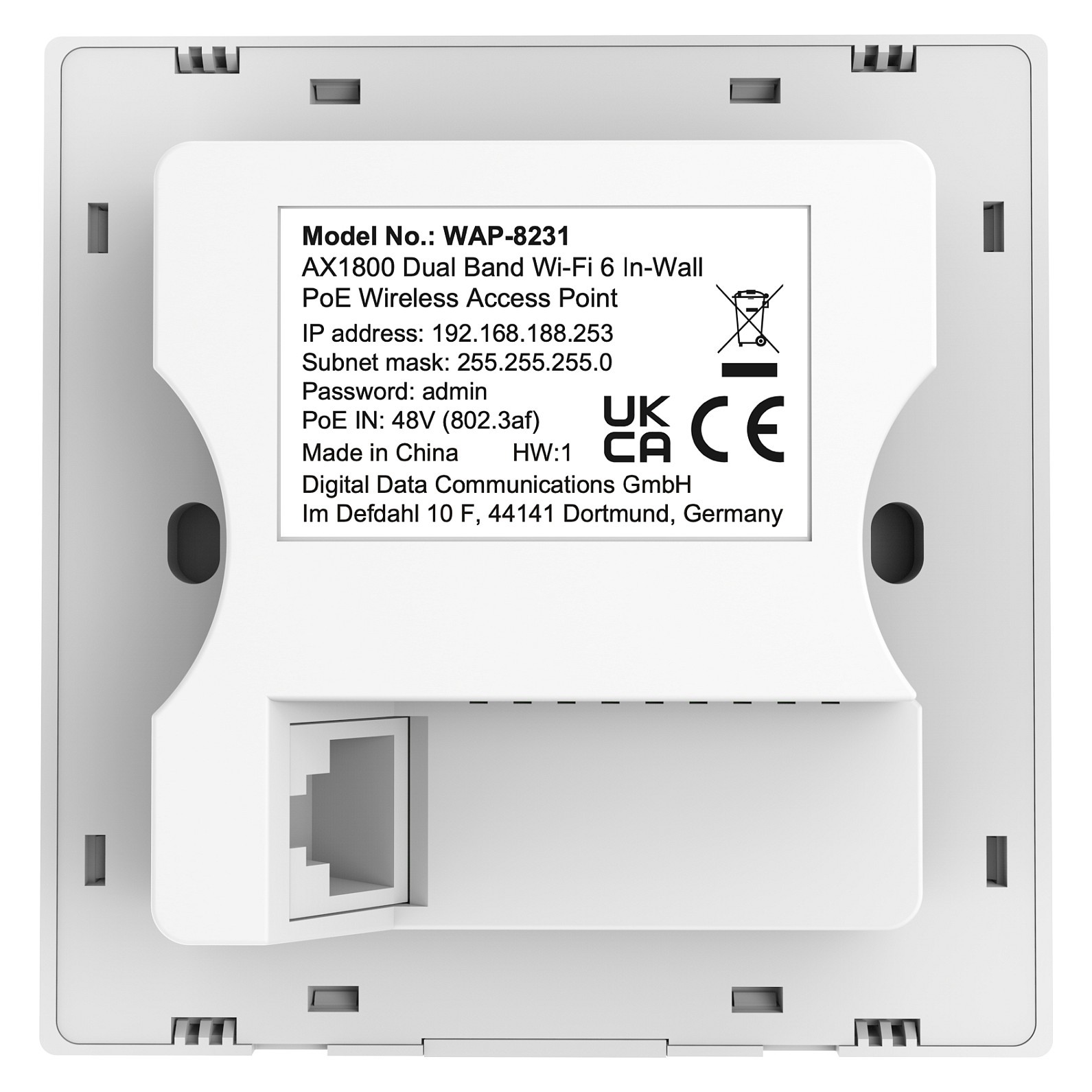

LevelOne AX1800 Dual-Band Wi-Fi 6 In-Wall PoE Wireless Access Point. 2.4 GHz. 5 GHz. 1800 Mbit/s. WPA2-AES. WPA3. 10.100.1000 Mbit/s
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne AX1800 Dual-Band Wi-Fi 6 In-Wall PoE Wireless Access Point. 2.4 GHz. 5 GHz. Maximale Datenübertragungsrate: 1800 Mbit/s. Unterstützte Sicherheitsalgorithmen: WPA2-AES. WPA3. Ethernet LAN Datentransferraten: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Produktfarbe: Weiß
| Feature | Nachhaltigkeitskonformität |
| Maximale Datenübertragungsrate | 1800 Mbit/s |
| Maximale Datenübertragungsrate (2.4 GHz) | 574 Mbit/s |
| Maximale Datenübertragungsrate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Frequenzband | 2.412 -2.484. 5.18 - 5.825 GHz |
| Netzstandard | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.3. IEEE 802.3ab. IEEE 802.3af. IEEE 802.3u |
| Verkabelungstechnologie | 10/100/1000Base-T(X) |
| Anzahl Kanäle | 165 Kanäle |
| MIMO-Typ | Multi User MIMO |
| Spread-Spectrum Methode | OFDMA |
| Betriebsmodi | AP Mode |
| Unterstützte Sicherheitsalgorithmen | WPA2-AES. WPA3 |
| Anzahl der SSID-Unterstützung | 8 |
| USB-Stecker | USB Typ-C |
| WAN Port | Ethernet (RJ-45) |
| Stromverbrauch (Standardbetrieb) | 14 W |
| Platzierung | In Wand |
| Produktfarbe | Weiß |
| LED-Anzeigen | WLAN |
| Antennentyp | Intern |
| Anzahl der Antennen | 4 |
| Antenne Zunahmeniveau (max) | 3 dBi |
| Flash-Speicher | 16 MB |
| Speicherkapazität | 128 MB |
| Anzahl der Kartons pro Palette (Luft) | 10 Stück(e) |
| Palettenlänge (brutto) | 80 cm |
| Palettenbreite (brutto) | 120 cm |
| Palettenhöhe (Luft) | 189 cm |
| Konformitätsbescheinigungen | CE. RoHS. UKCA |
| Breite | 87 mm |
| Tiefe | 86 mm |
| Höhe | 31.5 mm |
| Gewicht | 138 g |
| Verpackungsbreite | 120 mm |
| Verpackungstiefe | 110 mm |
| Verpackungshöhe | 65 mm |
| Paketgewicht | 240 g |
| Verpackungsart | Box |
| Schnittstellenadapter enthalten | USB Type-C male - RJ-45 female |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Betriebstemperatur | 10 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Ursprungsland | China |
| Breite des Versandkartons | 515 mm |
| Länge des Versandkartons | 348 mm |
| Höhe des Versandkartons | 580 mm |
| Gewicht Versandkarton | 25 kg |
| Anzahl Produkte pro Versandkarton | 100 Stück(e) |
