Gigabyte

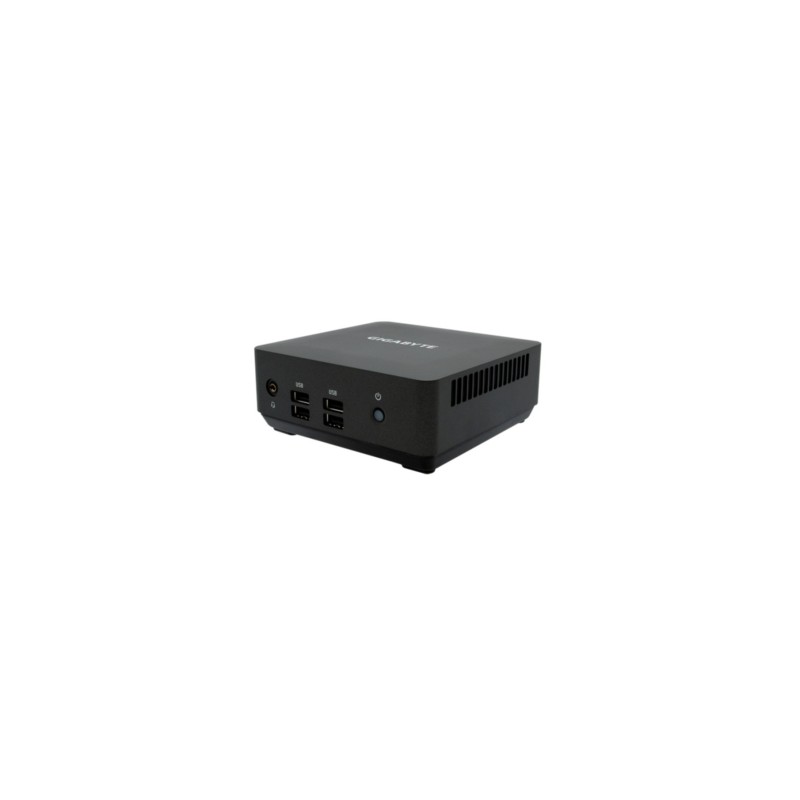

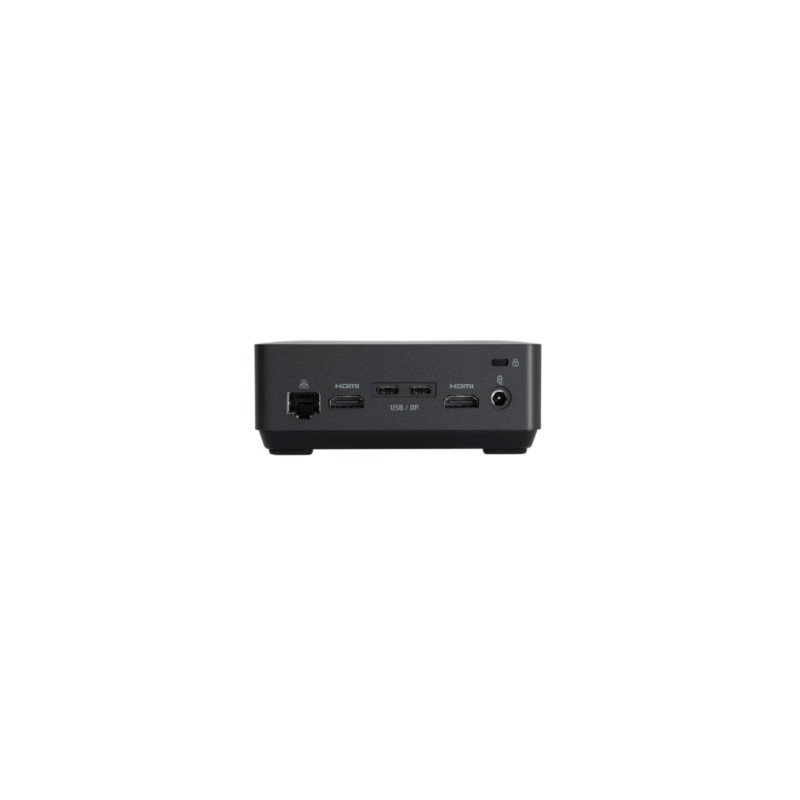

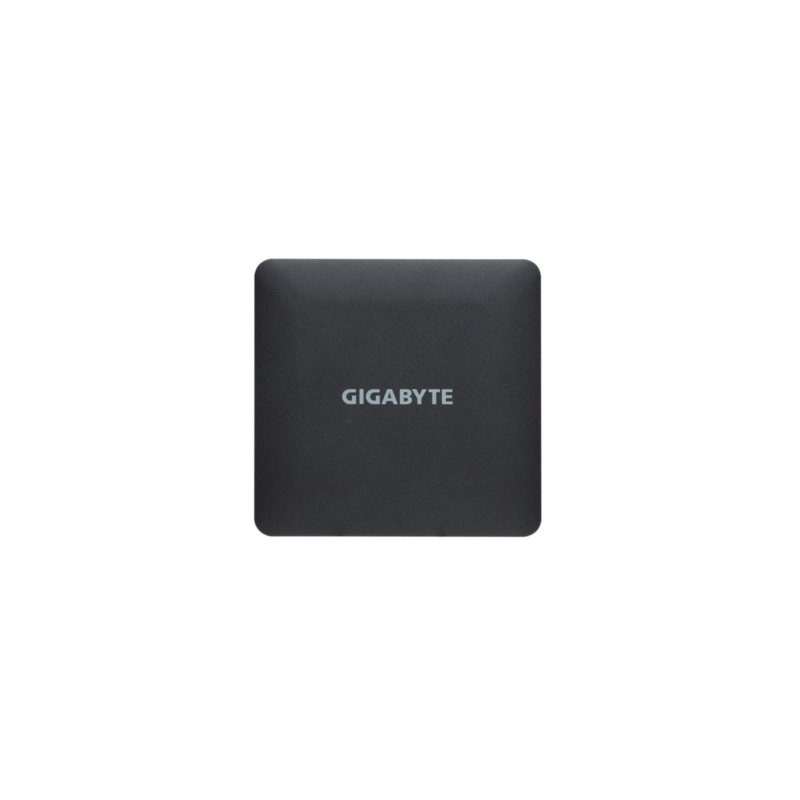

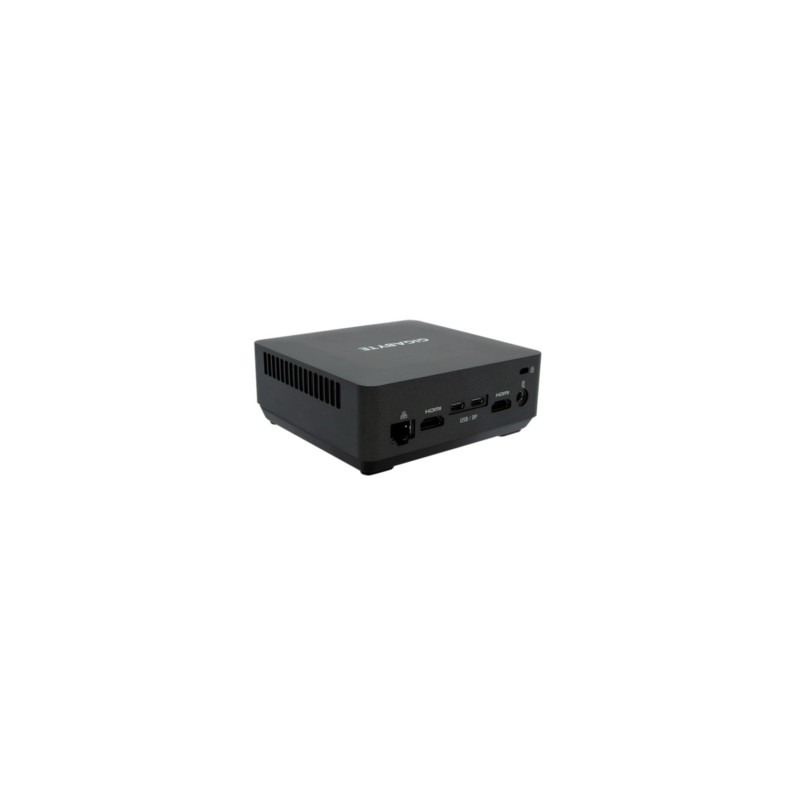

Gigabyte BRIX Barebone - GB-BRi3H-1315 - 13th Gen Intel Core i3 (Raptor Lake U) Barebone Kit

SKU 7834 Brand Gigabyte EAN13 4719331602123
Compact Gigabyte BRIX GB-BRi3H-1315 barebone with 13th Gen Intel Core i3 (Raptor Lake U). Minimalist chassis design — add your RAM, storage and OS to complete the system.
Barebone & Mini PCs - Type Barebone Kit (No RAM/SSD)
Barebone & Mini PCs - CPU Series Intel Core i3
Barebone & Mini PCs - Graphics Integrated
Barebone & Mini PCs - OS No OS

Upgrade to the future
Minimalism meets power

The most recent generation of mainstream BRIX products adopts an all-new chassis design. Computing performance has increased, but the design does not require an increase in the size of the chassis. Its appearance has curved, soft, and twisted lines with a liveliness that makes it very unobtrusive.

By the way it was assembled and layered, and designing oblique angles around the base, a sense of simplicity is created to achieve a lightweight design. This allows users to enjoy ultimate computing performance while also having a stylish and elegant product.

With the latest 13th Gen Intel® Core™ Mobile Processors, Intel has taken its hybrid design to the next level. The new processors boast more powerful Performance-cores (P-cores), allowing for swift and seamless completion of tasks. The improved Efficient-cores (E-cores) enable even better multi-tasking, making it easier to tackle several tasks at once. These advanced processors also deliver stunning graphics and unparalleled connectivity, providing an unparalleled immersive display and lightning-fast wired and wireless connections.

Computing with ultra efficient multi-tasking
Up to 10 cores (2 P-cores, 8 E-cores) and enhanced Intel Thread Director.

Intel Iris Xᵉ Graphics
Render in the background while editing video; enjoy responsive HD gaming while streaming music; or game, stream and record at once.

Amazing End-to-End Connectivity with Wi-Fi 6
Nearly a threefold improvement in throughput speed allows for fast uploads and downloads at low latency. Intel® Wi-Fi 6 (Gig+) gives you the freedom to work and learn from anywhere—and relax with smooth, high-quality streaming.

Delivering Superior Performance Where You Need It Most
You can save time and enhance the quality of your computing experience by utilizing built-in intelligence. Enjoy features like low noise operation while collaborating and automated text, image, and audio improvements while creating. In addition, enjoy system optimization for bandwidth and video resolution while gaming on the go.


Processor manufacturerIntel
Processor familyIntel® Core™ i3
Processor generationIntel Core i3-13xxx
Processor modeli3-1315U
Processor cores6
Processor threads8
Processor boost frequency4.5 GHz
Built-in processorYes
Processor cache10 MB
Thermal Design Power (TDP)15 W
CPU configuration (max)1
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds3200 MHz
Supported memory typesDDR4-SDRAM
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5"
SSD form factorM.2
Storage drive interfacePCI Express, Serial ATA III
On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Top Wi-Fi standardWi-Fi 6 (802.11ax)
WLAN controller modelIntel Wi-Fi 6 AX203
Ethernet LANYes
Wi-FiYes
LAN controllerIntel I226-V
BluetoothYes
Bluetooth version5.2
USB 2.0 ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
HDMI ports quantity2
HDMI version2.1
Combo headphone/mic portYes
Ethernet LAN (RJ-45) ports1
DC-in jackYes
Product colourBlack
On/off switchYes
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Panel mounting interface75 x 75,100 x 100 mm
Product typeMini PC barebone
Windows operating systems supportedWindows 10, Windows 11
Power supply135 W
AC input voltage100 - 240 V
AC adapter output voltage19.5 V
AC adapter output current6.92 A
Operating temperature (T-T)0 - 35 °C
Storage temperature (T-T)-20 - 60 °C
Width124 mm
Depth120 mm
Height49.7 mm
