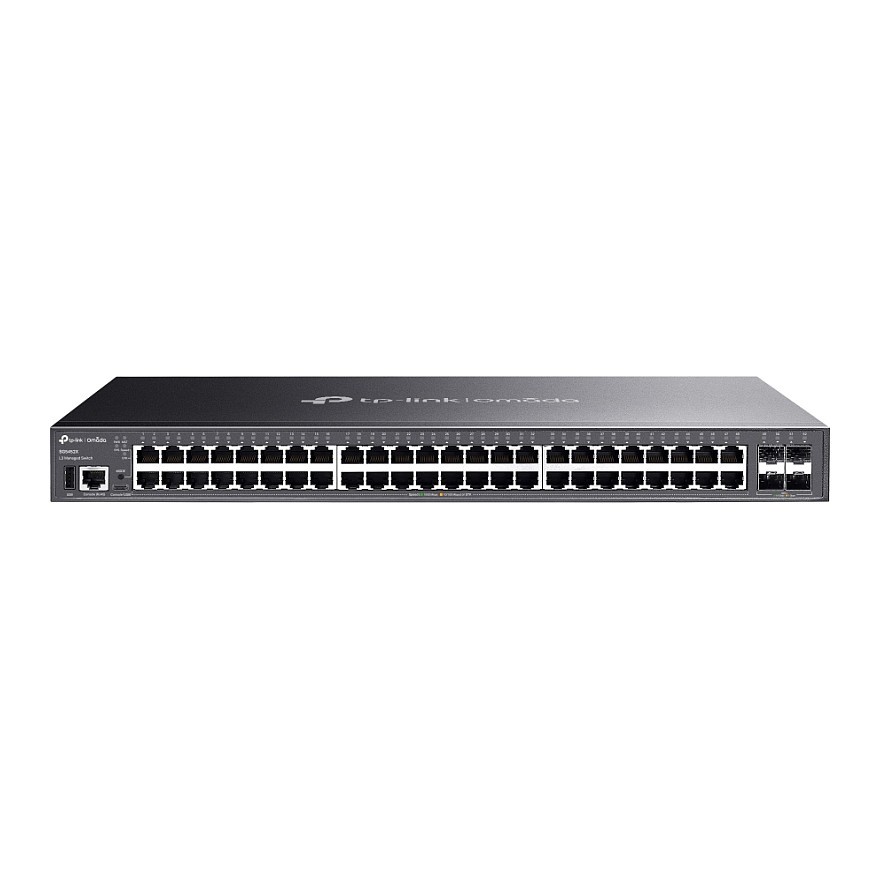

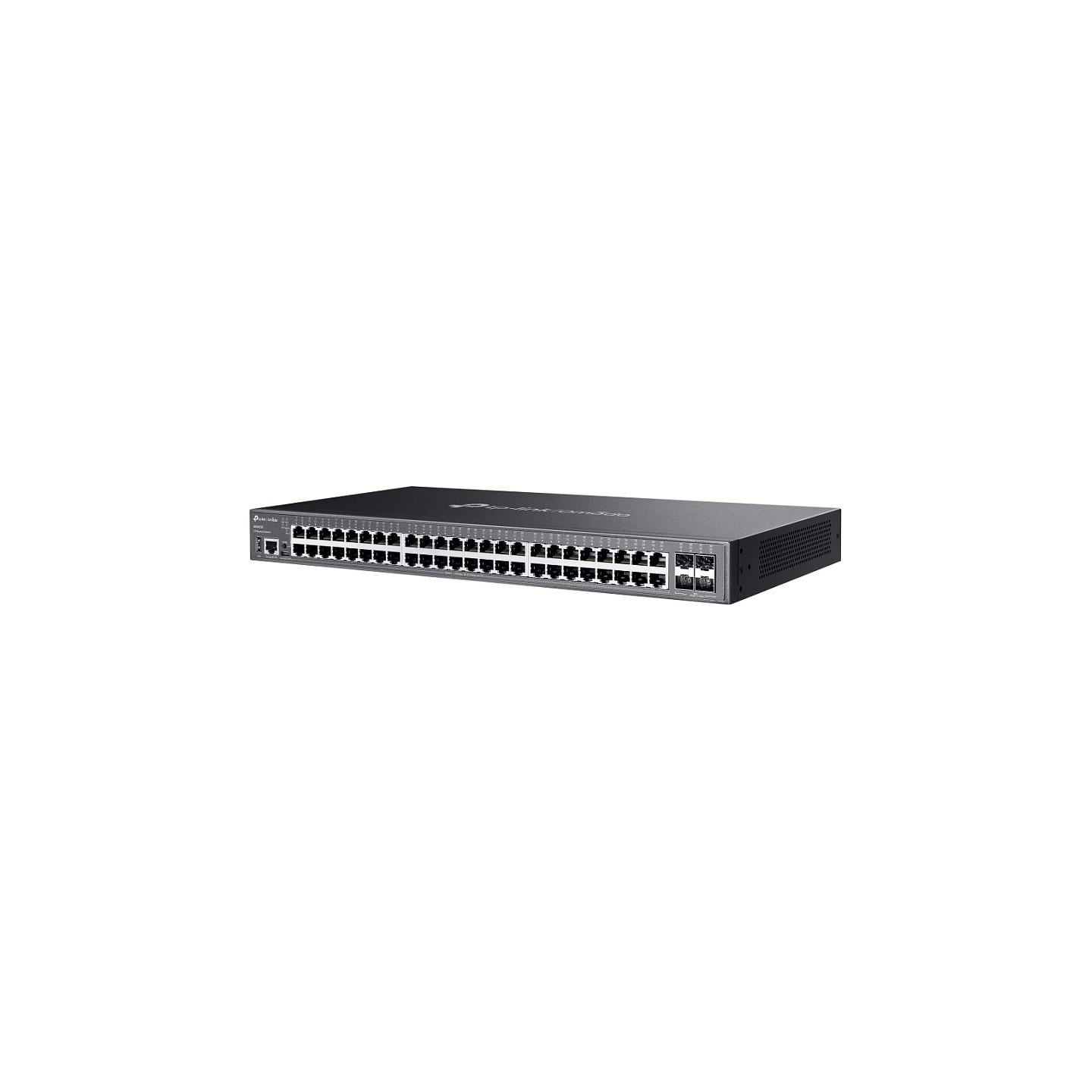

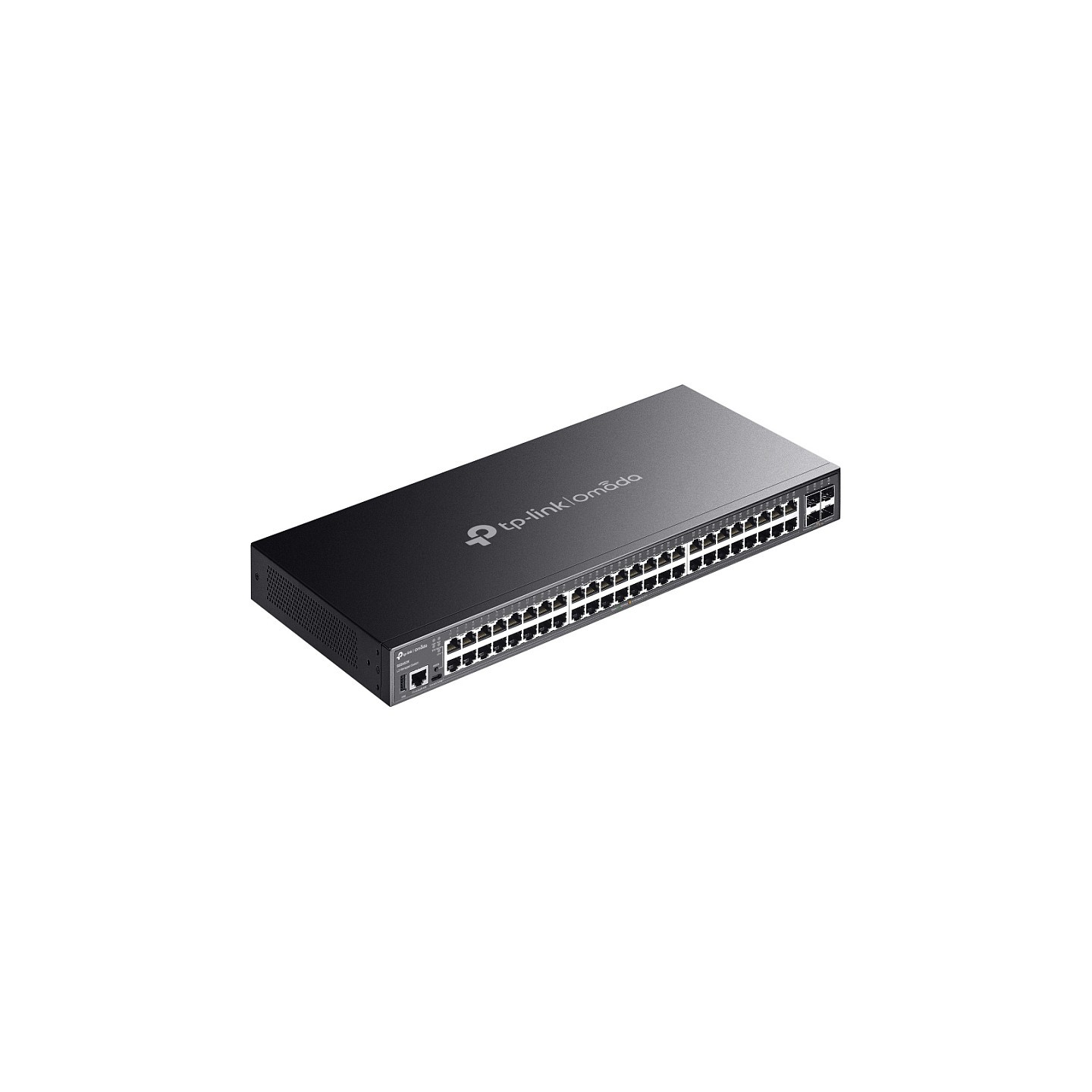

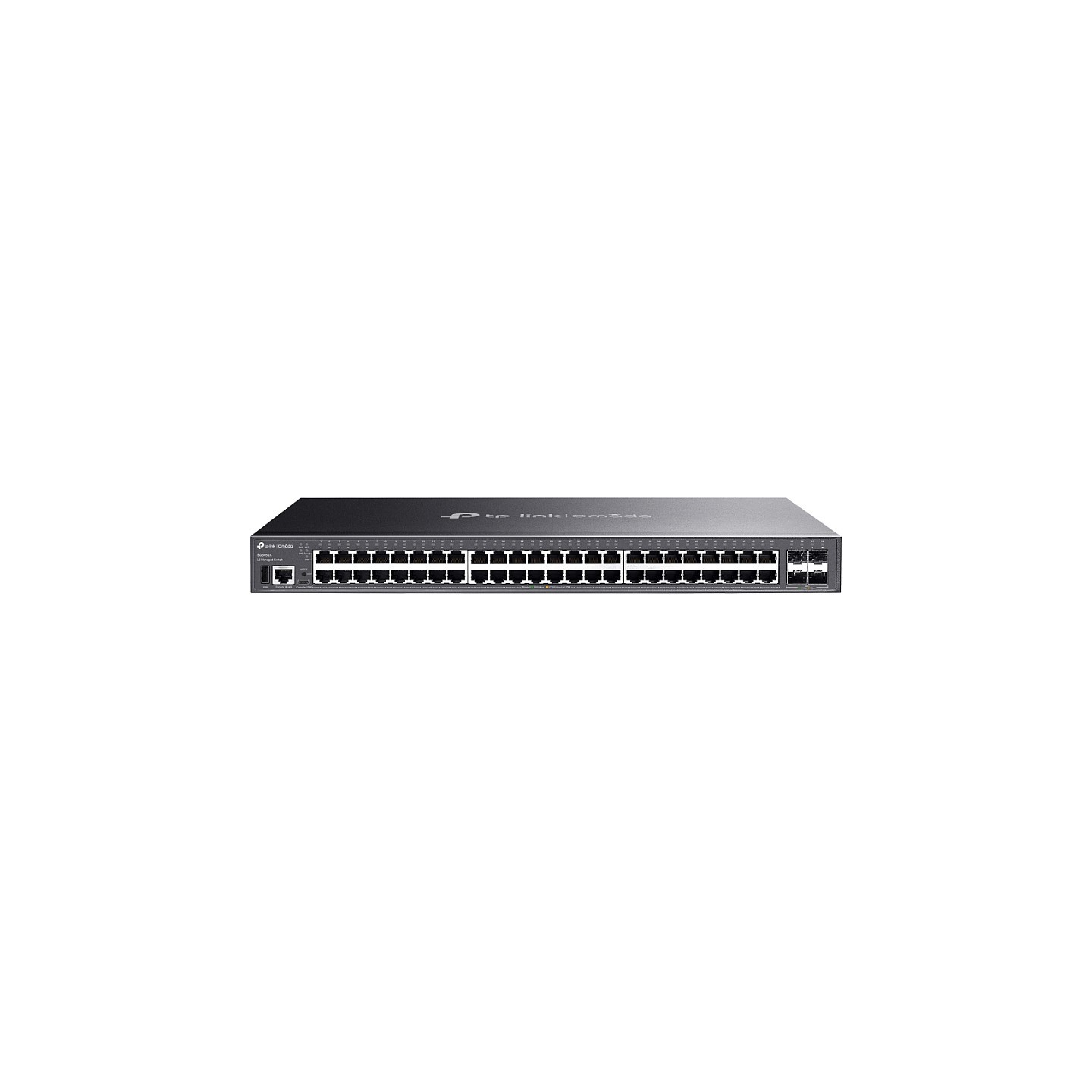

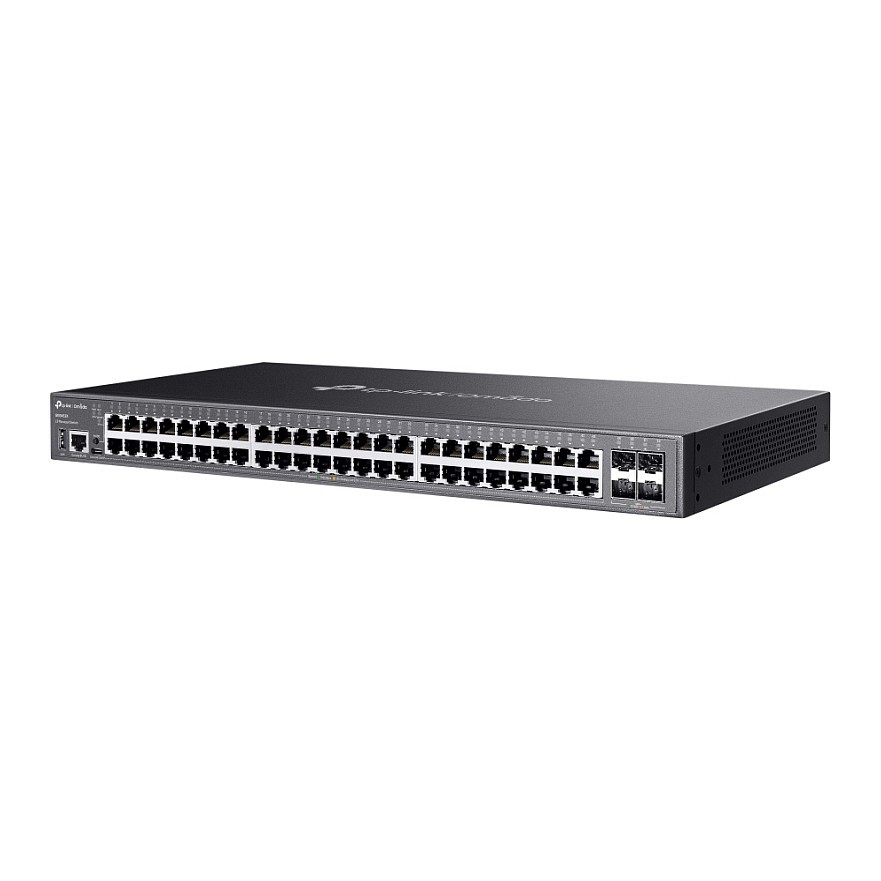

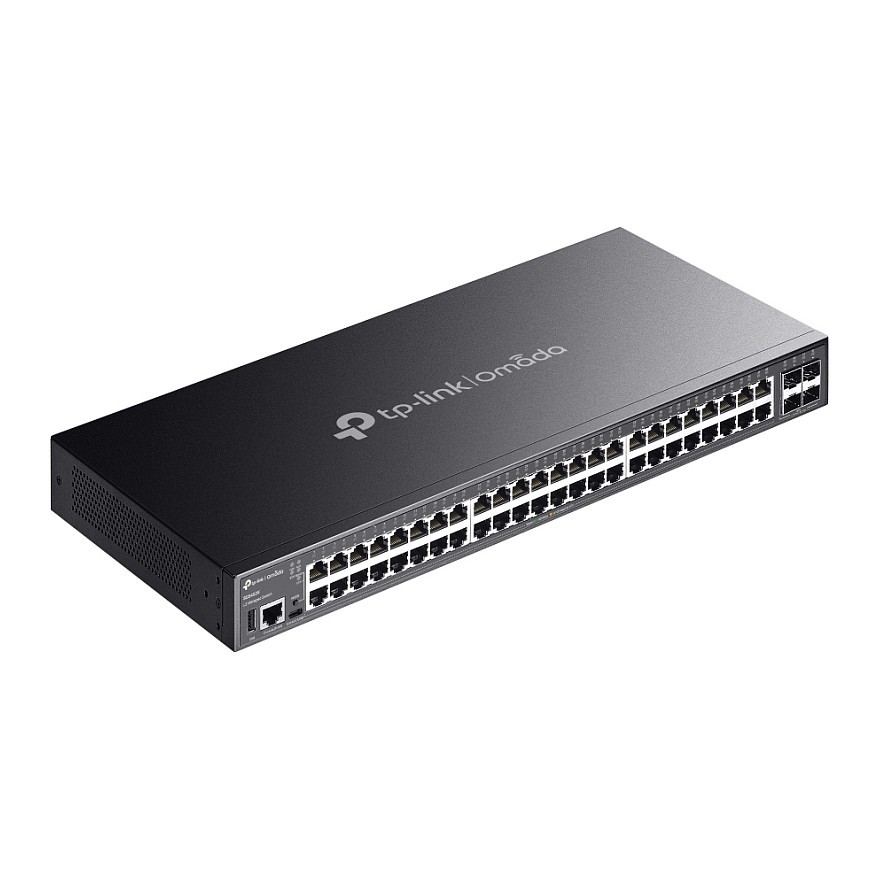

Omada SG5452X 48-Port Gigabit Stack Lite L3 Mgd. Switch 4 10G
TP-Link Omada SG5452X. Managed. L3. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada SG5452X. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 48. Anzahl USB 2.0 Anschlüsse: 1. Konsolen-Port: RJ-45. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 176 Gbit/s. Netzstandard: IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Rackmontageset |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 48 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 48 |
| Menge Modul-Steckplätze SFP+ | 4 |
| USB Typ-C Anzahl Anschlüsse | 1 |
| Konsolen-Port | RJ-45 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| Netzstandard | IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt |
| Virtuelle LAN-Funktionen | MAC address-based VLAN. Private VLAN. Protocol-based VLAN. Voice VLAN |
| Anzahl der VLANs | 4000 |
| Routing-/Switching-Kapazität | 176 Gbit/s |
| Transferrate | 130.94 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Jumbo-Frames | 9000 |
| Datenpaket-Pufferspeicher | 12 MB |
| DHCP-Funktionen | DHCP relay. DHCP server |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv2. SNMPv3 |
| Produktfarbe | Schwarz |
| Physisches Stacking (Einheiten) | 4 |
| Prozessorhersteller | ARM |
| Prozessortaktfrequenz | 1200 MHz |
| Speichertyp | DRAM |
| Speicherkapazität | 2000 MB |
| Flash-Speicher | 512 MB |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 211.644 h |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 34.1 W |
| Druckanstieg-Schutzspannung | 6 kV |
| Führungsebene | 4 |
| Bandbreite | 88 Gbit/s |
| Betriebstemperatur | -5 - 45 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 90% |
| Wärmeableitung | 116.42 BTU/h |
| Breite | 440 mm |
| Tiefe | 220 mm |
| Höhe | 44 mm |
| Mitgelieferte Kabel | AC |
| Konformitätsbescheinigungen | CE. Eidgenössische Kommunikationskommission (FCC). RoHS |
