Zotac

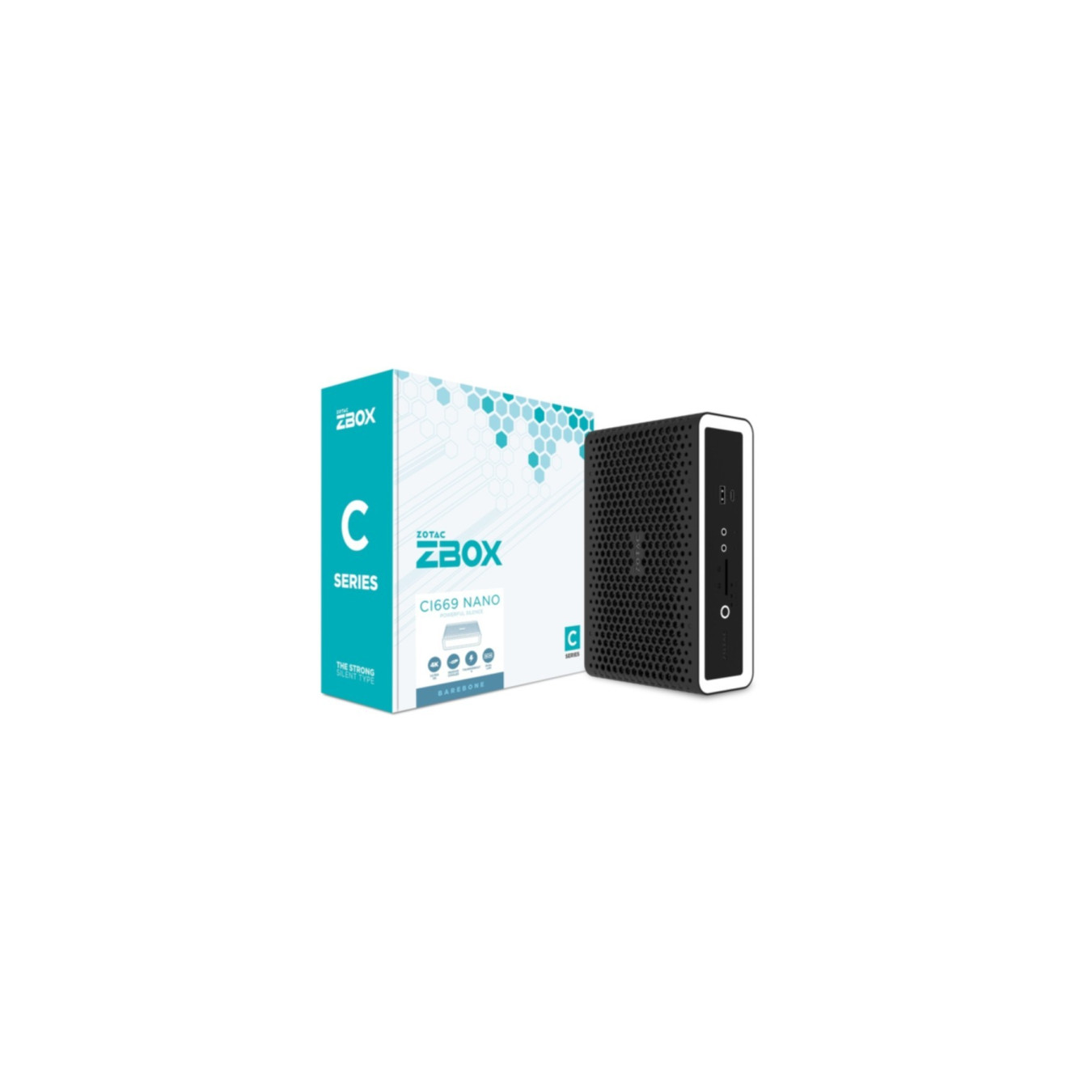

ZOTAC ZBOX C Series CI669 - Barebone Mini PC, Compact 1.8L VESA-Mount, Silent Low-Power (~30W)

SKU 7841 Brand Zotac EAN13 4895173627583
Compact ZOTAC ZBOX C Series CI669 barebone mini PC — 1.8L chassis, passive/silent design, VESA-mountable and energy-efficient (~30W). Customize with your RAM, storage and OS.
Barebone & Mini PCs - Type Barebone Kit (No RAM/SSD)
Barebone & Mini PCs - VESA Mount Yes
Barebone & Mini PCs - OS No OS

MULTI-TASK. EMAIL. DOCS. FASTER
The all-new compact ZBOX C Series nano is a leader in silent computing performance. Its rigid enclosure is patterned with nature’s strongest natural structure, further enhanced by 270 degrees of open ventilation for maximum breathability and operability.

DEDICATED
The all-new ZBOX C Series nano Mini PC is an efficiently fast multi-core, multi-threaded multitasker that’s dedicated to help get work done.

EFFICIENT AND RELIABLE
A system that takes up very little space and it’s designed with no moving parts* to remove wear and tear inefficiencies to increase overall system reliability, longevity, and return on investment. At 1.8 liters small, its energy consumption is just as small and efficient, sipping up to 30W under load for additional long term cost savings

Flexible
The ZBOX C Series nano features a built-in VESA mount design to allow for more flexible system placement. The overall small system takes very little desk space, but it also has the potential to take up zero if mounted onto a wall, under the desk, or even behind the display.

HAS GREAT COMMUNICATION
The ZBOX C Series nano’s compact footprint packs in a plethora of built-in fast connectivity which include: WiFi 6, Bluetooth 5.2, Gigabit LAN, and 2.5Gbps LAN. It can also provide great visibility with the ability to support up to 3 displays with HDMI 2.0b, DisplayPort 1.4, and DP via Thunderbolt. The available Thunderbolt 4, USB 3.1, and SDXC Card Reader allows for easy file transfers between devices.

CAN TAKE ON MORE
The ZBOX C Series nano can take on up to 64GB of fast DDR5 5200/4800 MHz Memory, a 2.5” HDD/SSD drive, and an M.2 NVMe PCIe 4.0 x4 SSD with little effort.


Processor manufacturerIntel
Processor familyIntel® Core™ i7
Processor generation13th gen Intel® Core™ i7
Processor modeli7-1355U
Processor cores10
Processor threads8
Processor frequency1.7 GHz
Performance cores2
Efficient cores8
Built-in processorYes
Performance-core boost frequency5 GHz
Efficient-core boost frequency3.7 GHz
Processor cache12 MB
Thermal Design Power (TDP)55 W
Memory slots typeSO-DIMM
Number of memory slots2
Maximum internal memory64 GB
Supported memory clock speeds4800, 5200 MHz
Supported memory typesDDR5-SDRAM
Memory channelsDual-channel
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5, M.2
Storage drive interfacePCI Express, Serial ATA
Number of storage drives supported2
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel Iris Xe Graphics
Maximum resolution4096 x 2160 pixels
Number of displays supported3
Built-in speaker(s)No
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
Ethernet LANYes
Wi-FiYes
BluetoothYes
Bluetooth version5.2
USB 2.0 ports quantity1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
HDMI ports quantity1
HDMI version2.0b
DisplayPorts quantity1
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
Thunderbolt 4 ports quantity1
Chassis type1.8L sized PC
Product colourBlack, White
Cooling typePassive
On/off switchYes
LED indicatorsHDD, Power, Wi-Fi
Cable lock slotYes
Cable lock slot typeKensington
VESA mountingYes
Product typeWorkstation barebone
Motherboard chipsetIntel SoC
Audio output channels8.0 channels
Windows operating systems supportedWindows 11
Power supply typeExternal AC adapter
Power supply65 W
Width204 mm
Depth129 mm
Height68 mm
Power cord includedYes
AC adapter includedYes
Quick start guideYes
