Zotac

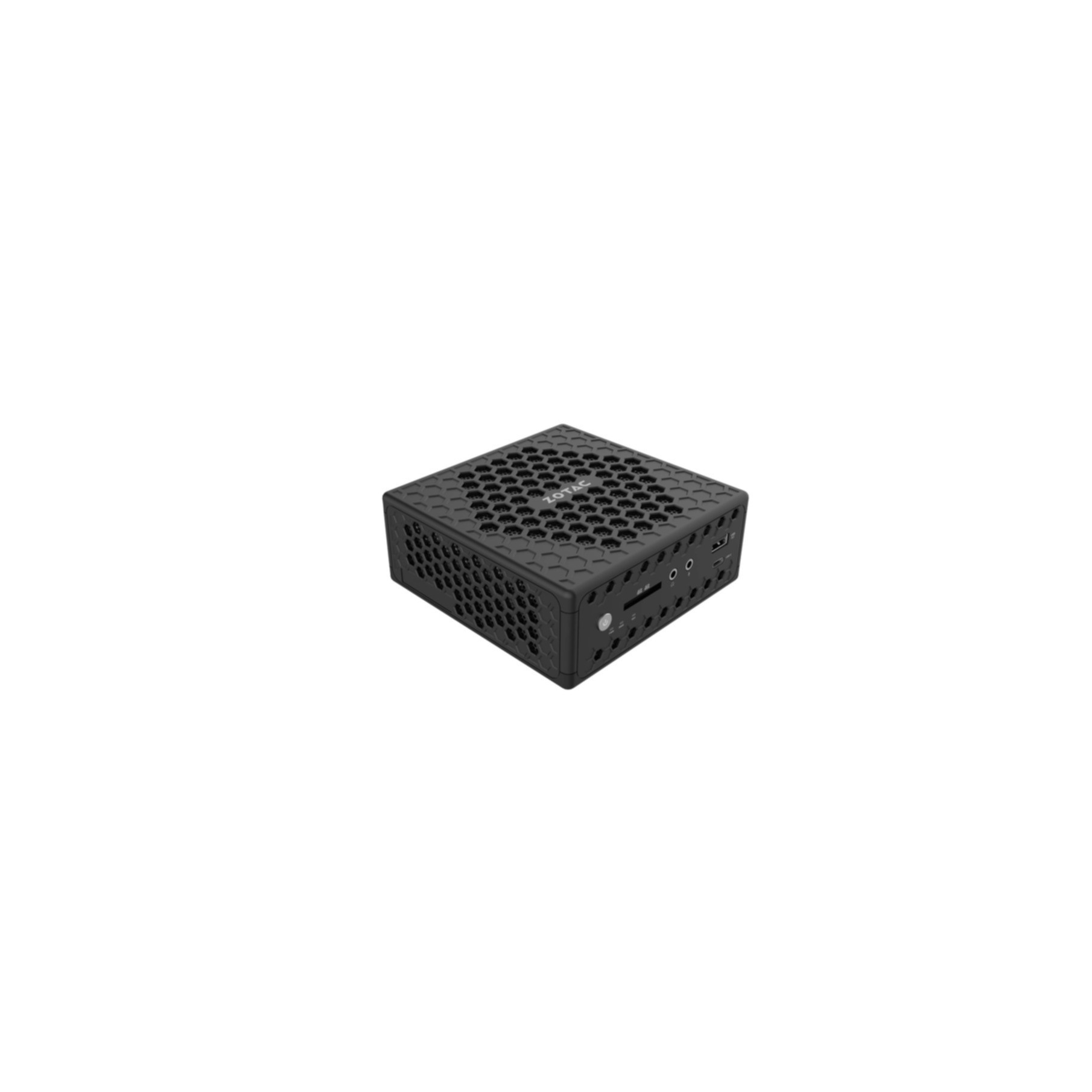

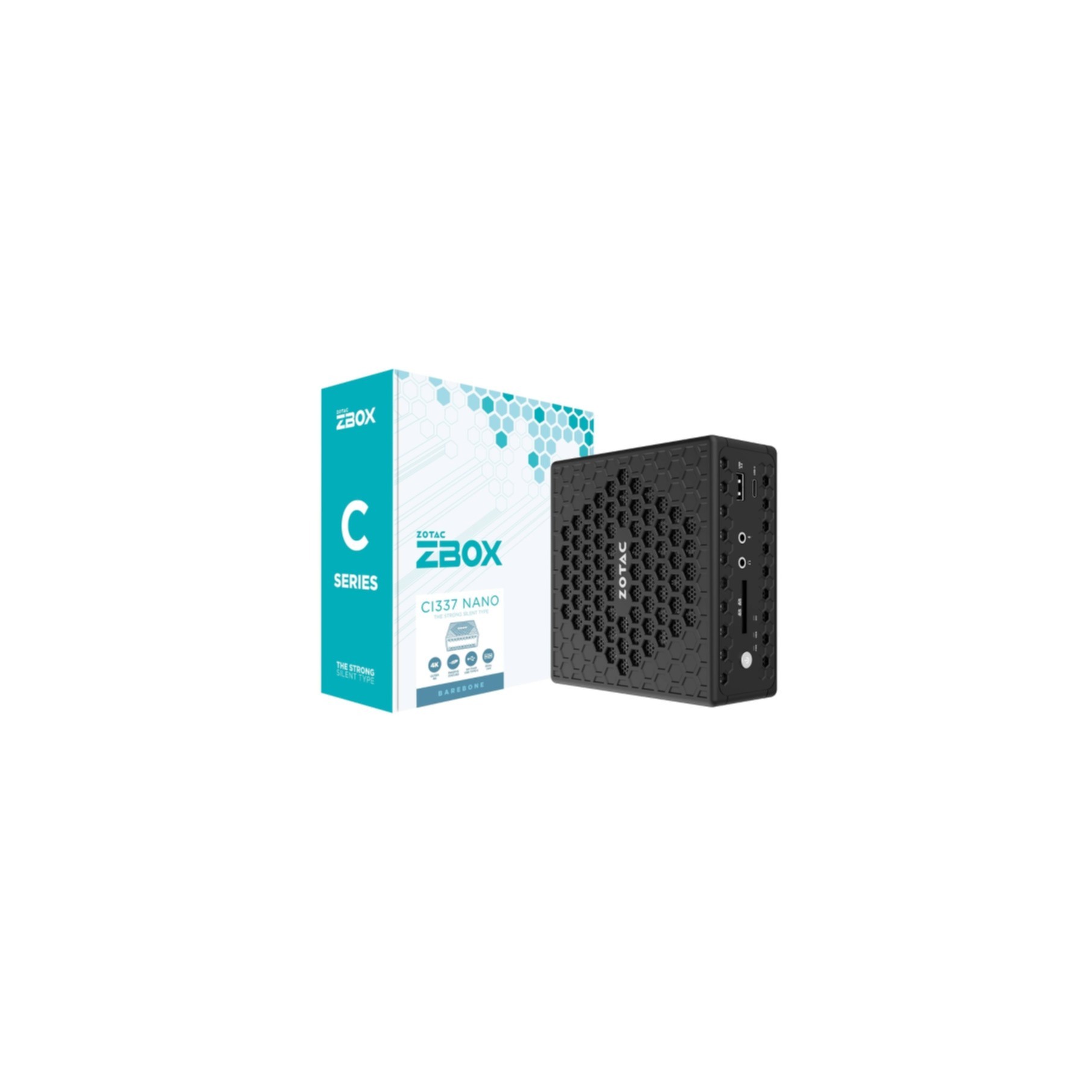

ZOTAC ZBOX CI337 Nano - Barebone - Intel N-Series, Passive-Cooled, Black Mini-PC

SKU 7843 Brand Zotac EAN13 4895173626685
Compact passive-cooled ZOTAC ZBOX CI337 Nano barebone mini-PC with energy-efficient Intel N-Series CPU, honeycomb vents and large aluminum heatsink for silent, durable performance.
Barebone & Mini PCs - Type Barebone Kit (No RAM/SSD)
Barebone & Mini PCs - Graphics Integrated
Barebone & Mini PCs - OS No OS

ZBOX CI337 nano (Barebone)
The ZBOX CI337 nano features a power-efficient next-generation Intel N-Series processor to give you a silent experience in a compact PC. A robust, passive cooled design with no moving components brings high reliability and extended durability. The signature honeycomb vents throughout the chassis enhances exhaust flow, backed by a large aluminum heatsink that maximizes heat transfer from the CPU to keep the system operating with continued performance.

C Series
Experience the energy-efficient ZOTAC ZBOX CI337 nano Mini PC. Powered by an energy-sipping quad-core Intel processor, the ZBOX CI337 nano delivers performance to power through everyday tasks such as web browsing, e-mail, streaming music or videos, and many other light productive tasks.

PERFORMANCE FOR YOUR NEEDS
Equipped with a next-generation Intel® N-Series (Formerly Alder Lake-N) processor, the compact and low-power ZBOX C series nano comes with the speed and integrated graphics essential for cloud based applications and everyday computing tasks.

THE C IN SILENCE
Hear everything else but the PC. Thanks to a fanless engineered thermal design, energy efficient components, and ample ventilation in the overall design, maximum heat dissipation is achieved.

A CLASSIC DESIGN

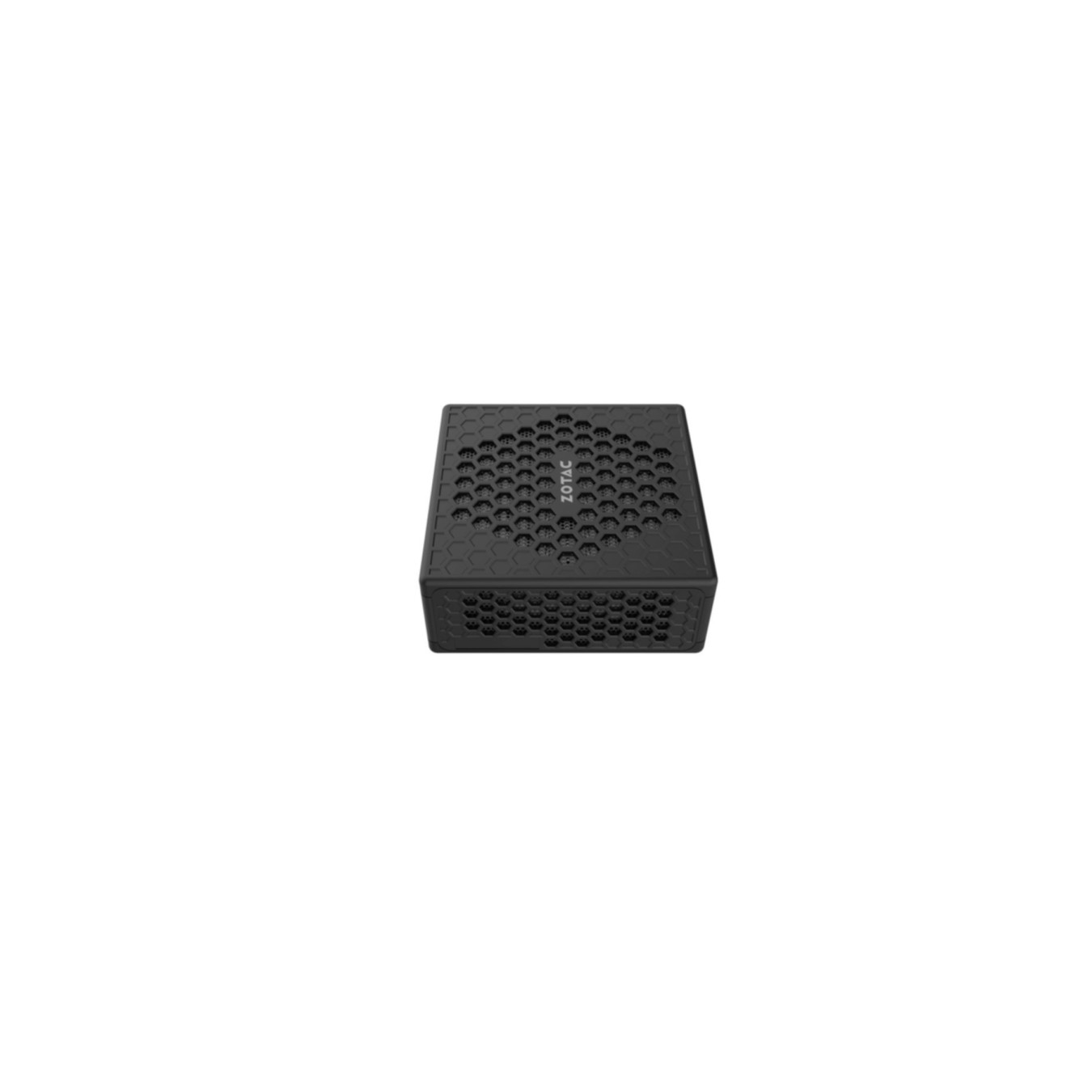

With a discrete matte black design patterned in honeycombs, its look is synonymous with performance and silent operation. The timeless design maximizes ventilation and stays cool to the touch even under load.

DISPLAY FLEXIBILITY
Experience 4K display @ 60 Hz with ease and expand the visual experience with up to three displays in an ultra-discrete system. Enjoy a wide range of compatible displays with a variety of outputs including DisplayPort, HDMI, and DisplayPort over USB-C.

IN THE PALMS OF YOUR HAND
ZBOX C1337 nano is a complete system that can fit in your palms. At less than 1 liter in size combined with the passive cooling nature of the system and placement flexibility, the use cases are wide open.

NIMBLE VERSATILITY
Not only is the ZBOX CI331 nano small, capable, and silent, it’s also nimble. Place it here or there, this way or that way. It’s up to you.

EFFICIENT
Utilizing just 20W under full load, the ZBOX CI331 nano mini PC is capable of a lot while using less energy. Combine the ZBOX C1331 nano with an SSD storage for a system with no moving parts to achieve silence and extended longevity.

EASY UPGRADEABILITY
As is the tradition with ZOTAC ZBOX Mini PCs, easily upgrade with tool-less access to the SO-DIMM memory slots and 2.5” HDD/SSD bay for simple installation or expansion.

WINDOWS 11 READY
Experience the next evolution of Windows OS with the Windows 11-ready ZBOX edge MI351 mini PC. A streamlined UI and new features to optimize your collaboration, productivity, and security are all part of the new Windows 11 OS experience.


Processor manufacturerIntel
Processor modelN100
Processor cores4
Processor threads4
Processor frequency3.4 GHz
Built-in processorYes
Processor cache6 MB
Thermal Design Power (TDP)6 W
Memory slots typeSO-DIMM
Number of memory slots1
Maximum internal memory16 GB
Supported memory clock speeds4800 MHz
Supported memory typesDDR5-SDRAM
Supported storage drive typesHDD & SSD
Storage drive sizes supported2.5, M.2
Storage drive interfacePCI Express, Serial ATA

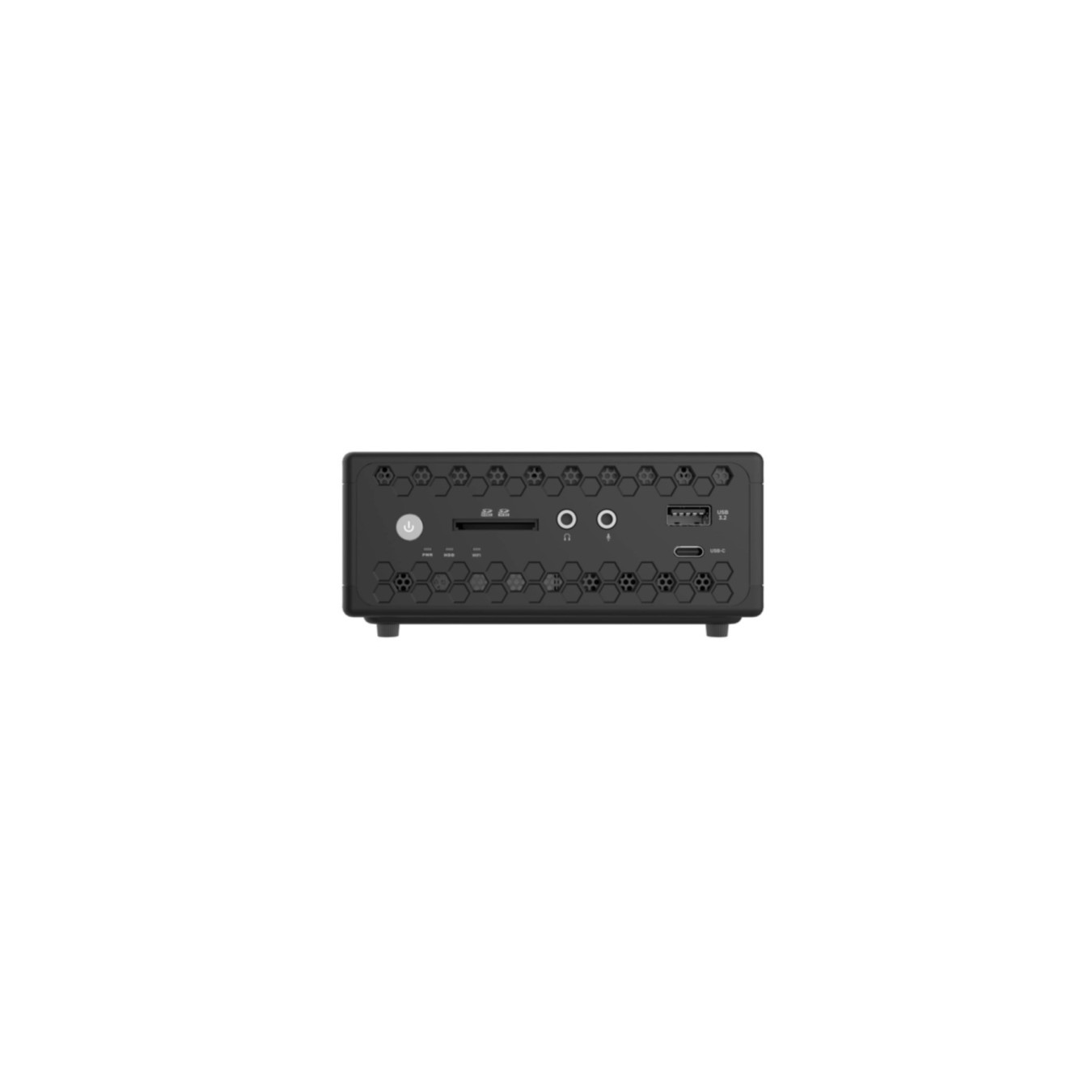

Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
On-board graphics cardYes
Graphics card familyIntel
On-board graphics card modelIntel® UHD Graphics
Maximum resolution4096 x 2160 pixels
Built-in speaker(s)No
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Wi-Fi standardsWi-Fi 6 (802.11ax)
Ethernet LANYes
Wi-FiYes
BluetoothYes
Bluetooth version5.2

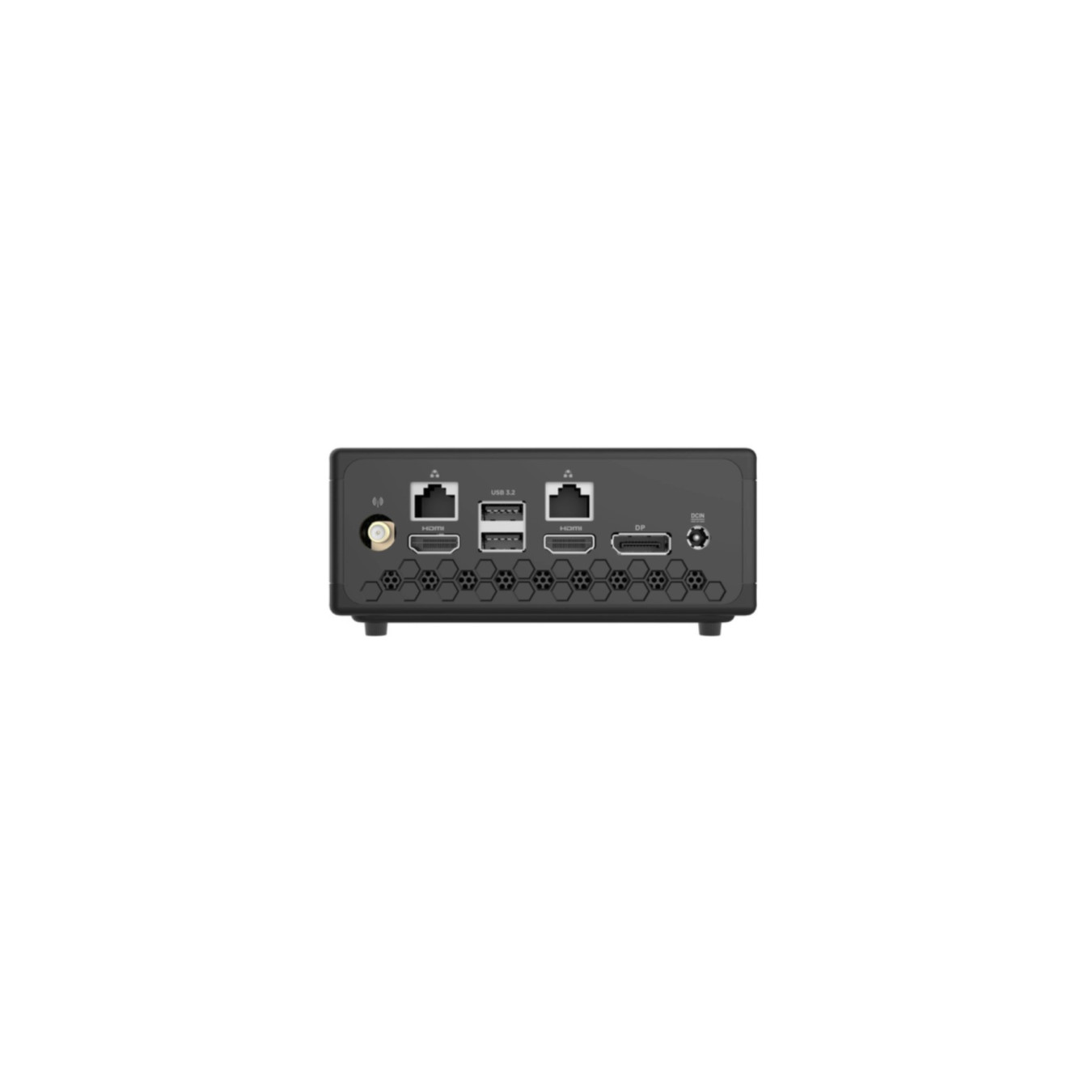

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
HDMI ports quantity2
HDMI version2.0
DisplayPorts quantity1
DisplayPort version1.4
Microphone inYes
Headphone outputs1
Ethernet LAN (RJ-45) ports2
USB chargingYes
DC-in jackYes
Chassis type0.9L sized PC
Product colourBlack
Cooling typePassive
On/off switchYes
LED indicatorsHDD, Power, Wi-Fi
VESA mountingYes
Product typeMini PC barebone
Power supply typeExternal AC adapter
Power supply40 W
AC adapter output voltage19 V
Width127.8 mm
Depth126.8 mm
Height56.8 mm

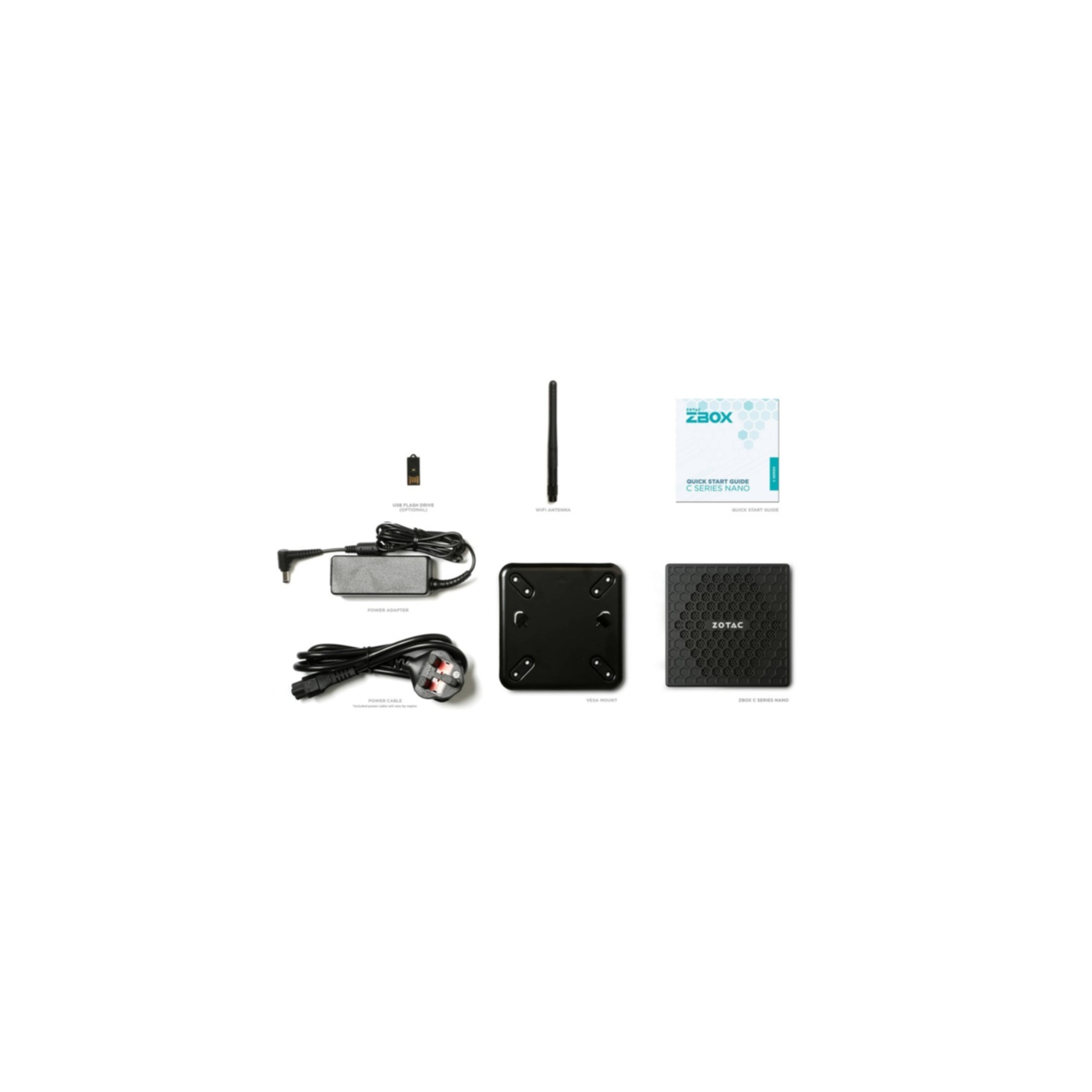

Power cord includedYes
AC adapter includedYes
Quick start guideYes
