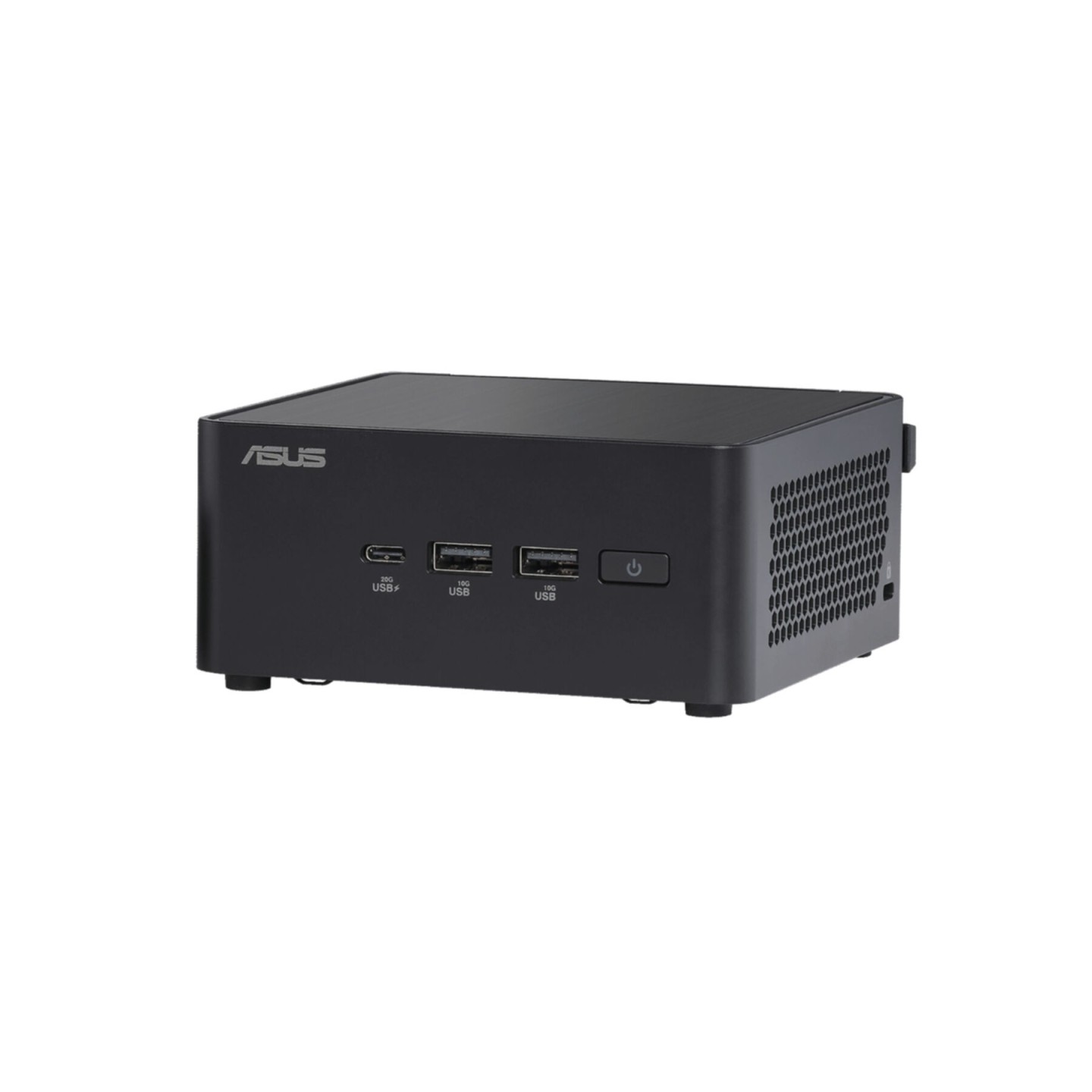

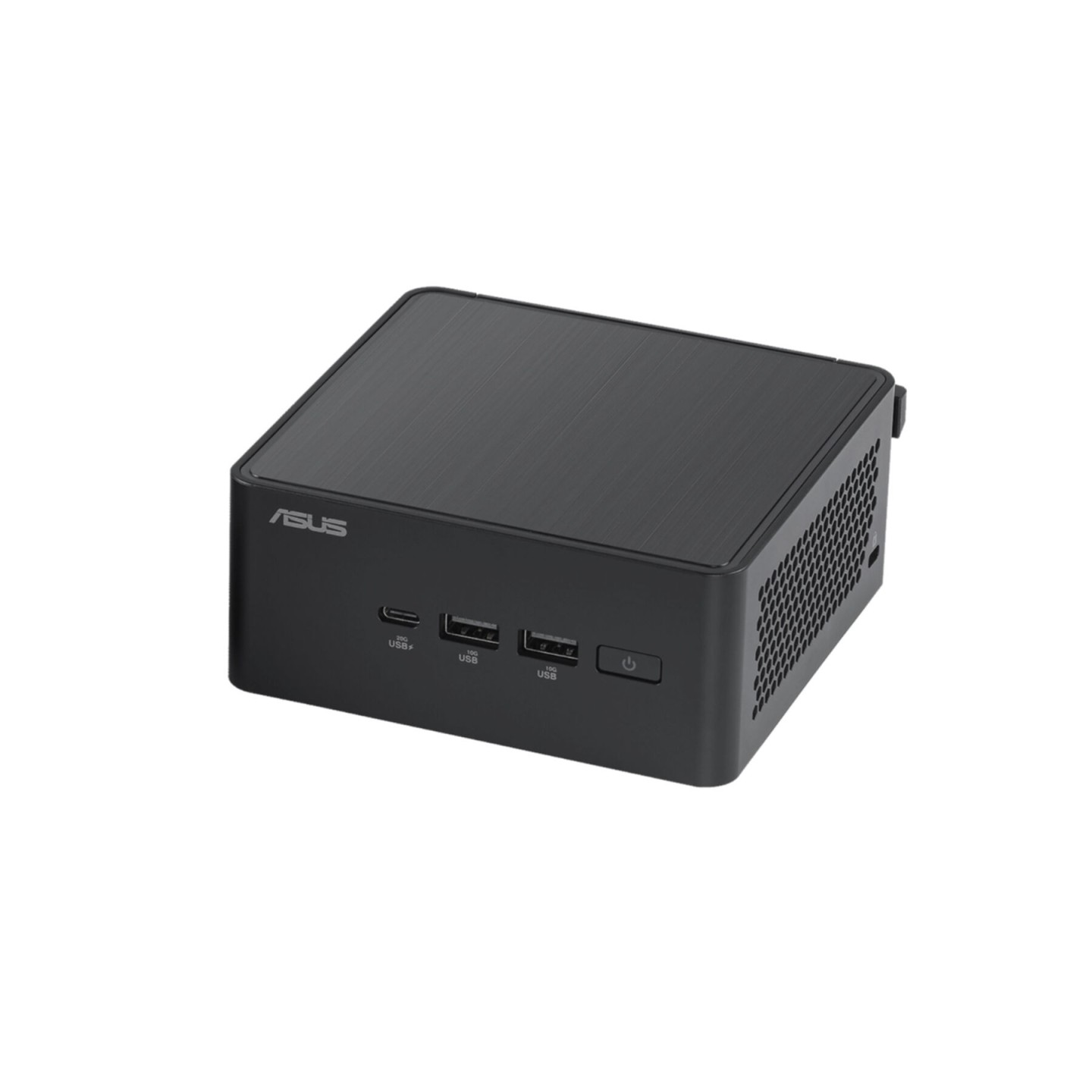

ASUS NUC 14 Pro Revel Canyon - Intel Core Ultra 5 125H, Tall Chassis (Barebone)
Compact ASUS NUC 14 Pro mini PC with Intel Core Ultra 5 125H processor, tall Revel Canyon chassis, dual M.2 slots, 2.5" storage bay, Thunderbolt 4, and tool-less design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Barebone Kit (No RAM/Storage) |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 5 |
| Barebone & Mini PC - Graphics Chipset | Intel HD Graphics |
| Barebone & Mini PC - Operating System | No OS |
| Barebone & Mini PC - Installed Storage | None (Barebone) |
| Barebone & Mini PC - Installed Memory (RAM) | None (Barebone) |
Compact Power Meets Intelligent Performance
The ASUS NUC 14 Pro Revel Canyon is a premium mini PC engineered for professionals, developers, and power users who demand exceptional performance in an ultra-compact form factor. Built on the latest Intel Core Ultra 5 125H processor with 14 cores (4 performance + 8 efficient + 2 low-power efficient cores), this barebone system delivers AI-ready computing with integrated Intel Arc Graphics and Intel AI Boost NPU. The tall chassis variant provides expanded storage flexibility with dual M.2 NVMe slots (2280 and 2242 support) plus a dedicated 2.5-inch SSD bay, supporting up to 96GB of DDR5-5600 memory across two SO-DIMM slots.
Connectivity and expandability are exceptional with Thunderbolt 4 ports, dual HDMI 2.1 outputs, 2.5GbE Ethernet, Wi-Fi 6E (802.11ax), and Bluetooth 5.3. The innovative tool-less latching mechanism enables effortless chassis access for upgrades without requiring any tools. Enterprise-grade features include Intel vPro support for enhanced security and manageability, Kensington lock slot, and certified Bluetooth dongle-free operation. With a 120W external power adapter and active cooling system, the NUC 14 Pro maintains optimal thermal performance while supporting Windows 11.
Key Features:
- Intel Core Ultra 5 125H processor (14 cores, 4.5 GHz boost, 28W TDP)
- Dual-channel DDR5-5600 memory (up to 96GB)
- Triple storage options: M.2 2280, M.2 2242, and 2.5" SSD bays
- Thunderbolt 4 and USB 3.2 Gen2 connectivity
- Tool-less chassis design for easy upgrades
- Intel vPro Enterprise security and manageability
- Compact 144 x 112 x 41mm form factor (570g)
| Processor Manufacturer | Intel |
| Processor Family | Intel Core Ultra 5 |
| Processor Model | 125H |
| Processor Cores | 14 (4 Performance + 8 Efficient + 2 Low-Power Efficient) |
| Processor Threads | 18 |
| Performance-Core Max Turbo Frequency | 4.5 GHz |
| Efficient-Core Max Turbo Frequency | 3.6 GHz |
| Low-Power Efficient-Core Max Turbo Frequency | 2.5 GHz |
| Processor Cache | 18 MB |
| Thermal Design Power (TDP) | 28 W |
| Graphics Chipset | Intel Graphics (integrated) |
| Memory Type | DDR5-SDRAM |
| Memory Speed | 5600 MHz |
| Memory Slots | 2x SO-DIMM |
| Maximum Memory | 96 GB |
| Memory Channels | Dual-channel |
| Storage Interface | M.2 NVMe (PCIe Gen 4), 2.5 |
| M.2 Slots | 2 (2280 and 2242 support) |
| 2.5-inch Storage Bay | Yes (Tall Chassis) |
| Wi-Fi Standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi Controller | Intel Wi-Fi 6E AX211 |
| Bluetooth Version | 5.3 |
| Ethernet | 2.5GbE (Intel I226-V) |
| HDMI Ports | 2x HDMI 2.1 |
| Thunderbolt 4 Ports | 2 |
| USB 3.2 Gen2 Type-A Ports | 2x 10Gbps |
| USB 3.2 Gen2x2 Type-C Ports | 1x 20Gbps |
| USB 2.0 Ports | 1 |
| Kensington Lock | Yes |
| Chassis Type | UCFF (Ultra Compact Form Factor) - Tall Variant |
| Chassis Dimensions | 144 x 112 x 41 mm (W x D x H) |
| Chassis Weight | 570 g (unit only) |
| Tool-less Design | Yes |
| Cooling System | Active |
| Power Supply | 120W External AC Adapter |
| Power Connector | DC-in jack with retention bracket |
| Operating System Support | Windows 11 |
| VESA Mounting | Yes |
| Color | Black |
| Included Accessories | Power cord, Quick start guide |
| Enterprise Features | Intel vPro support, certified Bluetooth dongle-free operation |
| AI Capabilities | Intel AI Boost (NPU), three AI engines |
