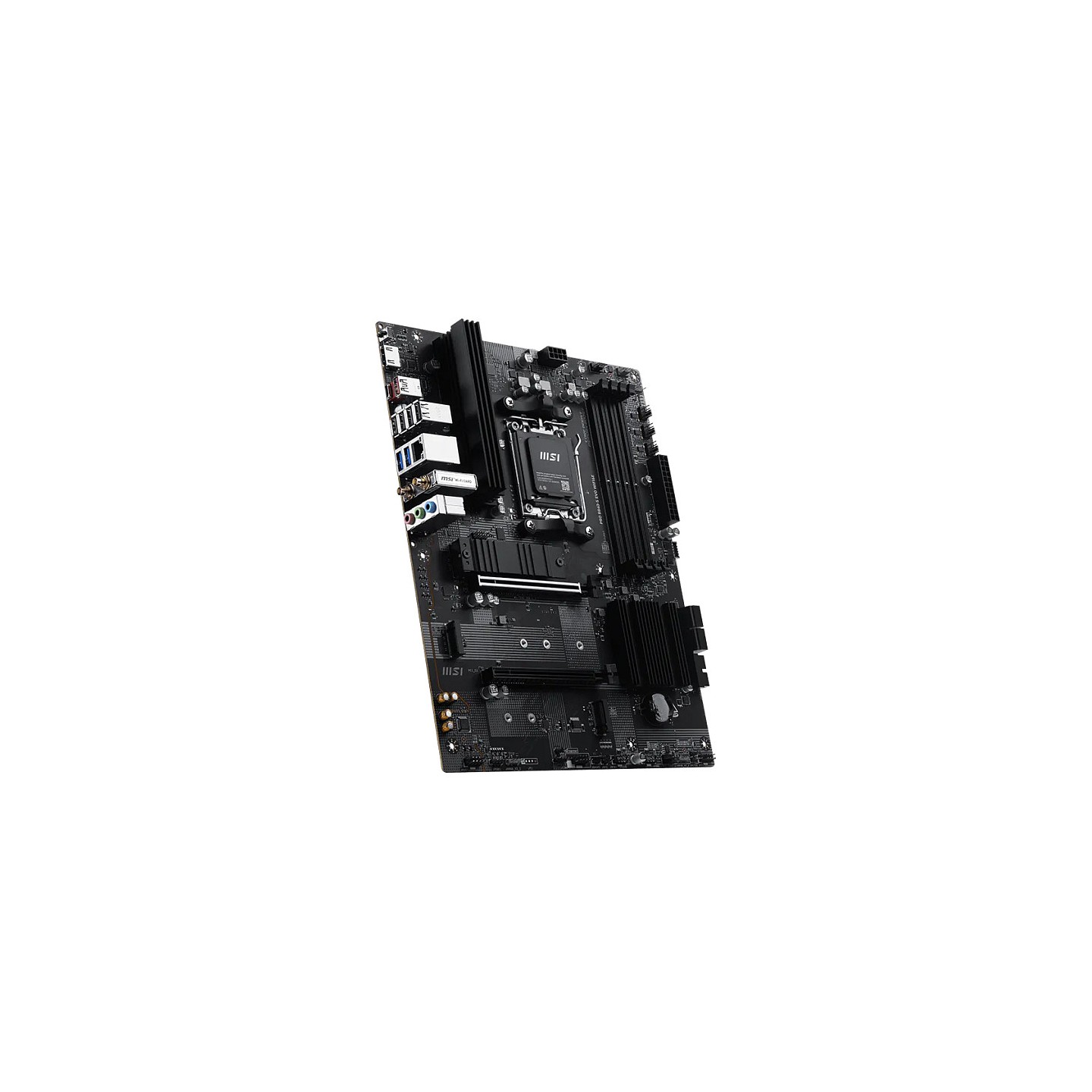

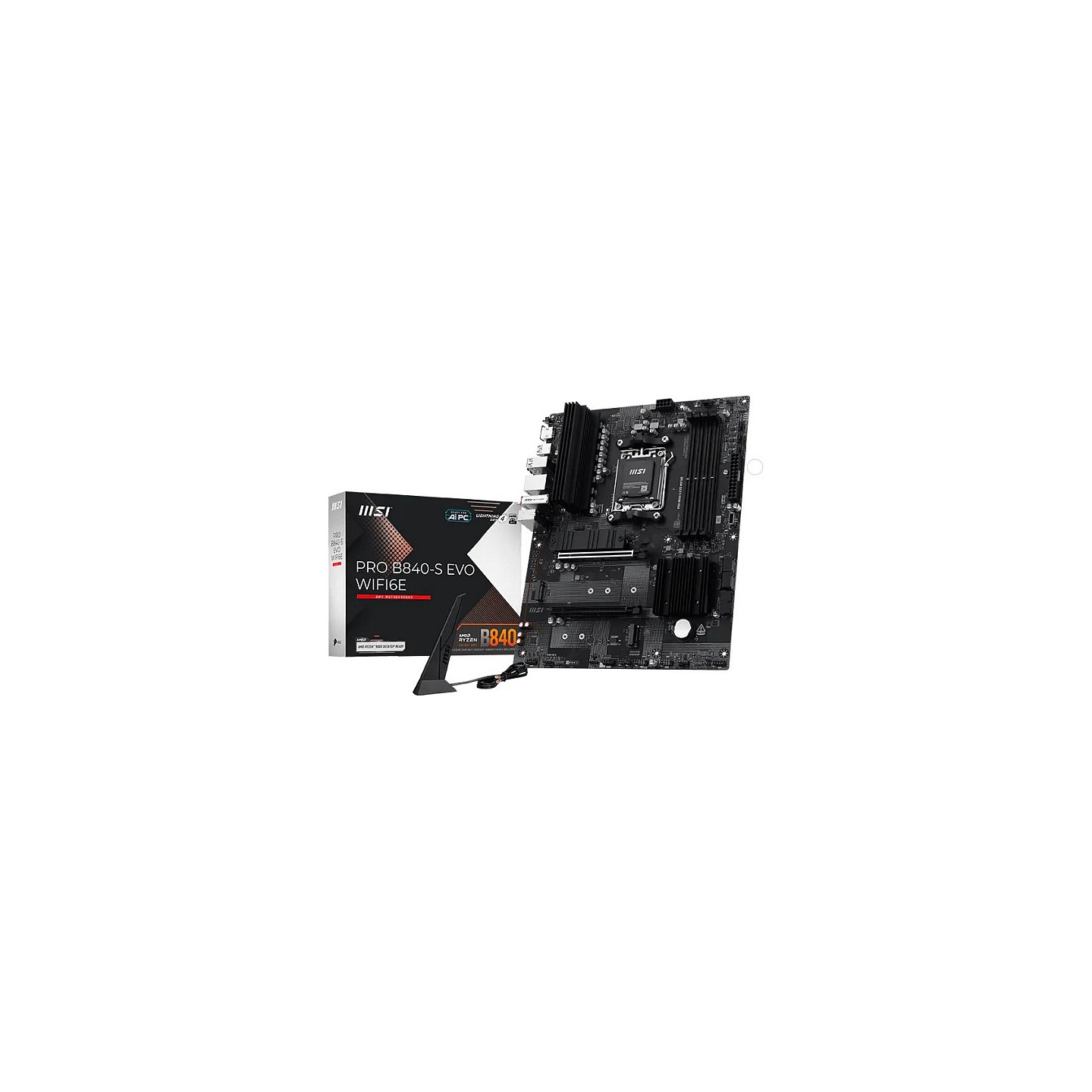

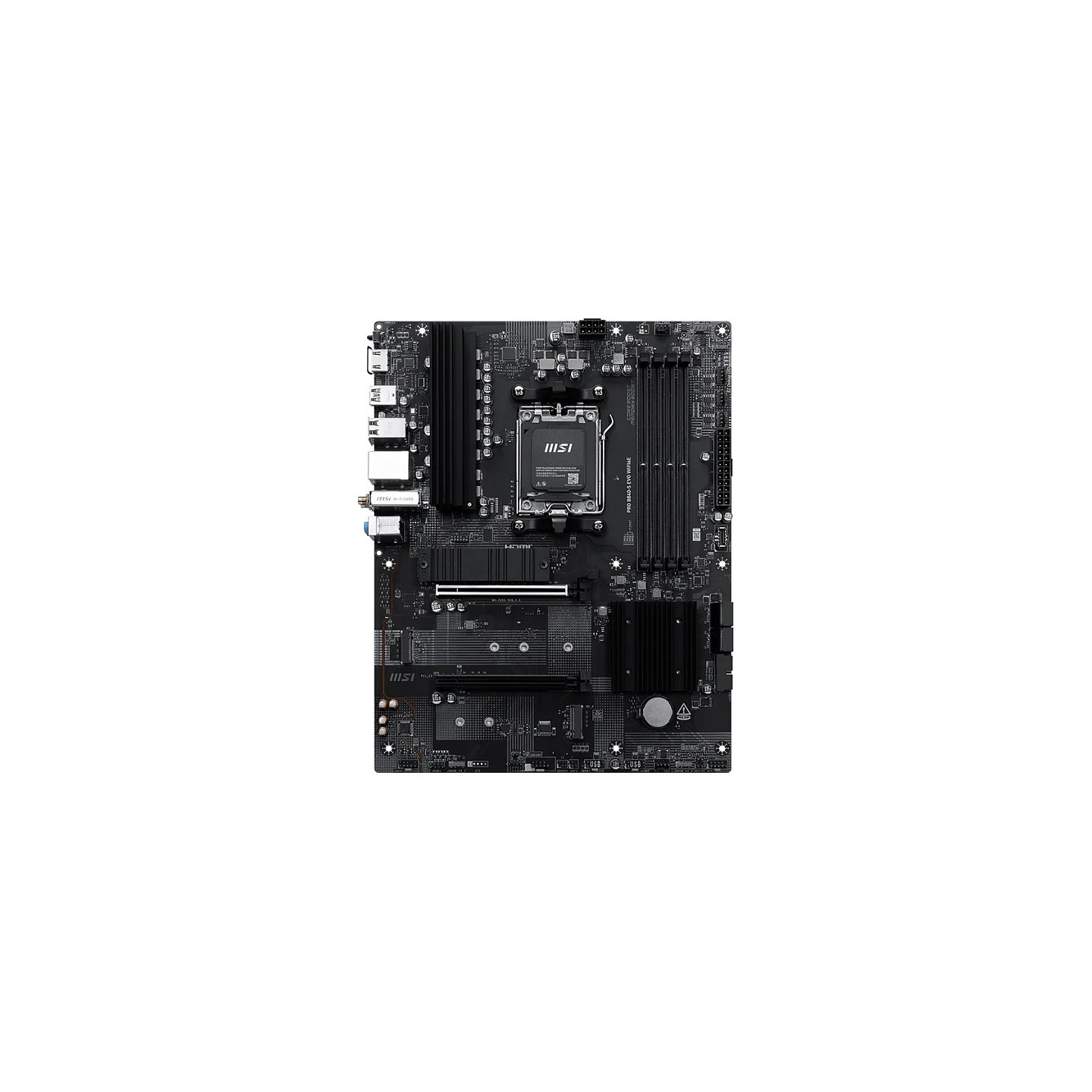

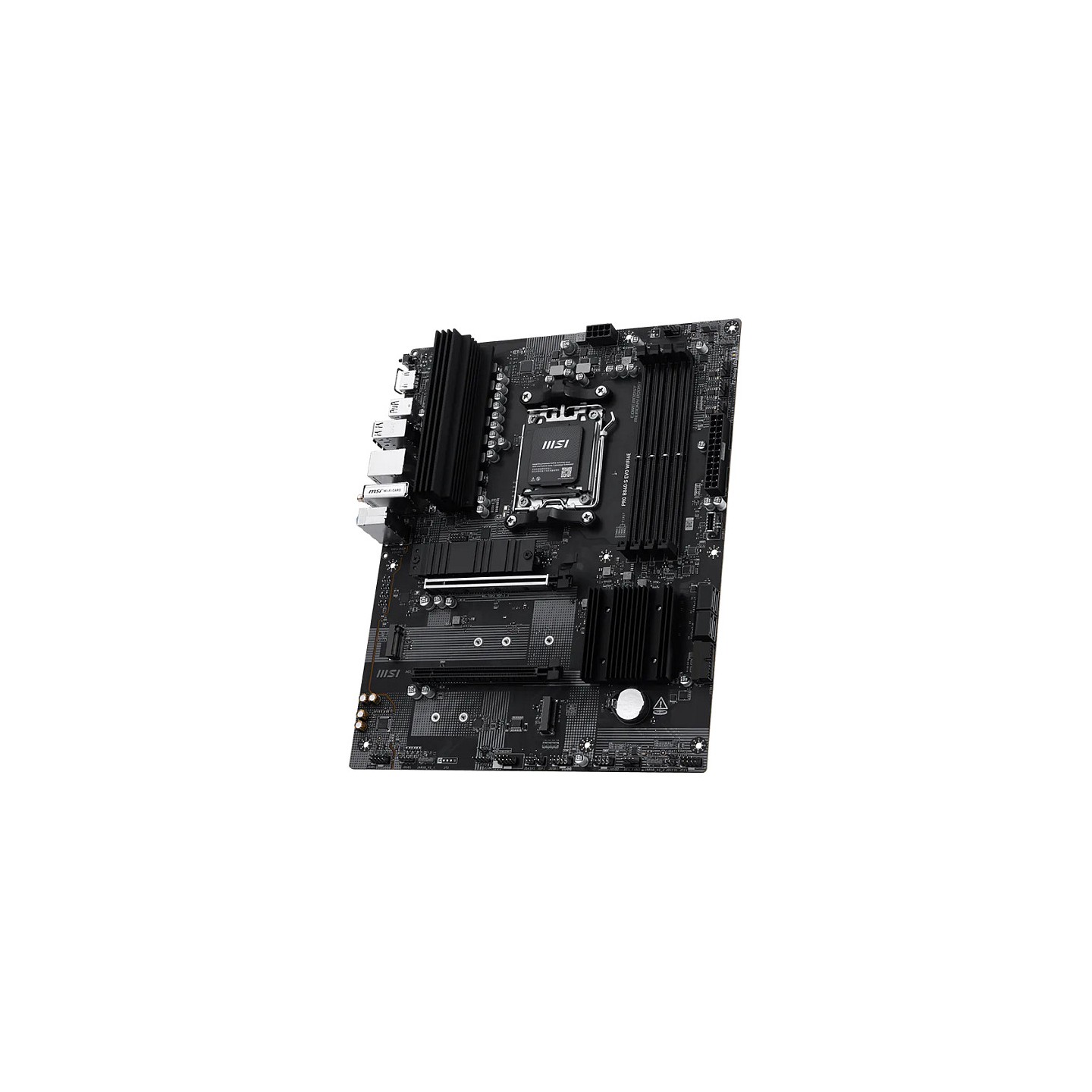

MSI PRO B840-S EVO WIFI6E (AM5)
MSI Pro B840-S EVO WIFI6E. AMD. Sockel AM5. AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Sockel AM5. DDR5-SDRAM. 256 GB
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
MSI Pro B840-S EVO WIFI6E. Prozessorhersteller: AMD. Prozessorsockel: Sockel AM5. Kompatible Prozessoren: AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series. Unterstützte Arbeitsspeicher: DDR5-SDRAM. RAM-Speicher maximal: 256 GB. Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2. Micro SATA III. Unterstützte Speicherlaufwerke: HDD & SSD. RAID Level: 0. 1. 10. Komponente für: PC. Motherboardformfaktor: ATX. Motherboard Chipsatz Familie: AMD. BIOS-Typ: UEFI AMI
| Prozessorhersteller | AMD |
| Prozessorsockel | Sockel AM5 |
| Kompatible Prozessoren | AMD Ryzen 7000 Series. AMD Ryzen 8000 Series. AMD Ryzen 9000 Series |
| Unterstützte Prozessorsteckplätze | Sockel AM5 |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Anzahl der Speichersteckplätze | 4 |
| Arbeitsspeicher Typ | DIMM |
| Speicherkanäle | Zweikanalig |
| ECC-Kompatibilität | Nicht-ECC |
| Unterstützte Arbeitsspeichergeschwindigkeit | 4800.5600.8000.6400 MHz |
| Unterstützte Speichertaktrate (max.) | 8000 MHz |
| RAM-Speicher maximal | 256 GB |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| Unterstützte Speicherlaufwerk-Schnittstellen | M.2. Micro SATA III |
| Maximale unterstützte Anzahl der HDD | 4 |
| Anzahl der unterstützten Speicherlaufwerke | 7 |
| Feature | RGB-LED-Stiftleiste |
| RAID Level | 0. 1. 10 |
| Parallele Verarbeitungstechnologie | Nicht unterstützt |
| Anzahl USB 2.0 Schnittstellen | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anschlüsse | 1 |
| SATA III Anschlüsse | 4 |
| Gesamtanzahl der SATA-Anschlüsse | 4 |
| Anzahl der CPU-Lüfteranschlüsse | 1 |
| Zahl der Chassisventilatorstecker | 5 |
| Anzahl der Wasserpumpenanschlüsse | 1 |
| Anzahl der RGB-LED-Stiftleisten | 3 |
| Anzahl USB 2.0 Anschlüsse | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ C | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.1 |
| Motherboard Chipsatz | AMD B840 |
| Audio-Chip | Realtek ALC897 |
| Audio Kanäle | 7.1 Kanäle |
| Produktfarbe | Schwarz |
| Komponente für | PC |
| Motherboardformfaktor | ATX |
| Motherboard Chipsatz Familie | AMD |
| Unterstützt Windows-Betriebssysteme | Windows 11 x64 |
| PCI-Express x16 (Gen 3.x)-Anschlüsse | 4 |
| PCI Express x16-Steckplätze (Gen 4.x) | 1 |
| Anzahl der M.2 (M)-Steckplätze | 2 |
| 1. M.2 größte Schlüsselgröße | 2280 |
| 1. M.2 höchste PCI Express-Generation | 4.0 |
| 2. M.2 größte Schlüsselgröße | 22110 |
| 2. M.2 höchste PCI Express-Generation | 4.0 |
| BIOS-Typ | UEFI AMI |
| ACPI-Version | 6.5 |
| Systemverwaltung BIOS (SMBIOS) Version | 3.7 |
| Breite | 243.8 mm |
| Tiefe | 304.8 mm |
