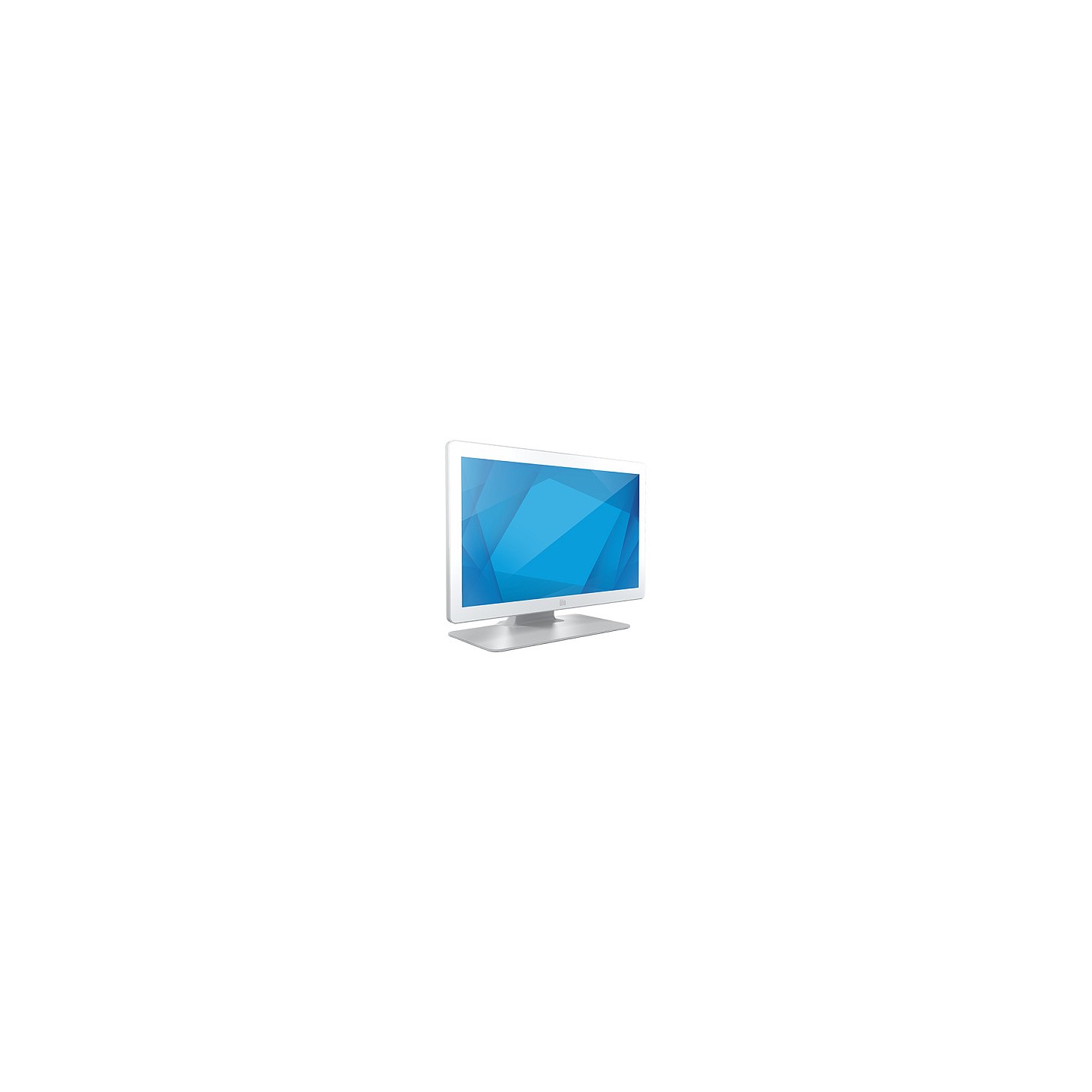

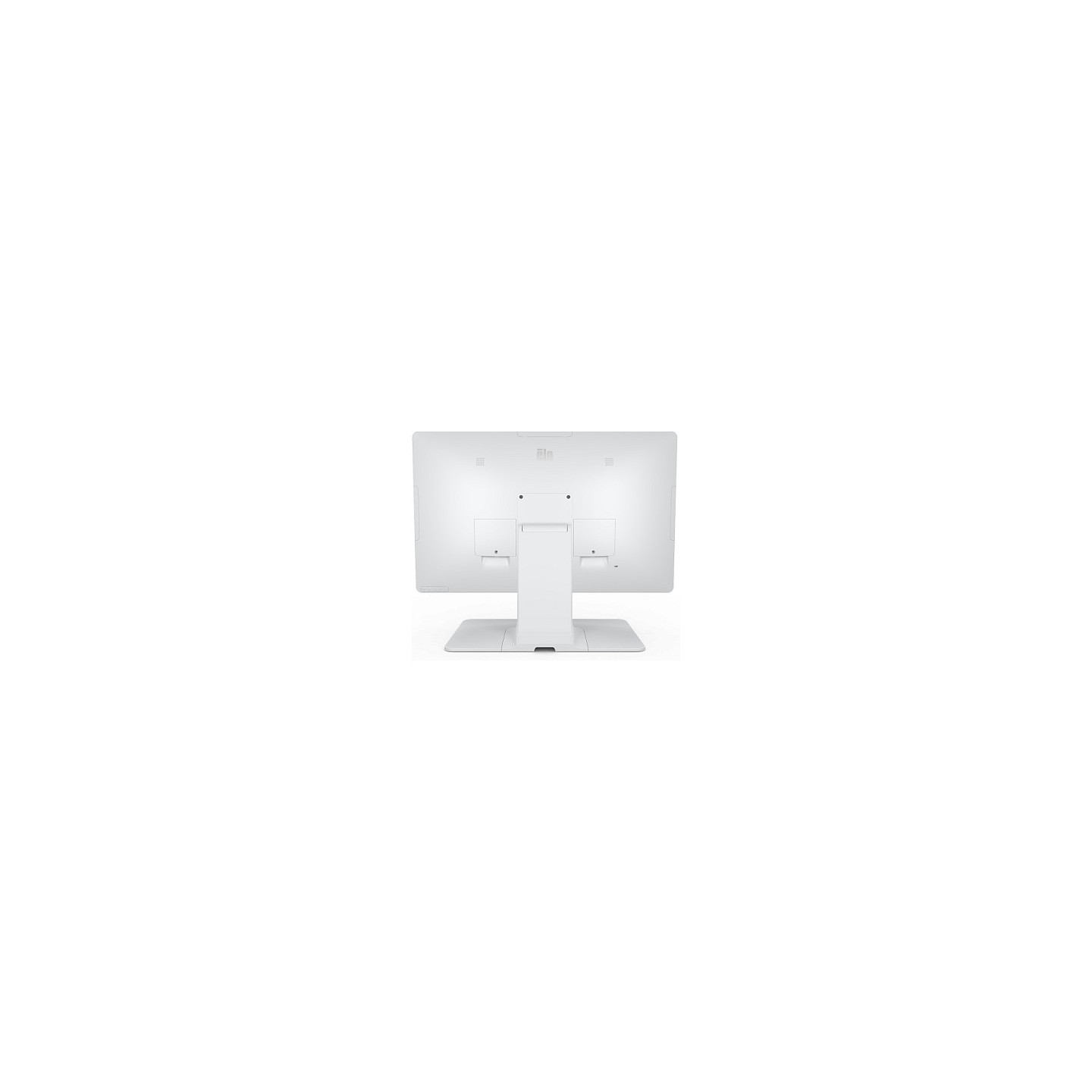

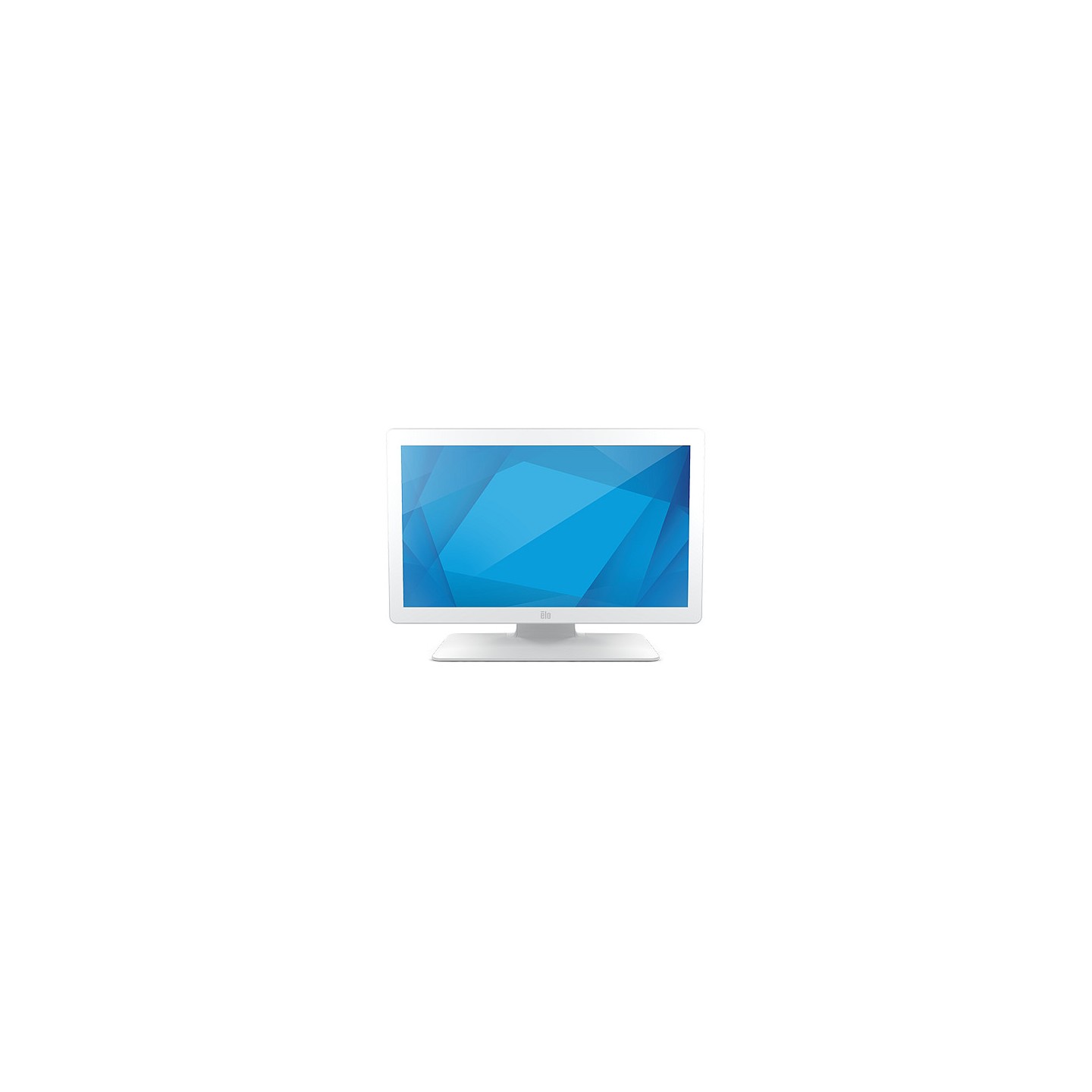

Elo Touch Solutions Elo 2203LM - Medical Grade - LCD-Monitor - 55.9 cm (22 in)
Elo Touch Solutions 2203LM. 54.6 cm (21.5"). LCD. 1920 x 1080 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Elo Touch Solutions 2203LM. Bildschirmdiagonale: 54.6 cm (21.5"). Bildschirmtechnologie: LCD. Display-Auflösung: 1920 x 1080 Pixel. Helligkeit: 225 cd/m². HD-Typ: Full HD. Touchscreen. Produktfarbe: Weiß
| Panel-Typ | TFT |
| Bildschirmdiagonale | 54.6 cm (21.5") |
| Bildschirmtechnologie | LCD |
| Display-Auflösung | 1920 x 1080 Pixel |
| Helligkeit | 225 cd/m² |
| HD-Typ | Full HD |
| Feature | Wandmontage |
| Touchscreen Technologie | Projizierts Kapazitivsystem |
| Anzahl der gleichzeitigen Touchpoints | 10 |
| Natives Seitenverhältnis | 16:9 |
| Reaktionszeit | 14 ms |
| Kontrastverhältnis | 1000:1 |
| Bildwinkel. horizontal | 178° |
| Bildwinkel. vertikal | 178° |
| Anzahl der Farben des Displays | 16.78 Millionen Farben |
| Bildschirmdiagonale (cm) | 54.61 cm |
| Anzahl HDMI-Anschlüsse | 1 |
| RMS-Leistung | 2 W |
| Produktfarbe | Weiß |
| Bildschirmform | Flach |
| Anzahl OSD-Sprachen | 8 |
| Menüsprachen | Vereinfachtes Chinesisch. Traditionelles Chinesisch. Deutsch. Englisch. Spanisch. Französisch. Italienisch. Japanisch |
| Internationale Schutzart (IP-Code) | IP54 |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Stromverbrauch (Standardbetrieb) | 14.4 W |
| Stromverbrauch (Standby) | 0.78 W |
| Stromverbrauch (aus) | 0.36 W |
| Stromverbrauch (max.) | 16 W |

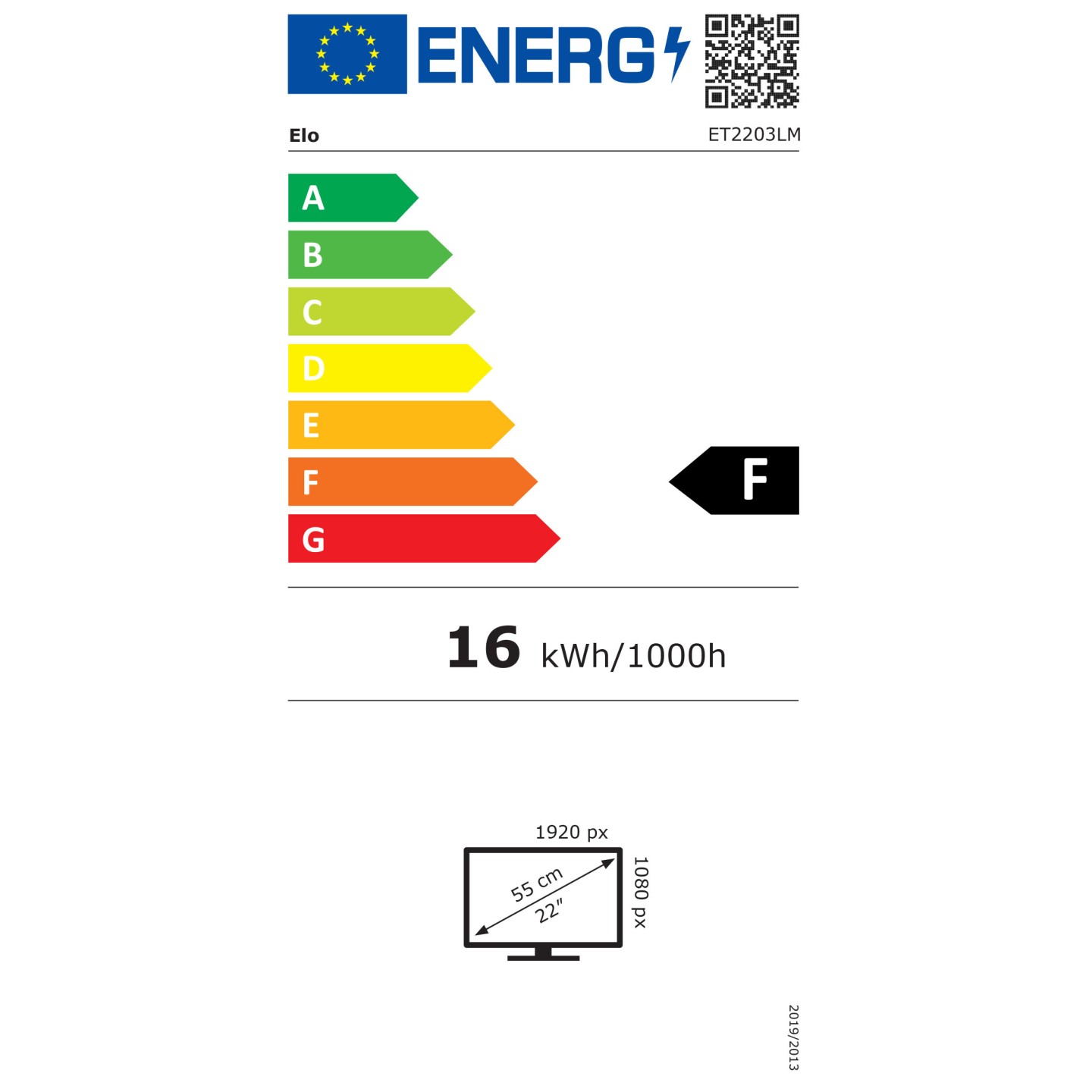

| Energieeffizienzklasse (SDR) | F |
| Energieverbrauch (SDR) pro 1.000 Stunden | 16 kWh |
| Energieeffizienzskala | A bis G |
| Gerätebreite (inkl. Standfuß) | 526.9 mm |
| Gerätetiefe (inkl. Standfuß) | 193.4 mm |
| Gerätehöhe (inkl. Standfuß) | 383.8 mm |
| Gewicht (inklusive Standfuß) | 6.75 kg |
| Verpackungsbreite | 617 mm |
| Verpackungstiefe | 260 mm |
| Verpackungshöhe | 477 mm |
| Paketgewicht | 10.8 kg |
| Mitgelieferte Kabel | HDMI. USB. VGA |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Konformitätsbescheinigungen | RoHS |
| Maximale Bildwiederholrate | 70 Hz |
| Digital horizontale Frequenz | 30 - 82 kHz |
| Digital vertikale Frequenz | 50 - 75 Hz |
| LED-Anzeigen | Leistung |
| Sichtbare Größe (horizontal) | 47.6 cm |
| Sichtbare Größe (vertikal) | 26.8 cm |
| Display. sichtbarer Bereich BxH | 476.06 x 267.79 mm |
| Gewicht (ohne Standfuß) | 4.75 kg |
| Netzteiltyp | Gleichstrom |
