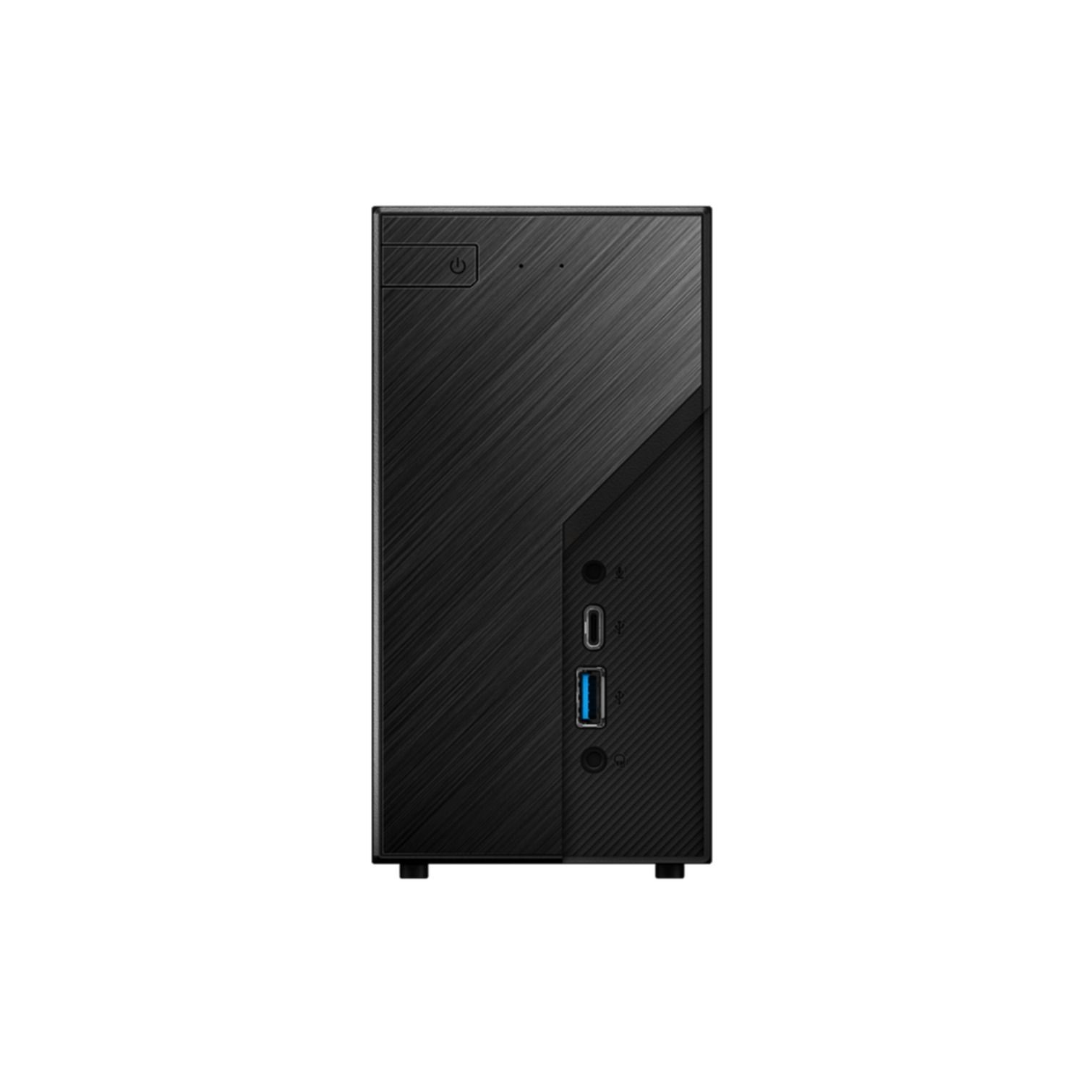

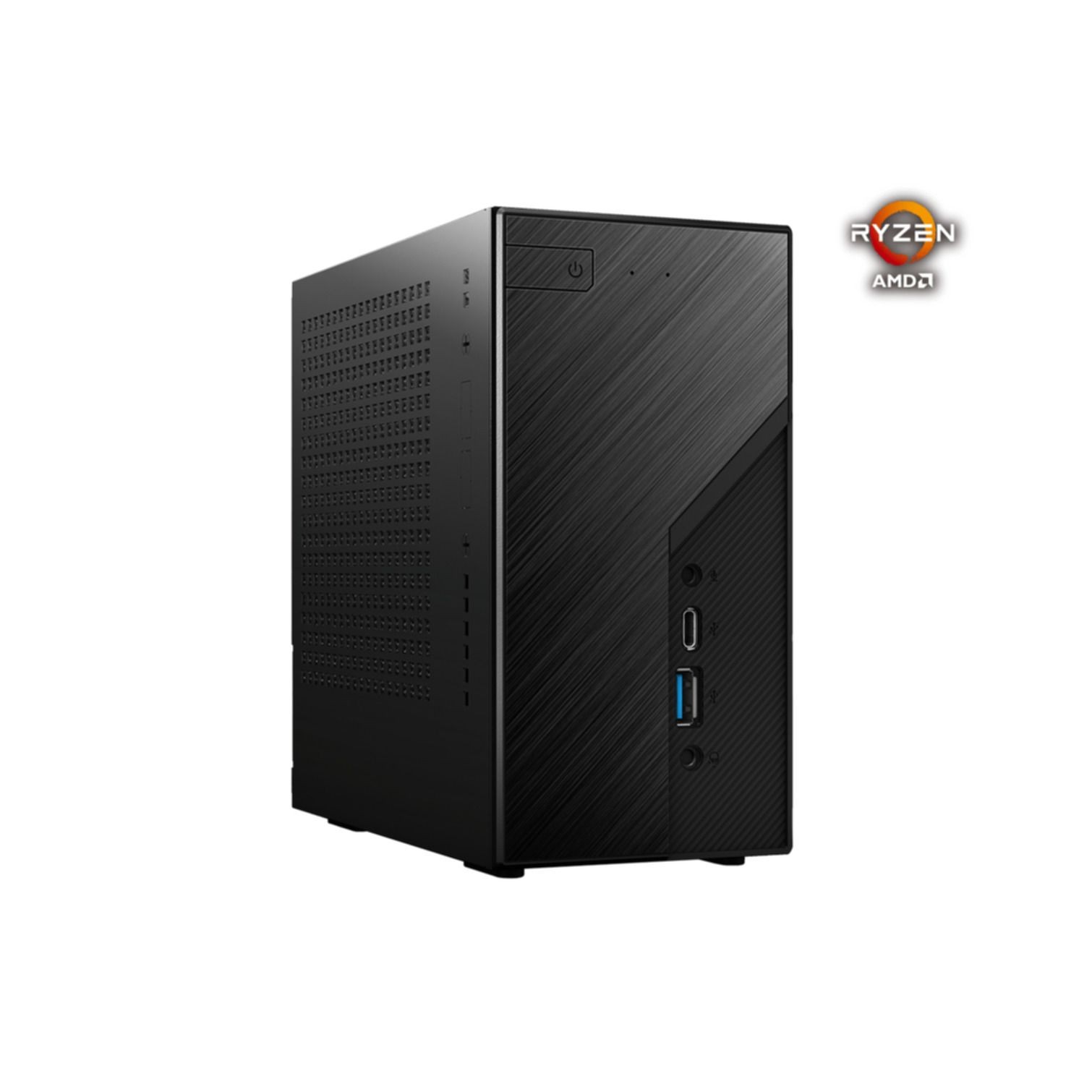

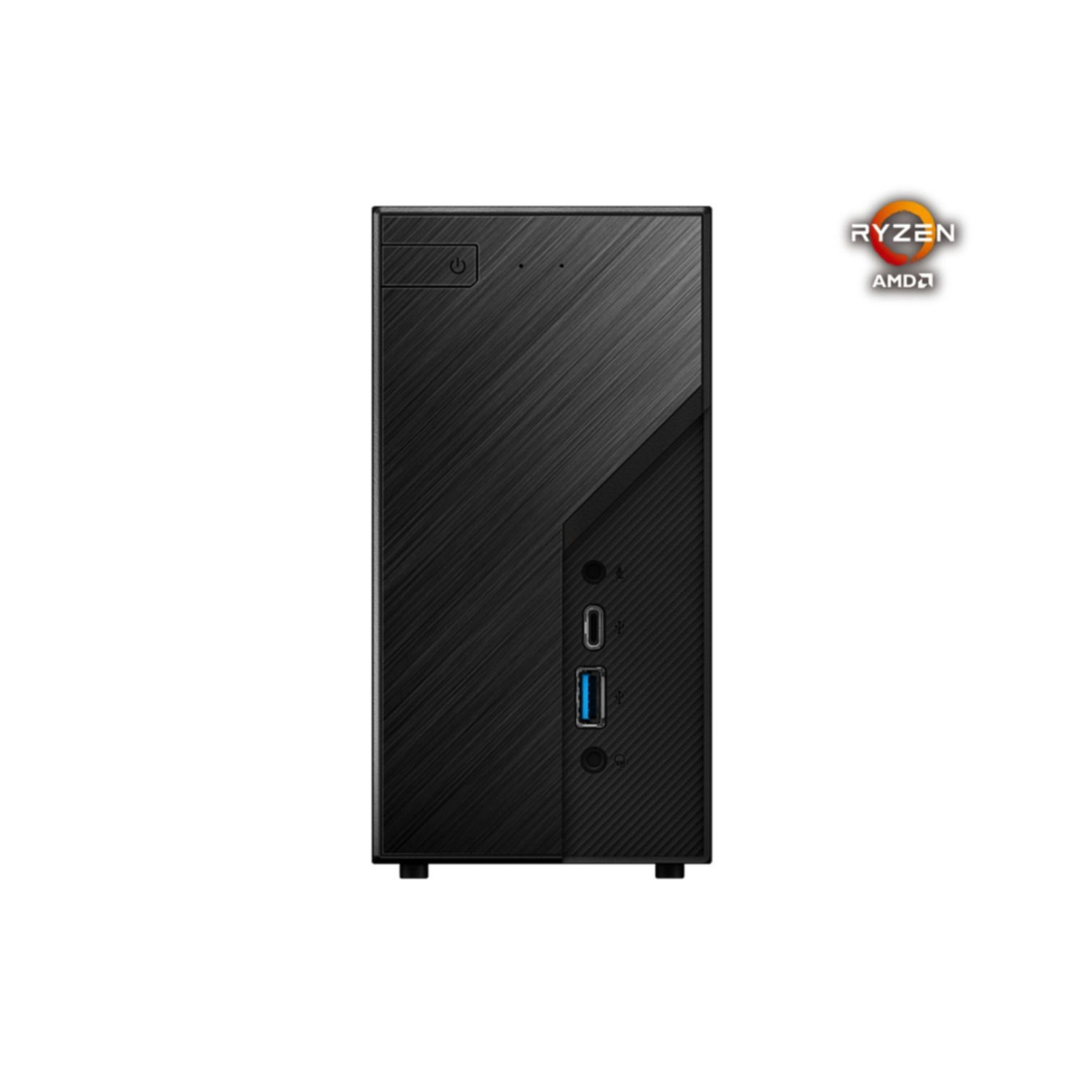

ASRock DeskMini X300 - Barebone Mini PC - Black, Socket AM4, DDR4 SO-DIMM up to 64GB
Compact ASRock DeskMini X300 barebone (Socket AM4). Supports DDR4 SO-DIMM x2 up to 64GB, 2.5" + M.2 storage, 1×GbE, HDMI/DP/VGA, external 120W adapter. No CPU/OS included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Barebone Kit (No RAM/SSD) |
|---|---|
| Barebone & Mini PCs - Memory Type | DDR4 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Storage Support | 2.5inch SATA |
| Barebone & Mini PCs - Ethernet | 1GbE |
| Barebone & Mini PCs - OS | No OS |
Small APU Form Factor
AMD AM4 Socket CPU
Support Renoir, Picasso, Raven Ridge, up to 65W
Support MAX Height ≦46mm CPU Cooler
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-3200+MHz (OC) memory, up to 64GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 –offers superior I/O performance
RAID 1 –protects critical data in mirrored data
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure system stable in loading.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
| Built-in processor | No |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2933, 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | 2.5, M.2 |
| RAID levels | 0, 1 |
| On-board graphics card | No |
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Realtek RTL8111H |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |

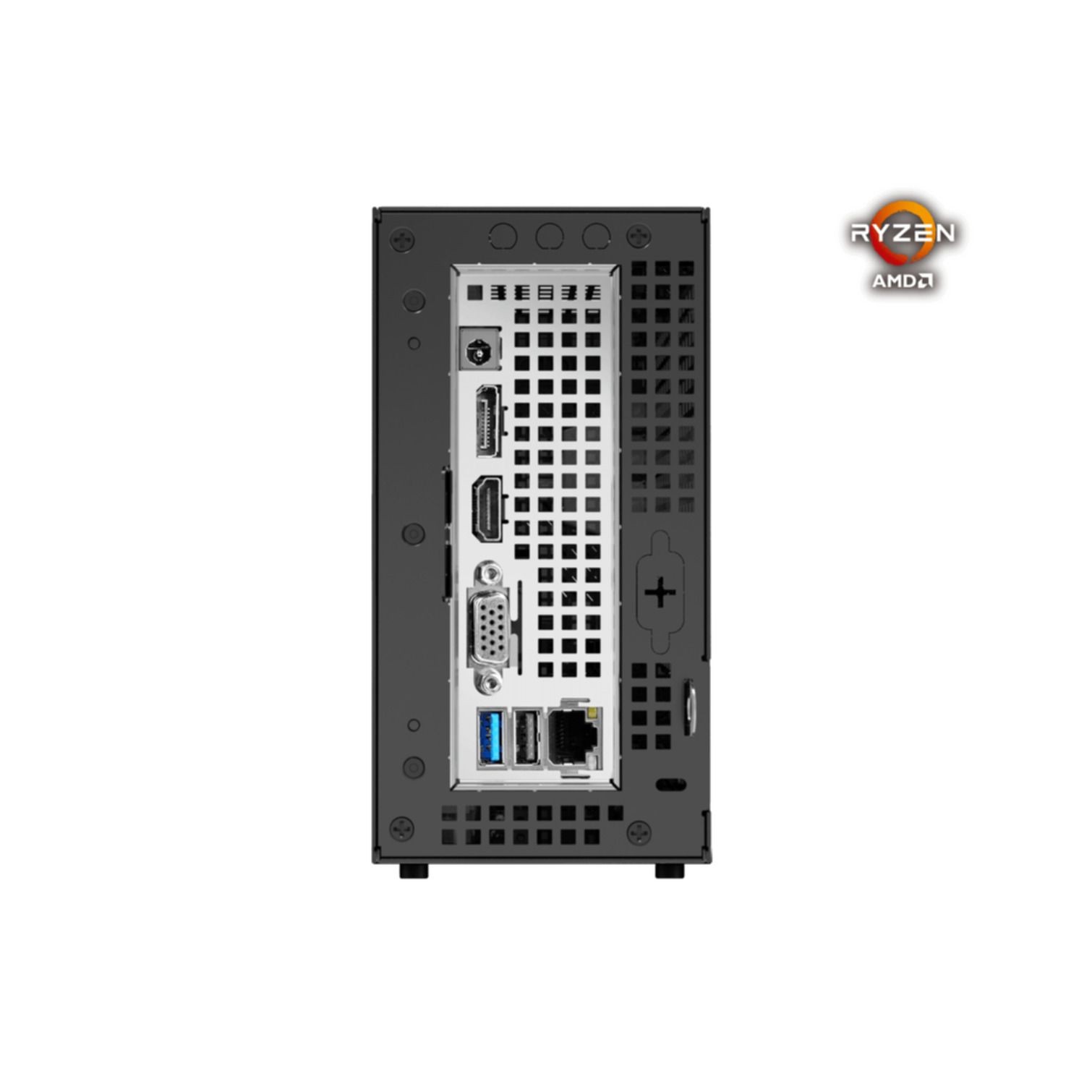

| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Number of M.2 (M) slots | 2 |
| Chassis type | 1.92L sized PC |
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | Yes |
| Product type | Mini PC barebone |
| Motherboard chipset | AMD X300 |
| Processor socket | Socket AM4 |
| Number of processors supported | 1 |
| Compatible processor series | AMD Athlon, AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7 |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Power supply | 120 W |
| AC adapter output voltage | 19 V |
| Width | 80 mm |
| Depth | 155 mm |
| Height | 155 mm |
