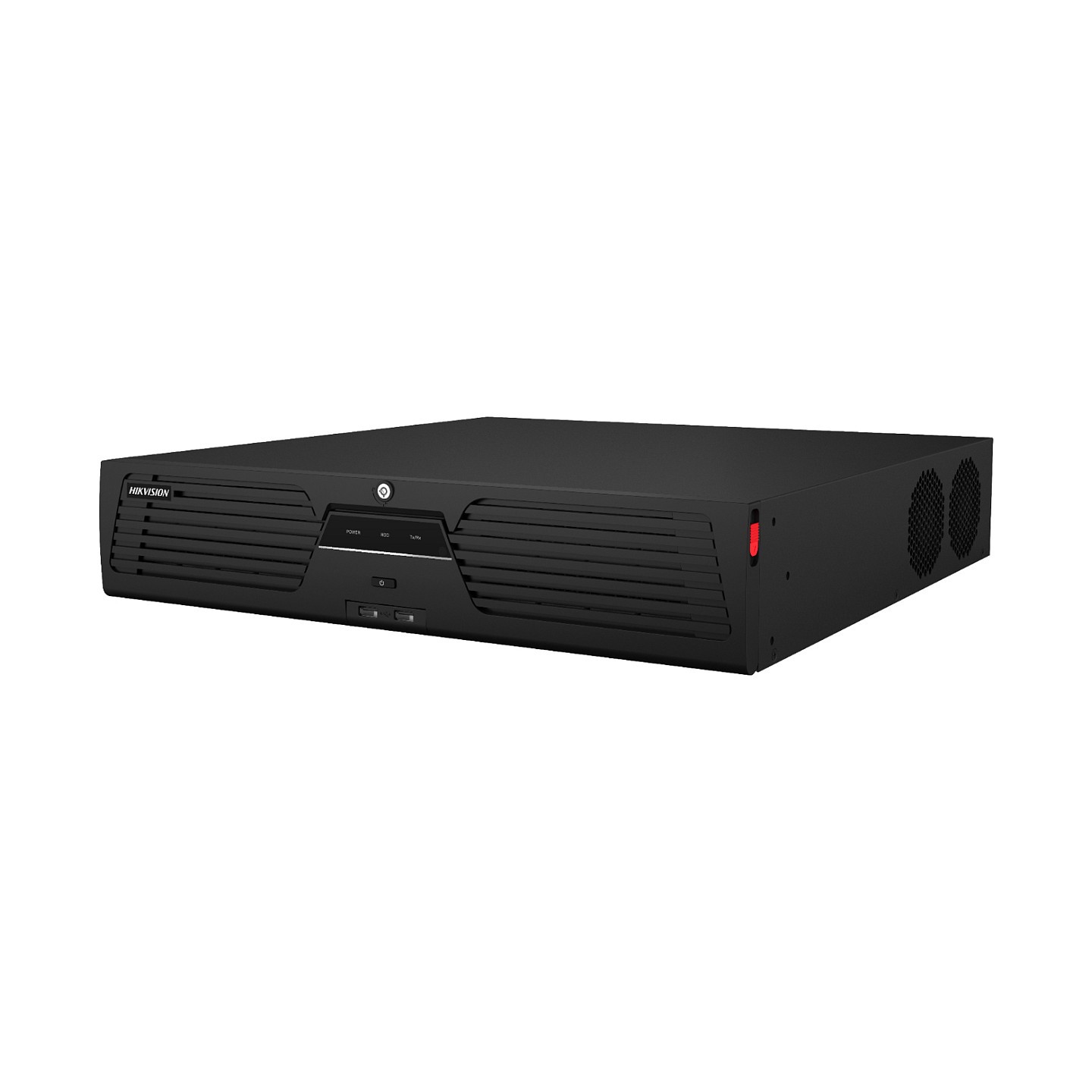

HIK DS-9632NI-M8 32-ch 2U 8K NVR
Hikvision DS-9632NI-M8. 32 Kanäle. 7680 x 4320 Pixel. 16 Kanäle. 8K (7680 × 4320)/30Hz. 4K (3840 × 2160)/60Hz. 4K (3840 × 2160)/30Hz. 2K (2560 × 1440)/60Hz..... H.265+/H.265/H.264+/H.264. G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision DS-9632NI-M8. Video-Eingangskanäle: 32 Kanäle. Maximale Auflösung: 7680 x 4320 Pixel. Anzahl der gleichzeitig abgespielten Kanäle: 16 Kanäle. Max. Speicherkapazität: 14 TB. HDD Schnittstelle: SATA. eSATA. RAID Level: 0. 1. 5. 6. 10. Ethernet LAN Datentransferraten: 10.100.1000 Mbit/s. Audioausgang: 2-way. Unterstützte Netzwerkprotokolle: TCP/IP. DHCP. IPv4. IPv6. DNS. DDNS. NTP. RTSP. SADP. SMTP. SNMP. NFS. iSCSI. ISUP. UPnP™. HTTP..... Rack-Kapazität: 2U. Markenkompatibilität: Hikvision Digital Technology. Produktfarbe: Schwarz. Stromverbrauch (Standardbetrieb): 50 W. AC Eingangsspannung: 100 - 240 V. AC Eingangsfrequenz: 50 - 60 Hz
| Video-Eingangskanäle | 32 Kanäle |
| Alarm-Eingangskanäle | 16 |
| Alarm-Ausgangskanäle | 9 |
| Anzahl der gleichzeitig abgespielten Kanäle | 16 Kanäle |
| Maximale Auflösung | 7680 x 4320 Pixel |
| Video-Codec | H.265+/H.265/H.264+/H.264 |
| Audio-Codec | G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Eingangsbandbreite | 320 Mbit/s |
| Ausgangsbandbreite | 400 Mbit/s |
| Max. Speicherkapazität | 14 TB |
| HDD Schnittstelle | SATA. eSATA |
| Feature | Rack-Einbau |
| RAID Level | 0. 1. 5. 6. 10 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Ethernet LAN Datentransferraten | 10.100.1000 Mbit/s |
| Anzahl HDMI-Anschlüsse | 2 |
| VGA (D-Sub)-Ausgangsanschlüsse | 2 |
| Anzahl USB 2.0 Anschlüsse | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| Audio-RCA-Ausgänge | 2 |
| Anzahl eSATA-Anschlüsse | 1 |
| Menge der internen SATA-Anschlüsse | 8 |
| RS-485-Anschlüsse | 1 |
| Audioausgang | 2-way |
| Unterstützte Netzwerkprotokolle | TCP/IP. DHCP. IPv4. IPv6. DNS. DDNS. NTP. RTSP. SADP. SMTP. SNMP. NFS. iSCSI. ISUP. UPnP™. HTTP. HTTPS |
| Rack-Kapazität | 2U |
| Markenkompatibilität | Hikvision Digital Technology |
| Produktfarbe | Schwarz |
| Zertifizierung | CE. FCCPart 15 Subpart B. ANSI C63.4-2014EN 55032:2015. EN 61000-3-2. EN 61000-3-3. EN 50130-4 |
| Stromverbrauch (Standardbetrieb) | 50 W |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Betriebstemperatur | -10 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 445 mm |
| Tiefe | 465 mm |
| Höhe | 92 mm |
| Gewicht | 10 kg |
