ASUS NUC 15 Pro RNUC15CRHU500002 Core Ultra 5 225H Arc 130T Barebone (Boxed)
Compact AI-ready barebone mini PC with Intel Core Ultra 5 225H (14-core, 4.9GHz), Intel Arc 130T graphics, Wi-Fi 7, dual HDMI 2.1, 2x Thunderbolt 4. Supports up to 96GB DDR5-6400. No OS or storage included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Barebone Kit (No RAM/Storage) |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 5 |
| Barebone & Mini PC - Graphics Chipset | Intel Arc Graphics |
| Barebone & Mini PC - Operating System | No OS |
| Barebone & Mini PC - Installed Storage | None (Barebone) |
| Barebone & Mini PC - Installed Memory (RAM) | None (Barebone) |
AI-Enabled Mini PC Powered by Intel® Core™ Ultra Processors (Series 2). Designed as the best compact choice for the AI-driven future.
Experience the future of computing with ASUS NUC 15 Pro – a sleek mini PC perfect for office, edge computing, and AI workloads. Powered by the Intel® Core™ Ultra 5 225H (14 cores: 4P+8E+2LP-E, up to 4.9GHz) with integrated Intel Arc 130T graphics, DDR5-6400 memory support up to 96GB, and Intel® Wi-Fi 7. It delivers unmatched speed, efficiency, and up to 99 TOPS AI performance in a scratch-resistant matte black chassis measuring just 117x112x54mm.

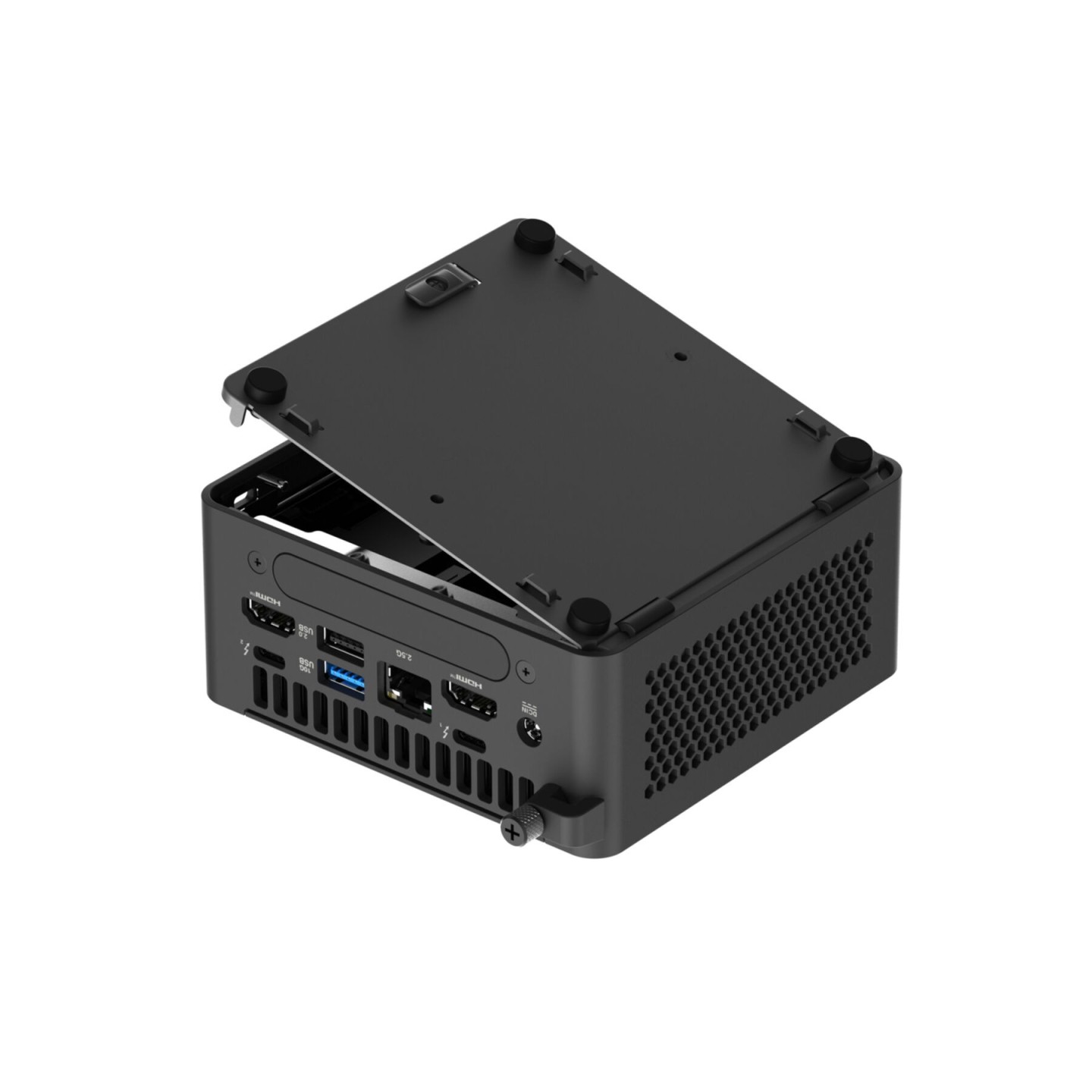

Featuring superior connectivity with dual HDMI 2.1 (supporting four 4K displays), 2x Thunderbolt™ 4, USB 3.2 ports, and 2.5GbE LAN. Tool-less design allows easy upgrades: 2x SO-DIMM DDR5 slots, 1x M.2 2280 PCIe Gen4x4 NVMe SSD slot. Reliable with MIL-STD-810H testing and 24/7 operation capability.
- AI-optimized for model training and data visualization
- Wi-Fi 7 with 2.4x faster speeds and Bluetooth 5.4
- 120W adapter, eco-friendly packaging
- 3-year warranty (per sources)
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 5 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 225H |
| Processor cores | 14 |
| Processor threads | 14 |
| Processor boost frequency | 4.9 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.9 GHz |
| Efficient-core Max Turbo Frequency | 4.3 GHz |
| Performance-core base frequency | 1.7 GHz |
| Efficient-core base frequency | 1.3 GHz |
| Processor cache | 18 MB |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 6400 MHz |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 2280 |
| Storage drive interface | PCIe Gen4x4 |
| NVMe | Yes |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc 130T |
| Built-in speaker(s) | No |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Product colour | Black |
| On/off switch | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product type | Mini PC barebone |
| Operating system installed | No |
| Power supply | 120 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
| Weight | 600 g |
