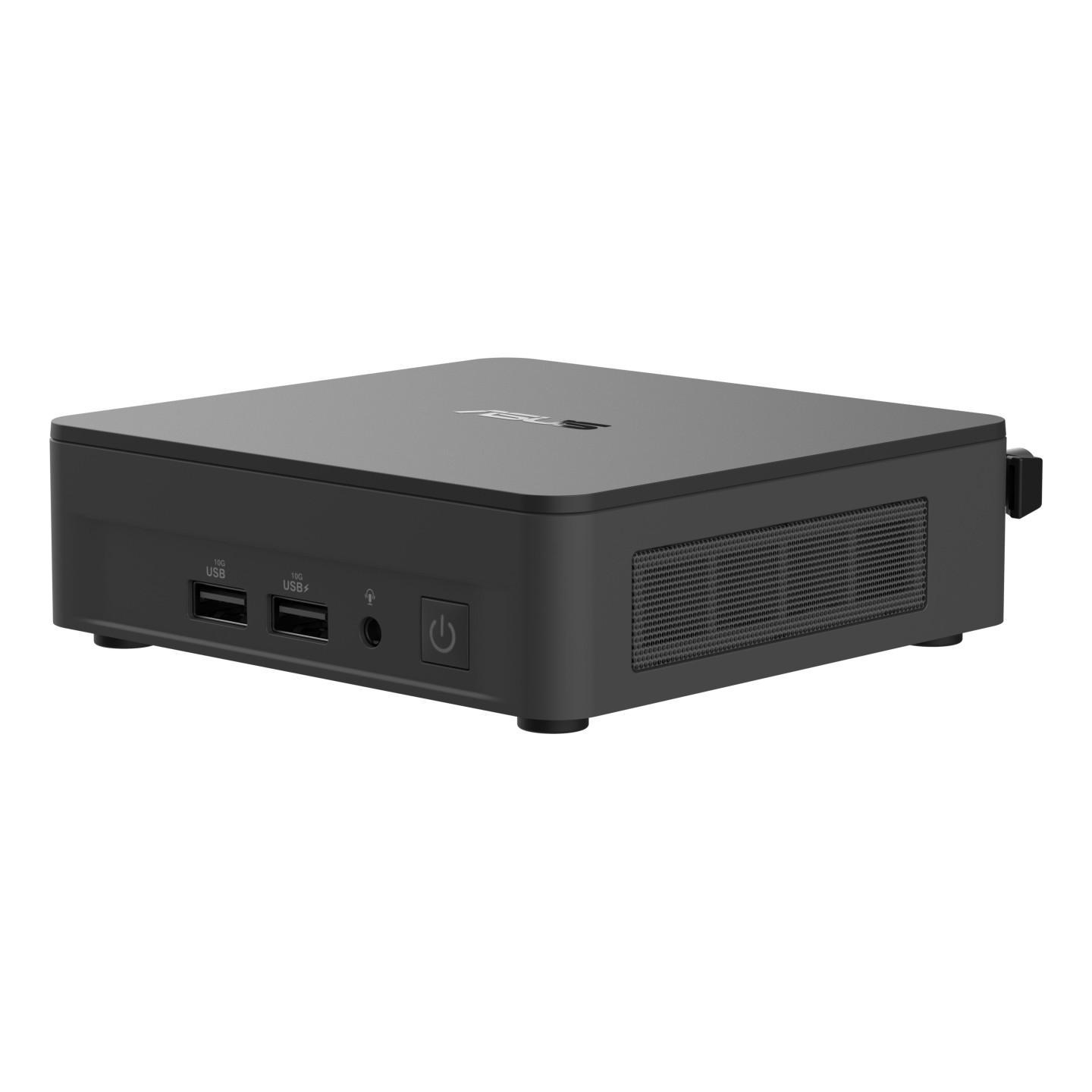

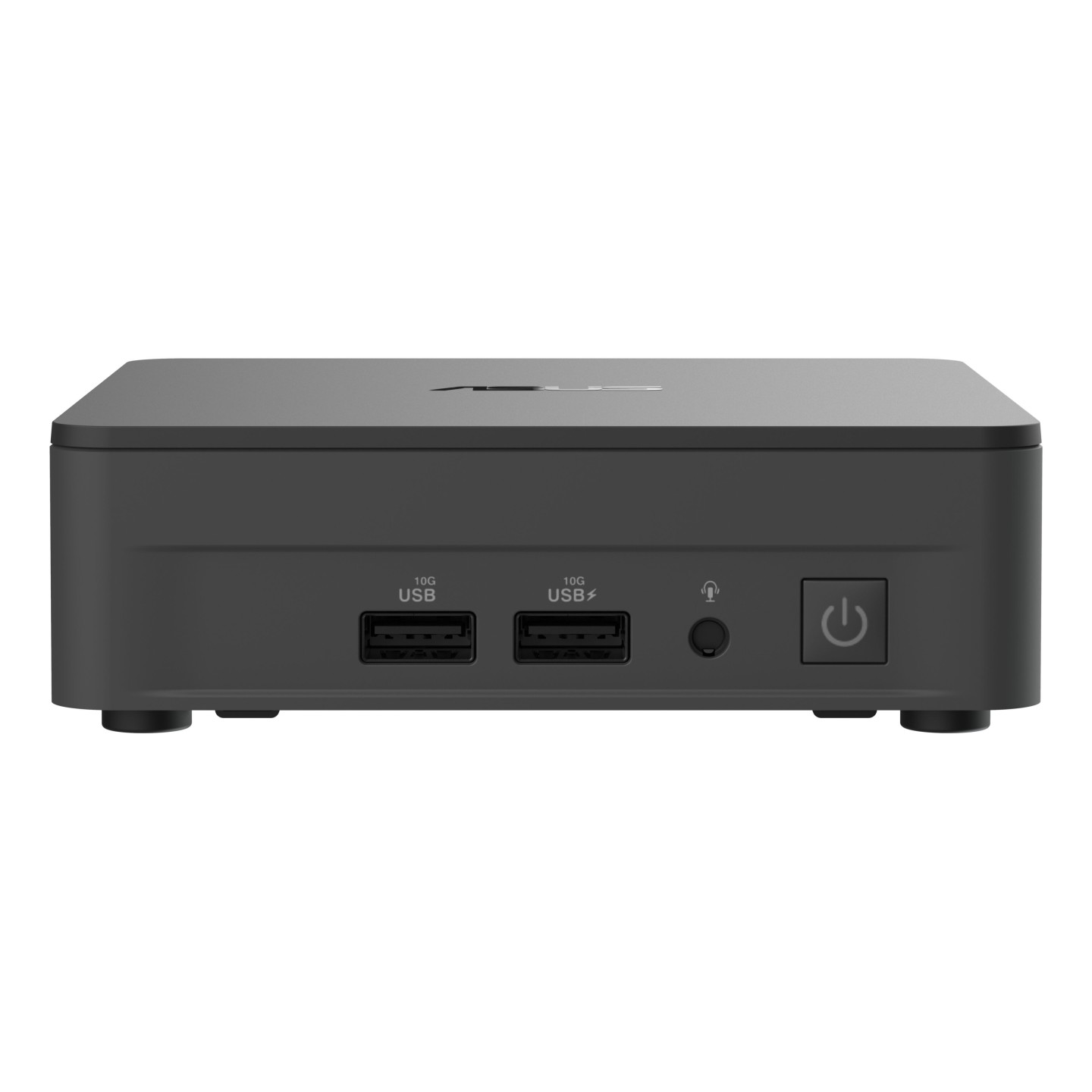

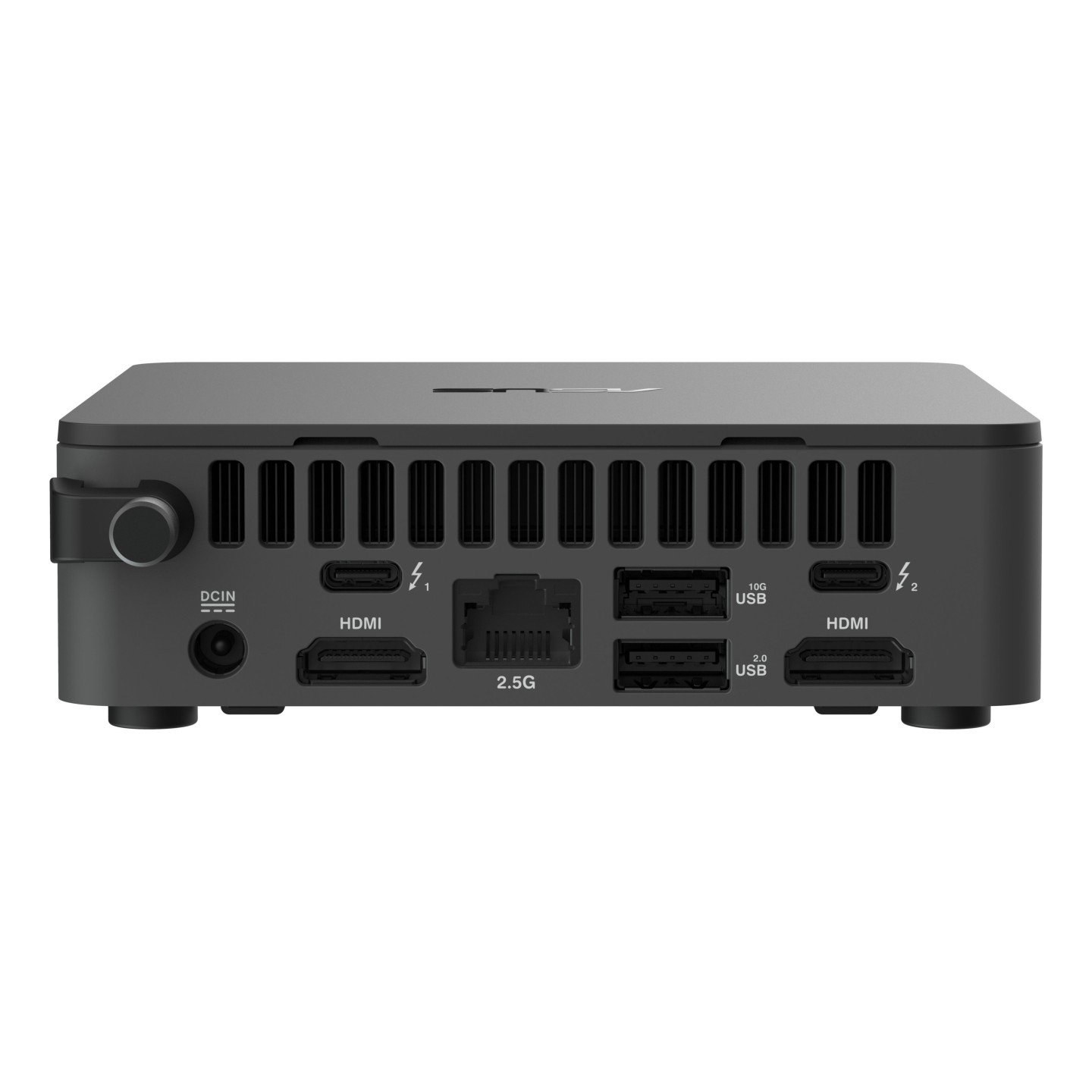

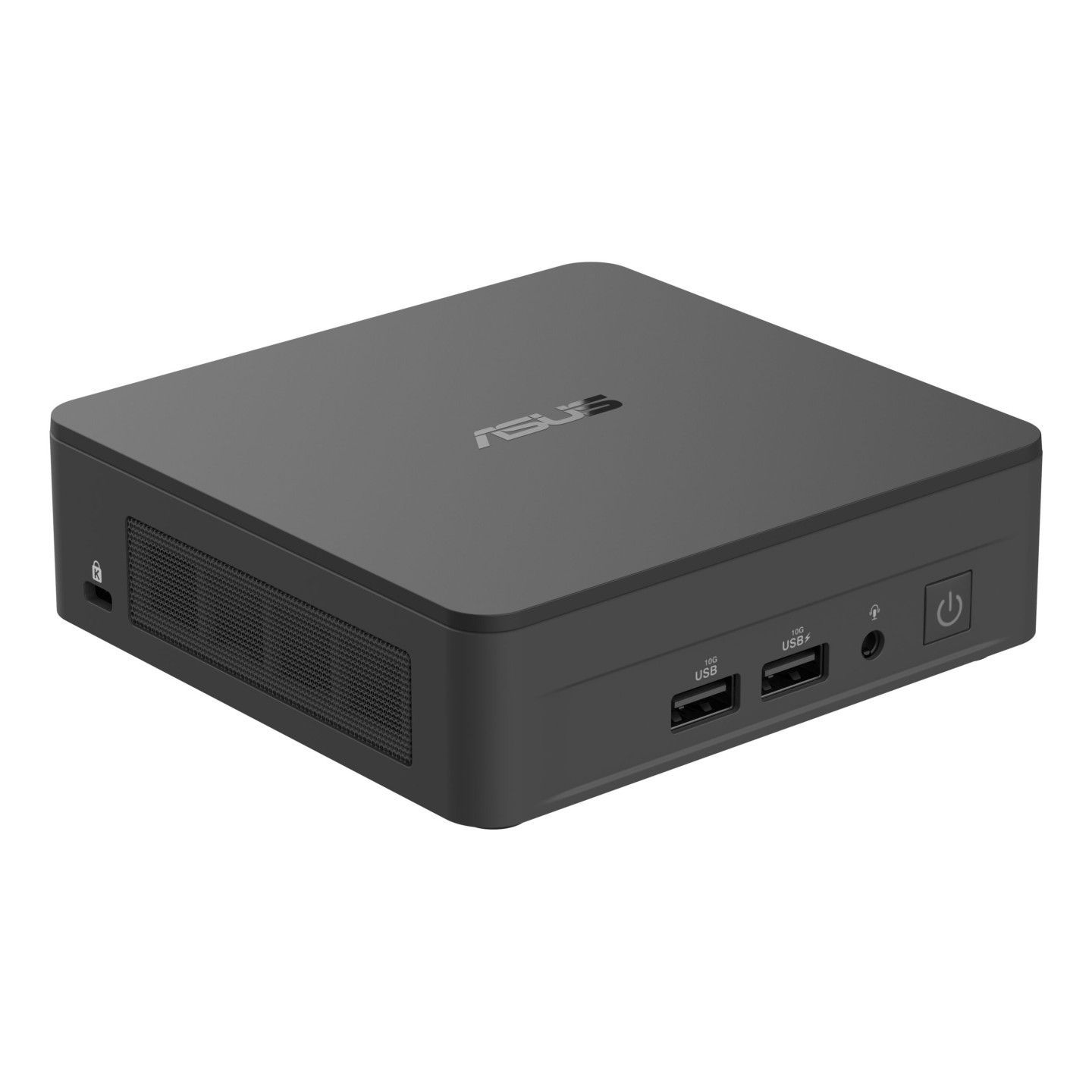

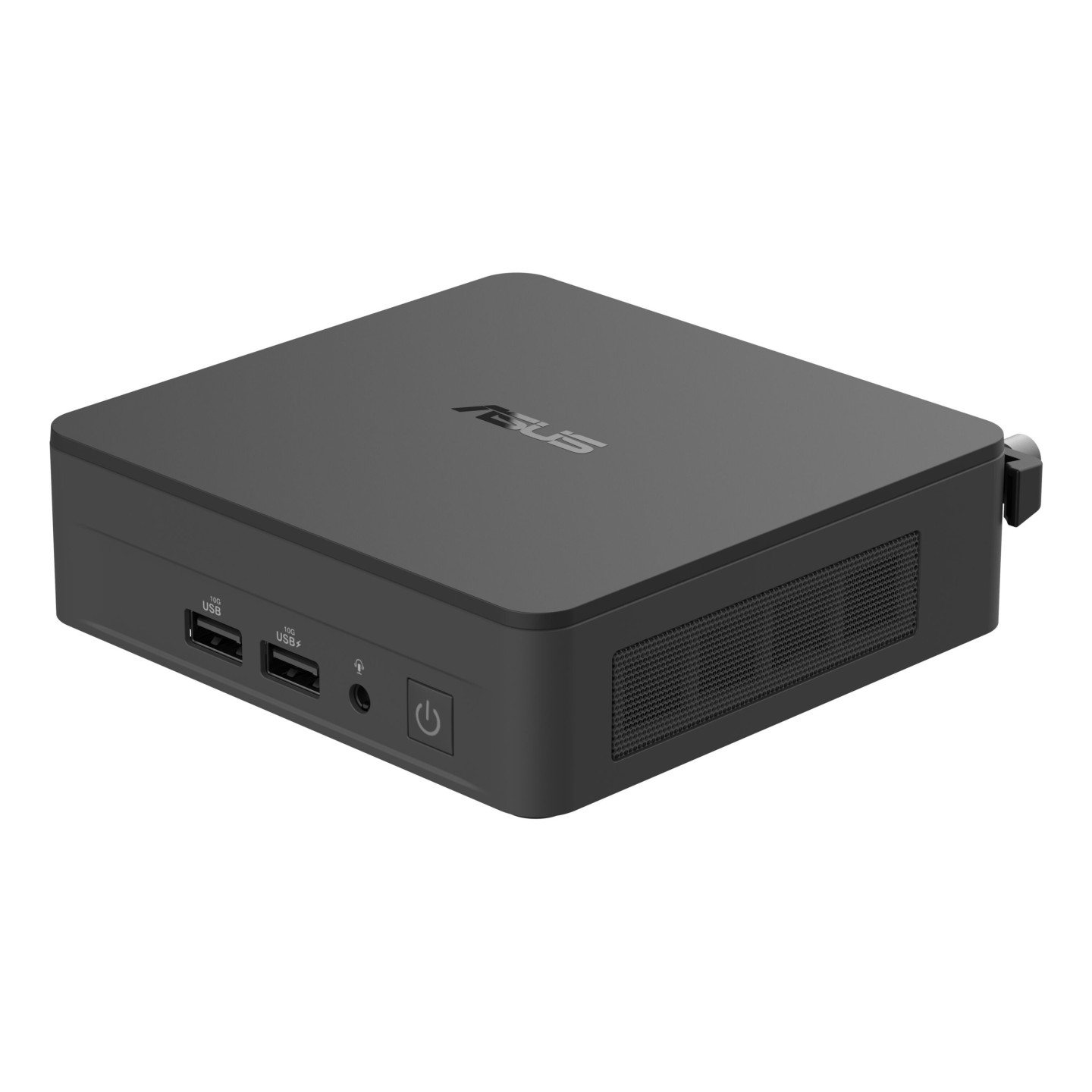

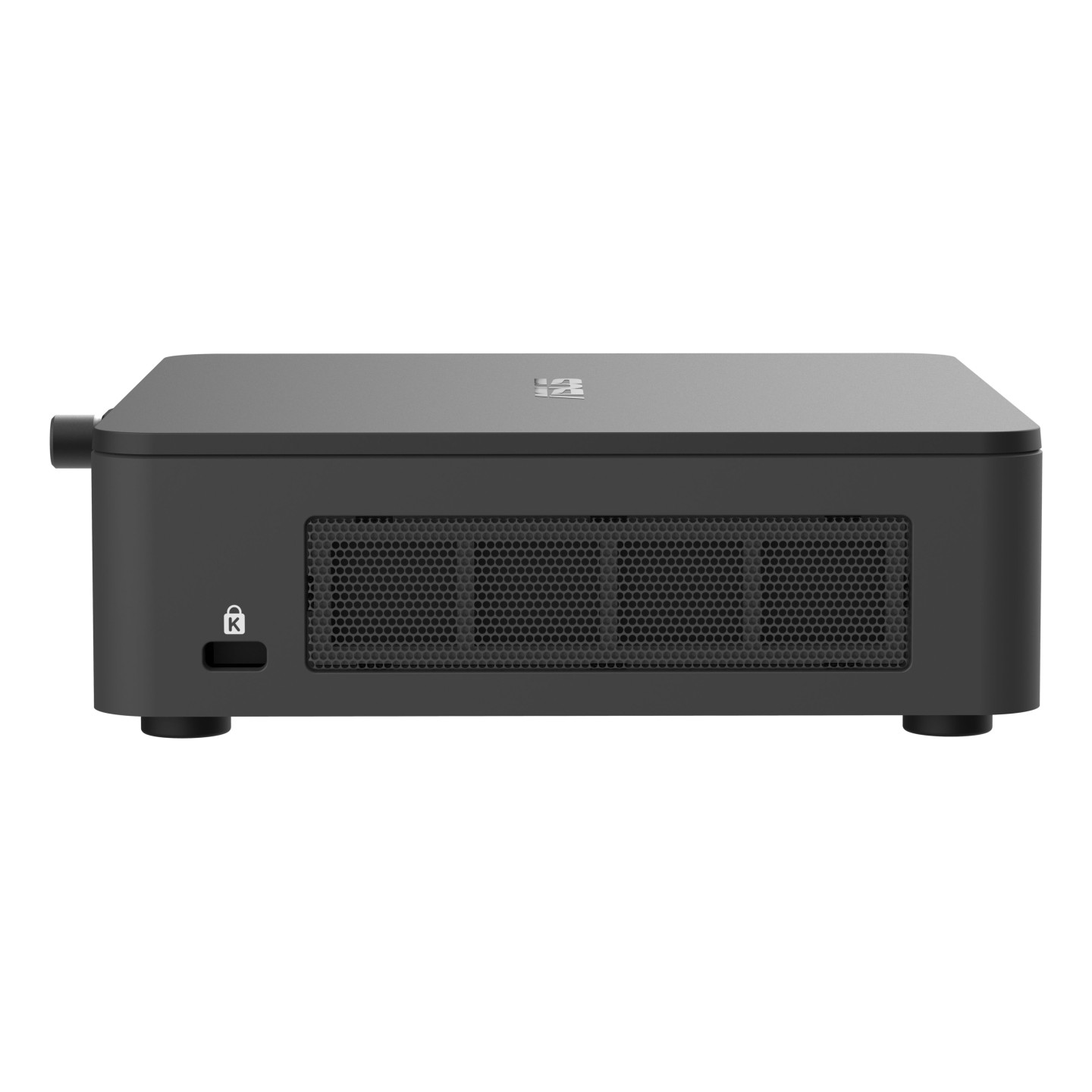

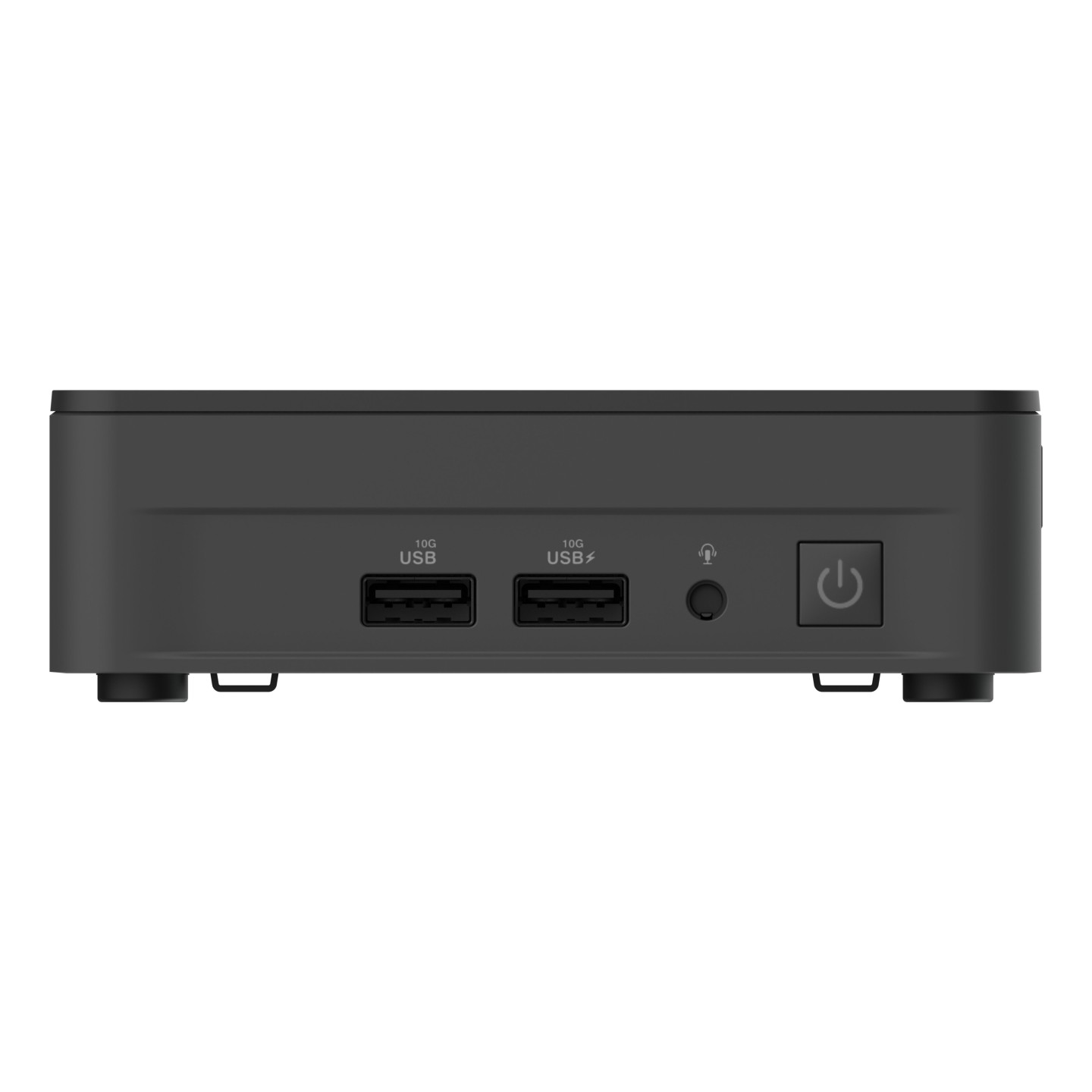

ASUS NUC 13 Pro RNUC13ANKI500002I i5-1340P Slim Mini PC Arena Canyon (Boxed)
Compact ASUS NUC 13 Pro mini PC with Intel Core i5-1340P (12 cores/16 threads, up to 4.6GHz), Iris Xe graphics. Slim Arena Canyon barebone for business/home office, supports 64GB DDR4, Wi-Fi 6E, Thunderbolt 4. AI-ready.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Barebone Kit (No RAM/Storage) |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core i5 |
| Barebone & Mini PC - Graphics Chipset | Intel Iris Xe Graphics |
| Barebone & Mini PC - Operating System | No OS |
| Barebone & Mini PC - Installed Storage | None (Barebone) |
| Barebone & Mini PC - Installed Memory (RAM) | None (Barebone) |
Smaller, Faster, AI-Ready Mini PC
The ASUS NUC 13 Pro (Arena Canyon) delivers uncompromised performance in an ultra-compact UCFF chassis. Powered by 13th Gen Intel Core i5-1340P with 4 performance cores (up to 4.6 GHz) and 8 efficient cores, it handles business tasks, home office productivity, and light AI workloads efficiently. Partnership between ASUS and Intel ensures reliability, modular design, and smart cooling.
Featuring Intel Iris Xe Graphics, Wi-Fi 6E AX211, Bluetooth 5.3, dual Thunderbolt 4, HDMI 2.1, and 120W external adapter. Expandable to 64GB DDR4-3200 and dual M.2 NVMe SSDs. VESA mountable, black finish, dimensions 117x112x37mm, weight 510g.
- Processor: Intel Core i5-1340P, 12 cores/16 threads, 12MB cache
- Memory: 2x SO-DIMM DDR4 up to 64GB
- Storage: 2x M.2 NVMe SSD
- Connectivity: Wi-Fi 6E, BT 5.3, 2x TB4, 2x HDMI 2.1
- Form: Slim barebone, active cooling, VESA support
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 13th gen Intel® Core™ i5 |
| Processor model | i5-1340P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 4.6 GHz |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.6 GHz |
| Efficient-core Max Turbo Frequency | 3.4 GHz |
| Processor cache | 12 MB |
| Processor cache type | Smart Cache |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2400, 2666, 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Bluetooth version | 5.3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| VESA mounting | Yes |
| Product type | Mini PC barebone |
| Motherboard form factor | UCFF |
| Power supply | 120 W |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 36.8 mm |
| Weight | 510 g |
