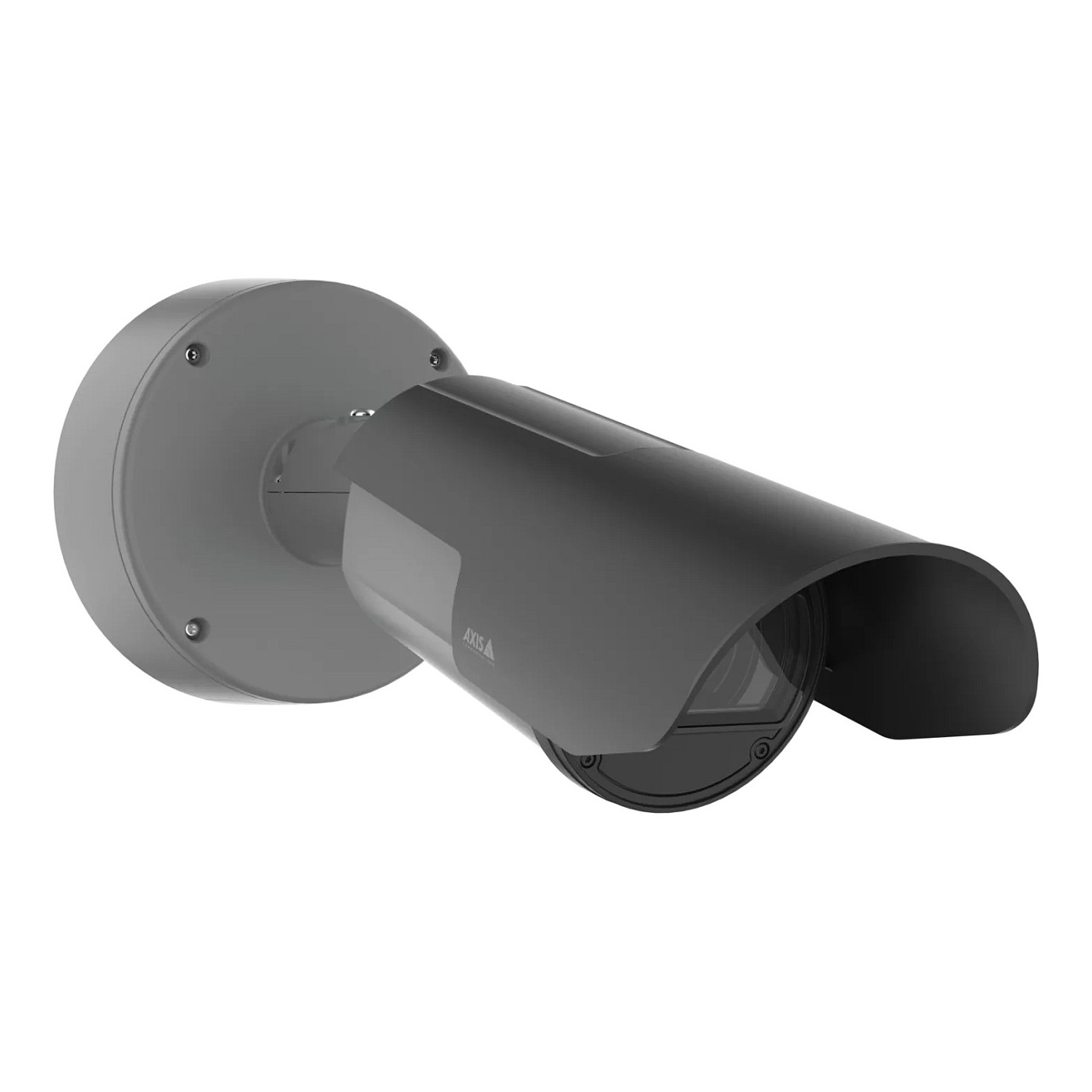

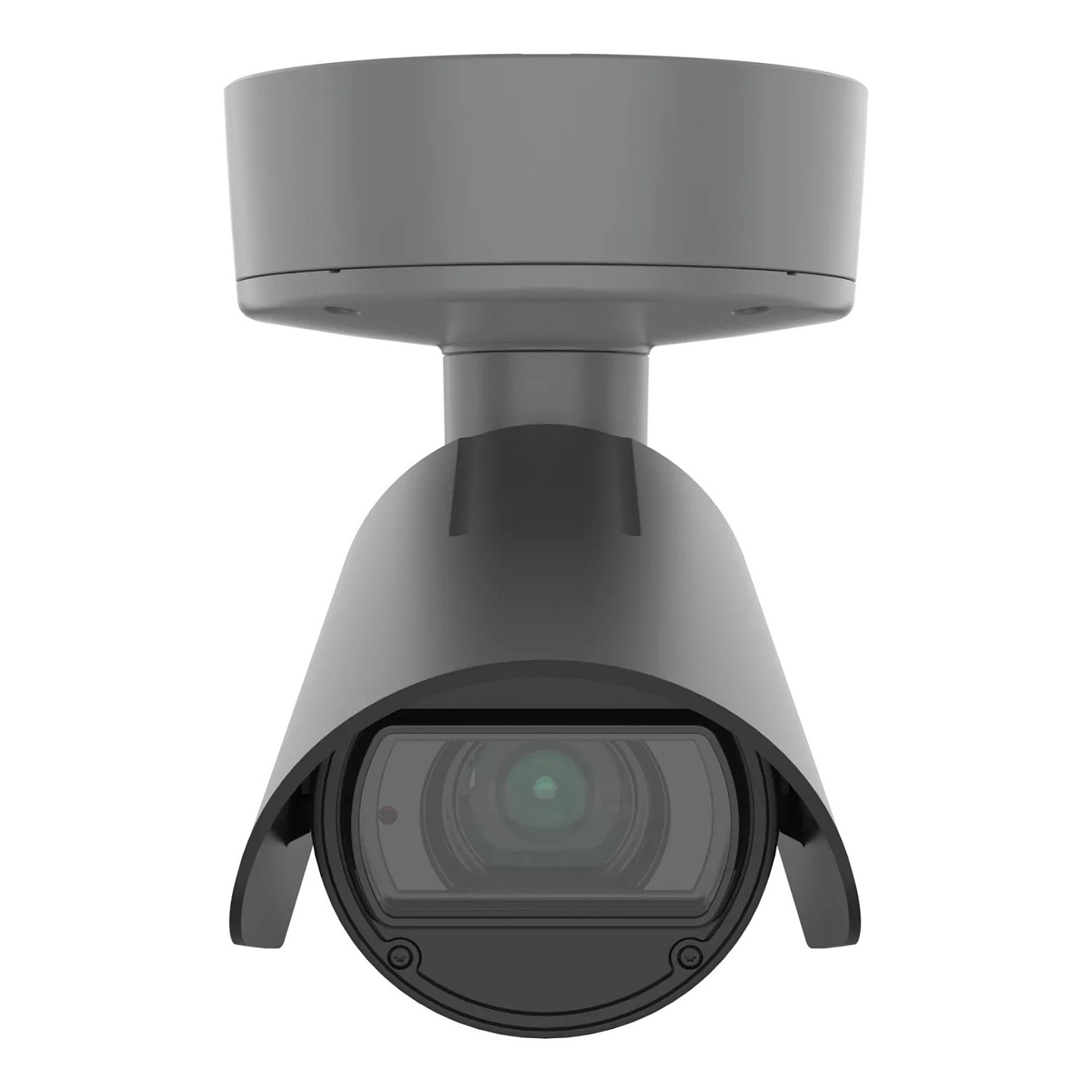

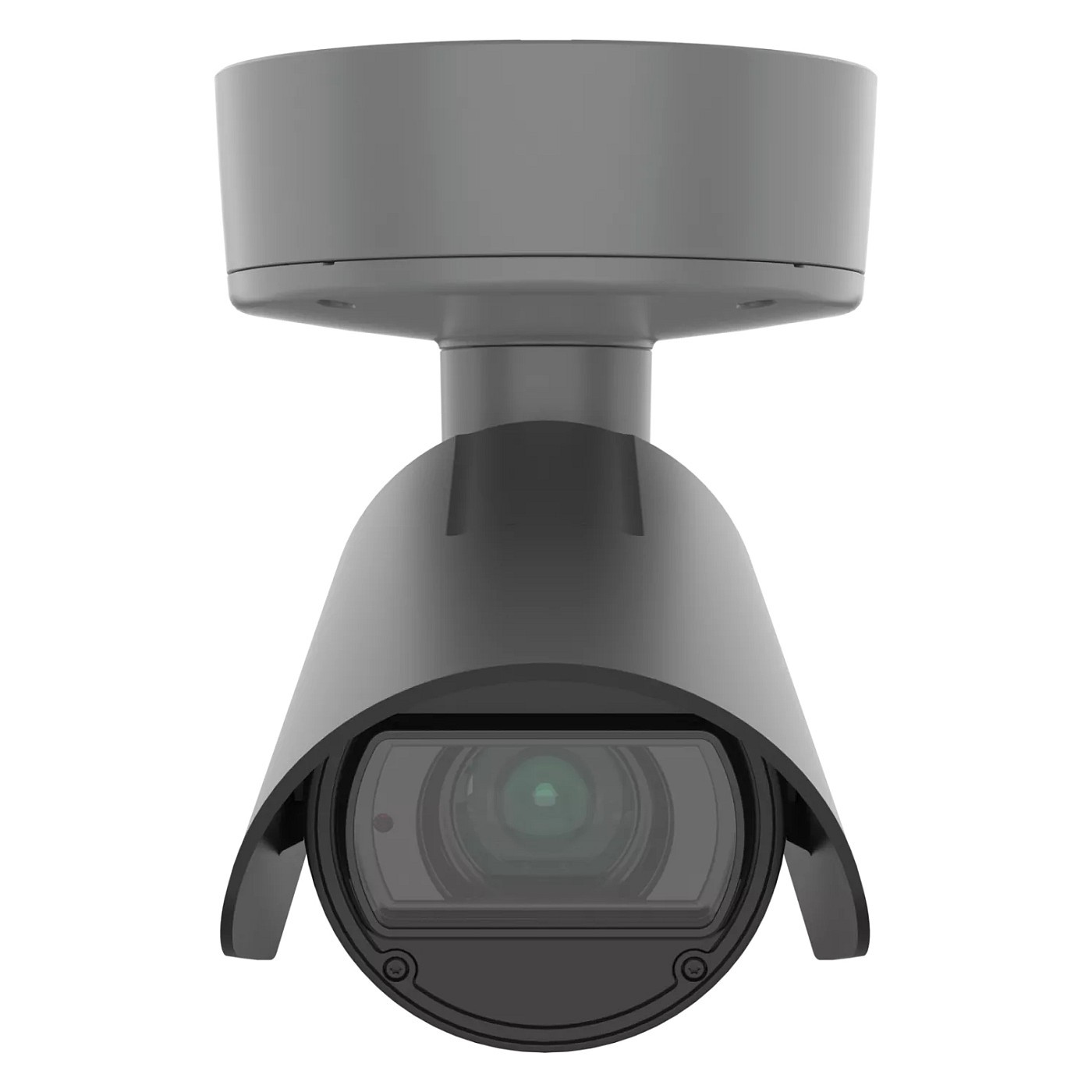

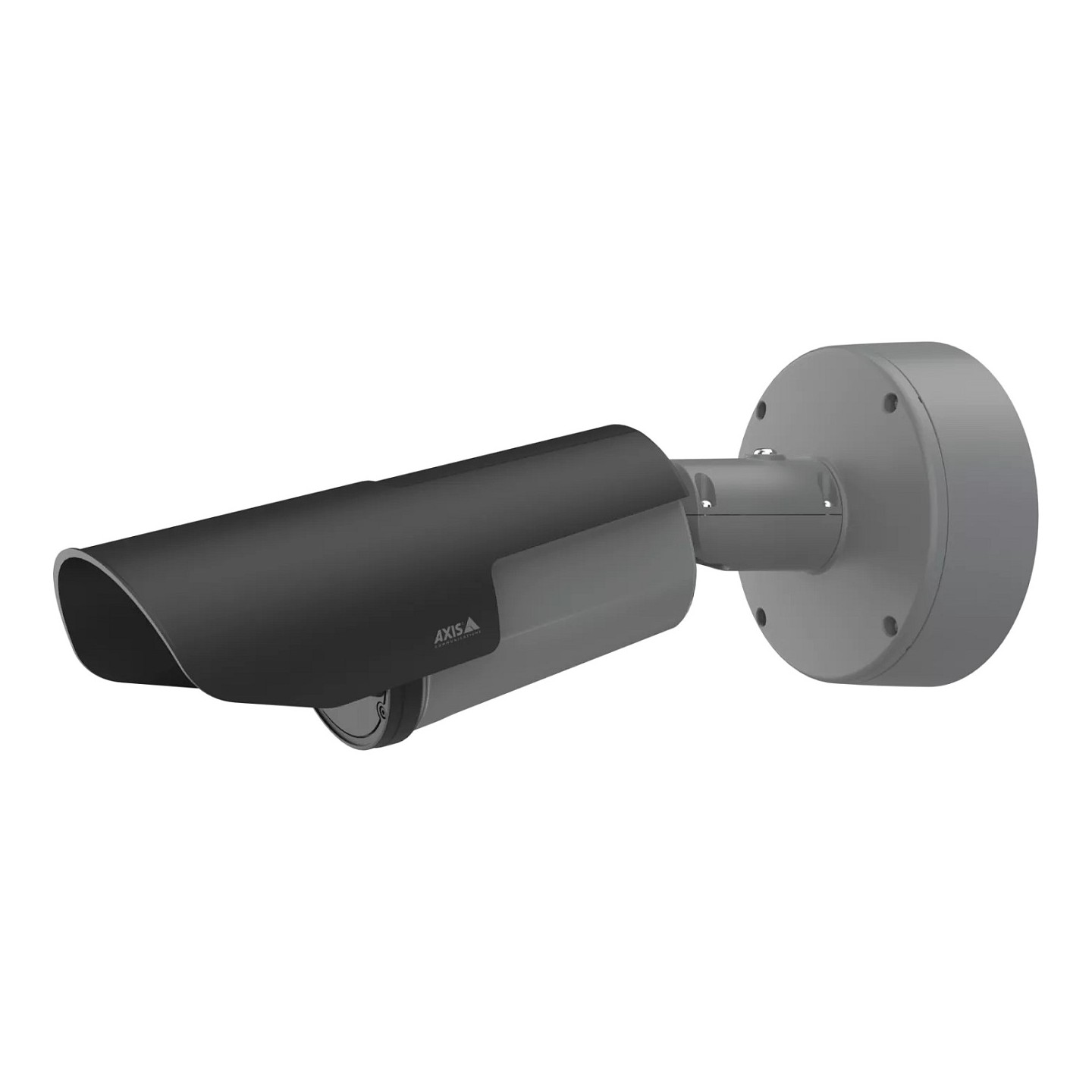

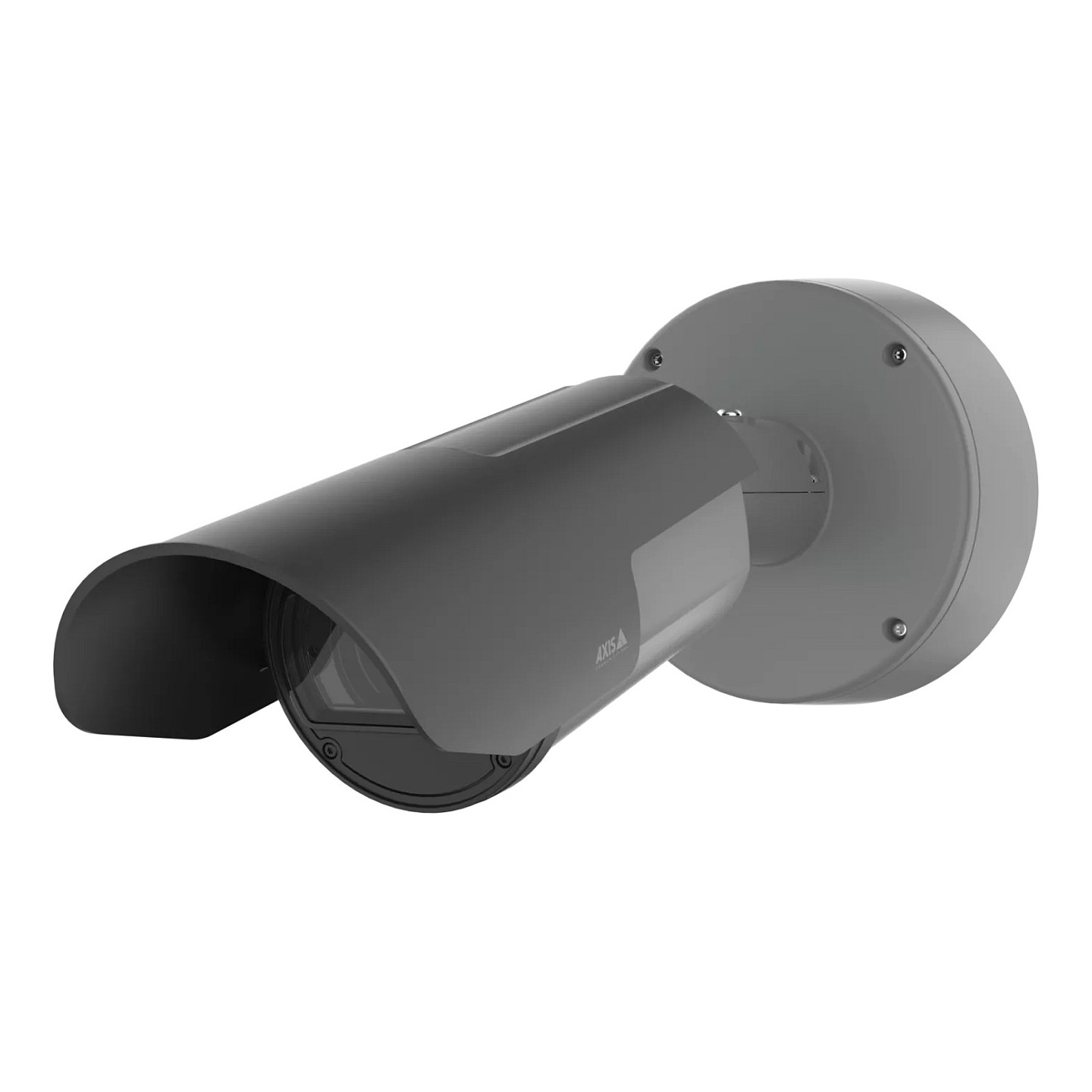

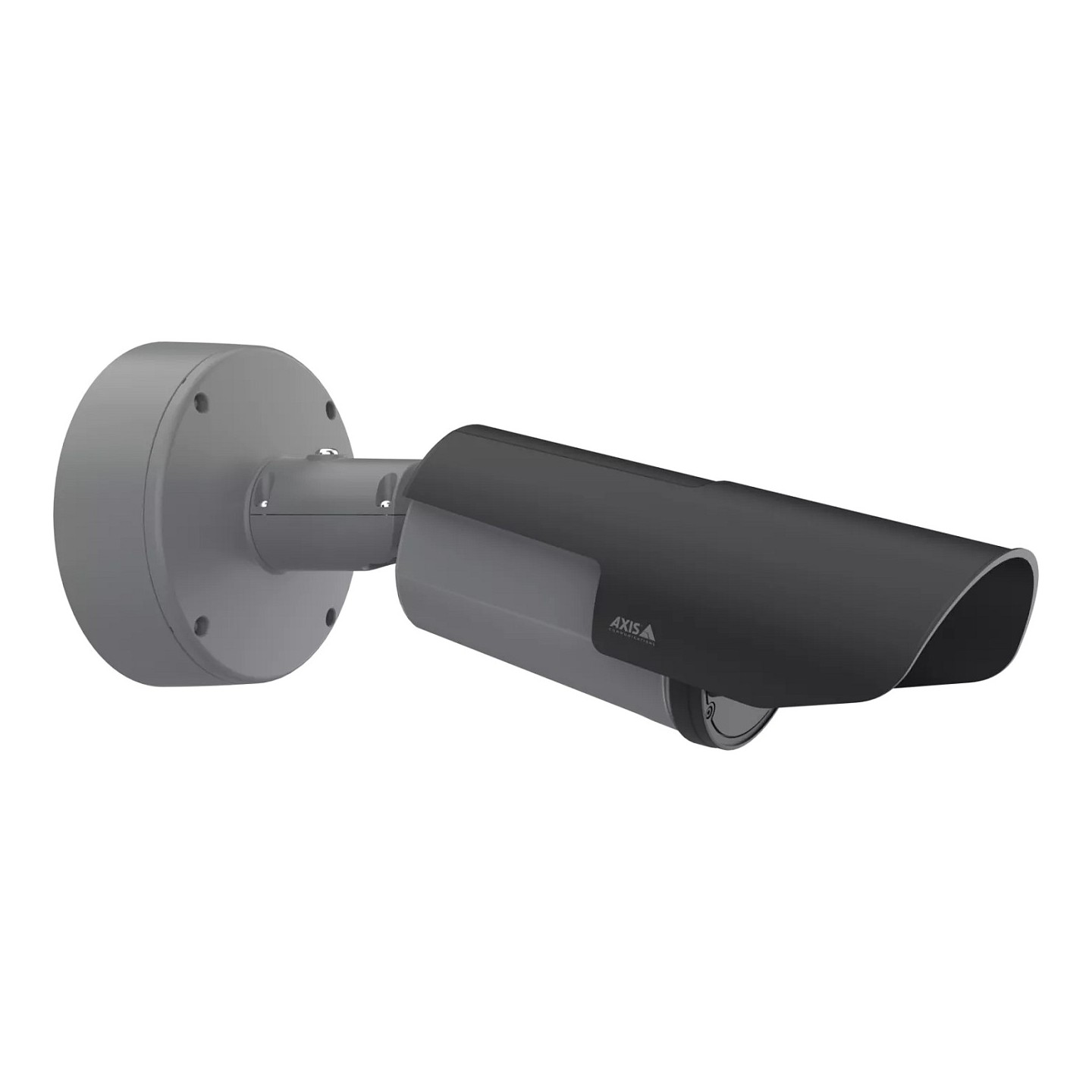

AXIS Netzwerkkamera Bullet License Plate Kamera Q1800-LE
Axis Q1800-LE. IP-Sicherheitskamera. Draußen. Kabelgebunden. Digitale PTZ. UL/cUL. BIS. UKCA. CE. KC. VCCI. RCM. Wand
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis Q1800-LE. Typ: IP-Sicherheitskamera. Unterstützte Positionierung: Draußen. Übertragungstechnik: Kabelgebunden. Befestigungstyp: Wand. Produktfarbe: Schwarz. Formfaktor: Patrone (Form). Mindestbeleuchtung: 0.06 Lux. Drehungswinkel: 270°. Horizontales Sichtfeld (thermisches Modul): 38 - 2.3°. Sensor-Typ: CMOS. Größe des Bildsensors: 25.4 / 2.8 mm (1 / 2.8"). Sensortyp (Panoramakamera): CMOS. Signal-Rausch-Verhältnis (SNR) (Panoramakamera): 55 dB
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Draußen |
| Übertragungstechnik | Kabelgebunden |
| Feature | Betriebsanleitung |
| PTZ-Modi | Digitale PTZ |
| Zertifizierung | UL/cUL. BIS. UKCA. CE. KC. VCCI. RCM |
| Formfaktor | Patrone (Form) |
| Befestigungstyp | Wand |
| Produktfarbe | Schwarz |
| Gehäusematerial | Aluminium. Glas |
| Schutzfunktion | Schlagfest. Vandalismussicher. Wetterbeständig |
| Internationale Schutzart (IP-Code) | IP66 |
| IK-Kodex | IK08. IK10 |
| Mindestbeleuchtung | 0.06 Lux |
| Drehungswinkel | 270° |
| Horizontales Sichtfeld (thermisches Modul) | 38 - 2.3° |
| Betrachtungswinkel (horizontal) | 22 - 1.3° |
| Neigungswinkelbereich | 0 - 90° |
| Schwenkbereich | -180 - 180° |
| Pixelgröße Kamera | 2.9 µm |
| Kamera Verschlusszeit | 1/111000 - 2 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor-Typ | CMOS |
| Sensortyp (Panoramakamera) | CMOS |
| Signal-Rausch-Verhältnis (SNR) (Panoramakamera) | 55 dB |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 7 - 138 mm |
| Abstandsermittlung | 1.2 m |
| Abstandsfeststellung (wide) | 96.7 m |
| Abstandsfeststellung (tele) | 1884.2 m |
| Abstandsbeobachtung (wide) | 38.4 m |
| Abstandsbeobachtung (tele) | 747.7 m |
| Abstandserkennung (wide) | 19.3 m |
| Abstandserkennung (tele) | 376.8 m |
| Abstandsermittlung (wide) | 9.7 m |
| Abstandsermittlung (tele) | 188.4 m |
| Naheinstellgrenze | 1.2 m |
| Nachtsichtdistanz | 100 m |
| S-/W-Nachtsichtweite | 50 m |
| LED Typ | IR |
| Infrarot-Wellenlänge | 850 nm |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Unterstützte Videoformate | AVC. H.264. H.265. M-JPEG |
| Unterstützte Grafik-Auflösungen | 160 x 120. 320 x 180. 1400 x 1050 (SXGA+). 1920 x 1080 (HD 1080) |
| Unterstützte Video-Modi | 1080p |
| Bis zu 30 Frames pro Sekunde | 90 fps |
| Geräuschunterdrückungstechnologie | 2D-Rauschunterdrückung. 3D-Rauschunterdrückung |
| Bildqualitätsanpassung | Helligkeit. Kontrast. Farbsättigung. Schärfe |
| Bitratenkontrolle | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Audio-System | 2-Wege |
| Unterstützte Audioformate | AAC-LC. ADPCM. LPCM. OPUS. PCM |
| Samplerate | 48 kHz |
| Rauschverhältnis (SNR) | 55 dB |
| Netzstandard | IEEE 802.3af. IEEE 802.3at |
| Streaming-Verfahren | Multicasting |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Flash-Speicher | 8192 MB |
| Speicherkapazität | 2048 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Unterstützte Sicherheitsalgorithmen | HTTPS |
| Intelligent Video Surveillance-(IVS)-System-Eigenschaften | Erkennung von Menschen. Erkennung Leitungskreuzungen. Moving object. Fahrzeugerkennung |
| Energiequelle | PoE |
| Stromverbrauch (Standardbetrieb) | 11 W |
| Stromverbrauch (max.) | 29 W |
| Betriebstemperatur | -40 - 60 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 100% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 183 mm |
| Tiefe | 464 mm |
| Höhe | 183 mm |
| Gewicht | 3.2 kg |
| Konformitätsbescheinigungen | Elektromagnetische Verträglichkeit (EMV). Gesetz über Handelsabkommen (TAA) |
| Anzahl der Kameras | 1 |
| Mitgelieferte Kabel | LAN (RJ-45) |
| Enthält nicht | BFR. CFR |
