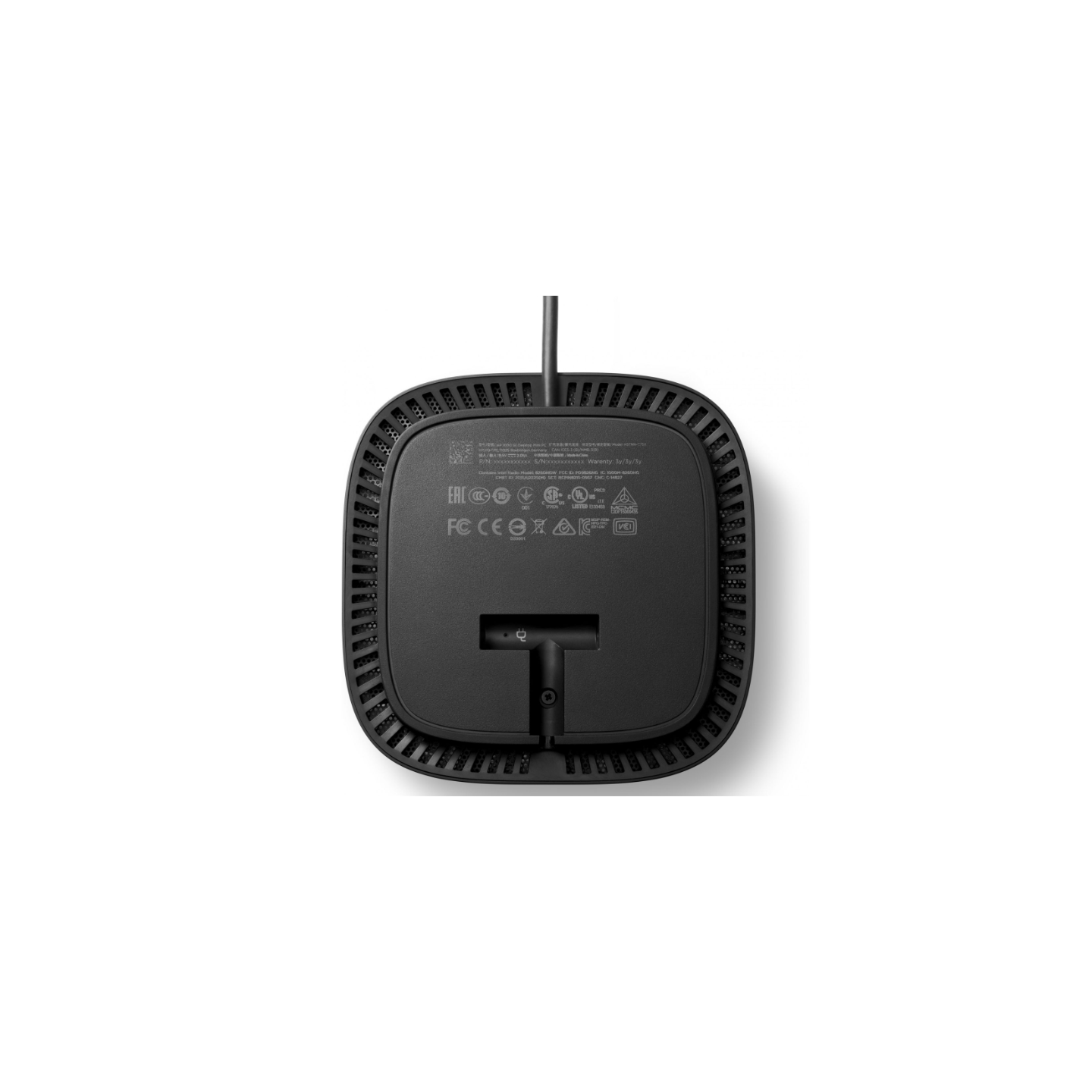

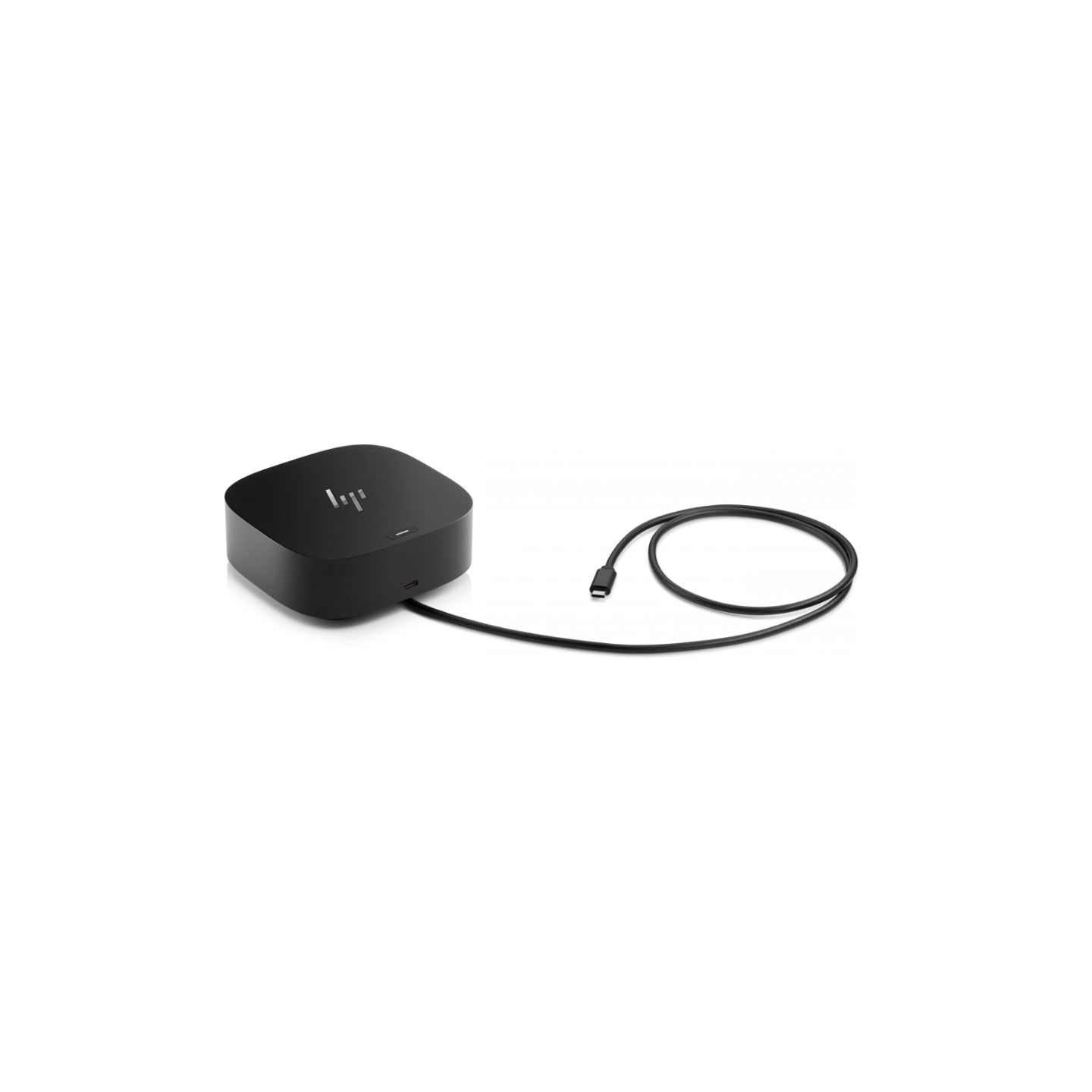

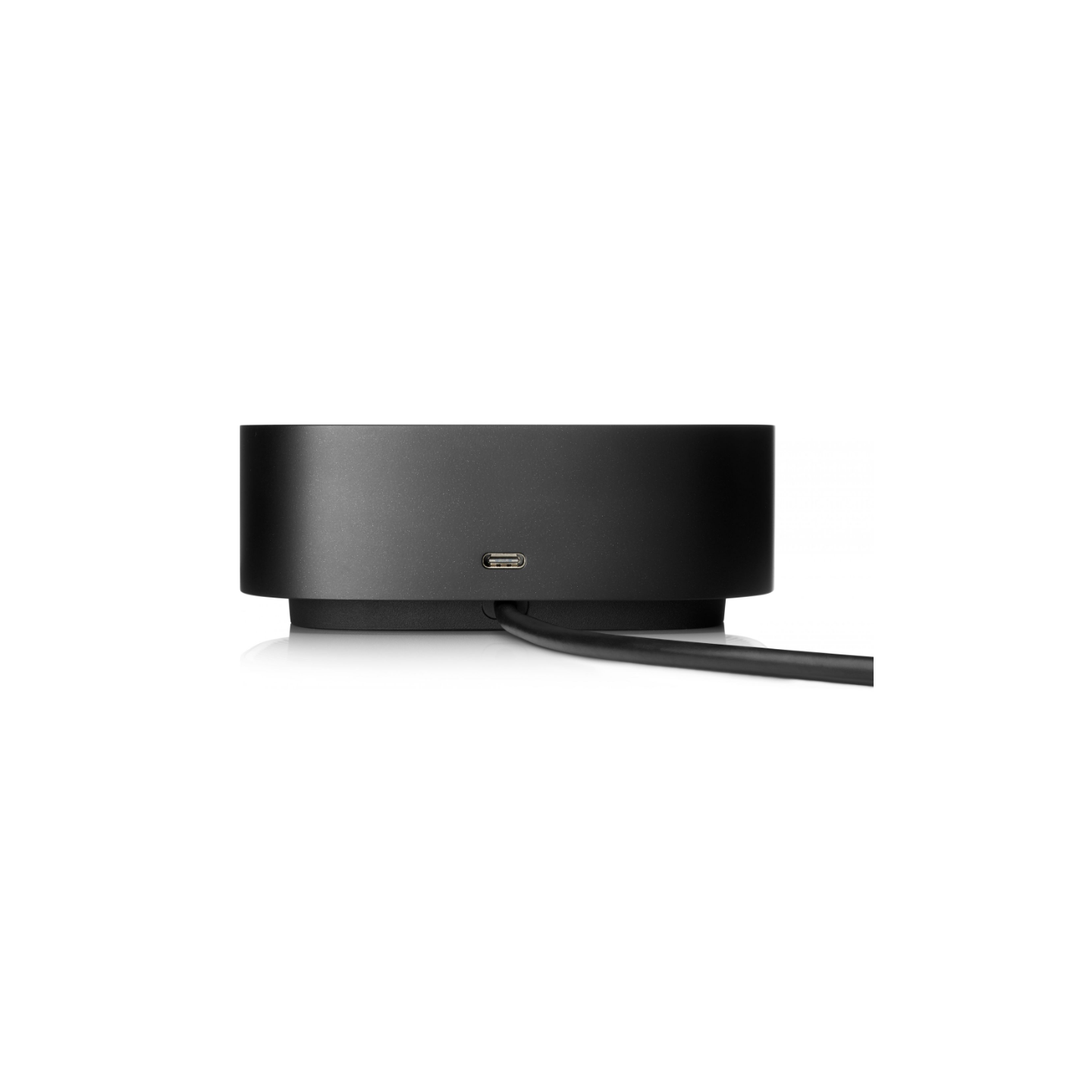

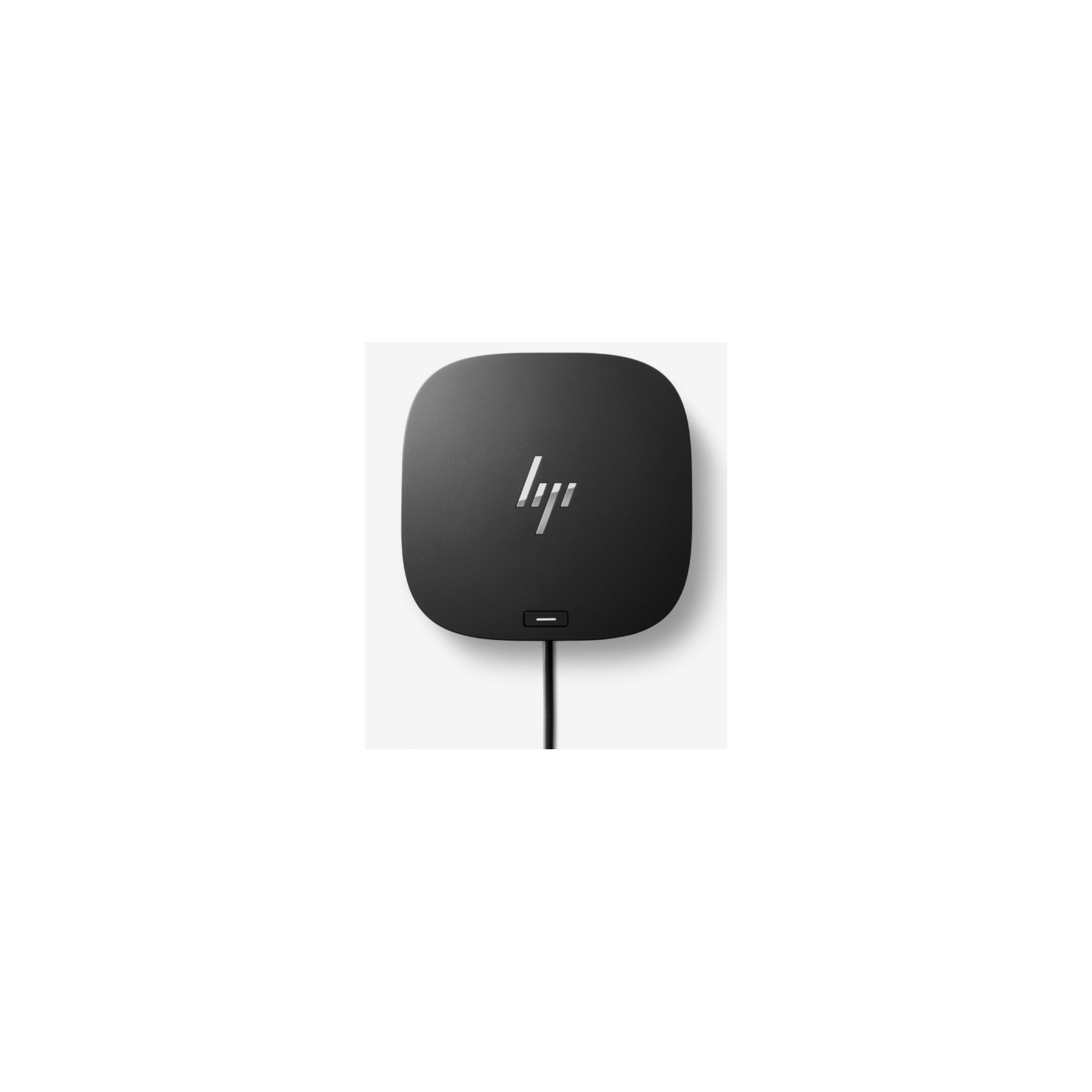

HP USB-C Dock G5 (5TW10AA) - 100W PD, 2x DisplayPort, HDMI, 4x USB-A, Gigabit Ethernet (Boxed)
HP USB-C Dock G5 compact business docking station with 100W Power Delivery, 2x DisplayPort, HDMI 2.0, 4x USB-A, Gigabit Ethernet, and integrated 1-meter USB-C cable for universal laptop connectivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 11+ |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack Compact Design External Power Supply Integrated Cable Kensington Lock Slot |
Universal docking for today's laptops. The HP USB-C Dock G5 (5TW10AA) is a compact business-class docking solution designed to expand connectivity for USB-C-enabled laptops. With a space-saving 4.8 x 4.8 x 1.77 inch footprint, this dock delivers up to 100W of USB Power Delivery to HP laptops (75W for non-HP devices) while supporting up to three external displays simultaneously via 2x DisplayPort and 1x HDMI 2.0 outputs.

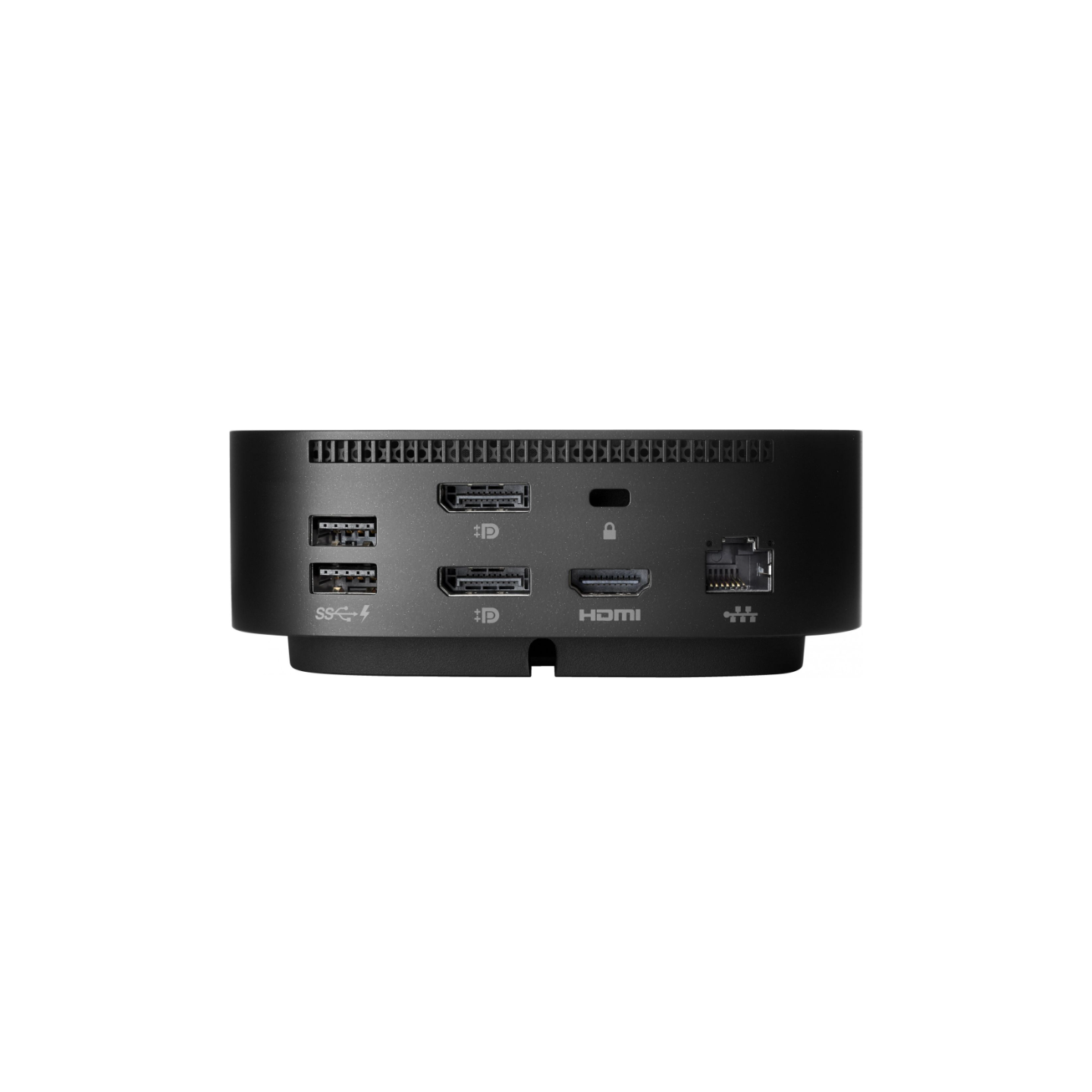

The dock features comprehensive port expansion including 4x USB 3.0 Type-A ports for peripheral connectivity, 1x Gigabit Ethernet port for wired network access, and a 3.5mm combo audio jack for headphones and microphones. An integrated 1-meter USB-C cable with Power Delivery and DisplayPort Alt Mode support connects directly to your laptop, eliminating cable clutter. The dock includes a Kensington lock slot for security and is compatible with Windows 10, Windows 11, macOS, and Chrome OS systems.
Key specifications include mechanical power button with LED indicator, support for 5V/9V/10V/12V/15V/20V power profiles at 5A maximum, and a one-year limited warranty. The dock comes with AC adapter, power cord, and quick-start guide.
- 100W USB-C Power Delivery (HP laptops) / 75W (non-HP devices)
- 2x DisplayPort + 1x HDMI 2.0 (supports up to 3 displays)
- 4x USB 3.0 Type-A + 1x USB-C port with 15W power out
- Gigabit Ethernet (1 Gbps) and combo audio jack
- Integrated 1-meter USB-C cable with Power Delivery and DisplayPort Alt Mode
- Compact design: 4.8 x 4.8 x 1.77 inches, weighs 1.65 lbs
- Kensington lock slot for security
- Compatible with HP, Apple, and other USB-C laptops
| Host Interface | USB 3.2 Gen 1 Type-C (USB Power Delivery, DisplayPort Alt Mode) |
| USB 3.0 Type-A Ports | 4 ports (2 on front, 2 on back) |
| USB-C Port | 1x USB-C with 15W power output and data |
| Video Output | 2x DisplayPort + 1x HDMI 2.0 |
| Maximum Displays Supported | Up to 3 displays |
| Power Delivery | Up to 100W via USB-C (HP laptops); Up to 75W (non-HP devices) |
| Power Profiles Supported | 5V, 9V, 10V, 12V, 15V, 20V all at 5A MAX |
| Ethernet | 1x RJ45 Gigabit Ethernet (1 Gbps) |
| Audio | 1x 3.5mm combo audio jack (headphones/microphone) |
| Security | 1x Kensington lock slot (lock sold separately) |
| Cable | Integrated 1-meter USB-C cable |
| Power Button | Mechanical power button with LED indicator |
| Dimensions (Dock Only) | 4.8 x 4.8 x 1.77 inches (122 x 122 x 45 mm) |
| Weight (Dock Only) | 1.65 lbs (0.748 kg) |
| Color | Black |
| Compatible Operating Systems | Windows 10, Windows 11, macOS, Chrome OS |
| Minimum System Requirements | USB Type-C with USB Power Delivery and DisplayPort Alt Mode support |
| Warranty | 1-year limited warranty |
| Included Accessories | AC Adapter, AC Power cord, USB-C cable (1 meter), Product notices, Warranty, Quick Start guide |
| UPC/EAN | 193905522316 (primary); 193905208531 (ABB); 193905208586 (ABU) |
| Manufacturer Part Number | 5TW10AA |
| Product Type | Universal USB-C Docking Station |
| Brand Compatibility | Compatible with HP, Apple MacBook, and other USB-C laptops supporting Power Delivery and DisplayPort Alt Mode |
