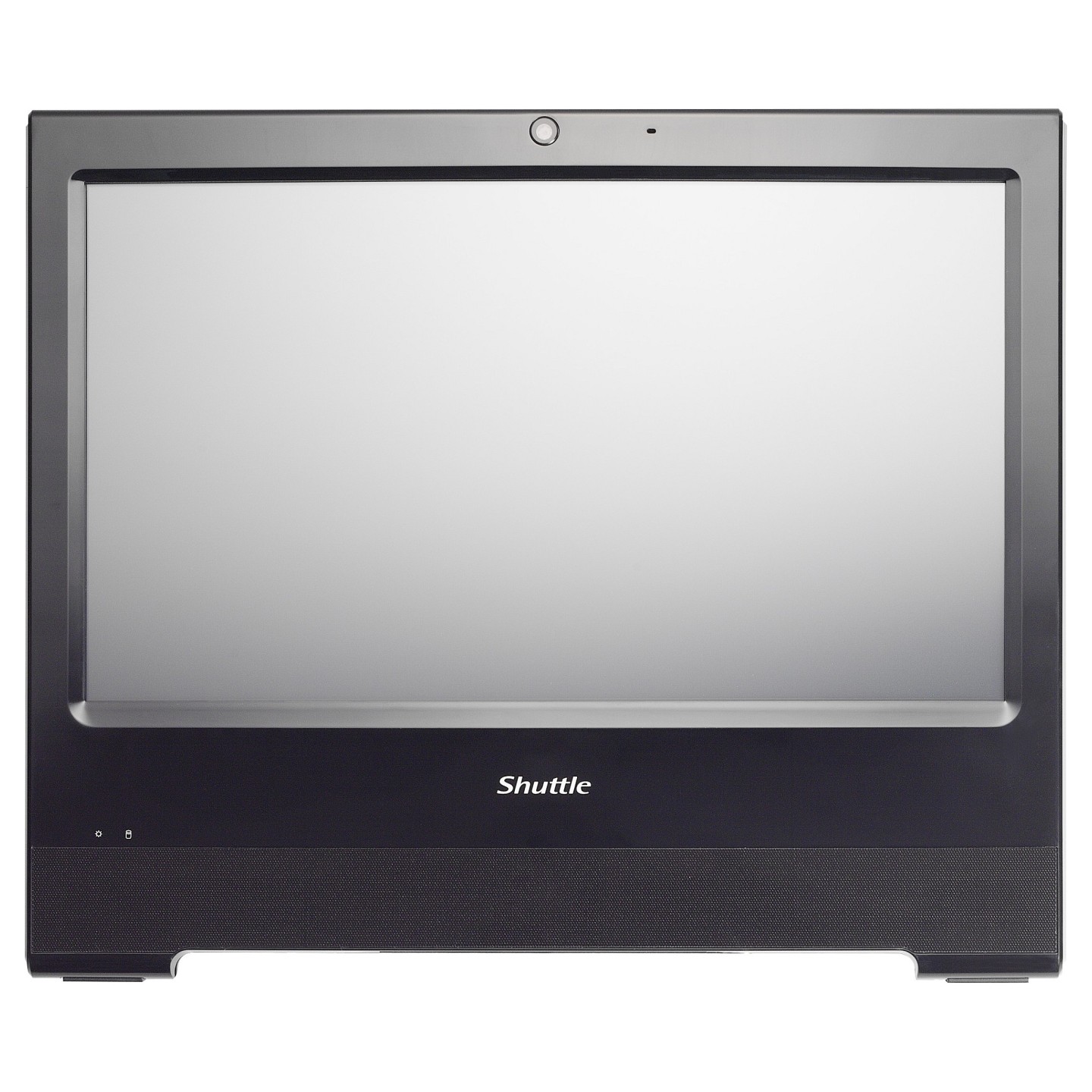

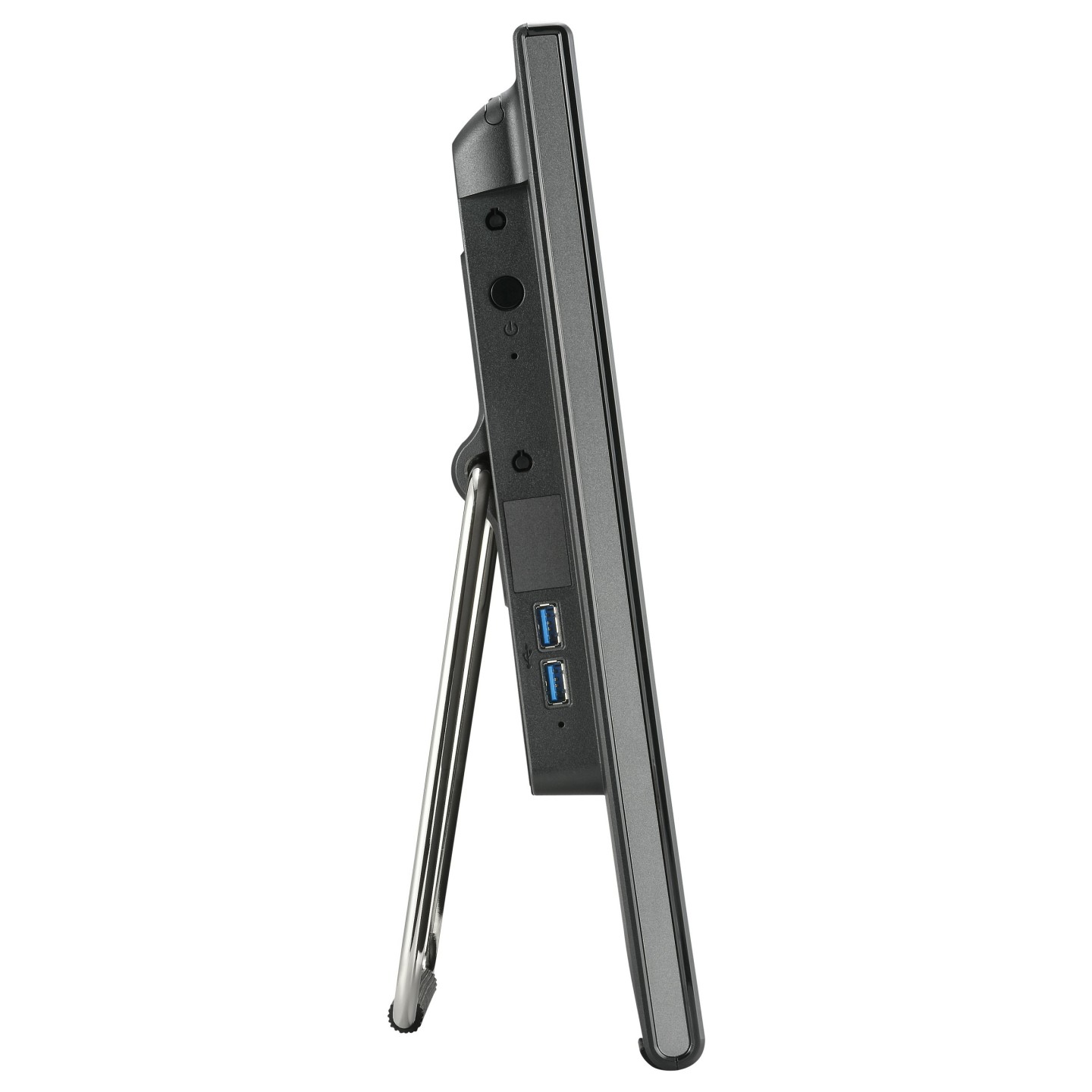

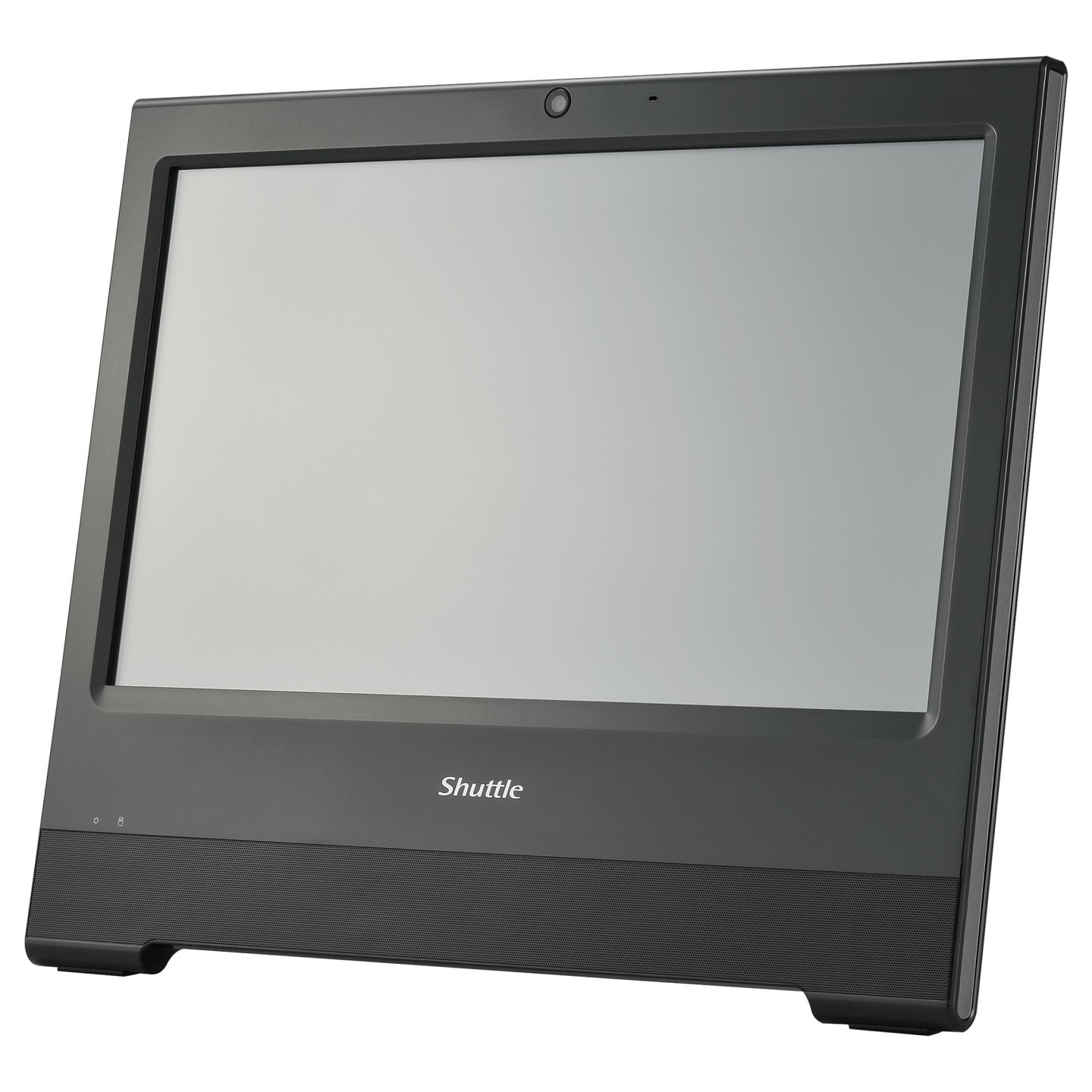

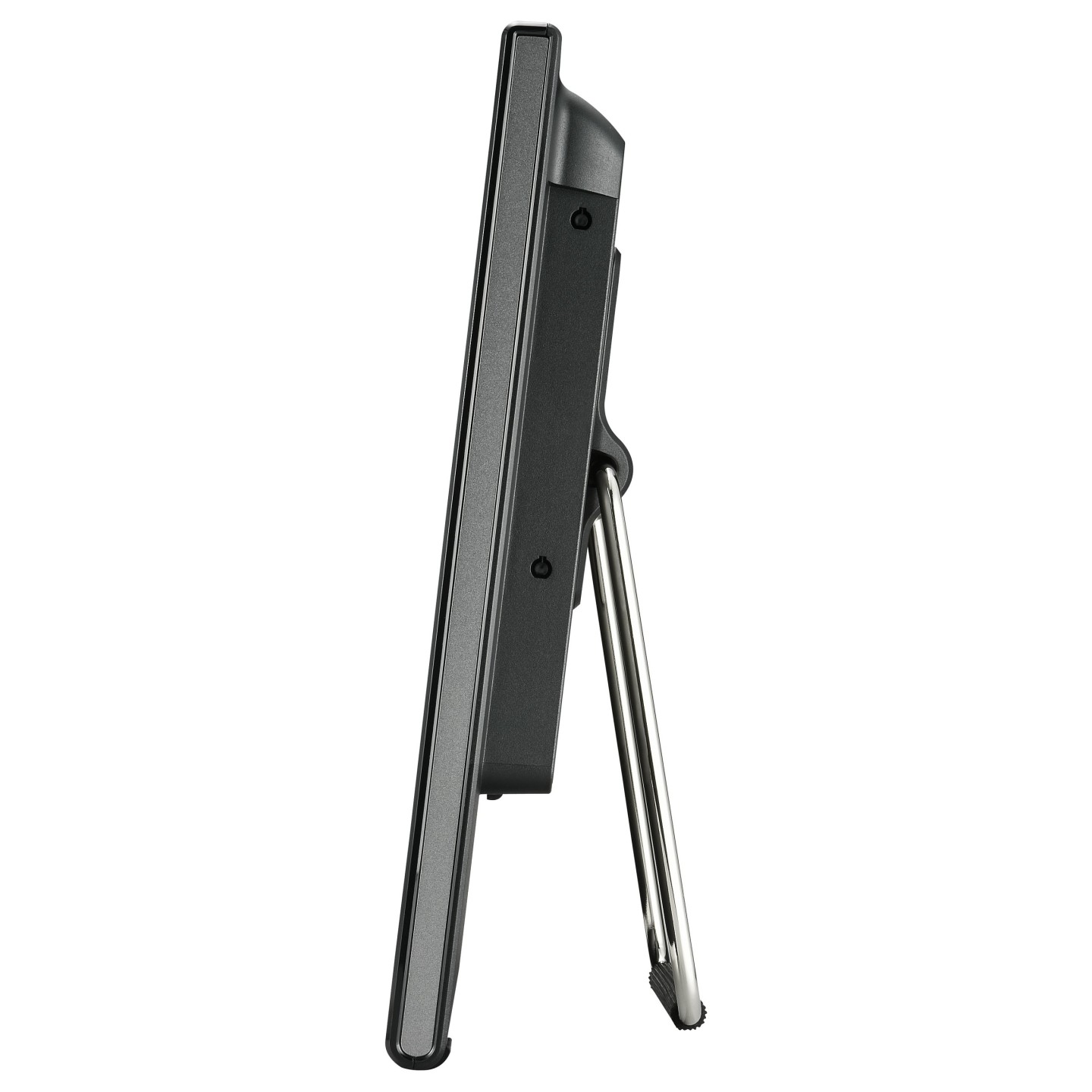

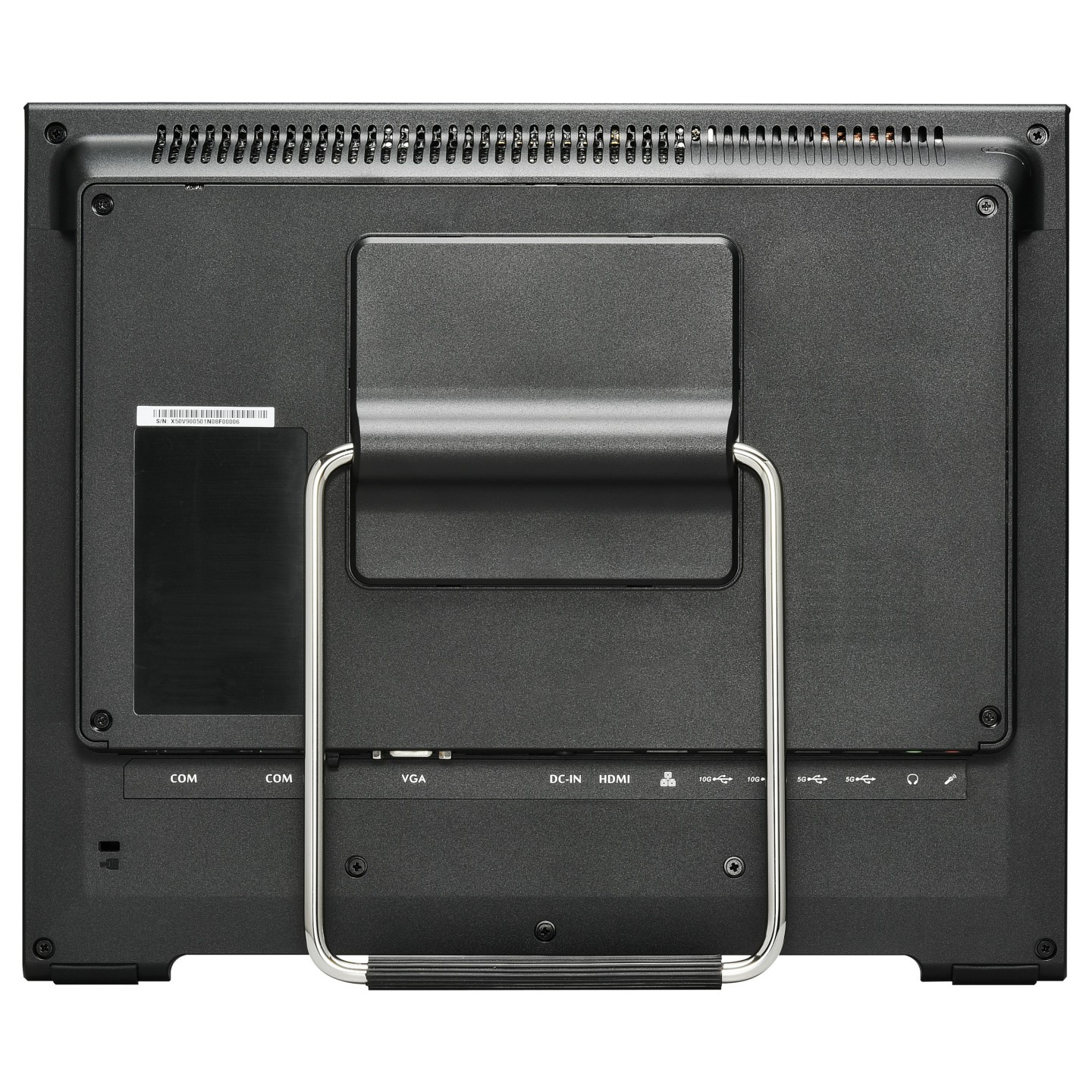

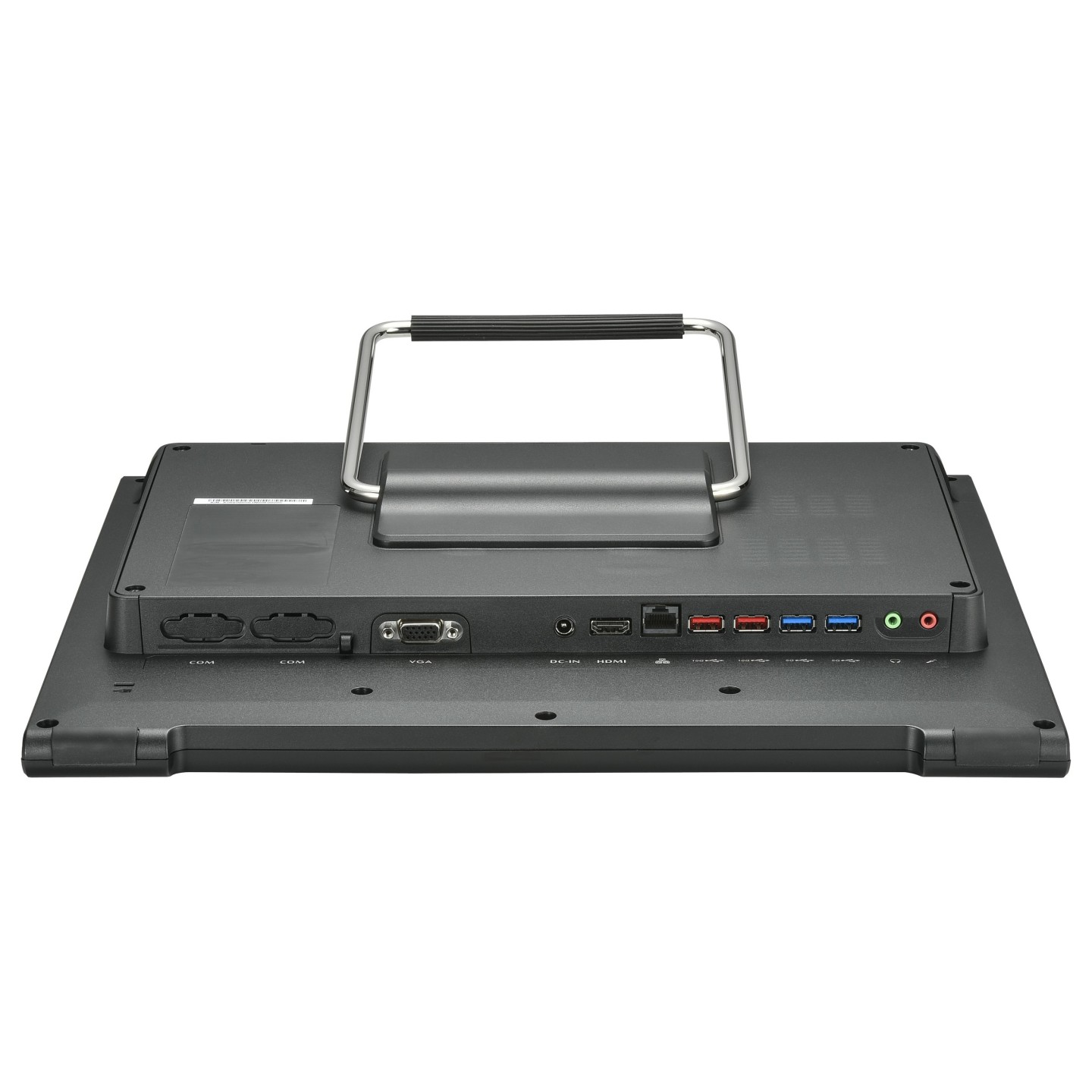

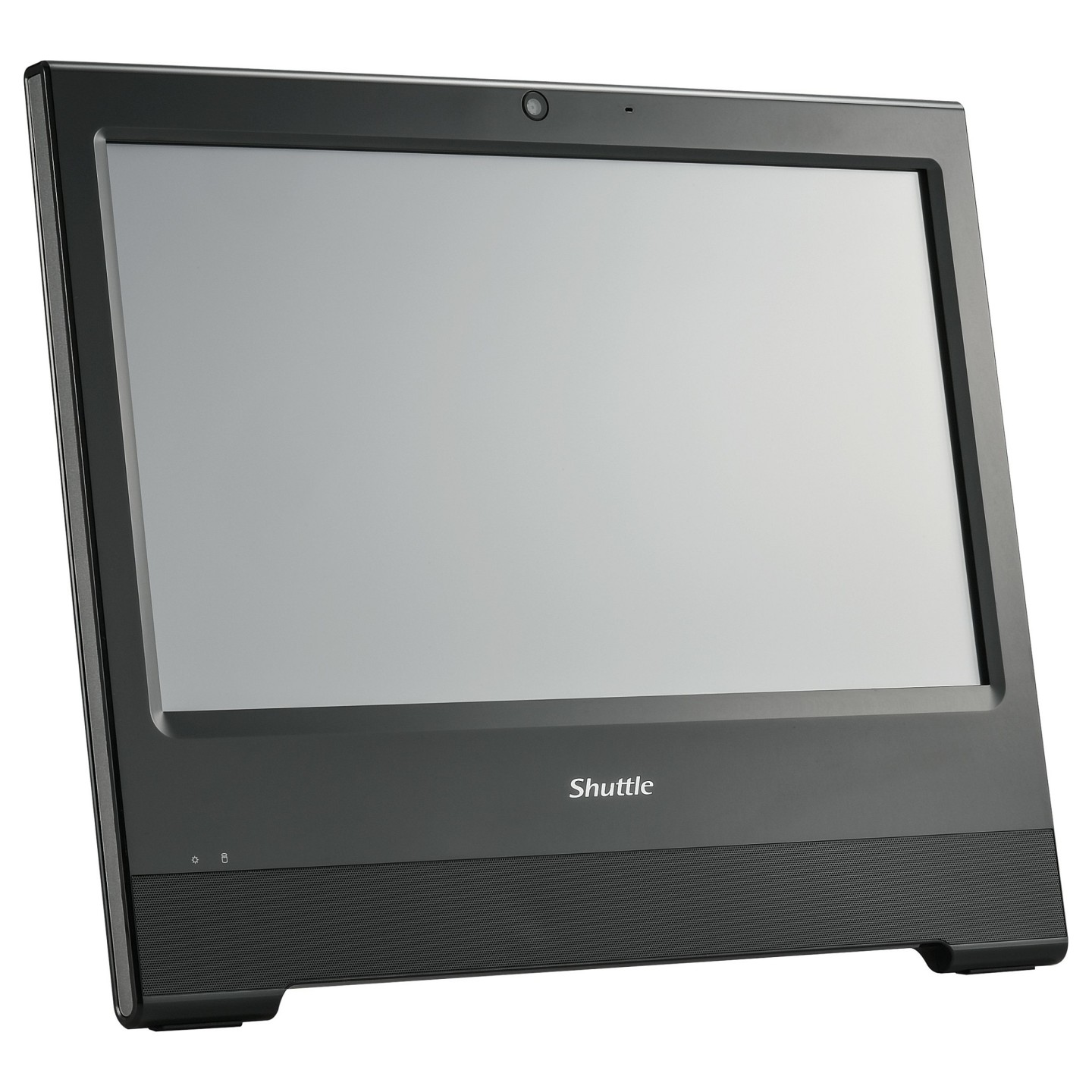

SHUTTLE XPC AIO Barebone X50V9U3 39.62cm 15.6Zoll Intel Core i3-1315U 2xSODIMM 64GB 2xM.2 1xSATA 1xHDMI Black
Shuttle All-In-One Barebone X50V9U3. 15.6" Single-Touch-Screen (resistive). Intel i3-1315U. Wifi. IP54. lüfterlos. 24/7 Dauerbetrieb. All-in-One. All-in-One-PC-Barebone. Intel SoC. DDR5-SDRAM. PCI Express. Serial ATA III. 90 W
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Shuttle All-In-One Barebone X50V9U3. 15.6" Single-Touch-Screen (resistive). Intel i3-1315U. Wifi. IP54. lüfterlos. 24/7 Dauerbetrieb. Gehäusetyp: All-in-One. Produkttyp: All-in-One-PC-Barebone. Motherboard Chipsatz: Intel SoC. BIOS-Typ: UEFI AMI. Unterstützte Arbeitsspeicher: DDR5-SDRAM. Anzahl der Speichersteckplätze: 2. RAM-Speicher maximal: 64 GB. Unterstützte Speicherlaufwerke: HDD & SSD. Speicherlaufwerk Schnittstelle: PCI Express. Serial ATA III. Anzahl Ethernet-LAN-Anschlüsse (RJ-45): 1. WLAN-Standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Bluetooth-Version: 4.2. Kühlung: Passiv. Stromversorgung: 90 W
| Prozessorhersteller | Intel |
| Prozessorfamilie | Intel® Core™ i3 |
| Prozessorgeneration | Intel Core i3-13xxx |
| Prozessor | i3-1315U |
| Anzahl Prozessorkerne | 6 |
| Prozessor-Threads | 8 |
| Prozessor Boost-Frequenz | 4.5 GHz |
| Leistungskerne | 2 |
| Effiziente Kerne | 4 |
| Leistungskern maximale Turbofrequenz | 4.5 GHz |
| Effizienter Kern maximale Turbofrequenz | 3.3 GHz |
| Feature | Treiber enthalten |
| Prozessor-Cache | 10 MB |
| Arbeitsspeicher Typ | SO-DIMM |
| Anzahl der Speichersteckplätze | 2 |
| RAM-Speicher maximal | 64 GB |
| Unterstützte Arbeitsspeichergeschwindigkeit | 5200 MHz |
| Unterstützte Arbeitsspeicher | DDR5-SDRAM |
| Speicherkanäle | Zweikanalig |
| Speicherspannung | 1.1 V |
| Unterstützte Speicherlaufwerke | HDD & SSD |
| unterstützte Speicherlaufwerksgrößen | 2.5.M.2 |
| Speicherlaufwerk Schnittstelle | PCI Express. Serial ATA III |
| Anzahl der unterstützten Speicherlaufwerke | 3 |
| Grafikkarte-Familie | Intel |
| Eingebautes Grafikkartenmodell | Intel® UHD Graphics |
| Bildschirmdiagonale | 39.6 cm (15.6") |
| Display-Auflösung | 1366 x 768 Pixel |
| HD-Typ | HD |
| Seitenverhältnis | 16:9 |
| Helligkeit | 220 cd/m² |
| Anzahl der Lautsprecher | 2 |
| RMS-Leistung | 2 W |
| Top WLAN-Standard | Wi-Fi 5 (802.11ac) |
| WLAN-Standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| WLAN-Controllermodell | Realtek RTL8821CE |
| LAN-Controller | Intel® I219 |
| Bluetooth-Version | 4.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Anzahl der Anschlüsse vom Typ A | 2 |
| Anzahl HDMI-Anschlüsse | 1 |
| HDMI-Version | 2.0b |
| Anzahl VGA (D-Sub) Anschlüsse | 1 |
| Kopfhörerausgänge | 1 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Gehäusetyp | All-in-One |
| Produktfarbe | Schwarz |
| Kühlung | Passiv |
| LED-Anzeigen | HDD. Leistung |
| Slot-Typ Kabelsperre | Kensington |
| Panel-Montage-Schnittstelle | 100 x 100 mm |
| Produkttyp | All-in-One-PC-Barebone |
| Motherboard Chipsatz | Intel SoC |
| Anzahl unterstützter Prozessoren | 1 |
| BIOS-Typ | UEFI AMI |
| Trusted Platform Module (TPM) Version | 2.0 |
| Audio-Chip | Realtek ALC888S |
| Konformitätsbescheinigungen | BSMI. CB. CE. Eidgenössische Kommunikationskommission (FCC). RCM. RoHS. UKCA. VCCI |
| Warentarifnummer (HS) | 84714100 |
| Unterstützt Windows-Betriebssysteme | Windows 10. Windows 11 |
| Nachhaltigkeitszertifikate | ENERGY STAR |
| Netzteiltyp | Externer AC-Adapter |
| Stromversorgung | 90 W |
| Anzahl von Stromversorgungseinheiten | 1 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Netzteil Ausgangsspannung | 19 V |
| AC-Adapter Ausgangssstrom | 4.74 A |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 391 mm |
| Tiefe | 42 mm |
| Höhe | 327 mm |
| Gewicht | 3.5 kg |
| Paketgewicht | 4.2 kg |
