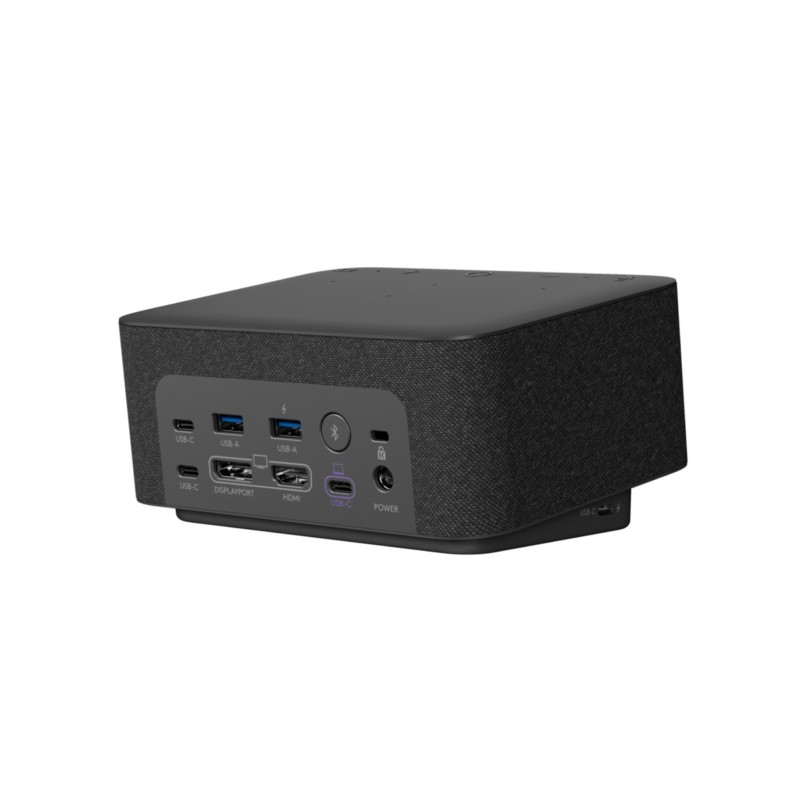

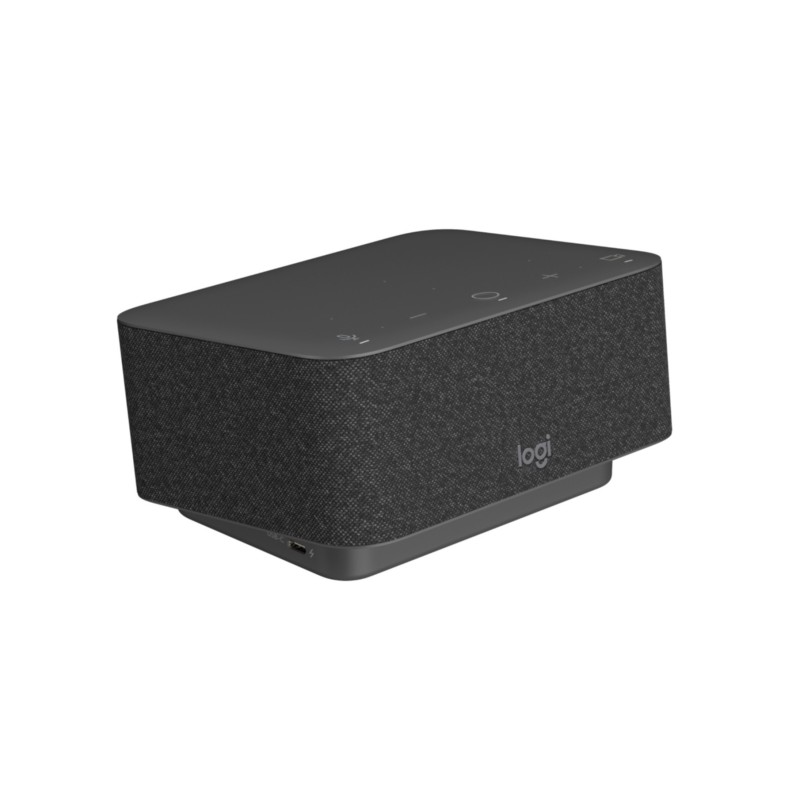

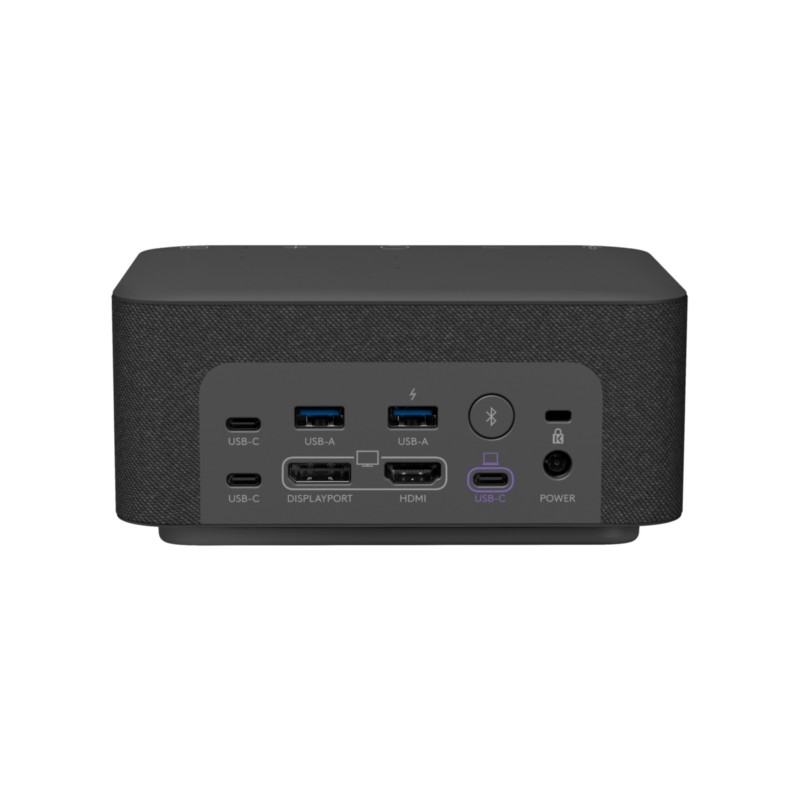

Logitech Logi Dock - 986-000024 - USB-C Docking Station, Graphite, Built-in Speaker, 4K UHD, 100W PD
USB-C docking station with built-in speaker and 6-mic array, HDMI+DisplayPort outputs for 4K, multiple USB-A/C ports, 100W Power Delivery, AC-powered, Graphite.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Docks & Hubs - Type | USB-C Dock |
|---|---|
| Docks & Hubs - Host Interface | USB-C (DP Alt-Mode) |
| Docks & Hubs - Power Delivery (PD) | 100 W |
| Docks & Hubs - Video Outputs | HDMI + DP |
| Docks & Hubs - Max Resolution | 4K60 (single) |
| Docks & Hubs - Ethernet | None |
| Docks & Hubs - USB Ports | USB-A + USB-C |
| Docks & Hubs - Card Reader | None |
| Docks & Hubs - OS Compatibility | Multi-OS |
Logitech Logi Dock Graphite. Number of persons: 1 person(s). HD type: 4K Ultra HD. Product colour: Graphite
| Number of persons | 1 person(s) |
| Product colour | Graphite |
| HD type | 4K Ultra HD |
| Maximum video resolution | 3840 x 2160 pixels |
| Feature | Quick start guide |
| Frequency range | 60 - 20000 Hz |
| Driver diameter | 5.5 cm |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| USB connector type | USB Type-A. USB Type-C |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 3 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Microphone frequency | 65 - 8000 Hz |
| Number of microphones | 6 |
| Cable lock slot type | Kensington |
| Master (outer) case gross weight | 11.9 kg |
| Master (outer) case length | 505 mm |
| Master (outer) case width | 471 mm |
| Master (outer) case height | 184 mm |
| Harmonized System (HS) code | 85176990 |
| Windows operating systems supported | Windows 10. Windows 11 |
| Mac operating systems supported | Mac OS X 11.0 Big Sur. Mac OS X 12.0 Monterey |
| Other operating systems supported | ChromeOS |
| Power source type | AC |
| DC input voltage | 19.5 V |
| Power consumption (max) | 230 W |
| USB Power Delivery up to | 100 W |
| Width | 106 mm |
| Depth | 131.5 mm |
| Height | 84.8 mm |
| Weight | 942 g |
| Package width | 227 mm |
| Package depth | 247.5 mm |
| Package height | 169 mm |
| Package weight | 2.74 kg |
| Cables included | AC. DC. USB Type-C to USB Type-C |
| Power cable length | 1.7 m |
