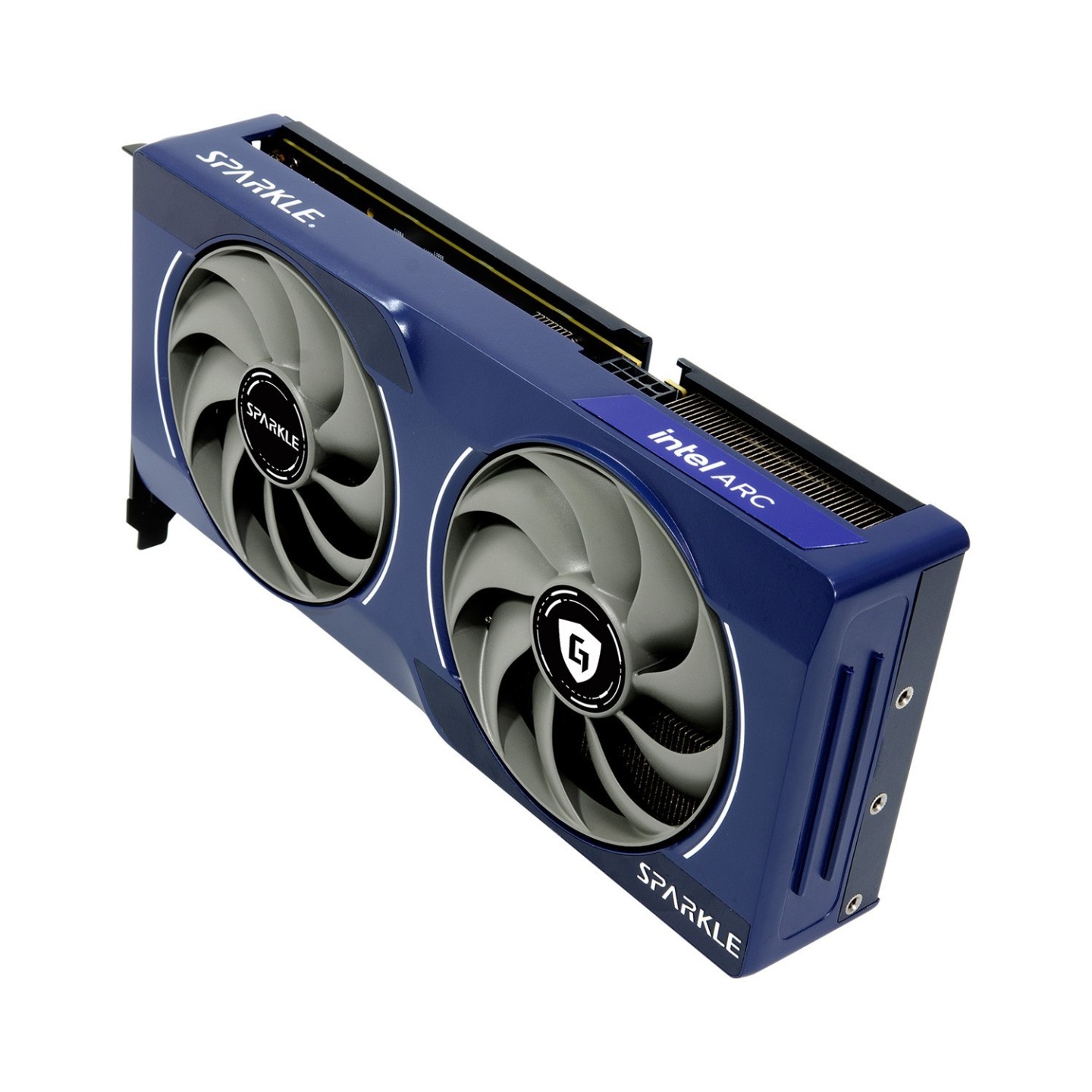

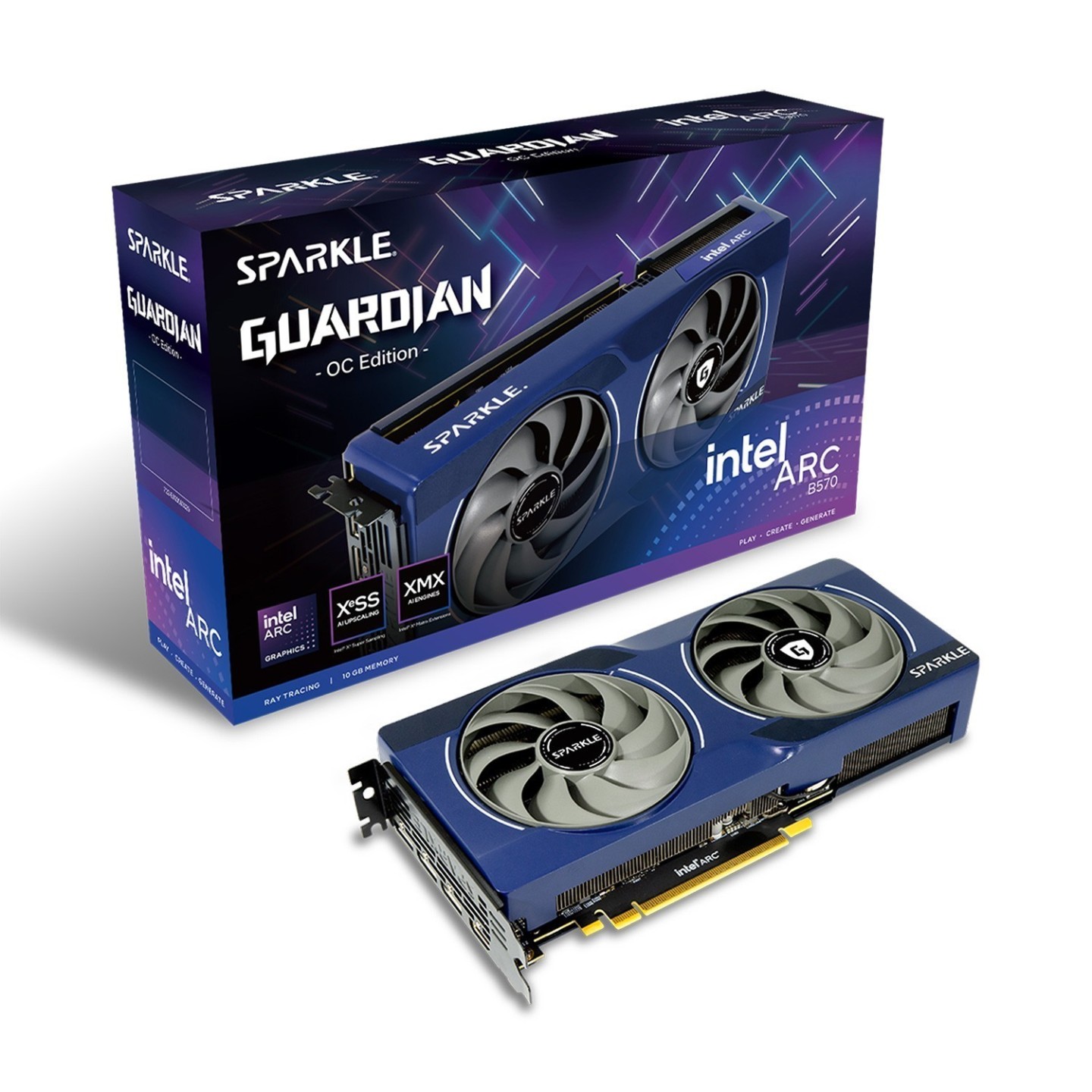

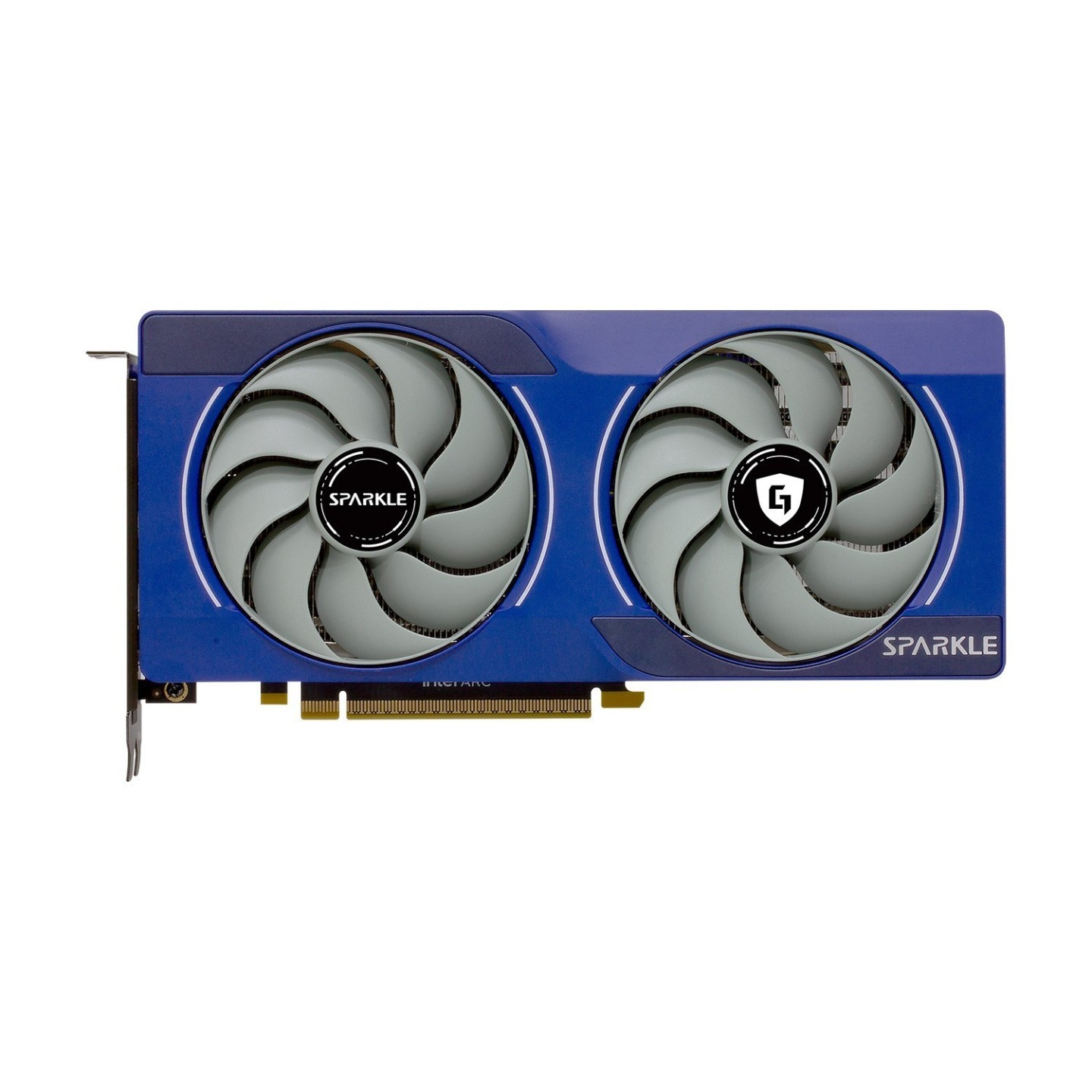

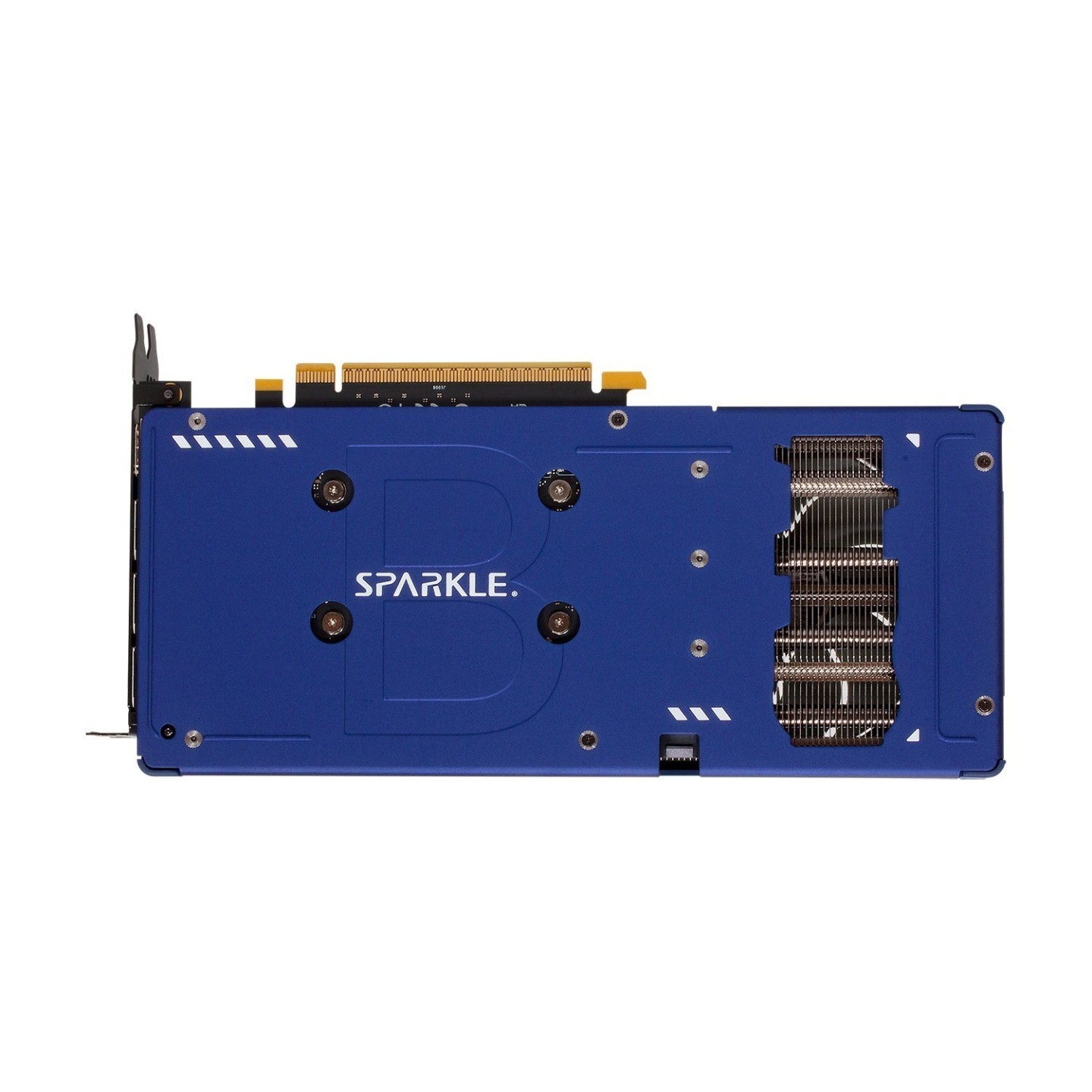

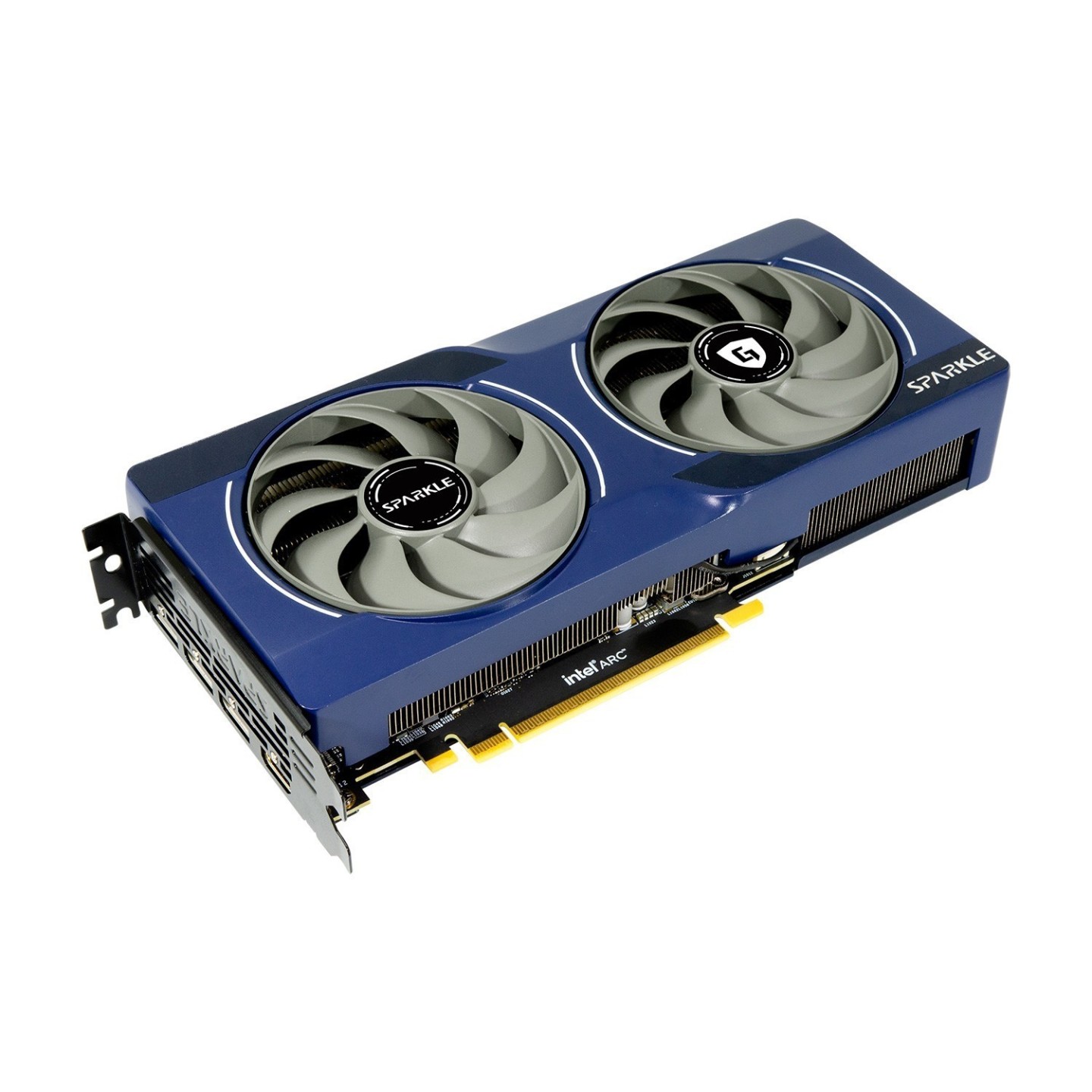

Sparkle Intel Arc B570 Guardian OC 10GB GDDR6 Blue (Boxed)
Intel Arc B570 budget GPU with 10GB GDDR6, 18 cores, 2660MHz boost. Excellent 1080p gaming performance, ray tracing support, 150W efficient power consumption, compact dual-fan design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Other |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 10 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
The Sparkle Intel Arc B570 Guardian OC is a budget-friendly discrete graphics card designed for 1080p gaming and content creation. Featuring Intel's Battlemage architecture with 18 Xe-cores and 2,304 shading units, this card delivers strong performance at an accessible price point of approximately $219-240. The 10GB GDDR6 memory with 160-bit bus width and 380GB/s bandwidth provides sufficient capacity for modern gaming workloads at 1080p resolution.
With a base clock of 2500MHz and boost clock of 2660MHz, the B570 achieves excellent frame rates in popular titles like Grand Theft Auto 5 (109 FPS at 1080p high settings), Call of Duty Black Ops 6 (83 FPS), and even handles ray-traced games like Cyberpunk 2077 with upscaling enabled (69 FPS average). The card features active dual-fan cooling with a compact 242mm length, consuming only 150W typical power and requiring a single 8-pin PCIe power connector. It supports PCIe 4.0 x8 interface, DirectX 12 Ultimate, and includes 3x DisplayPort 2.1 and 1x HDMI 2.1 outputs for multi-display configurations up to 7680x4320 resolution.
Key Features:
- 10GB GDDR6 memory with 380GB/s bandwidth
- 18 Xe-cores with 2,304 shading units
- Excellent 1080p performance with ray tracing support
- Compact dual-fan design (242mm length)
- Low power consumption (150W TDP)
- PCIe 4.0 x8 interface

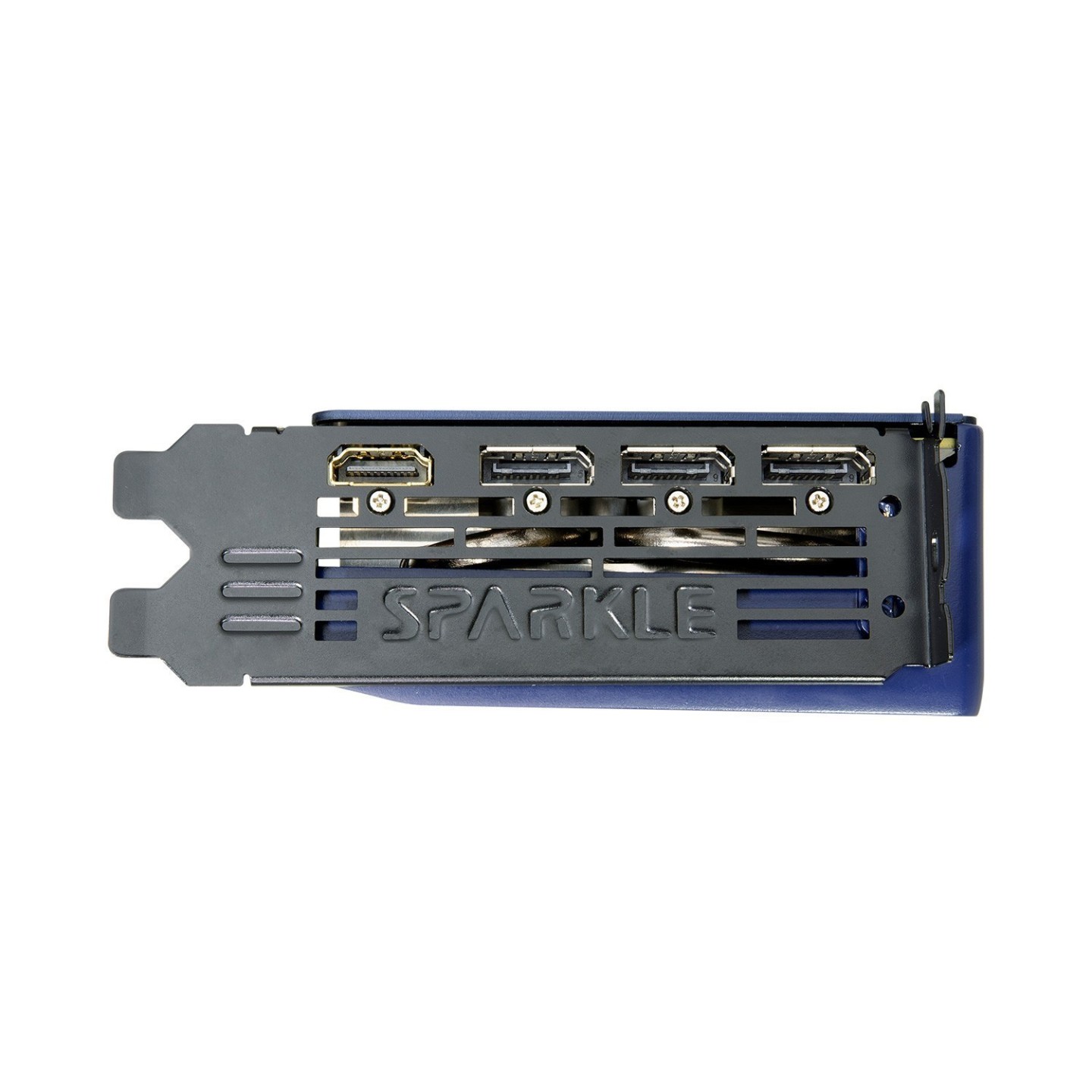

- 3x DisplayPort 2.1 + 1x HDMI 2.1 outputs
- Supports Windows 10/11 with 8GB minimum RAM
| Graphics Processor Family | Intel |
| Graphics Processor | Arc B570 (BMG-G21) |
| Xe-Cores | 18 |
| Shading Units | 2,304 |
| Ray Accelerators | 18 |
| XMX Engines | 144 |
| Base Clock Speed | 2500 MHz |
| Boost Clock Speed | 2660 MHz |
| Discrete Graphics Memory | 10 GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 160-bit |
| Memory Bandwidth | 380 GB/s |
| Interface Type | PCI Express 4.0 x8 |
| Maximum Resolution | 7680 x 4320 pixels |
| Maximum Displays | 4 |
| HDMI Ports | 1x HDMI 2.1 |
| DisplayPort Outputs | 3x DisplayPort 2.1 |
| DirectX Support | 12 Ultimate |
| OpenGL Support | 4.6 |
| OpenCL Support | 3.0 |
| Cooling Type | Active Dual-Fan |
| Number of Fans | 2 |
| Card Length | 242 mm |
| Card Height | 105 mm |
| Card Depth | 44 mm |
| Slot Width | 2.2 slots |
| Power Consumption (Typical) | 150 W |
| Power Consumption (Maximum) | 170 W |
| Power Connectors | 1x 8-pin PCIe |
| Minimum Power Supply | 600 W |
| Product Color | Blue |
| Weight (Card Only) | 796 g |
| Minimum RAM Required | 8 GB |
| Minimum Processor | 10th Gen Intel Core or AMD Ryzen 3000 Series with Resizable BAR/Smart Access Memory support |
| Operating Systems Supported | Windows 10, Windows 11 |
| Package Type | Retail Box |
