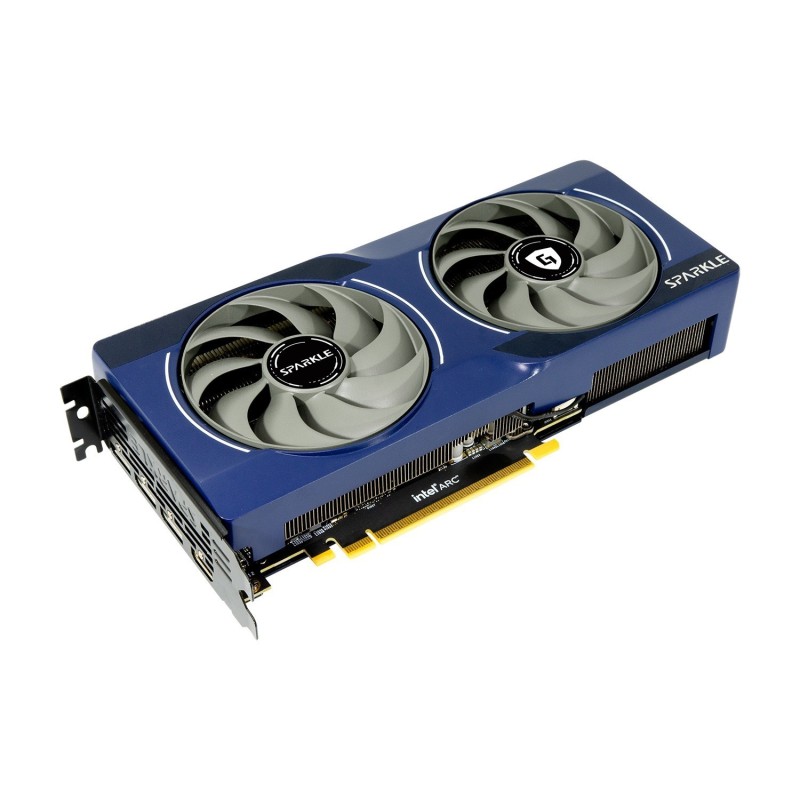

Sparkle Intel Arc B570 Guardian OC - Blue, 10GB GDDR6, Boost 2660 MHz
Intel Arc B570 GPU, 10GB GDDR6, Boost 2660 MHz, up to 7680 x 4320, 3x DisplayPort 2.1, 1x HDMI 2.1, PCIe 4.0 x8, 1x 8-pin power
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - Series | Intel Arc A-series |
|---|---|
| GPU (Graphics Cards) - VRAM Capacity | 10 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | 221-280 mm |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Sparkle Technology Intel Arc B570 GUARDIAN OC. Graphics processor family: Intel. Graphics processor: Arc B570. Processor frequency: 2500 MHz. Discrete graphics card memory: 10 GB. Graphics card memory type: GDDR6. Memory bus: 160 bit. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12 Ultimate. OpenGL version: 4.6. Interface type: PCI Express x8 4.0. Cooling type: Active. Number of fans: 2 fan(s)
| Graphics processor family | Intel |
| Graphics processor | Arc B570 |
| Processor frequency | 2500 MHz |
| Processor boost clock speed | 2660 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Ray accelerators | 18 |
| Discrete graphics card memory | 10 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 160 bit |
| Memory bandwidth (max) | 380 GB/s |
| Interface type | PCI Express x8 4.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1 |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| OpenCL version | 3.0 |
| Intel® Xe Matrix Extensions (Intel® XMX) Engines | 144 |
| Xe-cores | 18 |
| NPU performance up to | 203 TOPs |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Number of slots | 2.2 |
| Product colour | Blue |
| Minimum system power supply | 600 W |
| Power consumption (typical) | 150 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 170 W |
| Power supply location | Top |
| Windows operating systems supported | Windows 10. Windows 11 |
| Minimum system requirements | PCI-Express compliant MB with one x16 PCIe slot |
| Minimum processor | 10th Gen Intel Core / AMD Ryzen 3000 Series Processors or newer with compatible motherboards supporting Resizable BAR / Smart Access Memory |
| Minimum RAM | 8000 MB |
| Weight | 796 g |
| Length | 242 mm |
| Depth | 44 mm |
| Height | 105 mm |
| Package type | Box |
