Lenovo ThinkPad Universal USB-C Dock 40AY0090EU - HDMI+2DP 90W (Boxed)
Lenovo ThinkPad Universal USB-C Dock (40AY0090EU): HDMI + 2×DP 1.4 for 3x 4K@60Hz displays, 3×USB-A 3.1 Gen2 (10Gbps), 2×USB-A 2.0, USB-C 10Gbps, GbE, 90W PD (100W w/135W adapter), audio jack.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| USB Hubs & Docking Stations - Host Interface | USB-C |
|---|---|
| USB Hubs & Docking Stations - Number of Ports | 8 |
| USB Hubs & Docking Stations - Downstream Ports | USB-A USB-C |
| USB Hubs & Docking Stations - Video Output | DisplayPort HDMI |
| USB Hubs & Docking Stations - Power Delivery | 100W |
| USB Hubs & Docking Stations - Ethernet | 1 Gbps |
| USB Hubs & Docking Stations - Special Features | Audio Jack External Power Supply Kensington Lock Slot MST Support Plug and Play |
The Lenovo ThinkPad Universal USB-C Dock (40AY0090EU) transforms your laptop into a full workstation with one USB-C cable. It supports up to three 4K displays (2× DP 1.4 @60Hz + 1× HDMI 2.0 @30Hz) and delivers rapid data transfers via 3× USB-A 3.1 Gen 2 (10Gbps, one with always-on charging), 2× USB-A 2.0, and 1× USB-C (10Gbps, 5V/3A).

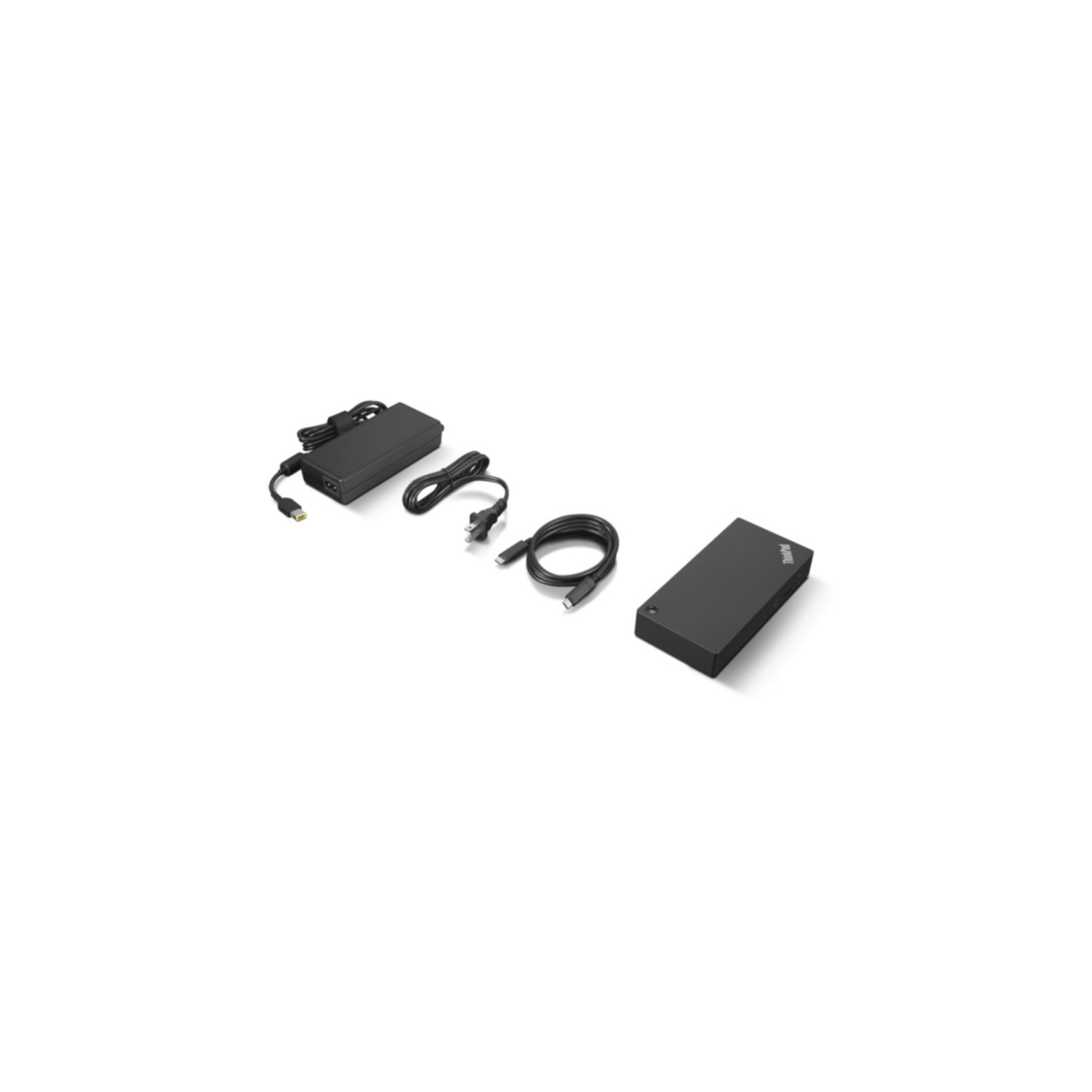

Featuring Gigabit Ethernet, 3.5mm combo audio jack, Kensington and Noble lock slots, this compact black dock provides 90W power delivery for ThinkPads (upgradable to 100W with optional 135W adapter). Includes 1m USB-C cable, 90W adapter, and power cord. Compatible with Windows 10/7.
- ✅ 11 total ports for maximum connectivity
- ✅ Multi-4K display support (PC-dependent)
- ✅ 90W charging + Gigabit LAN
- ✅ Plug-and-play with select ThinkPads
- ✅ VESA mountable design
| Connectivity technology | Wired |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2x2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 2 |
| Combo headphone/mic port | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Card reader integrated | No |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 pixels |
| Number of displays supported | 3 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| On/off switch | Yes |
| Certification | FCC/ICES, KCC, RCM, BSMI, VCCI, CB, cULus, EAC, TUV-Mark, Kvalitet, LoA, Israel SII, DoC, NOM |
| Power source type | USB |
| Power connector | USB Type-C |
| Power supply | 90 W |
| Windows operating systems supported | Windows 10, Windows 7 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Width | 171 mm |
| Depth | 80 mm |
| Height | 30.8 mm |
| Weight | 340 g |
| Quantity per pack | 1 pc(s) |
| Package width | 210 mm |
| Package depth | 158 mm |
| Package height | 75 mm |
| Package weight | 955 g |
| Cables included | USB Type-C |
| Compliance certificates | CE |
| Harmonized System (HS) code | 84733020 |
