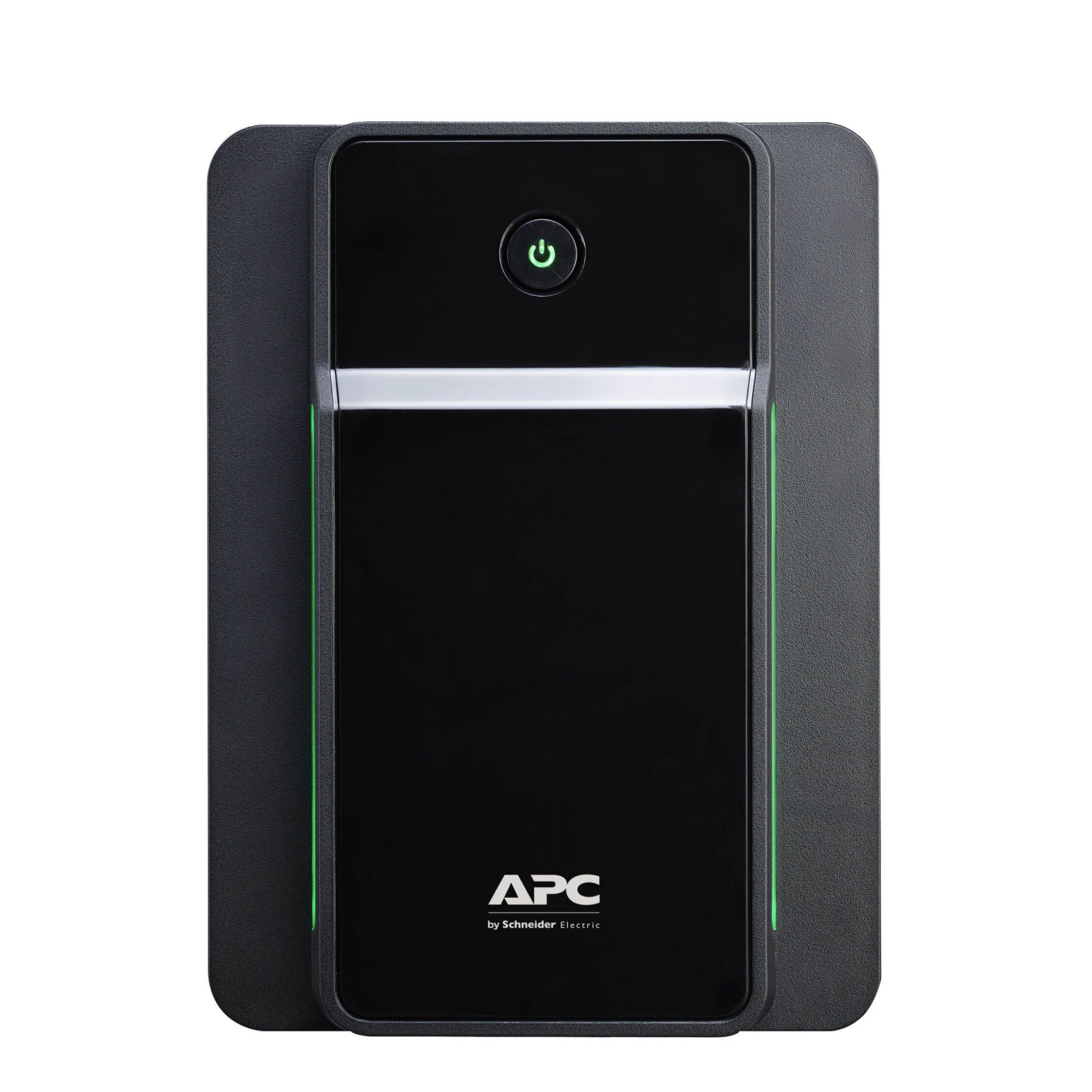

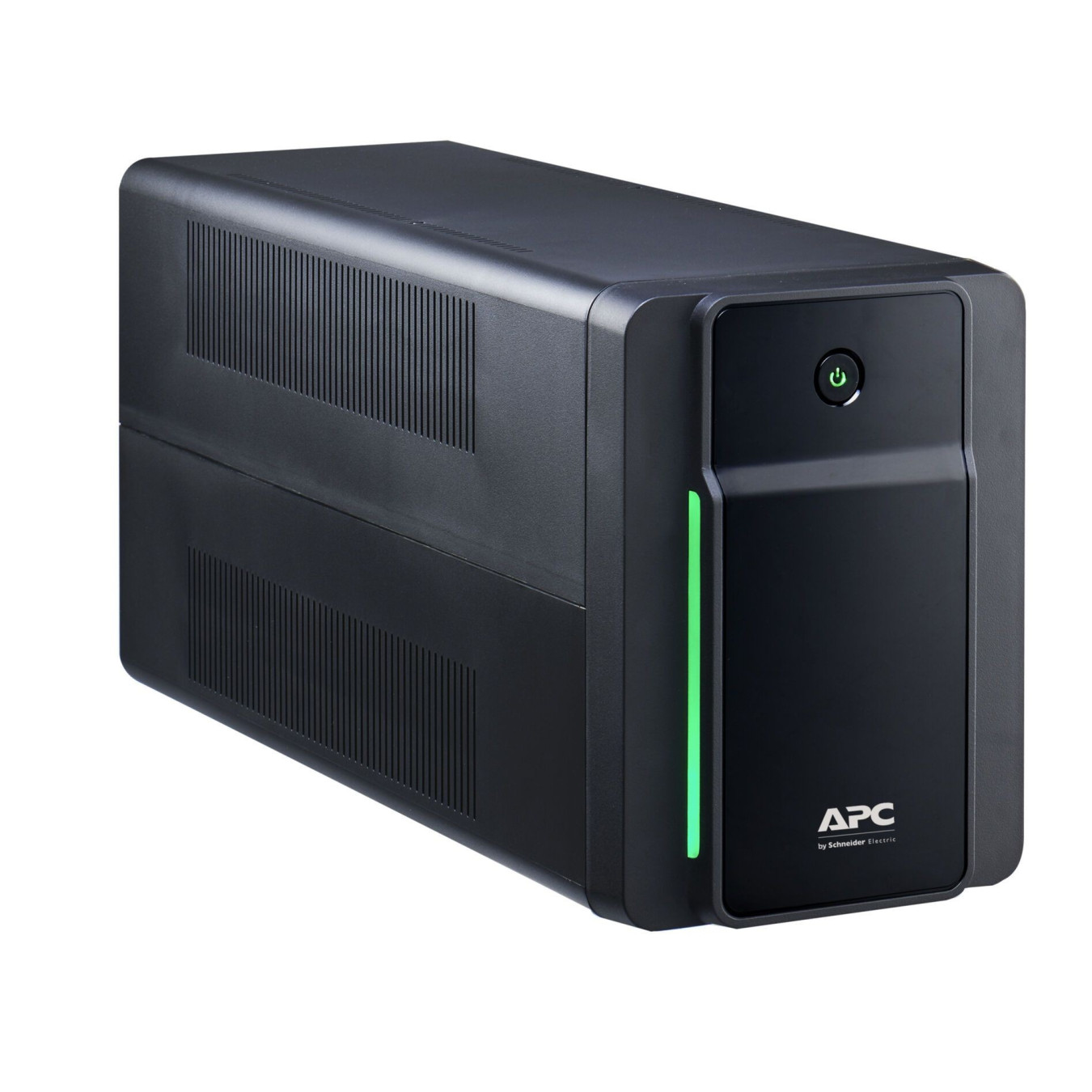

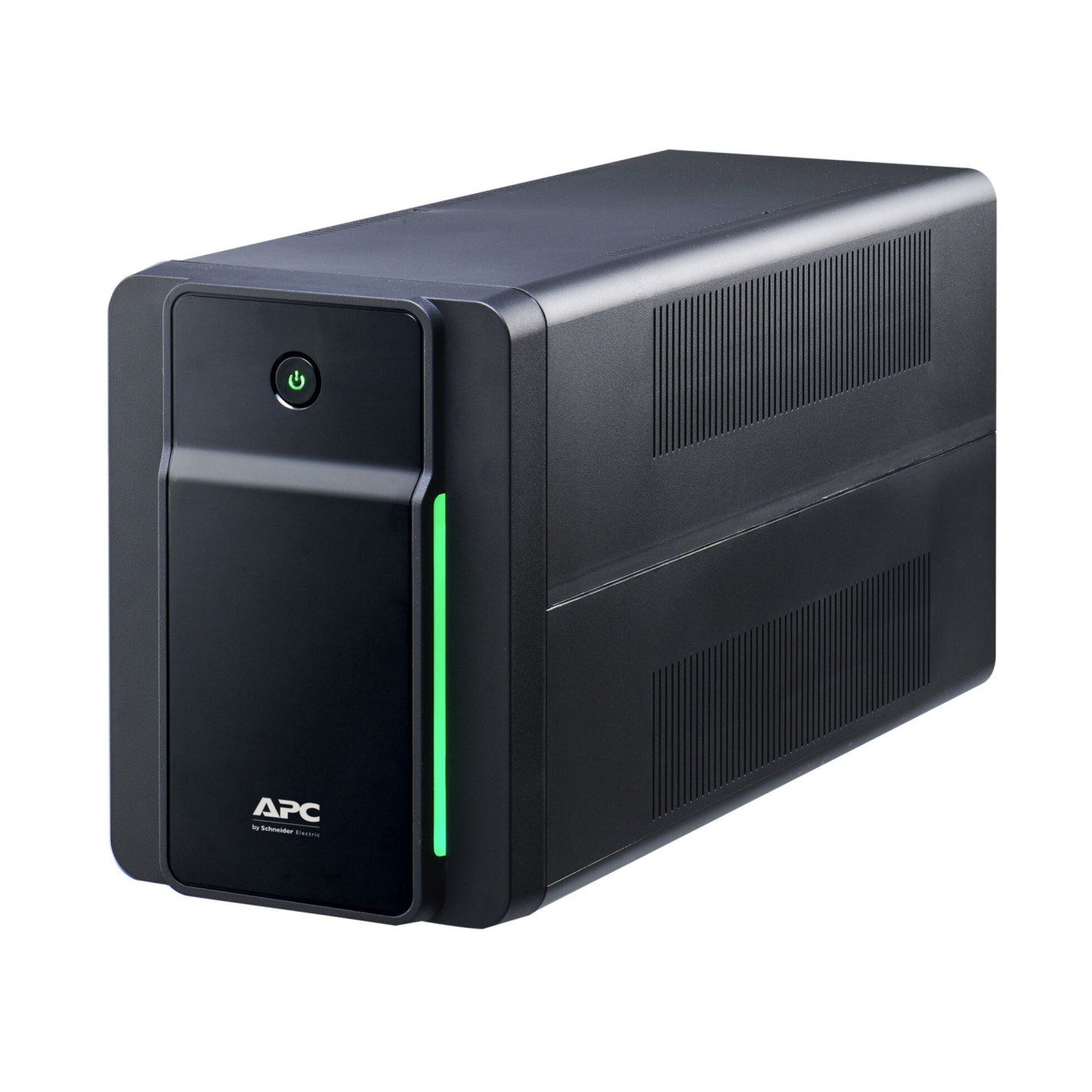

APC Back-UPS BX1600MI-GR 1600VA (900W) Line-Interactive UPS - 4 Schuko (Boxed)
APC Back-UPS BX1600MI-GR: 1600VA/900W line-interactive UPS with AVR, pure sine wave output, 4 Schuko outlets. Surge protection (273J), USB interface. ~6.5min half load backup. Compact tower for home/office PC protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | Schuko (Type F) |
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |

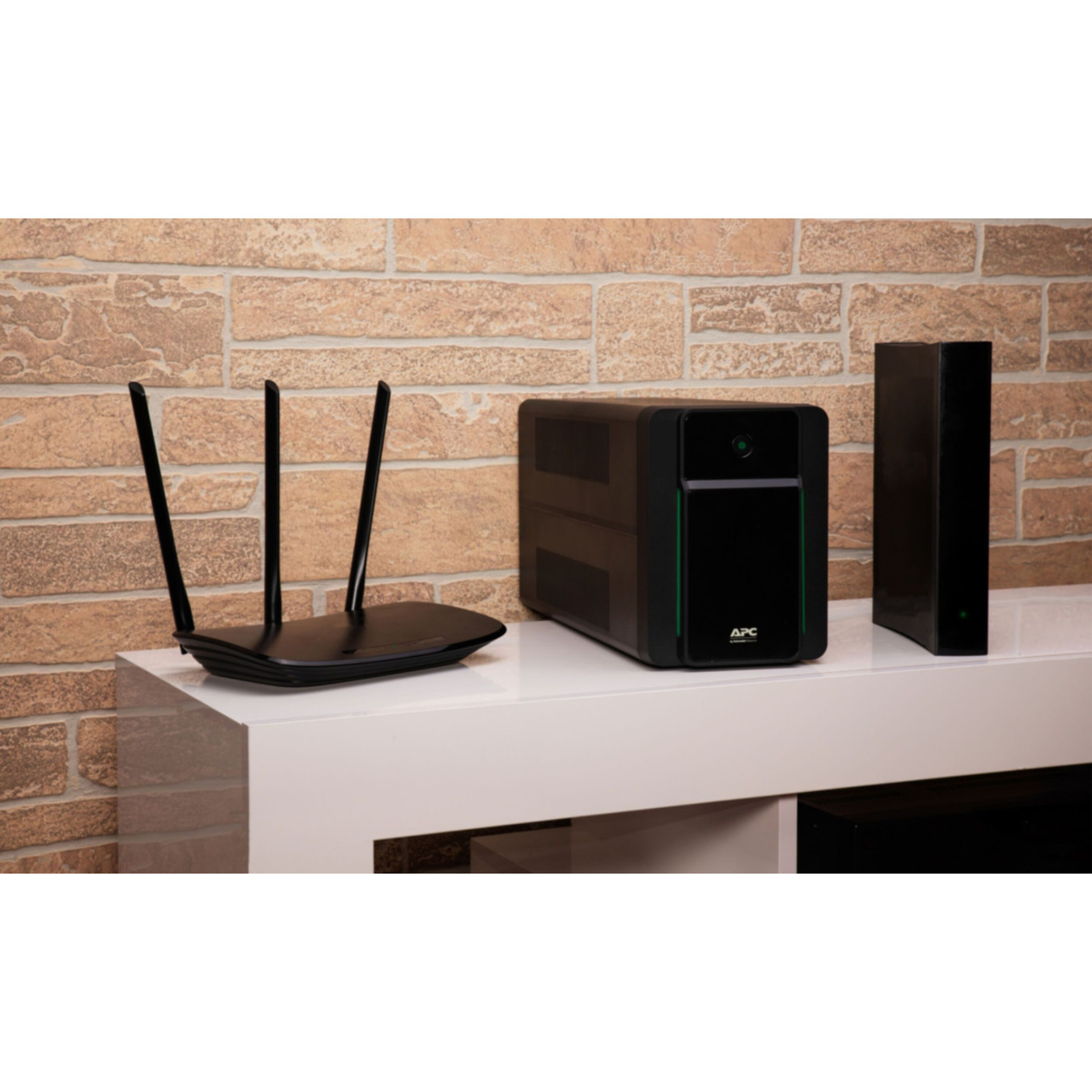

This APC Back-UPS BX1600MI-GR provides reliable power protection for home or office electronics including computers, networking gear, and gaming consoles. The 1600VA (900W) line-interactive UPS features Automatic Voltage Regulation (AVR) to stabilize low/high voltage conditions without using battery power, extending battery life. It delivers stepped approximation to sine wave output suitable for sensitive equipment.
Equipped with 4 Schuko (CEE 7/7) outlets offering full battery backup and surge protection rated at 273 Joules. Includes USB Type-B port for monitoring via PowerChute software and Ethernet surge protection. Typical runtime is 1 minute at full load and 6.5 minutes at half load. Sealed lead-acid battery recharges in 8 hours with expected life of 3-5 years; replacement cartridge APCRBC176 available.
- Key Benefits: AVR for voltage correction, compact black tower design (14x19x39cm, 10.3kg)
- Connectivity: USB-B port, 2 RJ-45 for network protection
- Protection: Surge 273J, IP20 rating, LED status indicators
- Warranty: 2 years, CE certified
| UPS topology | Line-Interactive |
| Output power capacity | 1.6 kVA |
| Output power | 900 W |
| Waveform | Stepped approximation to a Sine wave |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage | 230 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) | Yes |
| Surge energy rating | 273 J |
| Transfer time | 6 ms typical / 10 ms maximum |
| Input power factor | 0.56 |
| Noise level | 40 dBA |

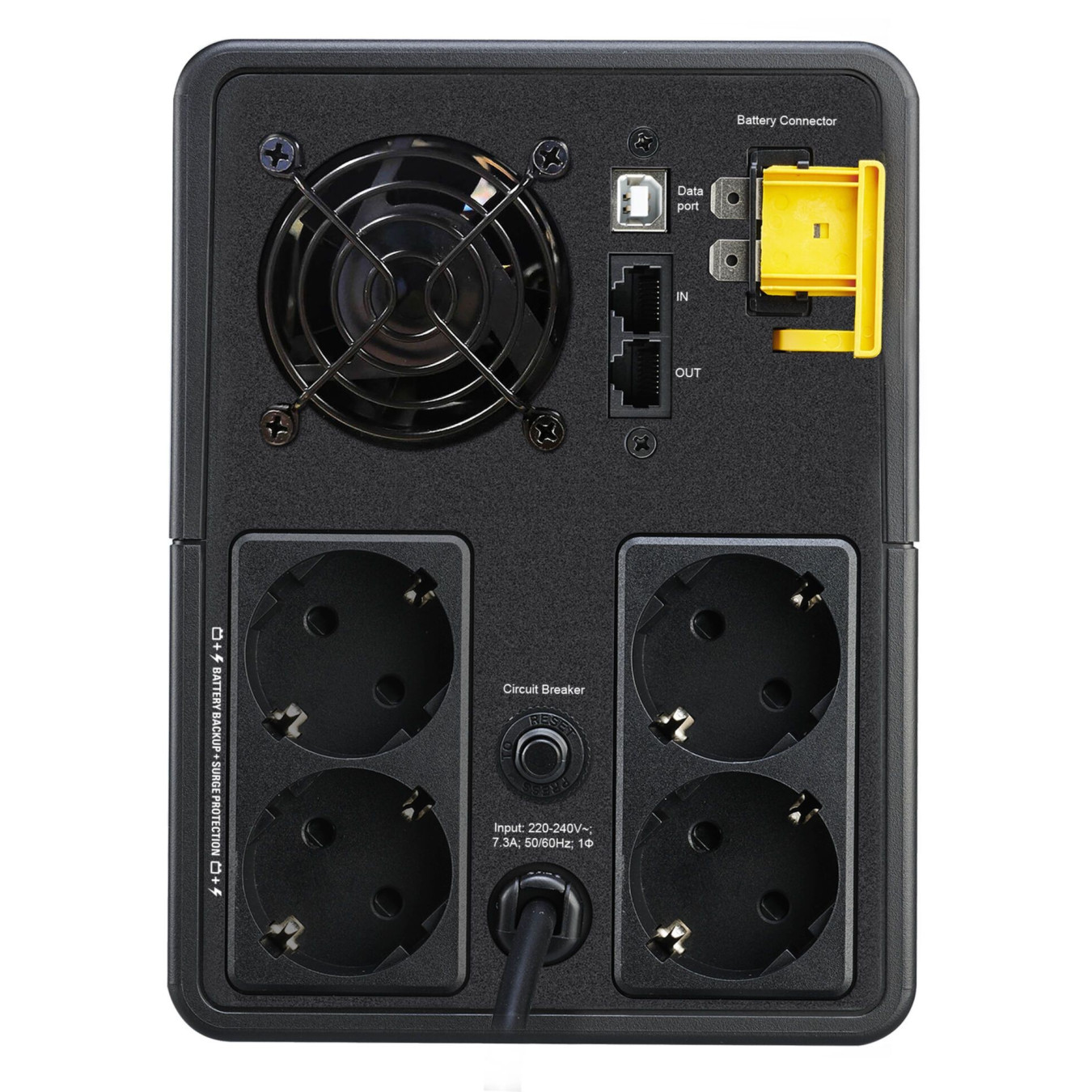

| AC outlet types | 4x Schuko CEE 7/7 |
| Power plug | Schuko CEE 7/7 |
| USB port | Yes (USB Type-B) |
| Ethernet LAN (RJ-45) ports | 2 (surge protection) |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 24 V |
| Battery capacity | 7.0 Ah / 136 VAh |

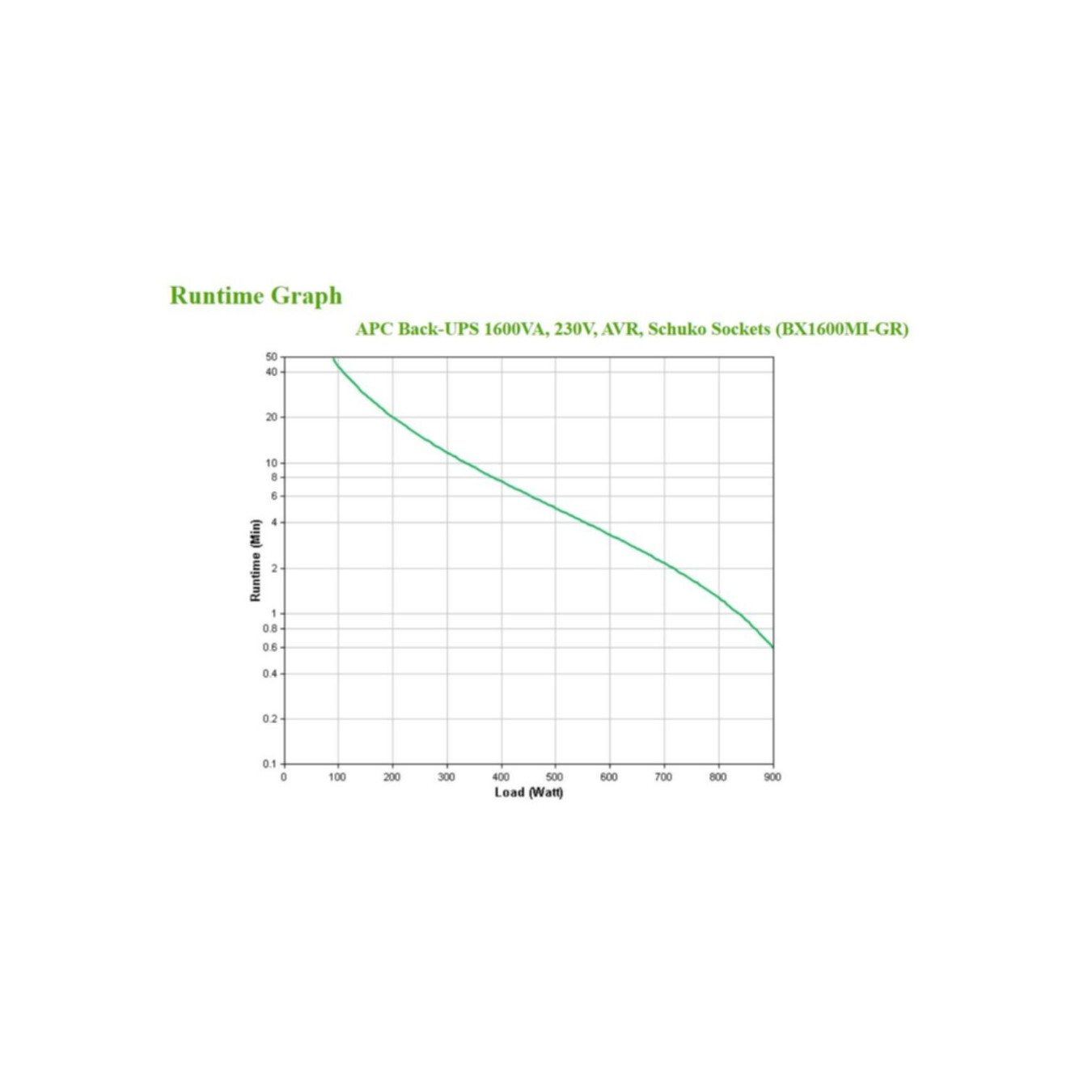

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 6.5 min |
| Battery recharge time | 8 h |
| Battery life | 3-5 years |
| Replacement battery | APCRBC176 |
| Form factor | Tower |
| Cable length | 1.2 m |
| Product colour | Black |
| LED indicators | Yes (Status display) |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Certification | CE, CB, EN/IEC 62040-1, EN/IEC 62040-2 |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 10.3 kg |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 11.3 kg |
