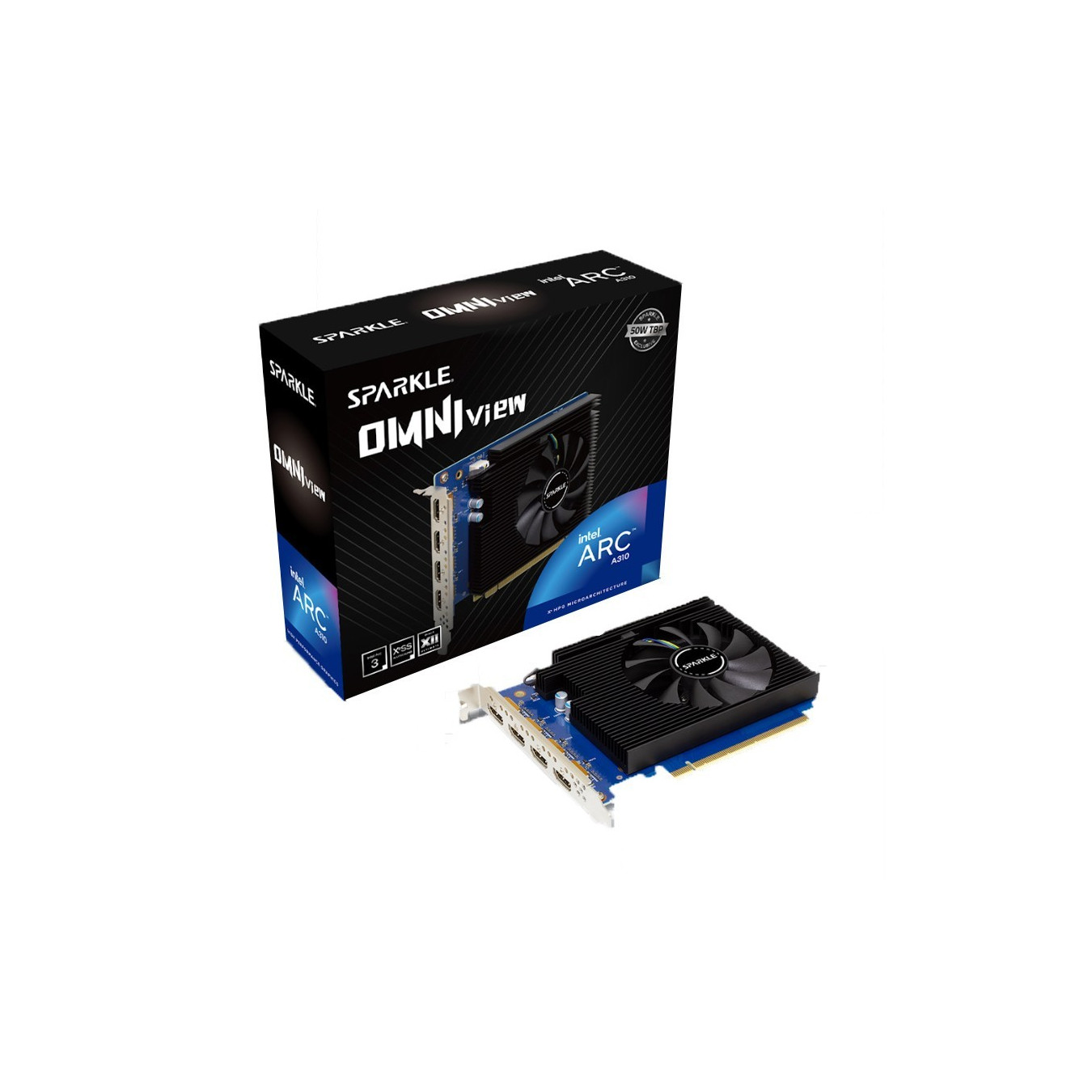

SPARKLE Intel Arc A310 Omni View 4GB GDDR6 PCIe 4.0 x16 - 2340 MHz (Boxed)
Compact Sparkle Intel Arc A310 Omni View GPU: 4GB GDDR6, PCIe 4.0 x16, 2340 MHz boost, single-fan cooling, 50W TDP. Features 1xHDMI, 2xDP. Ideal for SFF PCs, media playback, light gaming with AV1 support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Single Fan |
| GPU (Graphics Cards) - Color | Black Other |
| GPU (Graphics Cards) - VRAM Capacity | 4 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort HDMI 2.1 |
| GPU (Graphics Cards) - Card Length | Low Profile (Under 170 mm) |
The SPARKLE Intel Arc A310 Omni View is a compact, low-profile graphics card perfect for small form factor (SFF) systems, office PCs, and home theater setups. Powered by Intel's Arc A310 GPU with 6 Xe-cores, it delivers solid entry-level performance for everyday tasks, video playback, and light gaming. With just a 50W TDP, it draws power directly from the PCIe slot - no extra connectors needed.
Key features include hardware AV1 encoding/decoding for efficient streaming, Ray Tracing support, and excellent media engine capabilities (H.264, H.265, VP9). The single-fan active cooling keeps temperatures low in tight spaces, while the blue/black design adds style. Outputs: 1x HDMI 2.0b, 2x DisplayPort for multi-monitor setups up to 8K.
- ✅ 4GB GDDR6 memory (64-bit, 124 GB/s effective)
- ✅ Boost clock up to 2340 MHz for smooth 1080p gaming
- ✅ Ultra-compact: 69x56x15mm, 202g - fits anywhere
- ✅ DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6
- ✅ Perfect Plex/media server GPU with AV1 support
| Bus Type | PCI Express 4.0 |
| Bus Version | 4.0 |
| Bus Speed | x16 |
| Manufacturer | Intel |
| Series | Arc A310 |
| Graphics Chip Type | Arc A310 |
| Base Clock | 1000 MHz |
| Boost Clock | 2340 MHz (Boost) / 2105 MHz (Gaming) |
| GPU Count | 1 |
| Shaders | 5120 |
| Shader Version | 5 |
| 3D API | 4.6 |
| Memory Size | 4 GB |
| Type | GDDR6 |
| Memory Clock | 124 GB/s |
| Memory Interface | 64 Bit |
| HDMI | 1 |
| Display Port | 2 |
| DUAL-Link DVI | No |
| Power Connector | None |
| TDP | 50 W |
| Width | 69 mm |
| Height | 56 mm |
| Length | 15 mm |
| Weight | 202 g |
| Cooling | Active (1 Fan) |
| Color | Blue, Black |
