APC Back-UPS BX1200MI-GR 1200VA 650W Line-Interactive UPS Black (Boxed)
APC Back-UPS BX1200MI-GR: 1200VA/650W line-interactive UPS with AVR, surge protection (273J), 4 Schuko outlets. Provides ~5min half load, ~1min full load backup. USB & RJ45 protection, compact black tower design for home/office PC protection.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Tower / Desktop |
| UPS & Power Backup - Input Plug | Schuko (Type F) |
| UPS & Power Backup - Output Receptacles | Schuko (Type F) |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation |

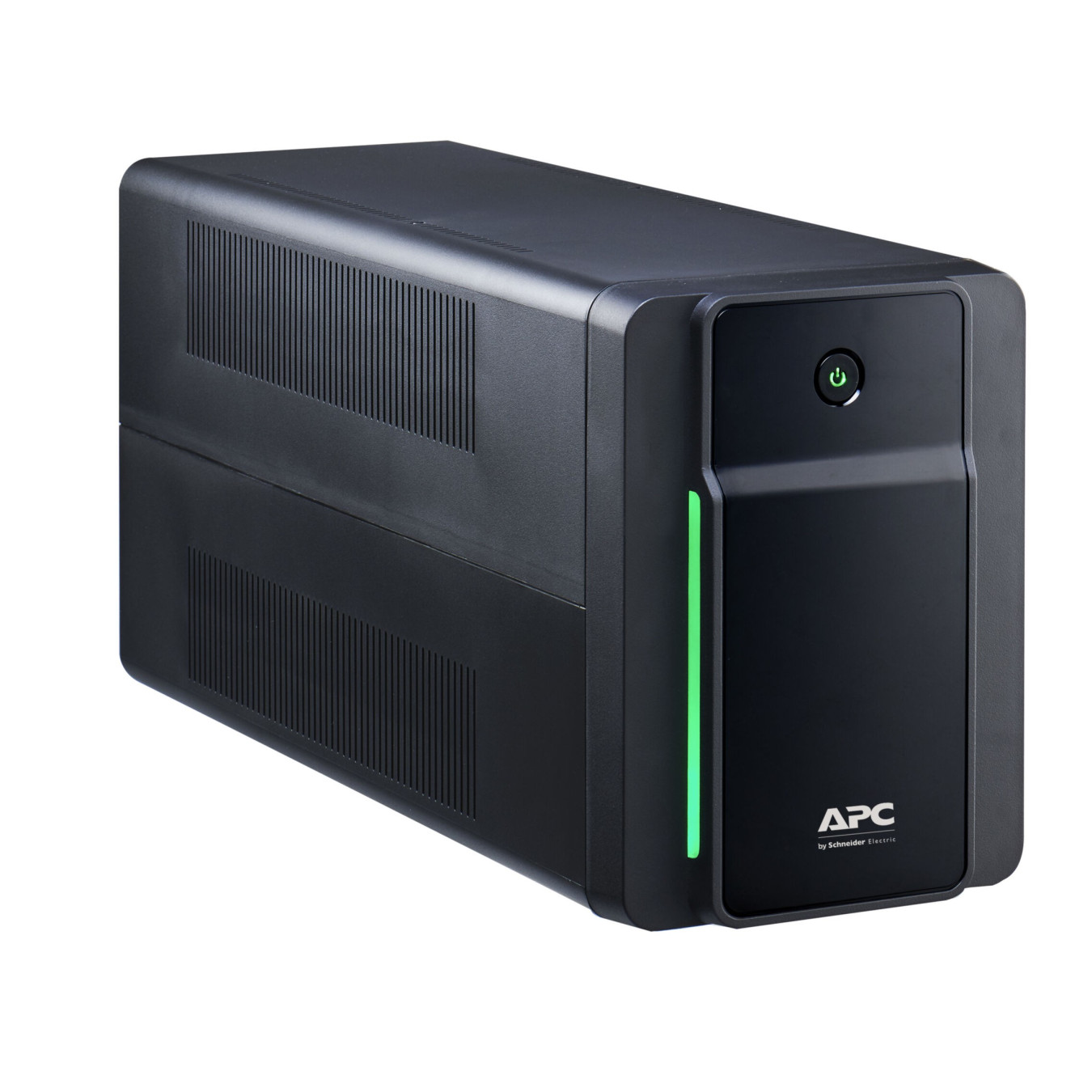

The APC Back-UPS BX1200MI-GR is a reliable 1200VA (650W) line-interactive UPS designed for home and small office use. Featuring Automatic Voltage Regulation (AVR) and surge protection rated at 273 Joules, it safeguards your devices from power fluctuations and spikes. This compact black tower unit includes 4 Schuko (CEE 7/7 Type F) outlets, all battery-backed, plus USB Type-B for monitoring and 2 RJ45 ports for network protection.
Equipped with a sealed lead-acid VRLA battery (12V 9Ah), it delivers typical backup times of 1 minute at full load (650W) and 5 minutes at half load (325W). Battery recharge takes 8 hours, with a lifespan of 3-5 years and user-replaceable APCRBC175 cartridge. Operating silently at 40dB, it supports input voltages from 140-300V and offers a transfer time of 6ms typical.
- Key Features: AVR for stable output, LED indicators, audible alarms, RoHS compliant

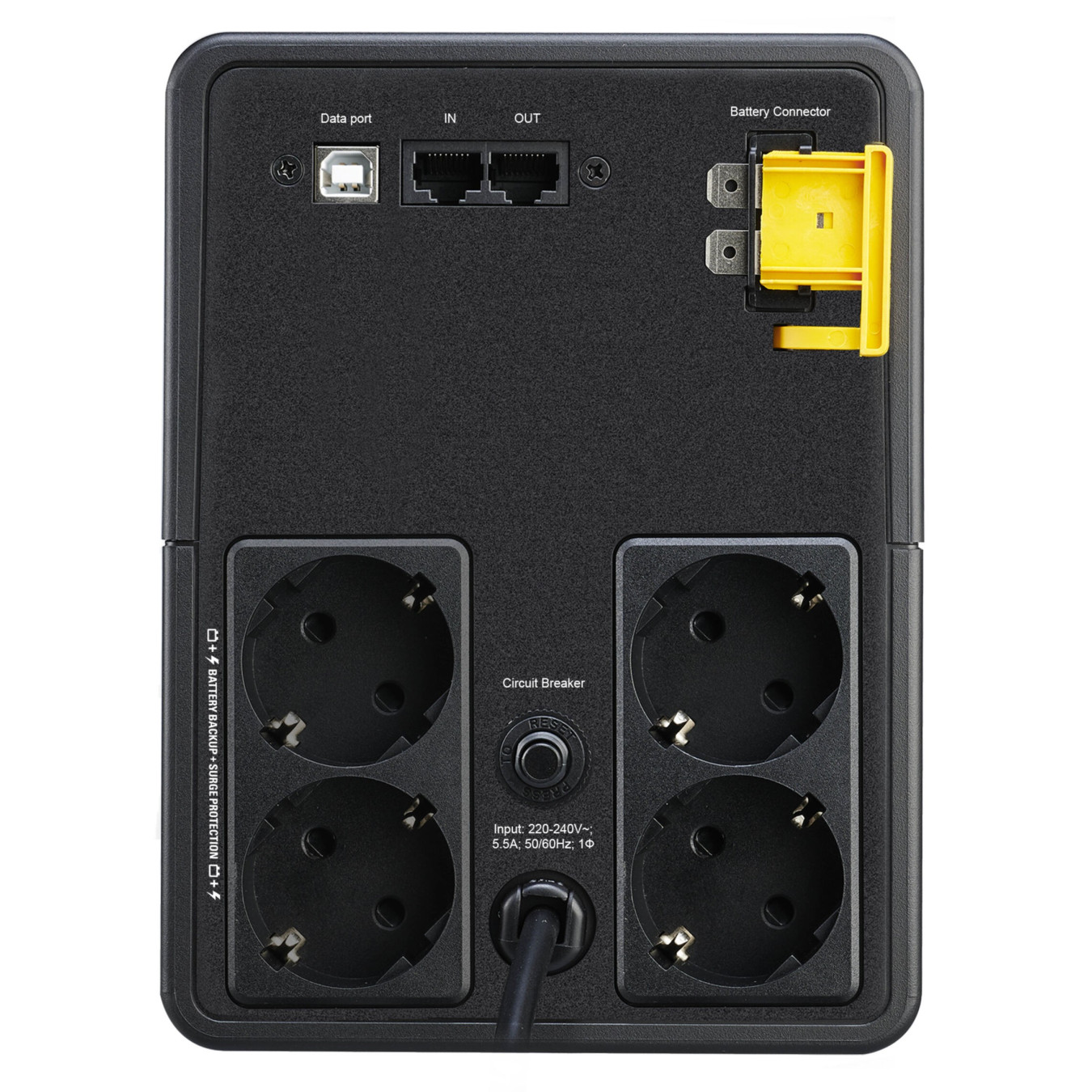

- Connectivity: 1x USB Type-B, 2x RJ45 surge protection
- Physical: 190x140x390mm, 7.6kg (8.6kg boxed), IP20 rated
- Certifications: CE, CB, EN/IEC 62040 standards
| UPS topology | Line-Interactive |
| Output power capacity | 1.2 kVA |
| Output power | 650 W |
| Waveform | Stepped approximation to a sinewave |
| Input operation voltage (min) | 140 V |
| Input operation voltage (max) | 300 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 230 V |
| Output operation voltage (max) | 230 V |
| Output frequency | 50/60 Hz |
| Transfer time | 6 ms typical : 10 ms maximum |
| Surge energy rating | 273 J |
| Noise level | 40 dB |
| AC outlet types | Type F |
| Power plug | Type F |
| AC outlets quantity | 4 AC outlet(s) |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| Ethernet LAN (RJ-45) ports | 2 |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery voltage | 12 V |
| Battery capacity | 9.0 Ah |

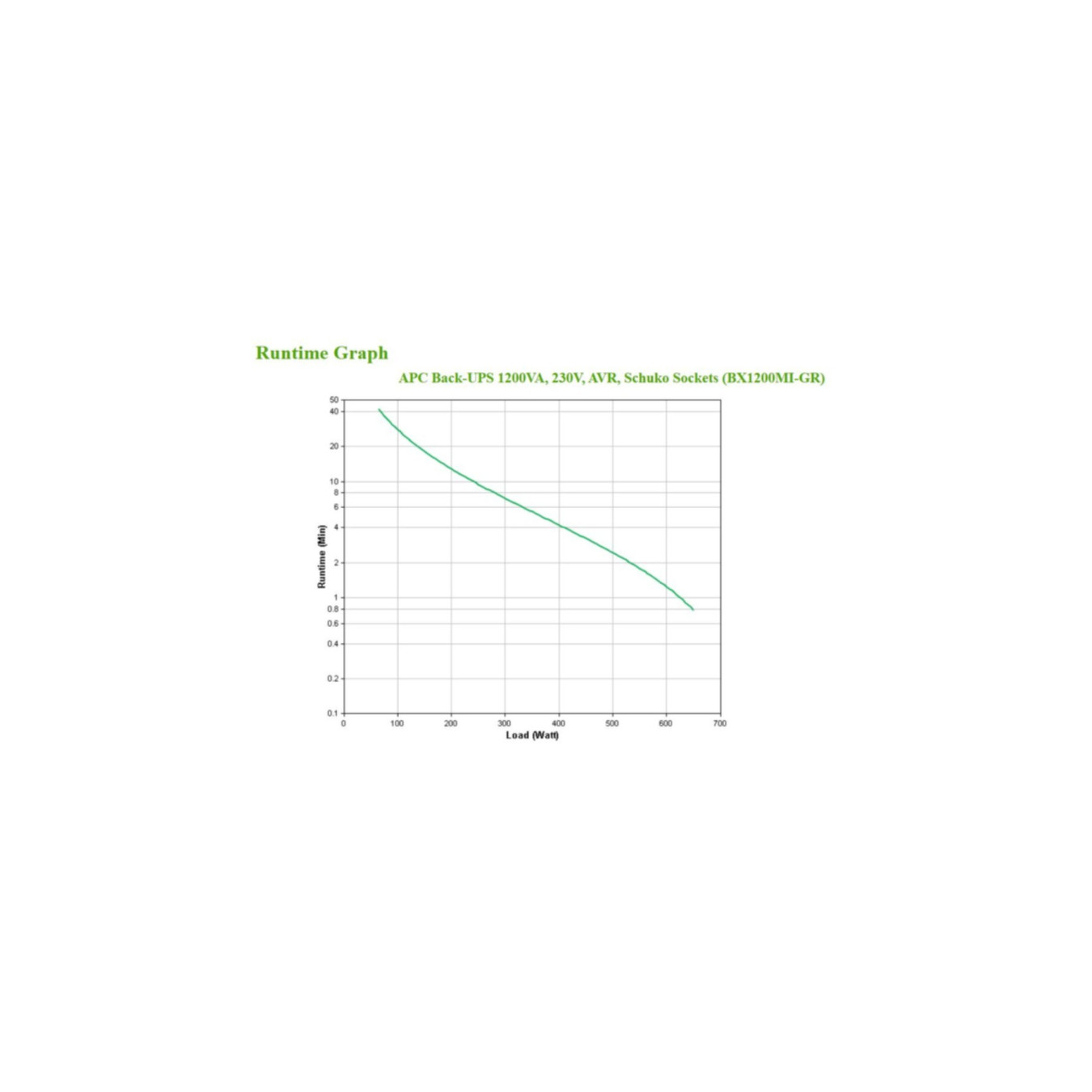

| Typical backup time at full load | 1 min |
| Typical backup time at half load | 5 min |
| Battery recharge time | 8 h |
| Battery life (max) | 3-5 year(s) |
| Replacement battery | APCRBC175 |
| Form factor | Compact |
| Cable length | 1.2 m |
| Product colour | Black |
| International Protection (IP) code | IP20 |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
| Certification | CB Meet EN62040-1 / CE / IEC-62040-1 / IEC-62040-2 |
| Width | 140 mm |
| Depth | 390 mm |
| Height | 190 mm |
| Weight | 7.6 kg |
| Package width | 235 mm |
| Package depth | 495 mm |
| Package height | 297 mm |
| Package weight | 8.6 kg |
