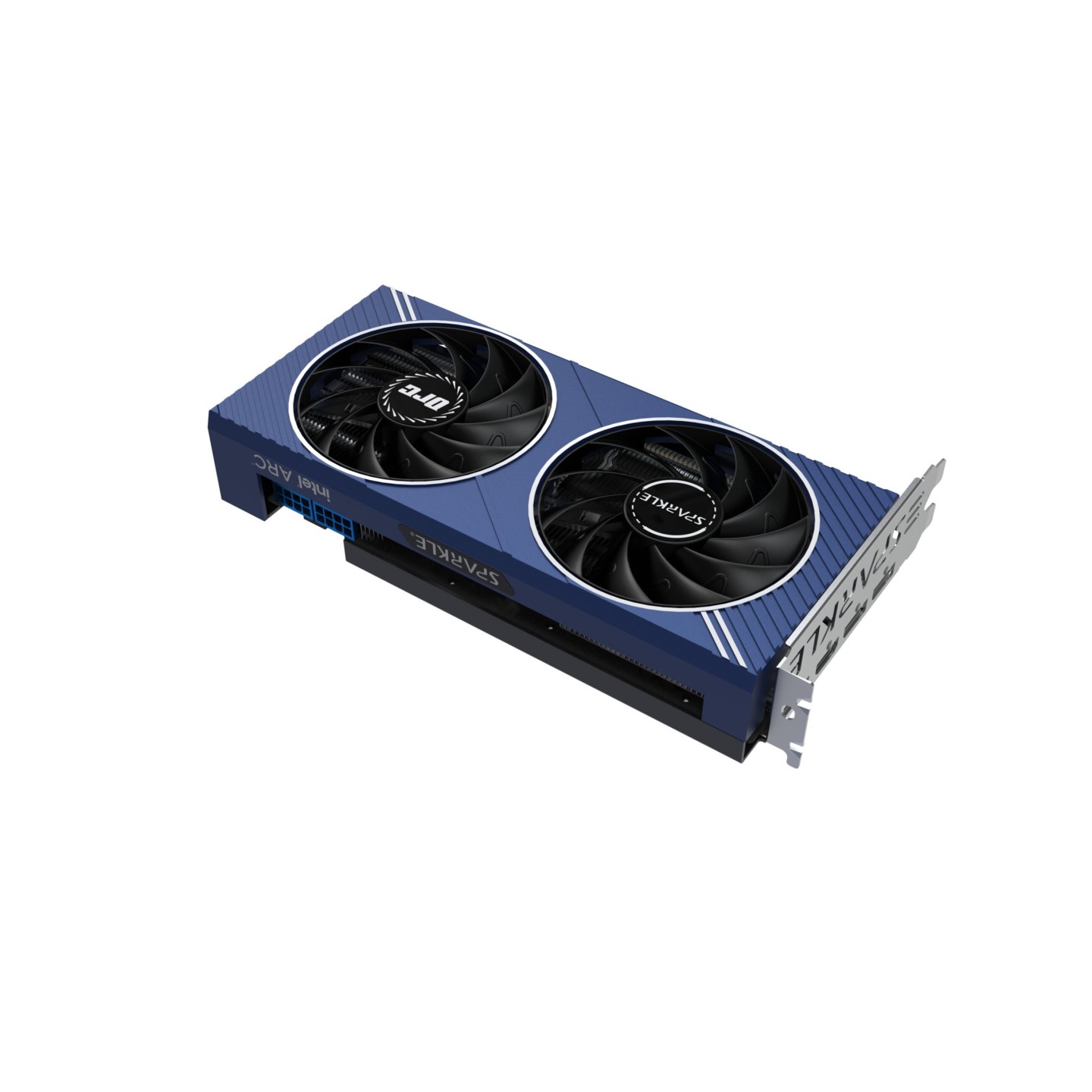

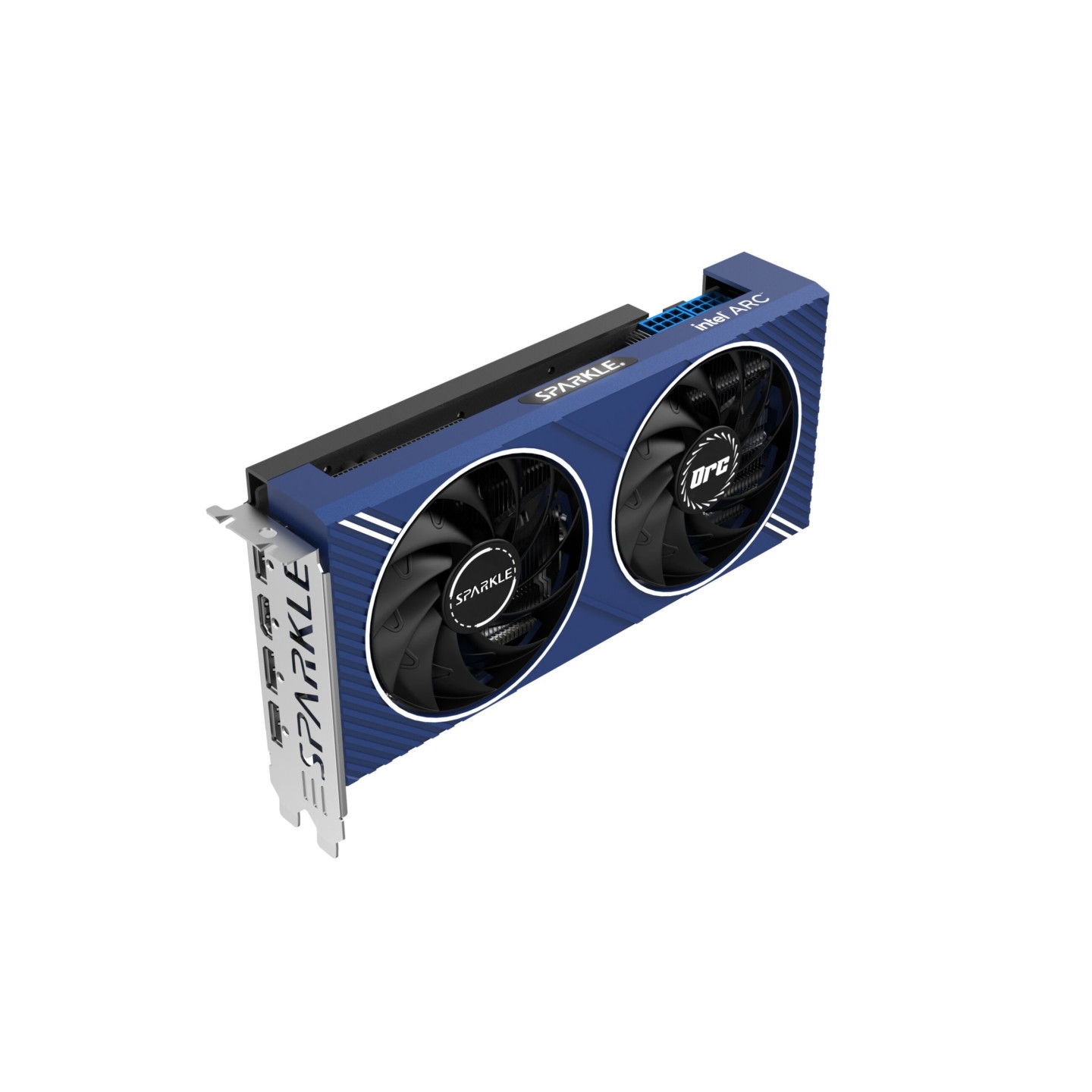

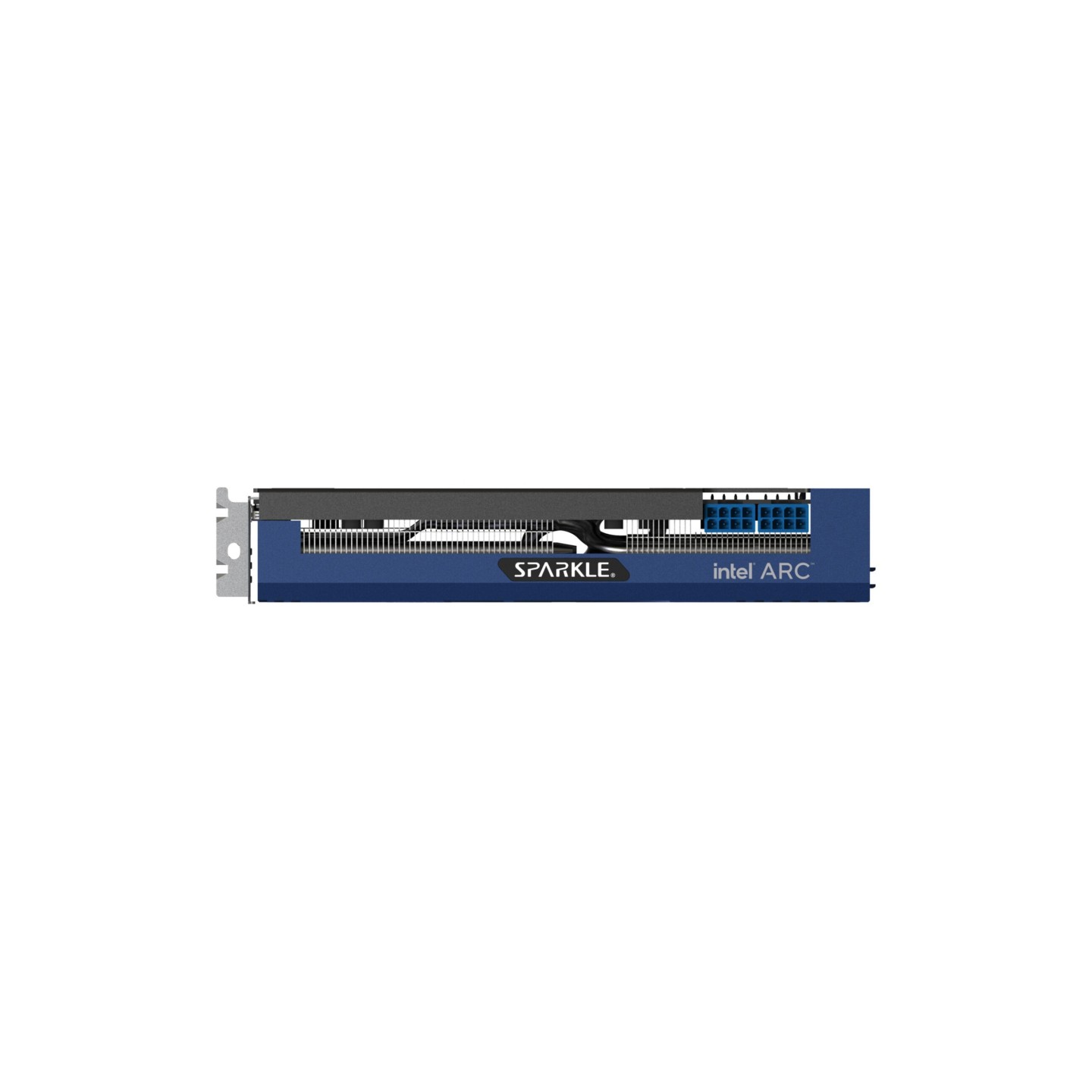

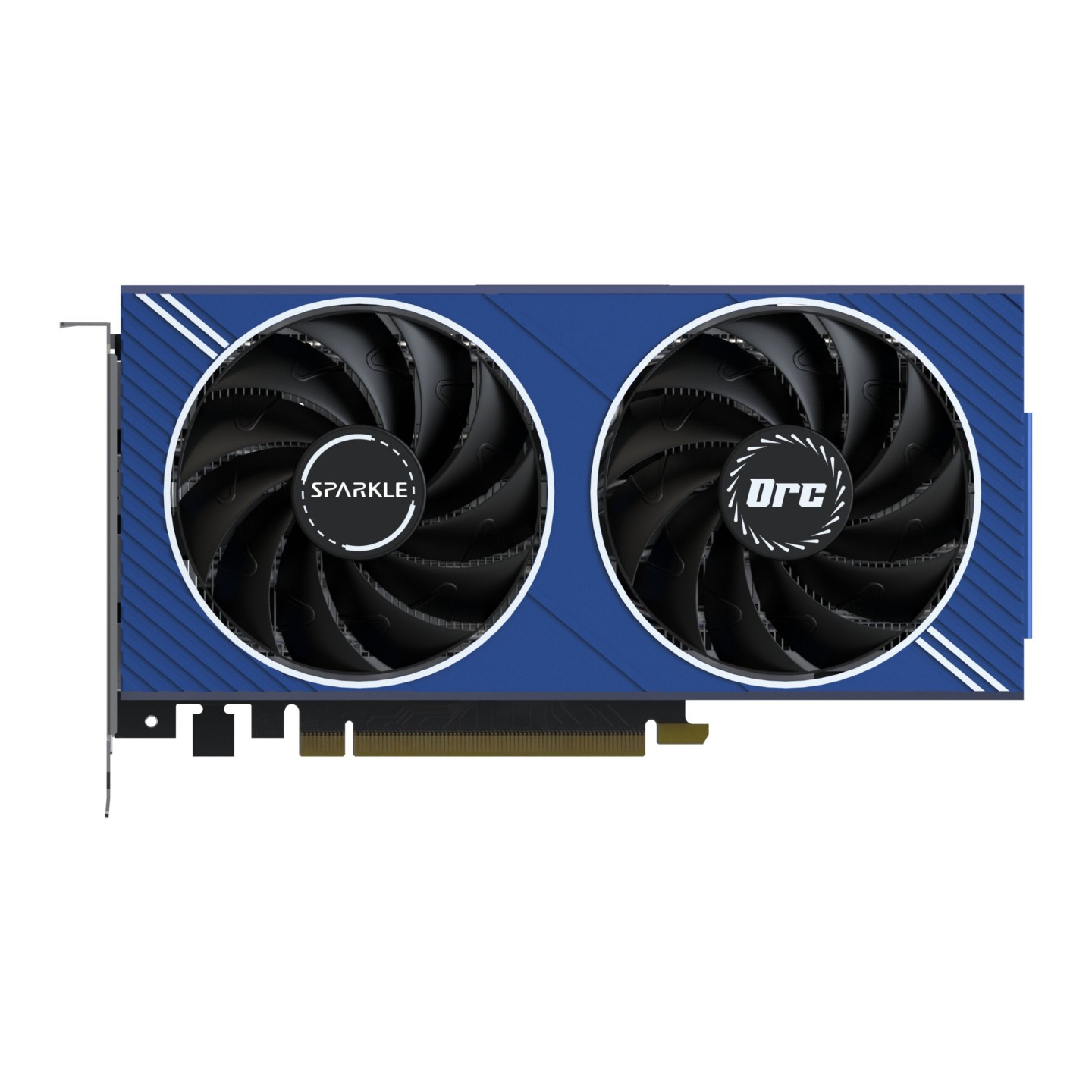

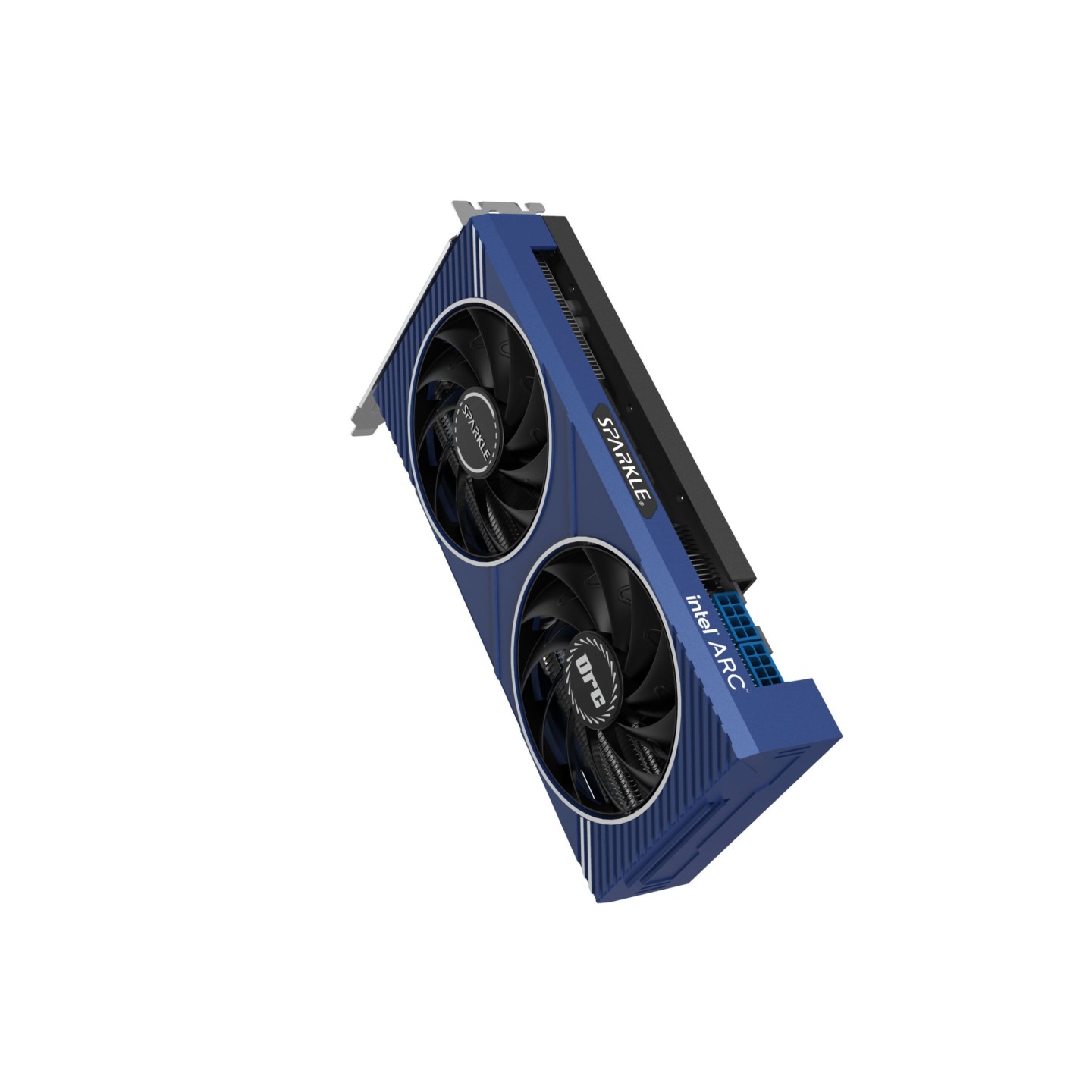

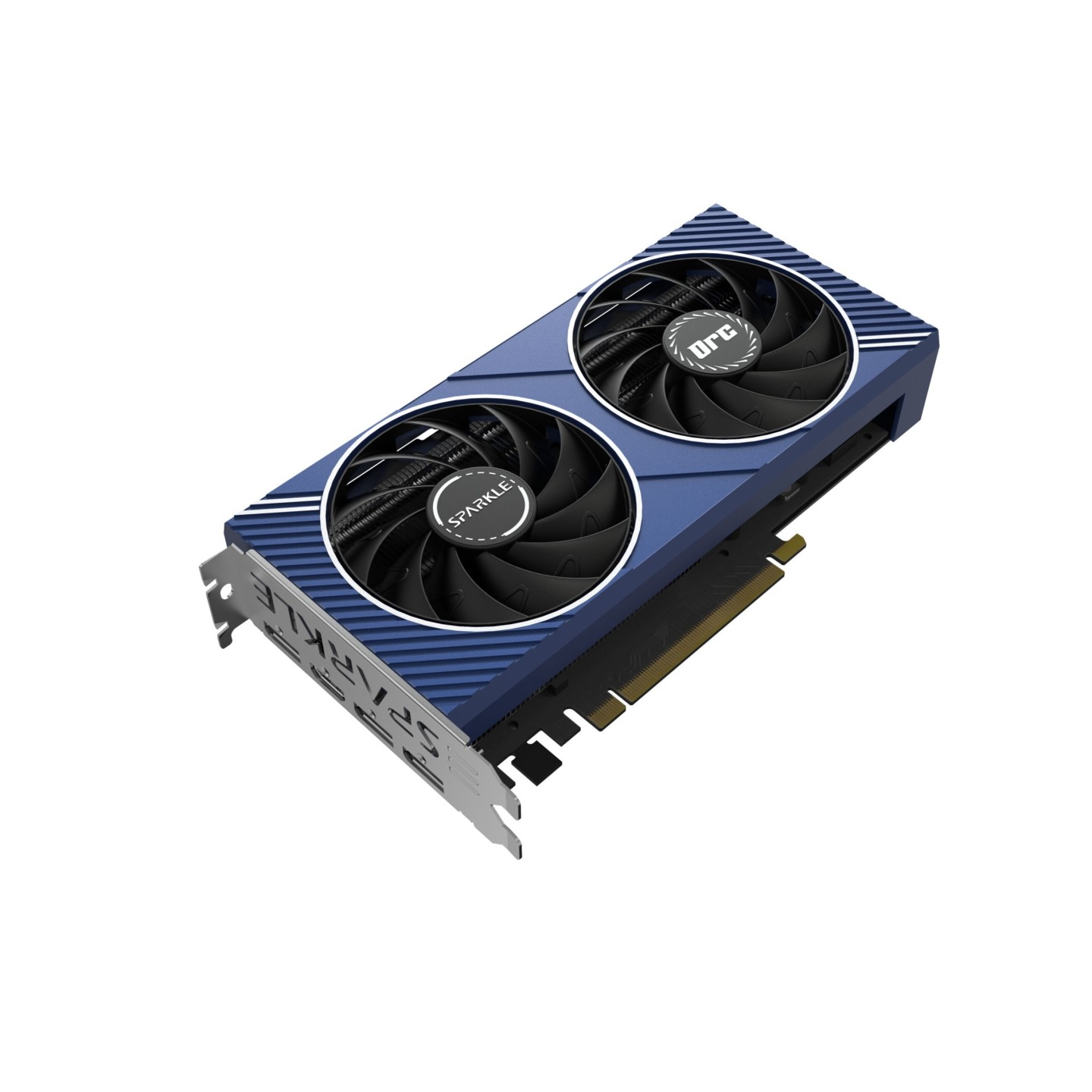

Sparkle Intel Arc A580 ORC OC 8GB GDDR6 - PCIe 4.0 (Boxed)
Intel Arc A580 budget GPU with 8GB GDDR6, 24 Xe-cores, 2000 MHz factory OC, dual-fan cooling. Delivers 1080p gaming at 19% better performance than RTX 3050. Includes 3x DisplayPort 2.0 + HDMI 2.0b outputs.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | Intel Arc |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.0 HDMI 2.0 |
| GPU (Graphics Cards) - Power Connector | 2x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The Sparkle Intel Arc A580 ORC OC Edition is a budget-focused discrete graphics card designed for entry-level 1080p gaming. Built on Intel's ACM-GM10 silicon architecture, it features 24 Xe-cores across 6 render slices, delivering approximately 19% better performance than the NVIDIA GeForce RTX 3050 at 1080p resolution. The card is equipped with 8GB of GDDR6 memory on a 256-bit bus, providing 512 GB/s memory bandwidth—identical to the higher-tier Arc A750. Sparkle's factory overclock increases the boost clock to 2400 MHz (reference: 1700 MHz), while the base clock reaches 2000 MHz, enhancing gaming performance out of the box.

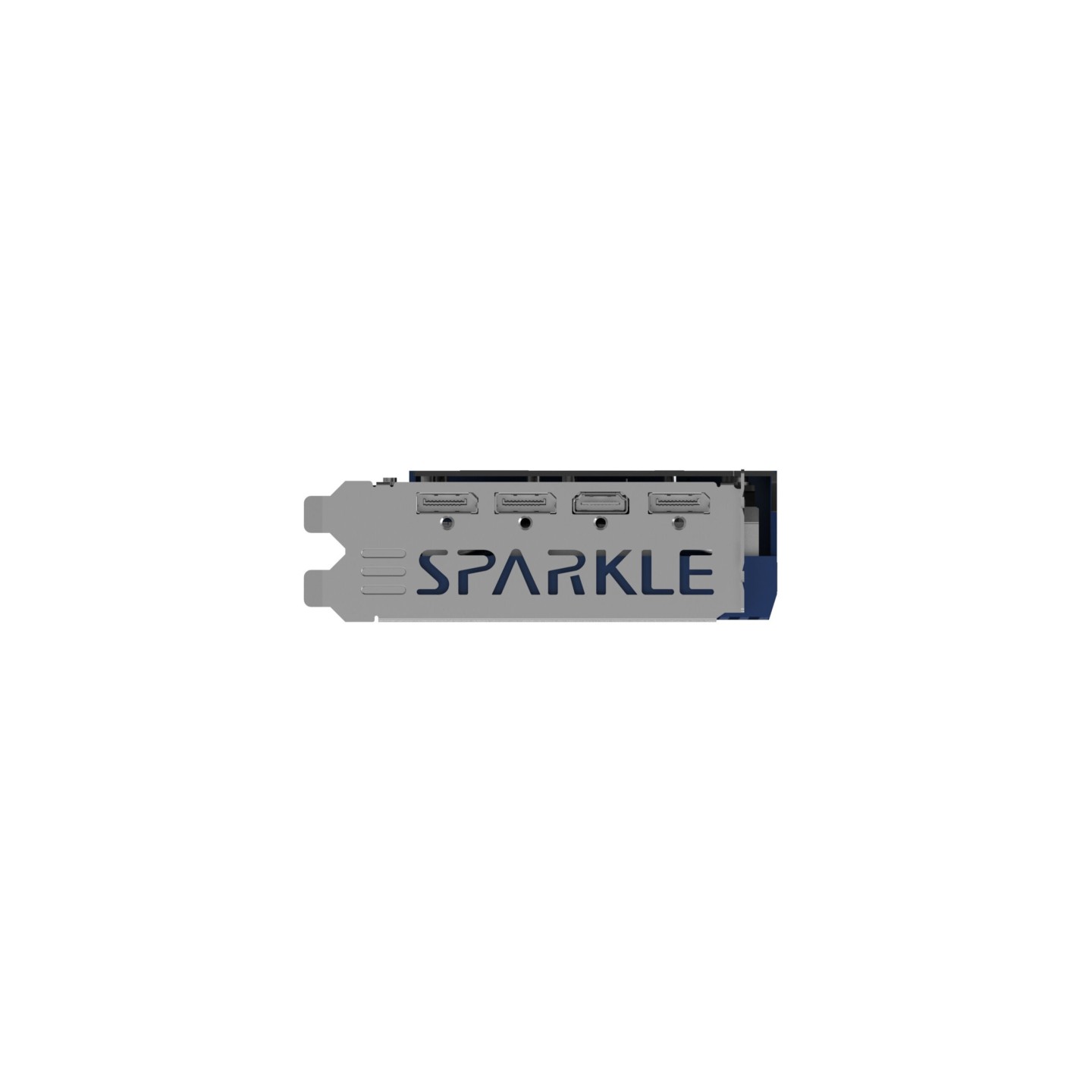

Cooling is handled by an active dual-fan design with a full aluminum backplate for structural rigidity and heat dissipation. The card measures 223 x 113 x 39.5 mm and weighs 738 grams, making it relatively compact for modern standards. Power delivery utilizes two 8-pin PCIe connectors with a total board power (TBP) of 185W, requiring a minimum 600W power supply (650W recommended). Connectivity includes three DisplayPort 2.0 outputs and one HDMI 2.0b port, supporting multi-monitor setups and maximum resolution of 7680 x 4320 pixels. The Sparkle logo features temperature-responsive RGB lighting that transitions from white (coolest) through blue, green, yellow, orange, to red (hottest).
Performance testing shows the A580 excels at 1080p gaming: Cyberpunk 2077 averages 70 FPS on ultra settings, Baldur's Gate 3 maintains 66 FPS ultra, and Fortnite reaches 150 FPS in performance mode. The card supports DirectX 12 Ultimate, OpenGL 4.6, and OpenCL 3.0, with compatibility for Windows 10, Windows 11, and Ubuntu 22.04 Linux. This is primarily a 1080p solution; 1440p gaming is possible but not recommended, and demanding titles like Starfield remain unplayable.
- 24 Xe-cores with 384 Intel XMX Engines and 384 Vector Engines
- 8GB GDDR6 memory on 256-bit bus (512 GB/s bandwidth)
- 2000 MHz factory overclock (2400 MHz boost)
- Dual-fan active cooling with full backplate
- 3x DisplayPort 2.0 + 1x HDMI 2.0b connectivity
- 185W TBP with 2x 8-pin power connectors
- Temperature-responsive RGB logo lighting
- Supports Windows 10/11 and Ubuntu 22.04
| Graphics Processor Family | Intel |
| Graphics Processor | Arc A580 |
| GPU Architecture | Xe HPG (ACM-GM10) |
| Render Slices | 6 |
| Xe-cores | 24 |
| Ray Tracing Units | 24 |
| Texture Units (TMUs) | 192 |
| Render Output Units (ROPs) | 96 |
| Intel Xe Matrix Extensions (XMX) Engines | 384 |
| Xe Vector Engines | 384 |
| FP32 ALUs | 3072 |
| Base Clock | 2000 MHz |
| Boost Clock | 2400 MHz |
| Reference Clock | 1700 MHz |
| Discrete Graphics Card Memory | 8 GB |
| Graphics Card Memory Type | GDDR6 |
| Memory Speed | 16 Gbps |
| Memory Bus | 256 bit |
| Memory Bandwidth (Max) | 512 GB/s |
| Interface Type | PCI Express x16 4.0 |
| Display Connections | 3x DisplayPort 2.0, 1x HDMI 2.0b |
| DisplayPort Quantity | 3 |
| DisplayPort Version | 2.0 |
| HDMI Ports Quantity | 1 |
| HDMI Version | 2.0b |
| DirectX Version | 12 Ultimate |
| OpenGL Version | 4.6 |
| OpenCL Version | 3.0 |
| Cooling Type | Active |
| Number of Fans | 2 |
| Backplate | Yes (Full Aluminum) |
| RGB Lighting | Temperature-responsive Sparkle logo (white to red gradient) |
| Power Connectors | 2x 8-pin PCIe |
| Total Board Power (TBP) | 185 W |
| Minimum System Power Supply | 600 W |
| Recommended Power Supply | 650 W |
| Card Length | 223 mm |
| Card Width | 113 mm |
| Card Height | 39.5 mm |
| Card Weight | 738 g |
| Slot Occupancy | 2.2 slots |
| Product Color | Black, Blue, Silver |
| Maximum Resolution | 7680 x 4320 pixels |
| Windows Operating Systems Supported | Windows 10, Windows 11 |
| Linux Operating Systems Supported | Ubuntu 22.04 |
| Video Formats Supported | VP9 |
| 1080p Gaming Performance (Cyberpunk 2077) | ~70 FPS (Ultra), ~80 FPS (High) |
| 1080p Gaming Performance (Baldur's Gate 3) | ~66 FPS (Ultra), ~70 FPS (High) |
| 1080p Gaming Performance (Fortnite) | ~150 FPS (Performance Mode) |
| Performance vs RTX 3050 | ~19% faster at 1080p, ~30% higher power consumption |
